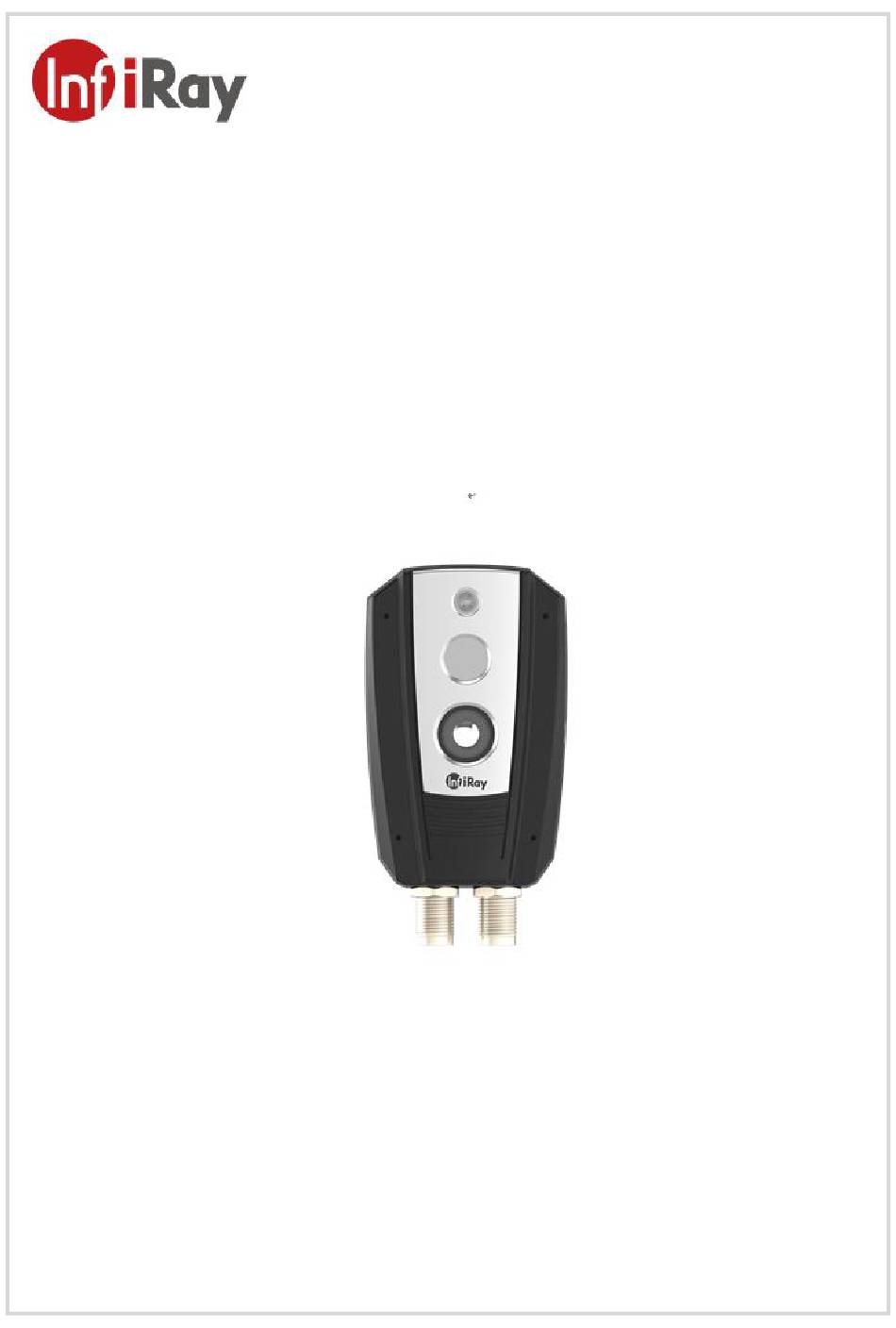

- Page 1 AT30 Online Dual-spectrum Thermal Camera User Manual V1.0.0 IRay Technology Co., Ltd. www.infiray.com...
- Page 2 AT30 Online Dual-spectrum Thermal Camera User Manual Introduction to IRay Technology IRay Technology concentrates on developing infrared thermal imaging technologies and manufacturing relevant products, with completely independent intellectual property rights. IRay is committed to providing global customers with professional and competitive infrared thermal imaging products and solutions. The main products include IRFPA detectors, thermal imaging modules, and terminal thermal cameras and imagers.
-
Page 3: Table Of Contents
AT30 Online Dual-spectrum Thermal Camera User Manual Table of Contents 1.Legal Disclaimer..............................1 1.1 Legal Disclaimer............................1 1.2 Copyright................................ 1 1.3 Quality Assurance............................1 2.Safety Information..............................2 3.Notice to user................................3 3.1 Calibration..............................3 3.2 Accuracy................................. 3 3.3 Video Teaching.............................. 3 3.4 Documentation Update..........................3 4.Product Introduction............................. -
Page 4: Legal Disclaimer
TECHNOLOGY or this warranty will not apply. IRAY TECHNOLOGY will, at its option, repair or replace any such defective product free of charge if, upon inspection, the product or accessories prove to be defective, the user can contact with after-sales service department of IRAY TECHNOLOGY within the said warranty period. -
Page 5: Safety Information
AT30 Online Dual-spectrum Thermal Camera User Manual 2.Safety Information WARNING 1.Before using the cleanser, make sure you read all applicable material safety data sheets (MSDS) and warning labels on cleanser containers. 2.Do not use too long screws when installing the front/rear mounting bracket, which may damage the thermal camera. -
Page 6: Notice To User
AT30 Online Dual-spectrum Thermal Camera User Manual 3.Notice to user 3.1 Calibration Annual calibration to the thermal camera is recommended to ensure the accuracy of temperature measurement, either through IRAY TECHNOLOGY or third-party organizations. 3.2 Accuracy For accurate measurement, it’s recommended that you use the thermal camera after it is stable for 30 minutes. -
Page 7: Product Introduction
AT30 Online Dual-spectrum Thermal Camera User Manual 4.Product Introduction Accurate temperature measurement Support PoE Bi-spectral display Main Features Support multi-protocol access to industrial or IoT systems Multi-functional web client Wi-Fi hotspot Compact size Monitoring power distribution cabinet Typical Applications Monitoring warehouse... -
Page 8: Quick Start Guide
There are two power supply methods for AT30. Connect the device to the PoE port of the power supply through the M12 8-pin adapter cable or connect to the DC power supply through the M12 12-pin adapter cable. -
Page 9: Mechanical Installation
AT30 Online Dual-spectrum Thermal Camera User Manual Table 6.1 Product and Accessories List 7.Mechanical Installation The front and back of the thermal camera are equipped with mounting interfaces, which can be installed with screws after the holes are punched with the auxiliary stickers in the package. In addition, we also provide two optional forms of front and back installation. -
Page 10: Installing Shells With Screws
AT30 Online Dual-spectrum Thermal Camera User Manual 7.1 Installing Shells with Screws As shown in Figure 7.1, please paste the sticker to the position to be installed, and then punch 4 Φ2.5 mounting holes according to the label on the sticker, and use 4 M2 screws to install the front shell. -
Page 11: Rear Mounting
AT30 Online Dual-spectrum Thermal Camera User Manual Figure 7.2 Figure 7.3 Figure 7.4 7.3 Rear Mounting There are four M4 threaded holes on the rear mounting bracket for fixing. Step 1 Install the rear mounting bracket As shown in Figure 7.5, connect the rear mounting bracket and the thermal camera with M2*6 screws. -
Page 12: Alarm Input And Output
AT30 Online Dual-spectrum Thermal Camera User Manual Figure 7.7 8.Alarm Input and Output 8.1 Alarm Input Support 1-ch active alarm input (switch value, photoelectric isolation). 8.2 Alarm Output Support 2-ch alarm outputs (switch value, photoelectric isolation), 3～25VDC, maximum 85mA. -
Page 13: Technical Data
AT30 Online Dual-spectrum Thermal Camera User Manual 9.Technical Data Imaging and Optical Data Resolution 384×288 NETD 40mK Frequency 25Hz Infrared Lens 3.8mm 68.0°×51.8° Focus Focus free Visible Light Pixels 2 MP Visible Light 81°×61° Supplement Light Detector Data Detector Type... - Page 14 AT30 Online Dual-spectrum Thermal Camera User Manual distance, atmospheric temperature, emissivity, Environment Variable Correction reflection temperature, atmospheric transmittance Alarm The highest temperature, lowest temperature and average temperature in all temperature Alarm Function measurement points, temperature measurement areas and lines can be configured with separate alarm outputs.
- Page 15 AT30 Online Dual-spectrum Thermal Camera User Manual Image transmission Image Stream Format H.264/H.265 visible light 1600×1200; Resolution infrared 384×288, support super Image resolution up to Max. 1024×768 Stream thermal image, visual image, fusion, Image Mode DDE, and parallel display of visual images are supported.
- Page 16 AT30 Online Dual-spectrum Thermal Camera User Manual Typical Power Supply 12～30V DC External Power IEEE 802.3af Power Consumption ≤2W Environmental Data Encapsulation IP67 Operating Temperature Range -10～50℃ Storage Temperature Range -40～70℃ Humidity ≤95% (no condensation) IEC 61000-4-2(anti-interference) IEC 61000-4-3(anti-radiation) Shock...
- Page 17 AT30 Online Dual-spectrum Thermal Camera User Manual Physical Data Dimension 109×58×31mm Weight 191g Front shell is plastic and rear shell is Housing Material aluminum alloy. Others Certification CE/FCC/RoHS Cross-platform SDK for secondary development. M12, Type A ,8-pin, including 10M / 100M...
-
Page 18: Pin Configuration For Interfaces
AT30 Online Dual-spectrum Thermal Camera User Manual 10.Pin Configuration for Interfaces 10.1 Ethernet Pin Configuration (8pin) Configuration Configuration... -
Page 19: Power Pin Configuration (12Pin)
AT30 Online Dual-spectrum Thermal Camera User Manual 10.2 Power Pin Configuration (12pin) Configuration Configuration Power + ALARM POWER2 Power + ALARM OUT2 Power Ground ALARM IN+ Power Ground ALARM IN- ALARM_POWER1 ALARM_OUT1 Video... -
Page 20: Mechanical Drawings
AT30 Online Dual-spectrum Thermal Camera User Manual 11.Mechanical Drawings... -
Page 21: Common Troubleshooting
AT30 Online Dual-spectrum Thermal Camera User Manual 12.Common Troubleshooting Troubles Possible Cause Solutions The supply voltage Check whether the power exceeds the normal supply voltage is between 12 working supply voltage Camera cannot be and 30V range. started. The power connector is Check whether the power cable loose. -
Page 22: Cleaning Thermal Camera
AT30 Online Dual-spectrum Thermal Camera User Manual 13.Cleaning Thermal Camera 13.1 Cleaning Camera Housing, Cables and Other Items Camera Housing, Cables and Other Items One of the following liquids can be used. Liquids 1.Warm water 2. Neutral detergent solution Cleaning Tools... -
Page 23: Cleaning Infrared Lens
AT30 Online Dual-spectrum Thermal Camera User Manual 13.2 Cleaning Infrared Lens Cleaning Infrared Lens One of the following liquids can be used. 1.Commercial lens cleaning liquid with more than 30% is Liquids opropyl alcohol. 2.96% ethyl alcohol(C OH). Cleaning Tools... -
Page 24: Appendix A Emissivity Of Common Materials
AT30 Online Dual-spectrum Thermal Camera User Manual Appendix A Emissivity of Common Materials Temperature（℃） Material Emissivity Water 0～100 0.95～0.98 Soil(dry) 0.92 Soil(wet) 0.95 Woods 0.962 Sand Sandstone 0.909～0.935 PVC plastic 0.93 Asphalt 0.967 Paint 0.92～0.94 Wallpaper 0.85～0.90 Cloth 0.98 Concrete 0.92... - Page 25 AT30 Online Dual-spectrum Thermal Camera User Manual Worth comes from Service Technical Support Hotline： 24h Hotline: 400-883-0800 400-998-3088 Customized Services...
