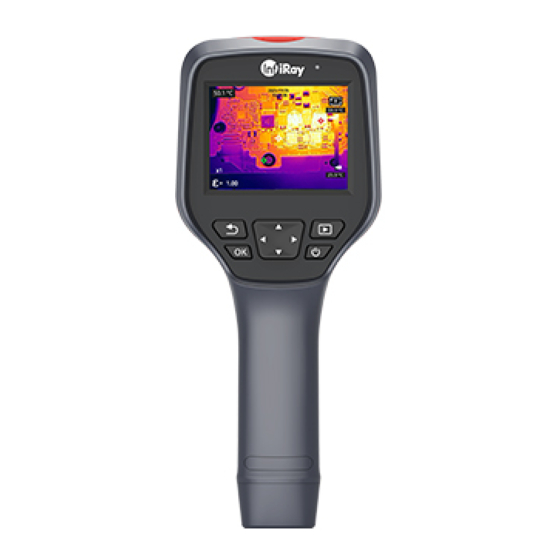

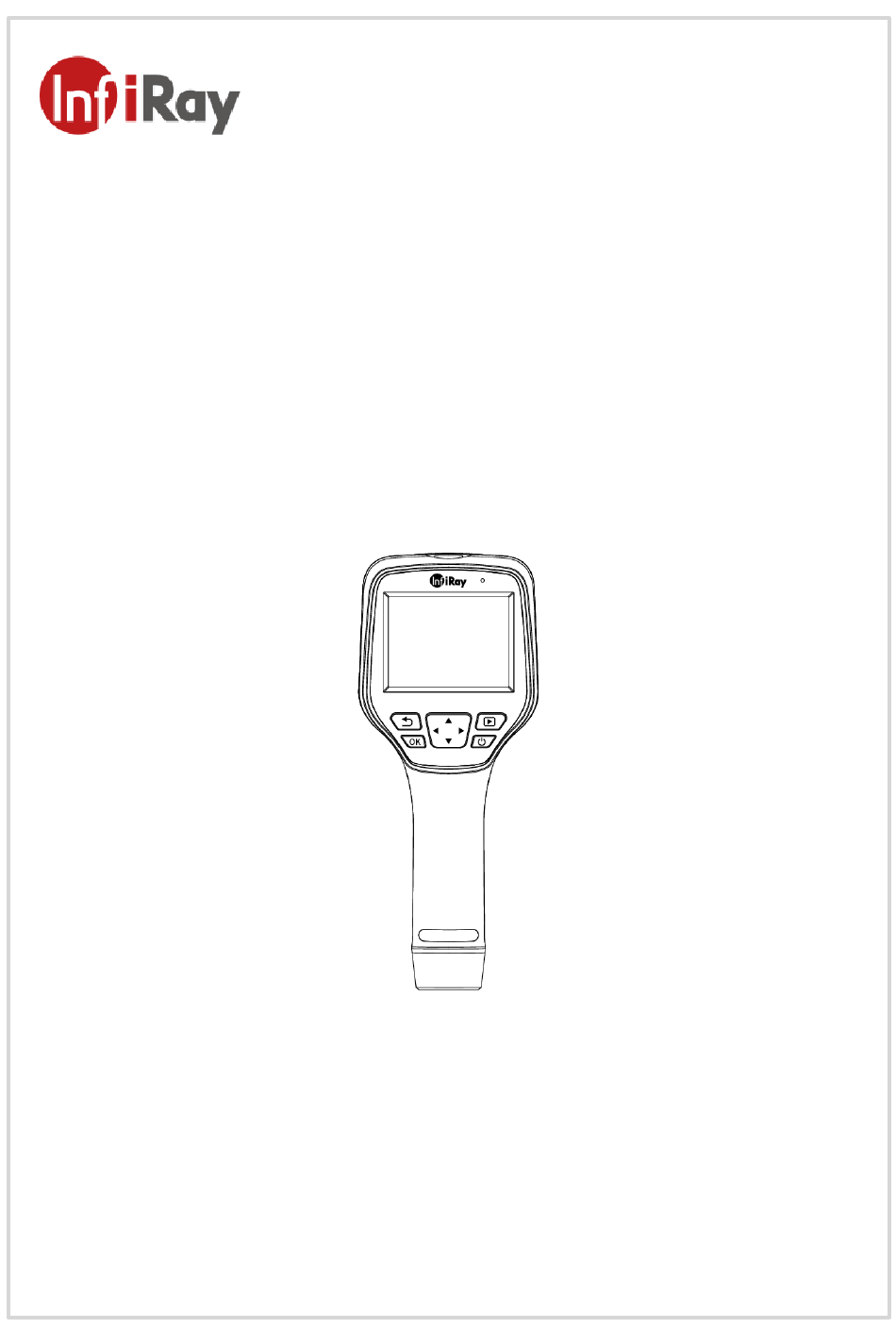

- Page 1 M200 Series Handheld Thermal Camera User Manual V1.0.1 IRay Technology Co., Ltd. www.infiray.com...
- Page 2 Introduction to IRay Technology IRay Technology Co., Ltd. concentrates on developing infrared thermal imaging technologies and manufacturing relevant products, with completely independent intellectual property rights. IRay is committed to providing global customers with professional and competitive infrared thermal imaging products and solutions. The main products include IRFPA detectors, thermal imaging modules, and terminal thermal imaging products.
- Page 3 Tianxuan M Series Handheld Thermal Camera ·User Manual ©IRay Technology Co., Ltd. 2021 Reserve all the right. All in this manual including texts, pictures, diagrams and other contents belong to IRay Technology Co., Ltd (Hereinafter referred to as “Our company” or “IRay Photoelectric”). Without the written permission, no one shall copy, photocopy, translate or disseminate all or part of this manual.
-
Page 4: Table Of Contents
Tianxuan M Series Handheld Thermal Camera ·User Manual Table of Contents Notices to the User ..........................4 1.1 Calibration ............................4 1.2 Accuracy ............................4 1.3 Manual Update ..........................4 1.4 Scope of Application ........................4 Quick Start Guide ..........................4 Product Introduction ........................... - Page 5 Tianxuan M Series Handheld Thermal Camera ·User Manual 4.12.5 Automatic Power-off ......................14 4.12.6 Dual-spectrum Alignment ....................14 4.12.7 System Settings ........................ 15 Structural Drawings ..........................16 Important Notices ..........................17 Support and Service ..........................17 7.1 Technical Supports ........................17 7.2 After-sales Services ........................
-
Page 6: Notices To The User
Tianxuan M Series Handheld Thermal Camera ·User Manual Notices to the User 1.1 Calibration We recommend that you conduct calibration once a year. 1.2 Accuracy For very accurate results, we recommend that you wait 5 minutes after you have started the camera before measuring a temperature. - Page 7 Tianxuan M Series Handheld Thermal Camera ·User Manual 5. Analysis by PC Software Run the client after downloading the software to PC, and then use a USB cable or SD card to import data for further analysis. Note: please import the files naming XX-IR.jpg (Infrared images with temperature data) and files naming XX-DC.jpg (visible images) together.
-
Page 8: Product Introduction
Tianxuan M Series Handheld Thermal Camera ·User Manual Product Introduction 3.1 Camera（ View from the front） Figure 3.1 Component Introduction of M200A Component Introduction Digital Camera Infrared Lens Laser Pointer Trigger... -
Page 9: Buttons（View From The Rear
Tianxuan M Series Handheld Thermal Camera ·User Manual 3.2 Buttons（View from the rear） Figure3.2 Introduction to Buttons Component Introduction Touch screen Gallery button Press to open the gallery. Long press to perform image uniformity correction. Long press to perform manual shutter. Navigation button Make selections for the menu, settings, gallery by clicking up/down/left/right. -
Page 10: Connector And Memory Card
Tianxuan M Series Handheld Thermal Camera ·User Manual 3.3 Connector and Memory Card Figure3.3 Illustration of Connector and Memory Card Component Introduction USB Interface Connect a USB cable with the power adapter for charging. Connect a USB cable to a computer to charge or transfer data. SD Card ... -
Page 11: User Interface
Tianxuan M Series Handheld Thermal Camera ·User Manual 3.4 User Interface Figure3.4 User Interface Interface Introduction Main Menu: measurement parameters, measurement mode, image mode, color palettes and other settings can be set. Sub Menu: specific options can be set, such as a specific color palette. Temperature measurement spot: measurements of center spot, high/low temperature spot tracking, custom spot, custom line, custom region measurement are available. -
Page 12: Operation Instruction
Tianxuan M Series Handheld Thermal Camera ·User Manual Operation Instruction 4.1 Charging 4.1.1 Charge with a Power Adapter 1. Plug the power adapter into the socket. 2. Use a USB cable to connect the adapter and the camera to charge. Note：It takes about 3h to get the device fully charged. -
Page 13: View Photos/Videos
Tianxuan M Series Handheld Thermal Camera ·User Manual 4.4 View Photos/Videos The pictures you took are saved in the SD card, and you can follow the below steps to view them at any time. 1. Enter the image archive by clicking gallery button. 2. -
Page 14: Palettes
Tianxuan M Series Handheld Thermal Camera ·User Manual result, especially when the object emissivity is low or the object temperature and the reflection temperature differ greatly, this effect will increase. So the result needs to be compensated to eliminate influences of the surface reflection temperature. However, it is usually difficult to determine the reflected temperature of an object. -
Page 15: Non-Uniformity Correction
Tianxuan M Series Handheld Thermal Camera ·User Manual 4.9 Non-uniformity Correction 4.9.1 Non-uniformity Correction Introduction Non-uniformity correction is used to compensate for non-uniformity of detector pixels or non-uniformity caused by other optical interference. When there is more noise in the image, non-uniformity correction is needed, which is common when the ambient temperature changes rapidly. -
Page 16: Above/Below Alarm
Tianxuan M Series Handheld Thermal Camera ·User Manual 4.12.2 Above/Below Alarm Temperature alarm setting for M200A: set the above alarm or below alarm Auto alarm capture switch: click to turn on or turn off the auto alarm capture ... -
Page 17: System Settings
Tianxuan M Series Handheld Thermal Camera ·User Manual by dragging the infrared image up-down or left-right with fingers. Picture-in-picture Adjustment This function can be used to adjust the position of the picture-in-picture. First select coarse tuning and fine tuning, and then adjust the position of the picture-in-picture by the touch screen or navigation keys. When finished, click OK or enter button to save the settings. -
Page 18: Structural Drawings
Tianxuan M Series Handheld Thermal Camera ·User Manual Structural Drawings Figure5.1 Structural Drawings for M200A... -
Page 19: Important Notices
System training can be carried out for users' technical staff and operators. 7.2 After-sales Services M200 series handheld thermal cameras, developed by our company, are guaranteed of good after-sales service for device maintenance and repair. If you have any request, please contact us. - Page 20 Tianxuan M Series Handheld Thermal Camera ·User Manual FCC Warning § 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 21 Tianxuan M Series Handheld Thermal Camera ·User Manual Worth comes from Service Technical Support Hotline： 24h Hotline: 400-883-0800 400-998-3088 Customized Services...
