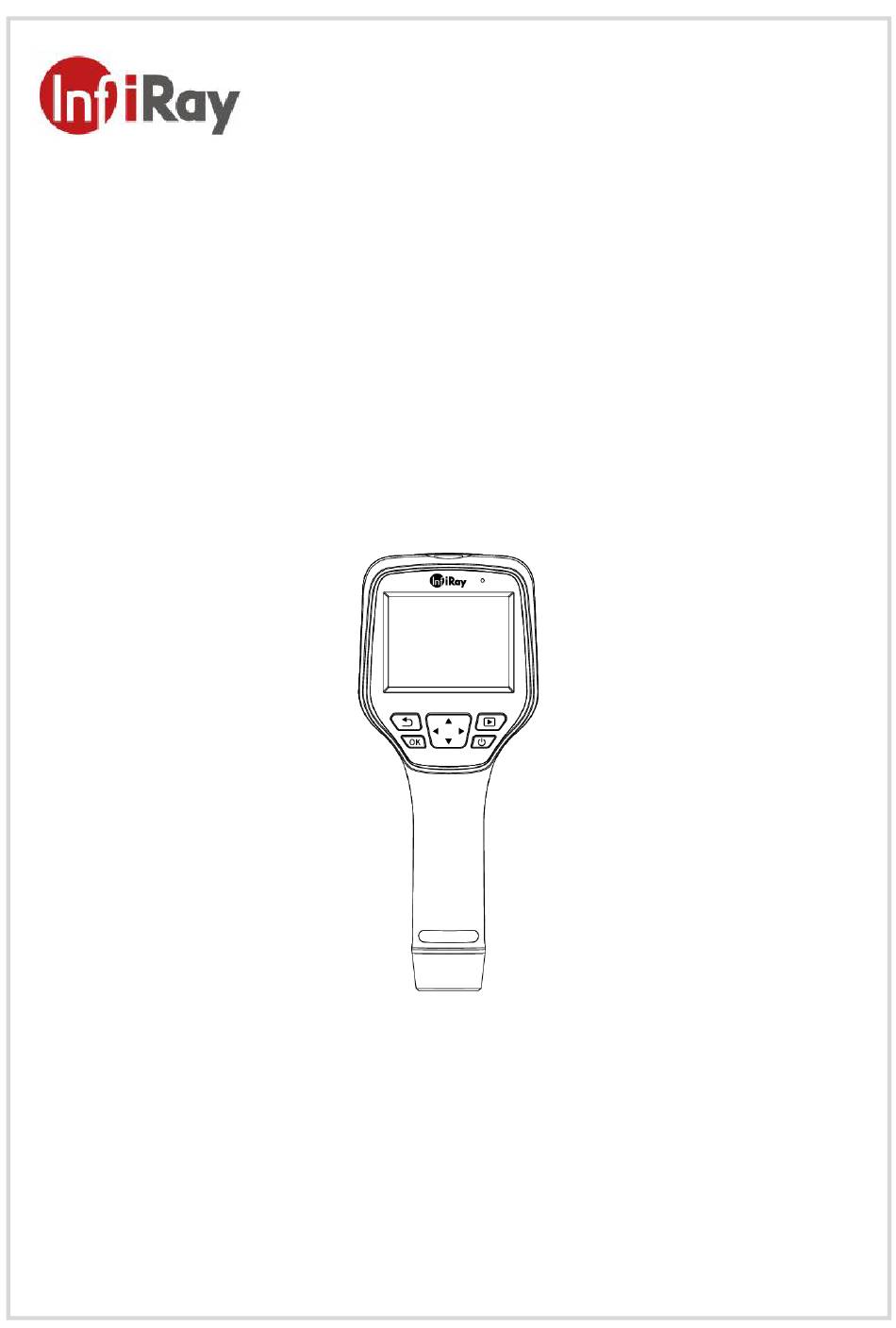

- Page 1 M200 Series Handheld Thermal Camera User Manual V1.0.8 IRay Technology Co., Ltd. www.infiray.com...
- Page 2 Introduction to IRay Technology IRay Technology Co., Ltd. concentrates on developing infrared thermal imaging technologies and manufacturing relevant products, with completely independent intellectual property rights. IRay is committed to providing global customers with professional and competitive infrared thermal imaging products and solutions. The main products include IRFPA detectors, thermal imaging modules, and terminal thermal imaging products.
-
Page 3: Table Of Contents
M200 Series Handheld Thermal Camera ·User Manual Table of Contents 1.Legal Disclaimer ............................3 1.1 Legal Disclaimer ..........................3 1.2 Copyright ............................3 1.3 Quality Assurance ..........................3 2.Safety Information .............................4 3.Notice to user ............................6 3.1 Calibration ............................6 3.2 Accuracy ............................6 3.3 Video Teaching .......................... - Page 4 M200 Series Handheld Thermal Camera ·User Manual 9.9.1 Image Mode Introduction ..................... 17 9.9.2 Setting Steps ........................17 9.10 Non-uniformity Correction ......................17 9.10.1 Non-uniformity Correction Introduction ................17 9.10.2 Non-uniformity Correction Operations ................18 9.11 Contrast Adjustment ........................18 9.12 Digital Zoom ..........................18 9.13 Other Settings ..........................18...
-
Page 5: Legal Disclaimer
TECHNOLOGY or this warranty will not apply. IRAY TECHNOLOGY will, at its option, repair or replace any such defective product free of charge if, upon inspection, the product or accessories prove to be defective, the user can contact with after-sales service department of IRAY TECHNOLOGY within the said warranty period. -
Page 6: Safety Information
M200 Series Handheld Thermal Camera ·User Manual 2.Safety Information WARNING 1. Make sure you read all applicable Material Safety Data Sheets (SDS) and warning labels on containers before you use a liquid. The liquids can be dangerous. Injury to persons can occur. - Page 7 M200 Series Handheld Thermal Camera ·User Manual WARNING Applicability: Digital devices subject to 15.21. NOTICE: Changes or modifications made to this equipment not expressly approved by InfiRay may void the FCC authorization to operate this equipment. CAUTION 1. No matter there is a lens cover or not, do not point the infrared thermal camera towards strong light or equipment with laser radiation.
-
Page 8: Notice To User
M200 Series Handheld Thermal Camera ·User Manual 3.Notice to user 3.1 Calibration IRAY TECHNOLOGY recommends that you verify your calibration yearly in order to ensure accuracy. You can verify the calibration through IRAY TECHNOLOGY or third-party organizations. 3.2 Accuracy For very accurate results, we recommended that you wait 5 minutes after you have started the camera before measuring a temperature. -
Page 9: Comparison Of Functions For Different Models
M200 Series Handheld Thermal Camera ·User Manual Video Teaching Courses 5.Comparison of Functions for Different Models Function M200A M200F IR Resolution 256×192 256×192 Visual 200W 500W Resolution 3.5 inch touch screen 3.5 inch touch screen Display (480×640) (480×640) NETD... -
Page 10: Product Introduction
M200 Series Handheld Thermal Camera ·User Manual 6.Product Introduction 6.1 Camera（ View from the front） Figure 6.1 Component Introduction of M200A Component Introduction Digital Camera Infrared Lens Laser Pointer Trigger Note: the laser warning label is stuck on the lens cap. - Page 11 M200 Series Handheld Thermal Camera ·User Manual Figure6.2 Component Introduction of M200F Component Introduction Digital camera Infrared lens Laser pointer Trigger Note: Do not touch the static-sensitive areas around the lens.
-

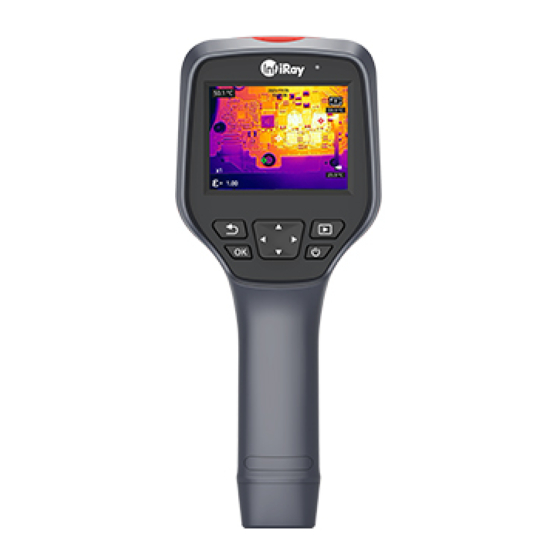

Page 12: Buttons（View From The Rear
M200 Series Handheld Thermal Camera ·User Manual 6.2 Buttons（View from the rear） Figure6.3 Introduction to Buttons Component Introduction Touch screen Gallery button Press to open the gallery. Long press to perform image uniformity correction. Long press to perform manual shutter. -
Page 13: Connector And Memory Card
M200 Series Handheld Thermal Camera ·User Manual 6.3 Connector and Memory Card Figure6.4 Illustration of Connector and Memory Card Component Introduction USB Interface Connect a USB cable with the power adapter for charging. Connect a USB cable to a computer to charge or transfer data. -
Page 14: Quick Start Guide
M200 Series Handheld Thermal Camera ·User Manual 7.Quick Start Guide Steps to Start: 1.Charging 5V 1A or 5V 2A power adapter and USB cable can be used to charge the device. You can charge the device by connecting the USB cable in the accessory to the computer. -
Page 15: User Interface
M200 Series Handheld Thermal Camera ·User Manual 8. User Interface Figure8.1 User Interface Interface Introduction Main Menu: measurement parameters, measurement mode, image mode, color palettes and other settings can be set. Sub Menu: specific options can be set, such as a specific color palette. -
Page 16: Operation Instruction
M200 Series Handheld Thermal Camera ·User Manual 9.Operation Instruction 9.1 Charging 9.1.1 Charge with a Power Adapter 1. Plug the power adapter into the socket. 2. Use a USB cable to connect the adapter and the camera to charge. Note：It takes about 3h to get the device fully charged. -
Page 17: Image Capturing/Video Recording
M200 Series Handheld Thermal Camera ·User Manual Figure 9.1 Focus Adjustment through Focus Ring 9.4 Image Capturing/Video Recording 1. In the observation interface, adjust the focus ring (Only M200F has focus ring) till the image is clear. Short press the trigger button to take the photo. Long press the trigger button to start recording video, and finish recording by releasing the trigger button. -
Page 18: Measurement Mode
M200 Series Handheld Thermal Camera ·User Manual select the image or video to be deleted, and delete the selected items by pressing the delete button. 5. Return to observation interface by clicking the gallery button, back button or touching the screen. -
Page 19: Palettes
M200 Series Handheld Thermal Camera ·User Manual 9.8 Palettes In the observation interface, short press OK to enter the main menu, and select "palette setting" with the navigation button. Press OK again to enter the sub menu, select different palettes by shifting left and right on the navigation button, and then press the enter button to save your option. -
Page 20: Non-Uniformity Correction Operations
M200 Series Handheld Thermal Camera ·User Manual 9.10.2 Non-uniformity Correction Operations In the imaging interface, long press the back button or the gallery button to perform non-uniformity correction. 9.11 Contrast Adjustment In the observation interface, the contrast of the infrared image can by adjusted by sliding up and down the arrow button on the "temperature range "... -
Page 21: Wi-Fi Setting
M200 Series Handheld Thermal Camera ·User Manual Set number of captured images for auto alarm capture 9.13.3 Wi-Fi Setting Click and enter WiFi setting interface. Hotspot Switch: turn on hotspot and set the network name and password, then click OK. -
Page 22: System Settings
M200 Series Handheld Thermal Camera ·User Manual This function can be used to adjust the position of the picture-in-picture. First select coarse tuning and fine tuning, and then adjust the position of the picture-in-picture by the touch screen or navigation keys. When finished, click OK or enter button to save the settings. -
Page 23: Structural Drawings
M200 Series Handheld Thermal Camera ·User Manual 10.Structural Drawings Figure10.1 Structural Drawings for M200A... - Page 24 M200 Series Handheld Thermal Camera ·User Manual Figure 10.2 Structural Drawings for M200F...
-
Page 25: Faq
M200 Series Handheld Thermal Camera ·User Manual 11.FAQ 1.The dual-spectrum fusion can not be used properly. Possible cause: the dual-spectrum fusion has not been adjusted for targets of different distances. Solution: the dual-spectrum alignment can be adjusted by fine tuning or coarse tuning through the navigation bar. -
Page 26: Cleaning Thermal Camera
M200 Series Handheld Thermal Camera ·User Manual 12.Cleaning Thermal Camera 12.1 Cleaning Camera Housing, Cables and Other Items Camera Housing, Cables and Other Items One of the following liquids can be used. Liquids 1.Warm water 2.A Weak detergent solution Cleaning Tools... - Page 27 M200 Series Handheld Thermal Camera ·User Manual Please follow this procedure: 1.Soak the cotton wool in the liquid. Cleaning Procedure 2.Twist the cotton wool to remove the excess liquid. 3. Clean the lens one time only and discard the cotton wool.
- Page 28 M200 Series Handheld Thermal Camera ·User Manual Worth comes from Service Technical Support Hotline： 24h Hotline: 400-883-0800 400-998-3088 Customized Services...
