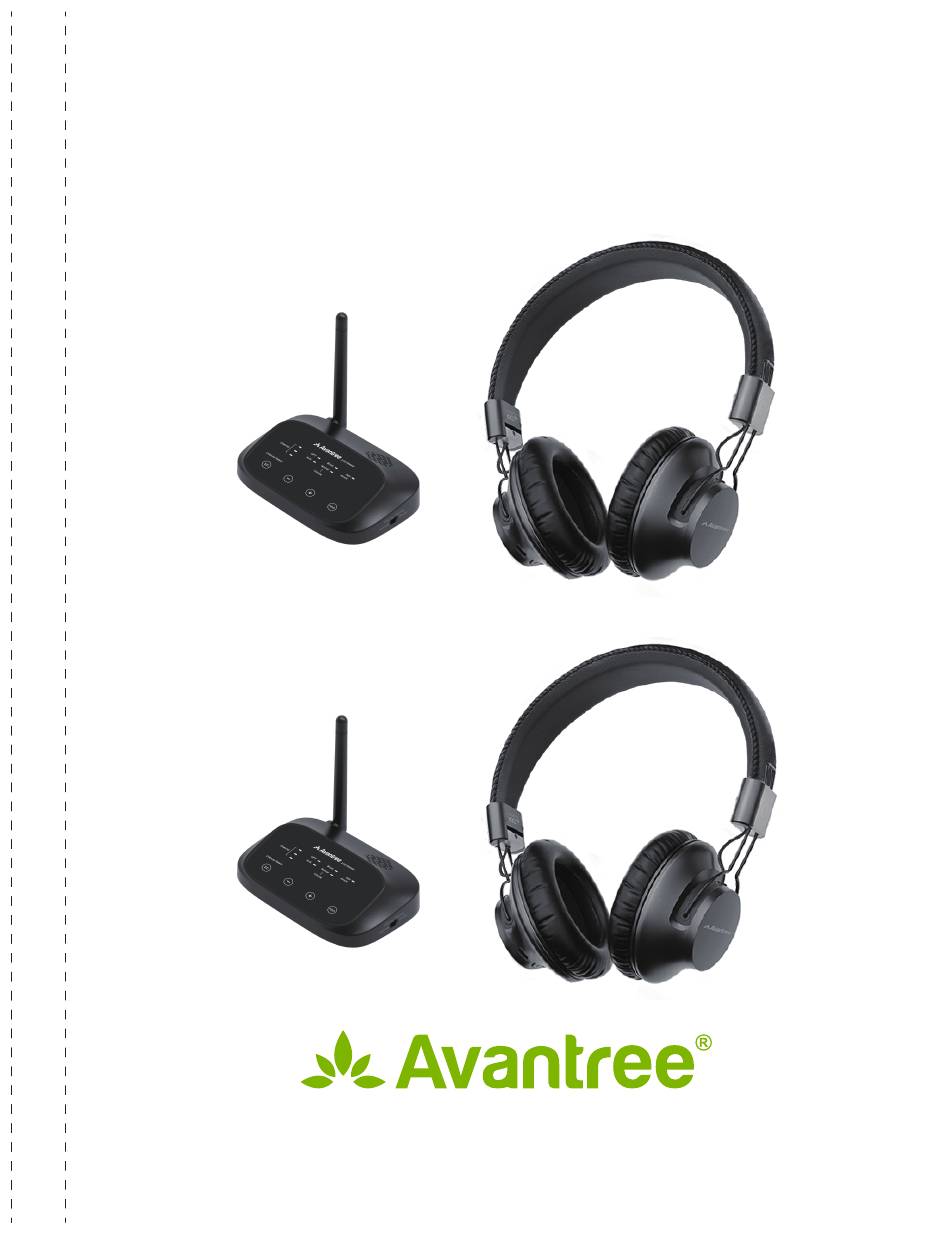

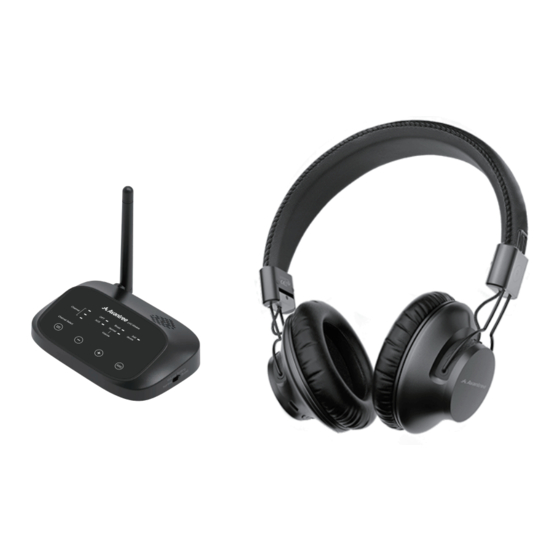

- Page 1 Avantree Shift USER MANUAL Model No.: WSHT-5599...
- Page 3 User Manual SHIFT User Manual Bedienungsanleitung Guide de démarrage rapide Guida di avvio rapido Guía de inicio rápido...
- Page 4 User Manual SHIFT Video Guide Prefer to watch a video tutorial? Scan the QR code below or visit avantree.com/shift/video for a step-by-step guide. Book an Appointment You can also book a 1-on-1 setup appointment with one of our support agents at...
-
Page 5: Table Of Contents
User Manual SHIFT Table of Contents Box Contents Product Introduction (Headphones) Product Overview Button Functions LED Indicators Product Introduction (Transmitters) Product Overview Button Functions LED Indicators Setup Connecting Transmitter 1 to Your TV Option 1 - Optical port (recommended) Option 2 - AUX 3.5mm port... -
Page 6: Box Contents
BLUE channel Defaulted to GREEN channel 2 Power Cables 2 Optical Audio Cables for Transmitters 2-in-1 USB C Charging AUX 3.5mm to AUX 3.5mm Audio Cable Cable for Headphones RCA Adapter To view and purchase Shift accessories, please visit avantree.com/shift/accessories... -
Page 7: Product Introduction (Headphones)
User Manual SHIFT Product Introduction (Headphones) Product Overview OFF / ON / Channel / Pair Charging port LED indicator EQ mode button Button Functions No. Button Function Switch to turn the headphones on / o Switch to "CHANNEL" position once to swap between channels Hold in "PAIR"... -
Page 8: Led Indicators
Entering blue / green / white channel (the white channel only activates after Flashing blue / green / white pairing to a third Shift transmitter) Connected to blue / green / white Solid blue / green / white light channel... -
Page 9: Product Introduction (Transmitters)
SHIFT User Manual Product Introduction (Transmitters) Product Overview Indicators ON / OFF Volume mode BOOST DEVICE NORMAL CHANNEL switch VOLUME CHANNEL SELECT Channel swap button Pair button to add new headphones Volume control buttons Power port... -
Page 10: Button Functions
Switch to turn the transmitter on / o Channel Select Press once to swap between 3 channels Press once to adjust volume Press & hold for 5 seconds to add more Shift-Extra headphones Volume Setting Switch between normal and boosted volume modes... -
Page 11: Setup
User Manual Setup The Shift comes with 2 transmitters: Transmitter 1 is set to the BLUE channel by default, while Transmitter 2 is set to the GREEN channel by default. They must both be connected to a power source via the provided power cables in order to function. -
Page 12: Option 2 - Aux 3.5Mm Port
SHIFT User Manual OPTION 2 - AUX 3.5mm port Plug the provided AUX 3.5mm audio cable into the TV’s AUX 3.5mm output port, then plug the other end into the transmitter’s AUX 3.5mm port in the “INPUT FROM TV” section. -
Page 13: Connecting Transmitter 2 To Your Tv
Repeat the steps above to connect Transmitter 2 to another TV. Connecting the Headphones to Transmitters Shift headphones and transmitters connect via 3 di erent channels (blue / green / white -- the white channel will only activate after pairing to a third Shift transmitter). - Page 14 SHIFT User Manual STEP 2 On your headphones, slide the switch to the ON position. The channel indicator should ash BLUE. If not, slide the switch to the CHANNEL position once or twice to switch to the blue channel. Once both the headphones & transmitter are on the same channel, they will automatically connect, and both channel indicators will turn solid BLUE.
-
Page 15: Setting Up Your Tv (For Optical Connections Only)
SHIFT User Manual Setting Up Your TV (For optical connections only) If you connected to your TV via the optical OUT or “OPT OUT” port, you’ll need to con gure your TV settings before you’ll receive audio. STEP 1 Using your TV’s remote control, press the SETTINGS button and navigate to the AUDIO tab within the settings menu. -
Page 16: Advanced Features
User Manual Advanced Features Listening with a Soundbar The Shift’s pass-through function allows you to listen through both the headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Plug an additional optical, 3.5mm AUX, or RCA audio cable into the correlating audio port in the transmitter’s “BYPASS / SPEAKER”... -
Page 17: Adding More Headphones
BLUE. Hold for 5s NOTE: Any new Shift-Extra headphones should be paired and connected via the BLUE channel. Once connected to the system, they can freely swap to other channels. - Page 18 SHIFT User Manual STEP 3 Switch the channel on both the transmitter and Shift-Extra headphones to the channel you used before. Repeat these steps to add more headphones if needed. To purchase extra Shift headphones, scan the QR code.
-
Page 19: Adding A Third Transmitter
SHIFT User Manual Adding a Third Transmitter You can add a third Shift transmitter to your setup if you have an additional TV. STEPS 1-3 Please reference page 15. STEP 4 Switch the channel on both the third transmitter and the headphones to the WHITE channel. -
Page 20: Charging The Headphones
SHIFT User Manual Charging the Headphones Charge the headphones using the provided USB C charging cable and a 5V/500mA-2A rated USB adapter (your phone charger or similar should work). A solid red light indicates that charging is in progress; once the light turns o , your headphones will be at full battery. -
Page 21: Speci Cations
SHIFT User Manual Speci cations Transmitters & Headphones Carrier frequency 2.4GHz Frequency response 20Hz - 20KHz Operating range Up to 100ft / 30m Headphones Battery life Up to 20 hours Time to full charge 3 hours Distortion 0.5% Signal to noise ratio... -
Page 22: Faq
Why aren’t I getting sound when watching Net ix / Amazon Prime? Why aren’t my headphones connecting to the transmitter? …… For answers to questions like these and for a full FAQ list, you can visit avantree.com/support/shift, or you can contact us directly for additional assistance. -
Page 23: Contact Us
User Manual SHIFT Contact Us Support Tickets avantree.com/submit-a-ticket Support Email support@avantree.com USA / CA +1800 232 2078 (9am-6pm PST, Mon-Fri ) +44 20 8068 2023 (9am-6pm, GMT, Mon-Sat) +49 32221097297 (11am-9pm, CET, Mon-Sat ) + 33 176340312 (11am-9pm, CET, Mon-Sat ) - Page 24 UK Importer: Avantree Limited Watford, WD180 0HQ UK Servicer in Europe: Gizmex GmbH, Sternstr. 67, 40479 Dusseldorf, Germany Tel: 01 – 408 334 8648 support@avantree.com Model No:WSHT-5599 Dispose of the packaging and this product in accordance with the latest provisions. Z-PKQG-HT5599-V0...
