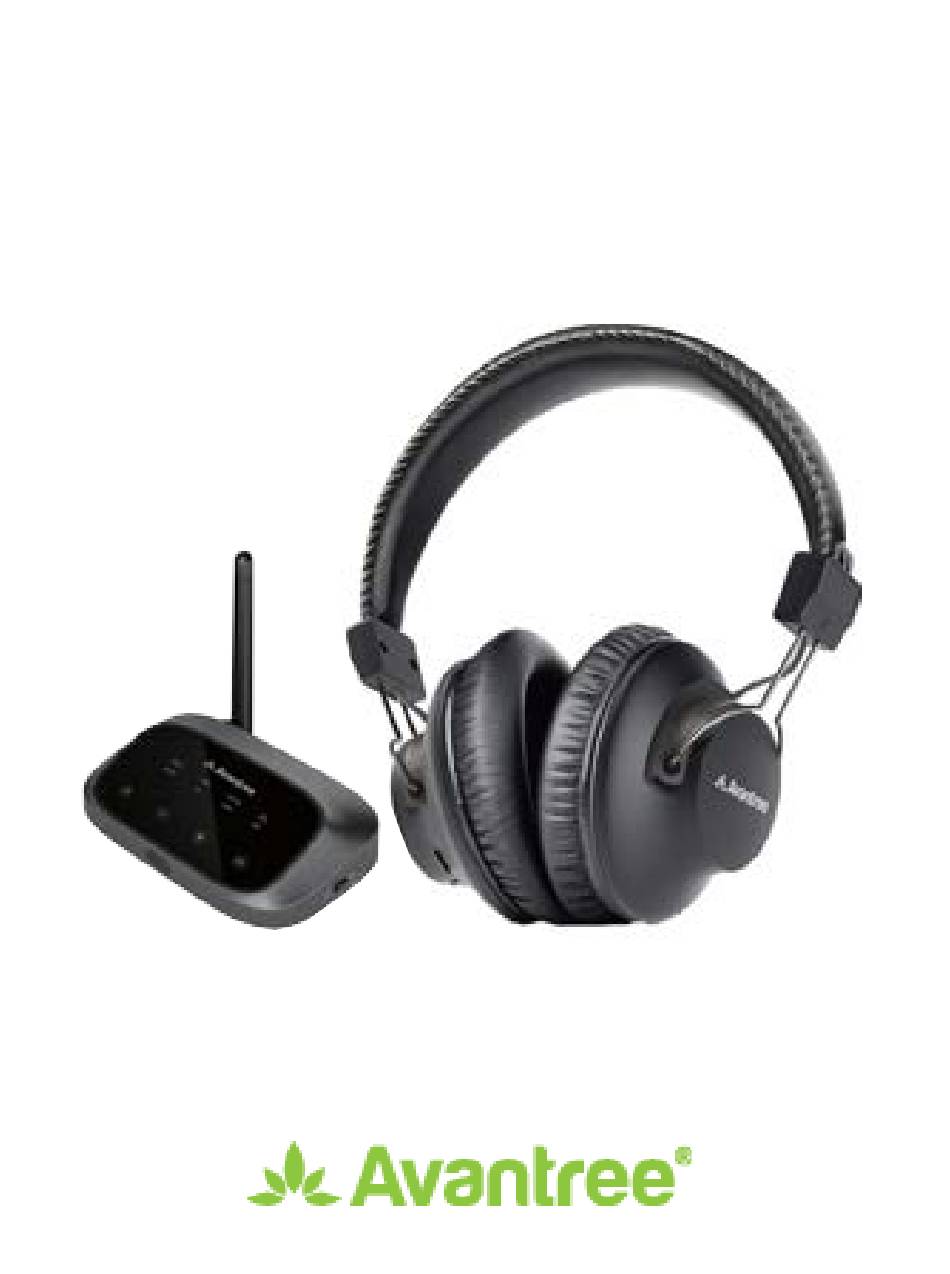

- Page 1 HT5009P User Manual Model No.: BTHT-5009P...
-
Page 2: Table Of Contents
User Manual HT5009P Table of Contents Box Contents � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 Product Introduction (Headphones)�... -
Page 3: Box Contents
User Manual HT5009P Box Contents Headphones Transmitter Charging Dock Power Cable for Charging Cable for Optical Audio Cable Transmitter Headphones AUX 3.5mm Audio Cable... -
Page 4: Product Introduction (Headphones)
User Manual HT5009P Product Introduction (Headphones) Product Overview OFF / ON / PAIR Reconnect / Mute LED indicator EQ mode button Button Functions Button Functions Switch to “ON / OFF” position to turn the headphones on / off Hold in “PAIR” position for 3 seconds to enter pairing mode ... -
Page 5: Led Indicators
User Manual HT5009P LED Indicators Status LED Indicator Voice Prompt Welcome to Power ON Solid blue for 1 second Avantree Solid red for 2 seconds, Goodbye Power OFF then off Pairing Flashing red & blue Pairing Connected Solid blue Connected... -
Page 6: Product Introduction (Transmitter)
User Manual HT5009P Product Introduction (Transmitter) Product Overview ～ LED indicators TV/AVR Switch OP T APT X ON / OFF AU X Pairing button for Pairing button for 2nd 1st headphones pair of headphones Volume control buttons Power Port Output To Speaker... -
Page 7: Button Functions
User Manual HT5009P Button Functions Button Function Switch to turn the transmitter on / off Switch to TV/AVR mode while connecting via AUX cable AUX only Press & hold for 2 seconds to enter pairing mode Press once to adjust volume Press &... -
Page 8: Setting Up
User Manual HT5009P Setting Up Connecting to Your TV The transmitter must be connected to a power source via the provided power cable in order to function. Plug the transmitter into either: A TV’s USB power port (we recommend this so that they auto power ON / OFF in tandem with your TV), OR A nearby wall outlet - 5V / 500mA-2A rated USB charger (e.g. - Page 9 User Manual HT5009P NOTE: Most TVs support audio output through only one digital output port at a time, so if your TV’s HDMI ARC port is in use, the optical port may be disabled. You can either unplug the HDMI ARC, or try connecting the transmitter via RCA / AUX.
-
Page 10: Connecting The Headphones To The Transmitter
User Manual HT5009P RCA port OPTION 3 Connect the provided RCA adapter to the AUX 3.5mm audio cable. Plug the red & white RCA connectors into the TV’s “AUDIO OUT” ports, then plug the other end into the transmitter’s AUX 3.5mm port in the “INPUT FROM TV” section. -
Page 11: Setting Up Your Tv(For Optical Connections Olny)
User Manual HT5009P STEP 3 Keep the headphones close to the transmitter; they should connect within 3-5 seconds. Once connected, the headphones’ LED indicator will turn solid blue, while the “1” indicator on the transmitter will turn solid white. Solid white... - Page 12 Audio Format Dolby - OFF If you’re having trouble finding these settings, you can scan the QR code correlating to your TV’s brand OR visit avantree.com/5009p/tv-audio-settings for a more detailed guide. Sony Samsung NOTE 1: Smart TVs automatically reset their settings after system updates.
-
Page 13: Charging The Headphones
User Manual HT5009P Charging the Headphones OPTION 1 Place the headphones on the charging dock to charge, and make sure that the headphones’ left side is on the charging dock’s left side, otherwise, it won’t charge. The charging dock’s LED will turn red while charging and off once charging is complete. -
Page 14: Advanced Features
HT5009P Advanced Features Listening with a Soundbar The HT5009P’s pass-through function allows you to listen through both the headphones and an external soundbar / stereo AVR simultaneously. STEP 1 Plug an additional optical, 3.5mm AUX, or RCA audio cable into the correlating audio port in the transmitter’s “BYPASS / SPEAKER”... -
Page 15: Adding A Second Pair Of Headphones
LED indicator flashes white and green. STEP 3 Turn on your second pair of Avantree AS19 headphones, then slide & hold the switch to the PAIR position until the LED indicator flashes red & blue. hold for 3s... -
Page 16: Using The Headphones With Your Phone/Tablet
STEP 2 Turn on the headphones, then slide & hold the switch to the PAIR position until the LED indicator flashes red & blue. STEP 3 Turn on your audio source’s Bluetooth and select “Avantree AS19 “ from the Bluetooth menu. -
Page 17: Specifications
NOTE: The headphones are factory locked with the transmitter, so they won’t automatically reconnect to your phone / tablet. For subsequent use, you can either slide the switch to the PAIR position once, or select “Avantree AS19” from your phone / tablet’s Bluetooth menu. Specifications Transmitter Bluetooth version v5.3... -
Page 18: Faq
This completely depends on whether or not your TV supports the ability to output audio to 2 devices simultaneously. You can try a few different methods to test if your TV is capable of this or not -- please refer to avantree. com/HT5009P/sound for more details. - Page 19 FR +33 17 634 0312 11am-9pm CET Mon-Sat +39 069 4803 330 9am-6pm CET Mon-Sat +34 93 1786 261 9am-6pm CET Mon-Sat AU +61 2 8310 9897 11am-7pm AEST Mon-Fri avantree.com/support/ht5009p Video Guide avantree.com/ht5009p/video Product Registration See QR code on the product tag.
- Page 20 EU Importer and Responsible Person: US Importer: Avantree Europe Z O.O. Avantree Corporation Ul. żOłNierzy I Dywizji Wojska San Jose, California 95119 USA Polskiego 78a/2 84-230 Rumia +1 800 232 2078 Pomorskie, Poland support@avantree.com +48 22 307 25 37 support-eu@avantree.com...
