Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (2) 1/4" x 1/2" Allen Bolts
B (30) 1/4" x 3/4" Sunk Bolts
C (4) Wood Screws
D (2) Flat Washers
E (1) Allen Wrench
PARTS LIST
F
(1) Back Panel
G (1) Left Panel
H (1) Right Panel
I
(2) Side Panels
J
(1) Slat Set
K (1) Support Bar
L
(4) Metal Plates
M (2) L-Brackets
STEP 1 - Figure 1
Begin assembly by connecting
Left and Right Panels (G and H)
to Side Panels (I) using 5 Sunk
Bolts (B) per Plate (L) (2 through
the posts on the ends and 3
through the side panels). Do not
tighten bolts this step.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.

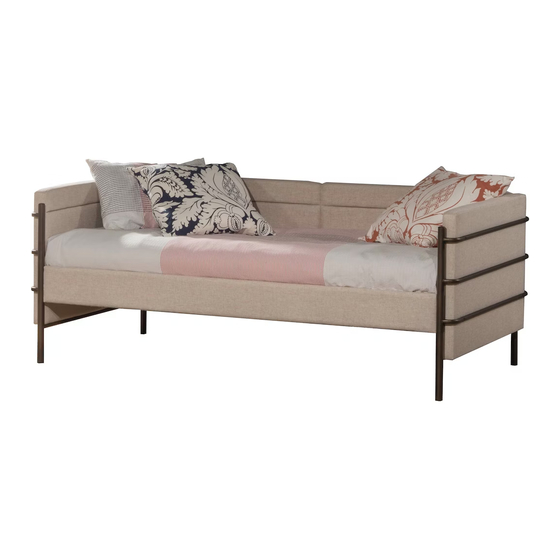

COMFY DAYBED
Model #1864-010/020
G
L
L
I
PART
QTY
HARDWARE
A
2
C
4
E
1
FIGURE 1
B B
L
B B
I
L
Date: 07-13-2016
Page 1 of 2
PART
QTY
HARDWARE
B
30
D
2
G
I
B B
B B
B B
L
H
HDFBP
Advertisement
Table of Contents
Related Manuals for Hillsdale Furniture 1864-010
Summary of Contents for Hillsdale Furniture 1864-010
- Page 1 Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required. The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000 HDFBP...
- Page 2 COMFY DAYBED Date: 07-13-2016 Page 2 of 2 Model #1864-010/020 FIGURE 2 STEP 2 - Figure 2 Attach L-Brackets (M) to the posts on the Left and Right Panels (G and H) using 2 Sunk Bolts (B). Then line up the holes in the Back Panel (F) and secure using 3 Sunk Bolts (B) from the back on each side.
- Page 3 Date: 08-19-2016 Page 1 of 2 Modelo #1864-010/020 Examinar el material de embalaje para las piezas pequeñas que puedan haber soltado durante el transporte. Comprobaciones periódicas se recomienda para asegurar que todos los componentes están en la posición correcta, apretado y libres de daños. Las presentes instrucciones de montaje para referencia futura. Montaje por un adulto es necesaria.
- Page 4 CÓMODO DIVÁN Date: 08-19-2016 Page 2 of 2 Modelo #1864-010/020 IMAGEN 2 PASO 2 - Imagen 2 Coloque soportes en L (m) para los mensajes en los paneles izquierdo y derecho (G y H) con 2 pernos hundidos (B). A continuación, alinee los agujeros en el panel posterior (F) y fijarlo con 3 pernos hundidos (B) de la parte posterior de cada lado.
