Hillsdale Furniture LUSSO Quick Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (4) Medium Allen Bolts M6 x 35mm
B (4) Long Allen Bolts M6 x 50mm
C (8) Spring Washers
D (8) Flat Washers
E (4) Hex Nuts
F (1) Allen Wrench

PARTS LIST

G (1) Headboard Panel
H (2) Wooden Leg
FIGURE 1
G
H
**Cleat facing inside for Side Rail**
**Cleat facing outside for Bed Frame**

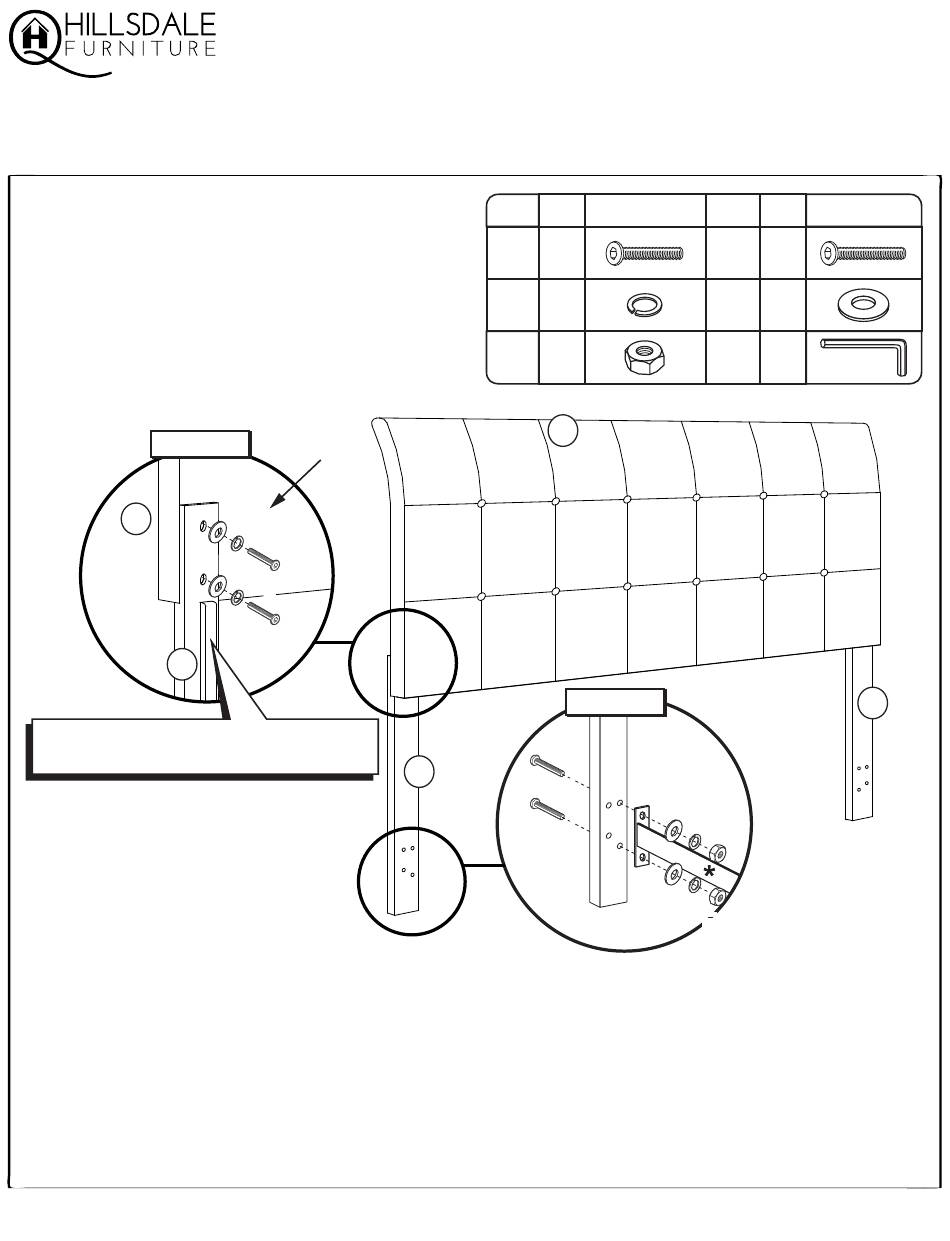

STEP 1 - Figure 1

Begin assembly by
attaching Wooden Leg
(H) to the Headboard
Panel (G) using 2
Medium Allen Bolts (A),
2 Spring Washers (C)
and 2 Flat Washers (D)
per leg. Tighten all bolts
with Allen Wrench (F)
provided.
Color: 1281 - Matte Black, 1283 - Matte White, 1326 - Dark Brown, 1431 - Pink, 1815 - Linen Stone, 1945 - Grey
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
LUSSO HEADBOARD SET
Model #1281 / 1283 / 1326 / 1431 / 1815-370 Twin
Model #1281 / 1283 / 1326 / 1431 / 1815 / 1945-470 Full
Model #1281 / 1283 / 1326 / 1945-570 Queen
Model #1281 / 1283 / 1326 / 1945-670 King
Back
View
D D
C C
A A
D D
C C
A A
A

STEP 2 - Figure 2

Attach side rails (*Not Included) to Wooden Legs (H) using 2 Long Allen Bolts (B)
from the back and 2 Flat Washers (D), 2 Spring Washers (C) and 2 Hex Nuts (E)
from the front. Tighten all bolts with Allen Wrench (F) provided.
PART QTY
A 4
C 8
E 4
G
FIGURE 2
B
H
B B
HARDWARE PART QTY
B
D 8
F 1
D D
C C
E E
D D
C C
* Bed Frame
E E
Not Included
