Hillsdale Furniture 1825-574 Queen Assembly

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (14) M8x50 Allen Bolts
B (16) Ф8 Spring Washers
C (20) Ф8 Flat Washers
D (1) Ø5 Allen Wrench
E (2) M8x100 Allen Bolts
F (4) Nuts
G (1) Open Wrench

PARTS LIST

H (1) Headboard
I (2) Headboard Legs
J (1) Footboard
K (2) Footboard Feet

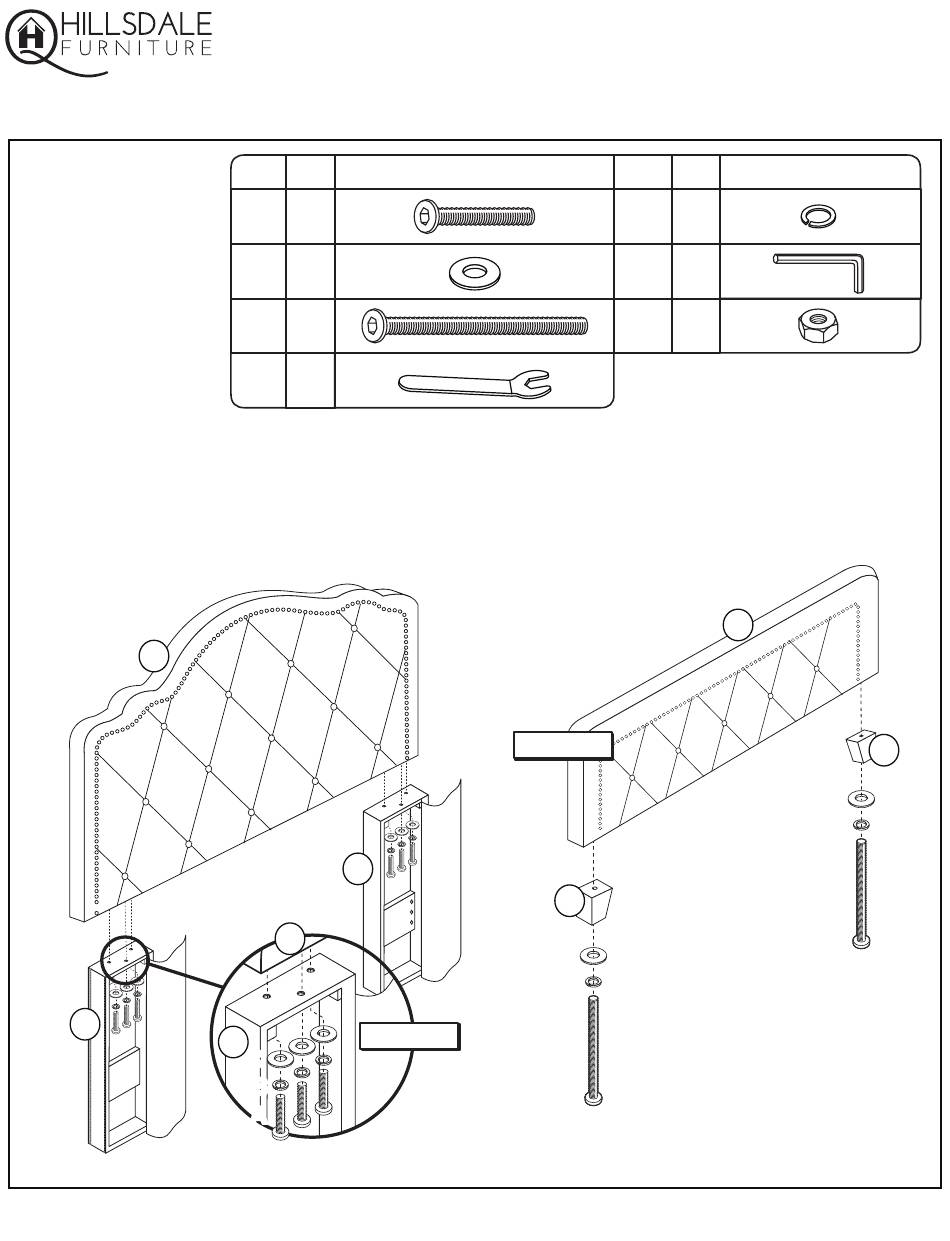

STEP 1 - Figure 1

Begin assembly by attaching the Headboard Legs (I) to the bottom of each side of the Headboard (H)
using 6 Allen Bolts (A), 6 Spring Washers (B) and 6 Flat Washers (C). Tighten all bolts using the Allen
Wrench (D) provided.
H
I
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
BELIZE HEADBOARD / FOOTBOARD
Model #1825-574 / 1825-584 Queen
Model #1825-674 / 1825-684 King
PART QTY
A 14
C 20
E 2
G 1
I
H
FIGURE 1
I
C C
B B
A A
HARDWARE
FIGURE 2
K
C C
B B
E E
Date: 07-08-2015
PART QTY HARDWARE
B 16
D 1
F 4
J

STEP 2 - Figure 2

Next attach the Wooden Feet (K)
to the Footboard (J) using 2 Allen
Bolts (A), 2 Spring Washers (B)
and 2 Flat Washers (C). See
Figure 2. Tighten all bolts
using the Allen Wrench (D)
provided.
Page 1 of 2
HDFBP
K
C C
B B
E E
