ROBOTIC MOWER
OPERATOR'S MANUAL
Our Customer Service staff is ready to provide assistance.
In the case of a damaged or missing part, most replacement parts ship from our
facility.
For immediate help with assembly, or for additional product information, visit www.
YardForceUSA.com or email support@MerotecUSA.com
SAVE THIS MANUAL FOR REFERENCE
You will need this manual for safety
instructions, operating procedures, and Warranty.
The original sales receipt is required for warranty service.

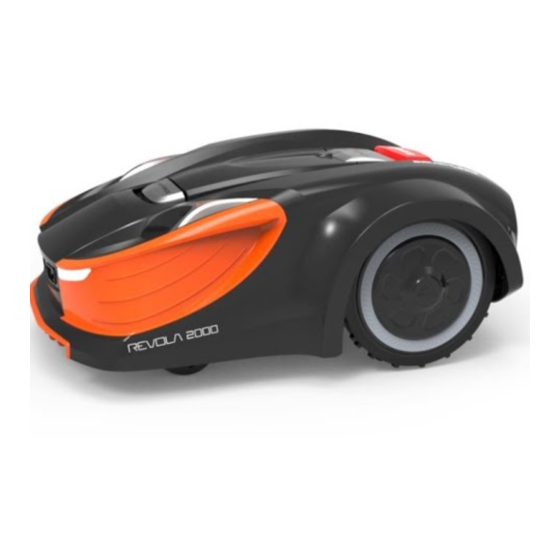

Model RVX4E
Advertisement
Table of Contents
Related Manuals for Yard force Revola X4E
Summary of Contents for Yard force Revola X4E

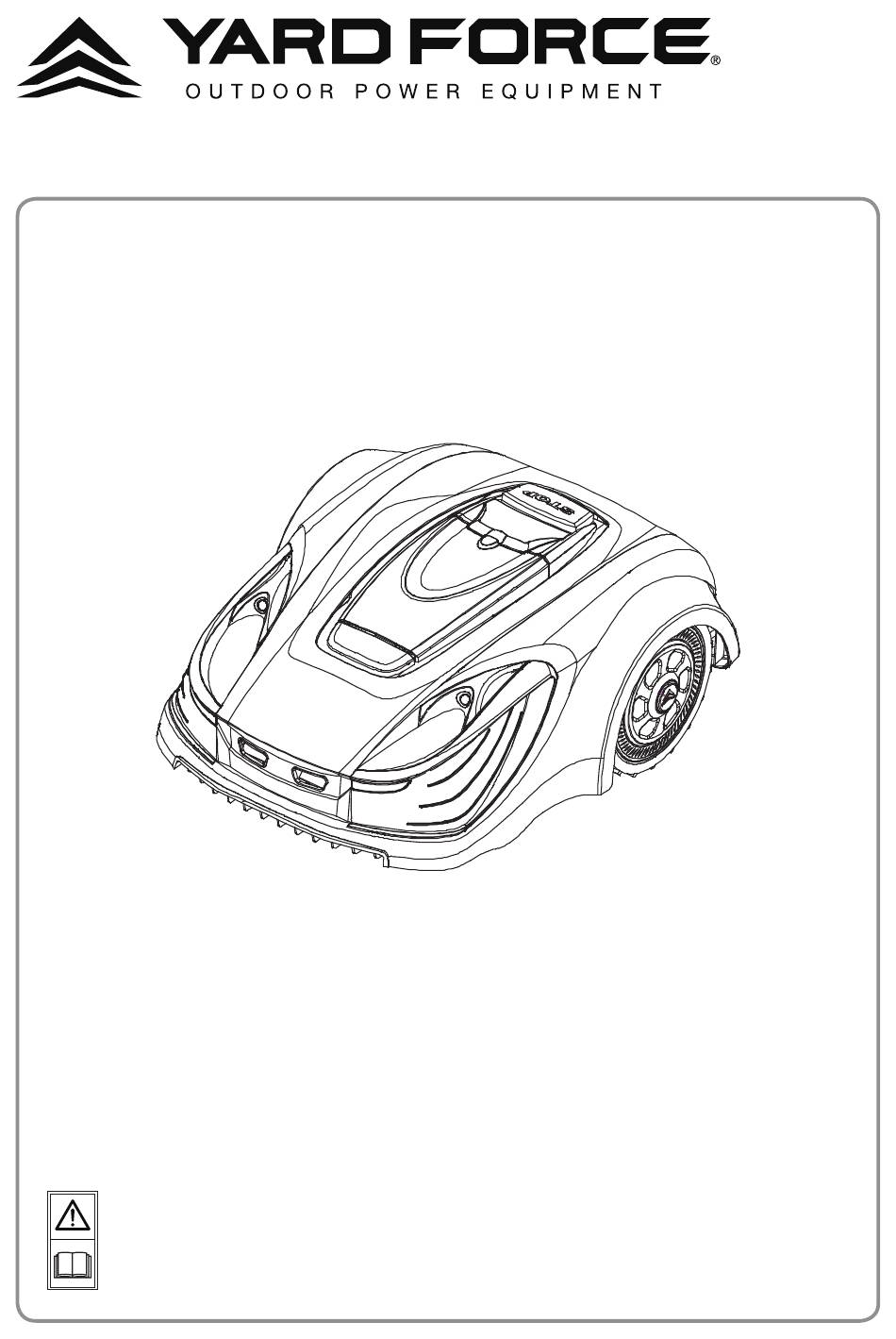

- Page 1 Model RVX4E ROBOTIC MOWER OPERATOR’S MANUAL Our Customer Service staff is ready to provide assistance. In the case of a damaged or missing part, most replacement parts ship from our facility. For immediate help with assembly, or for additional product information, visit www. YardForceUSA.com or email support@MerotecUSA.com SAVE THIS MANUAL FOR REFERENCE You will need this manual for safety...
- Page 2 12 in < 4 in > 4 in max. 12 in 26 ft 12 in min. 6.5 ft 2 in < 12 in...
-
Page 3: Table Of Contents
SAFETY INSTRUCTIONS RVX4E Original Instructions SAFETY SYMBOLS TABLE OF CONTENTS The purpose of safety symbols is to attract your attention to any possible dangers. The safety symbols and their explanations deserve your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS GENERAL SAFETY WARNINGS Warning Symbols on the switching power supply WARNING ！ Before use, refer to the corresponding paragraph in the manual. This machine can cause serious injuries. Follow instructions below to reduce risk of accident and injury. Double insulation. - Page 5 SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS WORK INTERRUPTIONS • Ensure that batteries are charged using the charger supplied or recommended by the manufacturer. • After the machine has been turned off, the cutting cylinder will continue to rotate for a few seconds. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.
-
Page 6: Parts List
INTENDED USE PARTS LIST The Robotic Mower is exclusively designed for mowing lawns. It is only intended for private use and is not suitable for commercial use. KNOW YOUR TILLER Any other use that is not specifically approved in these instructions can result in damage to the Robotic Mower and could be a serious danger to the user. -
Page 7: Assembly
ASSEMBLY ASSEMBLY Installation Guide This chapter explains how to install the Robotic Mower. Please read this completely before you start the Stones installation. We recommend clearing the lawn of small (less than 4 in high) rocks and stones and any stones with a round or sloped edge. - Page 8 ASSEMBLY ASSEMBLY If your lawn has a soft or uneven surface, we recommend fortifying the area around the docking station with a grass protection mesh. Otherwise, the repeated stress of the rear wheels can damage the turf. Once the position of the docking station is confirmed and mains electrical connection is laid out, please do not connect to main power yet.
- Page 9 ASSEMBLY ASSEMBLY Flowerbeds Inventory and garage Use the boundary wire to exclude any flowerbeds from the cutting area. There are two options for the two If you have created a boundary corridor inside your working area, the corridor should be at least 6.5 ft wide lengths of boundary wire running between the flowerbed and the outer boundary: and a max length of 26 ft.
- Page 10 ASSEMBLY ASSEMBLY If your neighbour is using the same mower, you will need to keep a distance of 20 in between you and your Press the buttons and OK button, then close the lid, a few seconds later, Mower should automatically neighbour's boundary wires to prevent the two devices interfering with each other.
-
Page 11: Operation
OPERATION OPERATION Before starting your robotic mower Control panel Please follow below steps to adjust the time setting before starting your robotic mower. 1. Press the button to enter the menu setting. SETTING FUNCTION 1. System date and time 2. Working date and time 3. - Page 12 OPERATION OPERATION 8. Press the button or use the navigation key + OK button to enter Other setting AP mode This is the Hotkey to enter SETTING FUNCTION Other setting Wireless setting 2. OFF 1. System date and time 1. Boundary singal 2.
-
Page 13: Maintenance And Storage
OPERATION MAINTENANCE AND STORAGE Cutting height adjustment Maintenance work that has not been described in these instructions must be carried out by a servicing The cutting height can be adjusted by rotating the height adjustment dial located on the top of the machine. agency authorised by the manufacturer. - Page 14 MAINTENANCE AND STORAGE MAINTENANCE AND STORAGE 1. Ensure the main power switch is turned OFF. Clean the underside as instructed. Your Robotic Mower has three blades, fixed to the blades disk. 2. Set the Autonomous Mower to the lowest cutting height. Unless damaged by hard obstacles, these blades can last for up to five months of everyday use.
-
Page 15: Trouble Shooting
TROUBLE SHOOTING TROUBLE SHOOTING Charging trouble shooting Robotic Mower cannot dock with docking station • Check that the boundary wire in front and underneath the charger is in a straight line. Problem Possible cause Corrective action • Check that the docking station's position is suitable as explained in this manual. Incorrect wire connection Check wire connections "F and B"... -
Page 16: Warranty
2. Send in proof-of-purchase and serial number (if applicable) to confirm warranty coverage. 3. If service or a warranty evaluation is requested, Yard Force USA will provide an RGA number that should be used in all communications with Yard Force USA and if necessary a list of local authorized service centers to bring your tiller to for evaluation and repair.
