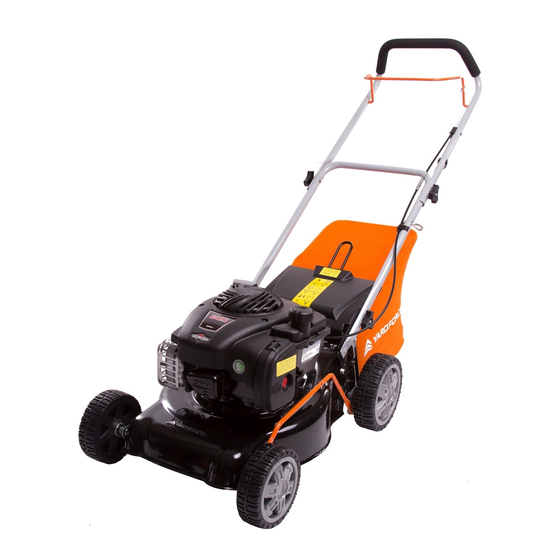

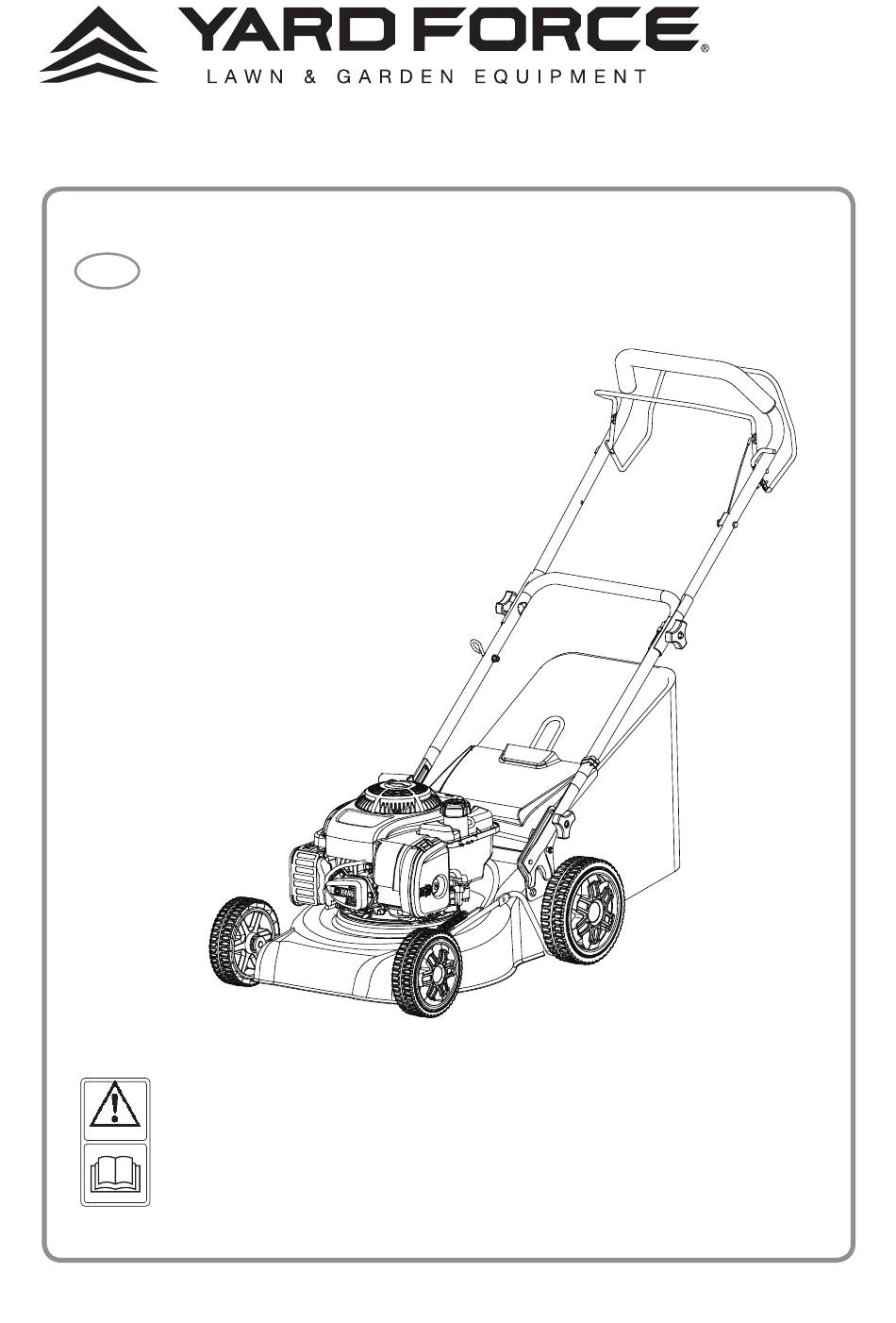

- Page 1 GM B41A XSZ40G PETROL LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the petrol lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
-
Page 6: Table Of Contents
GM B41 Original Instructions CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting CE declaration... -
Page 7: Intended Use
INTENDED USE This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. - Page 8 GENERAL SAFETY WARNINGS machine if you observe any damaged components. NOTE: This lawnmower complies with the Noise Emission Directive 2000/14/EC. 1. Keep this operating and maintenance manual in a safe place for reference at a later date. 2. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment.
- Page 9 GENERAL SAFETY WARNINGS 3. Petrol is highly flammable; store fuel in containers specifically designed for this purpose. a) Refuel outdoors only and do not smoke while refuelling. b) Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot.
-
Page 10: Product Safety Warnings
PRODUCT SAFETY WARNINGS on slopes. 8. Do not mow excessively steep slopes. 9. Use extreme caution when reversing or pulling the lawnmower towards you. 10. Stop the blade if the lawnmower has to be tilted for transportation, when crossing surfaces other than grass and when transporting the lawnmower to and from the area to be mowed. - Page 11 PRODUCT SAFETY WARNINGS lawnmower for damage and make repairs before restarting and operating the lawnmower. d) If the lawnmower starts to vibrate abnormally, check immediately. 19. Stop the engine and disconnect the spark plug wire, making sure that all moving parts have come to a complete stop before refuelling.
-
Page 12: Symbols
SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them require your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures. - Page 13 SYMBOLS Please read all of the safety and operating instructions carefully before using this machine. Read the instruction manual before operating. Keep bystanders away - especially children and pets. Beware of sharp blades - remove spark plug lead before maintenance Keep away from naked flames.
- Page 14 SYMBOLS The blade continues to rotate for a time after the machine is switched off. Do not touch the blade until all the machine components have stopped completely. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.
-
Page 15: Technical Data
TECHNICAL DATA Model XSZ40G/GM B41A Engine type Single cylinder 4-stroke Engine displacement 125cm Engine power 1.8kW Max. engine speed 3000rpm Cutting width 41cm Grass bag capacity Ignition T.C.I Fuel tank capacity 0.8L Oil tank capacity 0.47L Measured sound power level 91.6 dB(A) K=3dB(A) -
Page 16: Description Of Product
DESCRIPTION OF PRODUCT Parts description (Fig. A) Engine-B&S 300 Cable clip Hand tensioning knob Start/stop lever Top handle Rope guide Grass bag Cutting height adjustment lever Deck 10. Self-propelled lever Check the delivery parts (Fig. B) Remove the machine from its packaging carefully and make sure that all of the following parts are present: Main mower deck (with upper handle) Lower handle... -
Page 17: Installation
INSTALLATION Installing the handle Attach the lower handle onto the unit by using one bolt and one hand tension knob on each side. (Fig. C) Install the upper handle onto the lower handle by using one bolt and one hand tension knob on each side. -
Page 18: Operation
OPERATION Checking the engine oil level and filling with engine oil. CAUTION! The following procedures and adjustments must be performed before the engine is started. Do not attempt to make any of these adjustments while the engine is running. CAUTION! To prevent engine damage the engine is shipped without oil or petrol. The engine must be filled with the correct grade of oil and petrol before starting the engine. - Page 19 OPERATION Clean the area around the petrol filler cap before removing. Remove the warning tag, check the fuel level. Refill the tank if the fuel level is low. Refuel carefully to avoid overfilling or spilling fuel. There should be no fuel in the filler neck.
- Page 20 OPERATION Mowing WARNING! Always observe the strictest safety procedures when using this lawnmower. Carefully read the safety instructions in this manual before use. WARNING! Never open the safety flap when the grass bag has been detached (to be emptied) and the engine is still running. The rotating blade can cause serious injury! Select your required setting.
-
Page 21: Maintenance And Storage
MAINTENANCE AND STORAGE Storing the lawnmower for short periods After mowing, please follow the actions below prior to placing the lawnmower in storage: - Allow the engine to fully cool. - Ensure the grass bag is empty. - Clean all debris from under the mower deck. Store the lawnmower on a flat and level surface, with all 4 wheels on the ground. - Page 22 MAINTENANCE AND STORAGE After every use After 12 hours use After 24 hours use After 36 hours use Cleaning Clean Clean Clean Clean Air filter Clean Clean replace Spark plug check check replace Engine oil check check check check Cutting blade check check check...
- Page 23 MAINTENANCE AND STORAGE See ‘Filling with engine oil’. Do not overfill. Start the engine and allow it to run briefly. Stop the engine, wait one minute and check the oil level. Top up if necessary. Replacing the cutting blade (Fig. N) WARNING! USE GLOVES.
-
Page 24: Troubleshooting
TROUBLESHOOTING WARNING: Always switch off the engine and pull the ignition cable before starting any inspection or adjustment work. If after making an adjustment or repair to the engine, let it run for a few minutes and that the exhaust and other parts will get hot. The following table provides solutions to common problems encountered with the lawnmower: Fault... -
Page 25: Ce Declaration
Unit A&B Escrick Business Park Escrick, York YO19 6FD Declare that the product: Description: PETROL LAWNMOWER Model No. XSZ40G / GM B41A Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC...
