Petrol lawnmower

Advertisement

Quick Links

GB

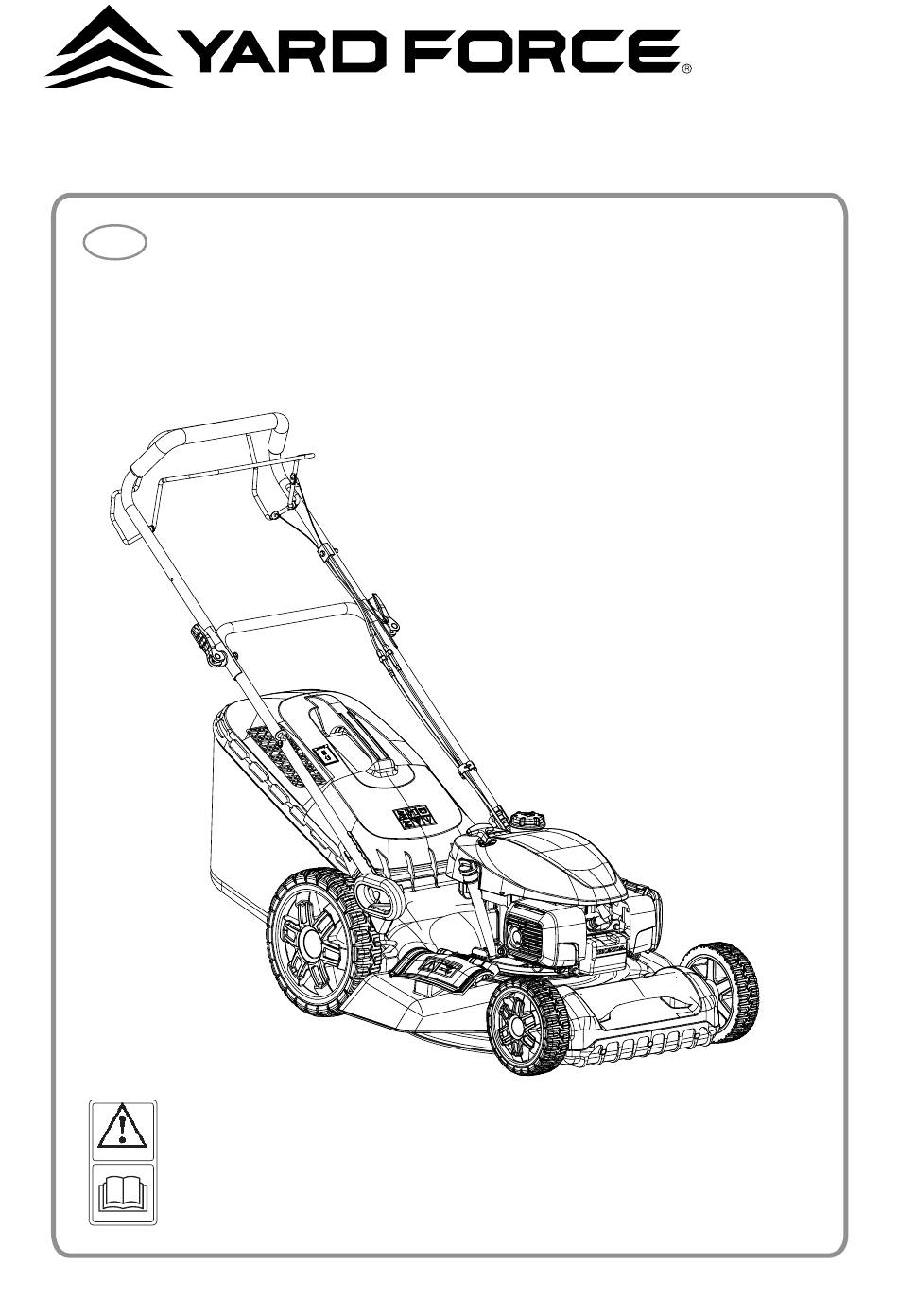

PETROL LAWNMOWER
Original Instructions
READ & UNDERSTAND
INSTRUCTION MANUAL
Save all warnings and instructions for future reference.
1
GM H51
XSZ51A-SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM H51 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yard force GM H51

  • Page 1 GM H51 XSZ51A-SD PETROL LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
  • Page 2 Read this manual carefully prior to assembling and operating the petrol lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
  • Page 5 25mm 75mm...
  • Page 7: Table Of Contents

    GM H51 Original Instructions CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting Declaration of conformity...
  • Page 8: Intended Use

    INTENDED USE This machine is intended only for mowing domestic lawns and grass. This machine is not suitable for commercial use. Commercial use will void the warranty of the product. Any use other than that outlined in these instructions may result in damage to the machine and risk serious injury to the user.
  • Page 9 GENERAL SAFETY WARNINGS 1. Keep this operating and maintenance manual in a safe place for reference at a later date. 2. Read the instructions carefully. Be familiar with the controls and the proper use of the equipment. 3. Never allow children or people unfamiliar with these instructions use the lawn mower.
  • Page 10: Personal Safety

    GENERAL SAFETY WARNINGS Personal safety While mowing, always wear suitable footwear and long trousers. Do not operate the equipment when barefoot or wearing open-toed sandals. 1. Thoroughly inspect the area where the equipment is to be used and remove all objects which can be thrown by the machine.
  • Page 11: Product Safety Warnings

    PRODUCT SAFETY WARNINGS Operation safety 1. Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect. 2. Mow only in daylight or in good artificial light. 3. Avoid operating the equipment on wet grass, where possible.
  • Page 12 PRODUCT SAFETY WARNINGS 17. Stop the engine and disconnect the spark plug cable, making sure that all moving parts have come to a complete stop: a) Before clearing blockages or unclogging the chute. b) Before checking, cleaning or working on the lawnmower.
  • Page 13 Any work not specified in these instructions is to be carried out only by customer service centres authorised by Yard Force. 10. Keep the equipment in a dry place and out of reach of children. Machines are dangerous if used by...
  • Page 14: Safety Symbols

    SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them require your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
  • Page 15: Symbols

    SYMBOLS Please read all of the safety and operating instructions carefully before using this machine. Read the instruction manual before operating. Keep bystanders away - especially children and pets. Beware of sharp blades - remove the spark plug lead before maintenance No naked flames.
  • Page 16 SYMBOLS The blade continues to rotate for a period after the machine is switched off. Do not touch the blade until all the machine components have stopped completely. The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done.
  • Page 17: Technical Data

    TECHNICAL DATA Model GM H51 Engine type Honda GCV170 Engine displacement 167 cm Engine power 2.4 kW Max. engine speed 2900 min Cutting width 51 cm Grass bag capacity 65 l Fuel tank capacity 0.91 l Oil tank capacity 0.4 l Measured sound power level 95.7 dB(A)
  • Page 18: Description Of Product

    DESCRIPTION OF PRODUCT Parts description (Fig. A) Upper handle Self-propelled switch lever Quick release lever Grass collection bag Cutting height adjustment handle Side discharge chute Front carry handle Engine Cable clip 10. Lower handle 11. Stop/Start-lever Delivery contents (Fig. B) Carefully unpack the appliance and check that it is complete.
  • Page 19: Installation

    INSTALLATION WARNING: Always take care when removing the packaging, to prevent damage to you or to the lawnmower. This item requires a two-person lift to remove it from the packaging. Make sure that you have sufficient space to put the lawnmower down. Keep your feet apart so that you have a stable position;...
  • Page 20: Operation

    OPERATION Setting the cutting height (Fig. N) WARNING! The blade can cause serious injury. Before adjusting the mower height, stop the engine and wait for the mower blade to come to a complete stop. Pull the lever outwards the wheel, then move it forward or backward to adjust the cutting height.
  • Page 21: Starting The Engine

    OPERATION Filling with engine fuel (Fig. P) WARNING! Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flames or sparks in the area where the engine is refueled or where petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of vapour. CAUTION! Petrol is highly flammable and extreme caution must be taken when handling or working with it.
  • Page 22 OPERATION Failure to start If the engine won’t start after you have operated the starter several times, the engine may be flooded with excess fuel. Use the following procedure to clean and start a flooded engine: Release the stop/start bar. Remove the spark plug, dry it and then reinstall it.
  • Page 23 OPERATION Grass grows at different rates at different times of the year. Never use the lowest cutting height for the first cut of the season or in drought conditions. Only about one third of the grass height should be cut. If the lawnmower will not collect the cuttings efficiently, the grass discharge chute may be blocked, the grass bag may be full or the underside of the mower deck may be clogged.
  • Page 24: Maintenance And Storage

    MAINTENANCE AND STORAGE Storing the lawnmower for short periods After mowing, please follow the actions below prior to placing the lawnmower in storage: - Allow the engine to fully cool. - Ensure the grass bag is empty. - Clean all debris from under the mower deck. Store the lawnmower on a flat and level surface, with all 4 wheels on the ground.
  • Page 25 MAINTENANCE AND STORAGE After every use After 12 hours use After 24 hours use After 50 hours Cleaning Clean clean clean clean Air filter Check Check clean Check Spark plug check check check Engine oil check check check change Cutting blade check check check...
  • Page 26: Changing The Oil

    MAINTENANCE AND STORAGE Changing the oil Tilt the lawnmower towards the oil filler, have a container ready to catch the oil and remove the dipstick. Once the oil has been emptied, wipe clean any spillages. Refill with 400ml SAE 10W-30 oil or equivalent, i.e. SAE 5W/30, SAE 10W/30). When the dipstick is rested on the filler pipe, the oil level must be between the min.
  • Page 27: Troubleshooting

    TROUBLESHOOTING Fault Possible cause Solution Too little petrol in the tank Fill with petrol Follow the instructions for starting the Engine does Incorrect starting sequence engine start Spark plug cable not attached Attach the spark plug connector Clean, adjust or replace the spark plug correctly to the spark plug Incorrectly adjusted carburetor Have the carburettor adjusted by a...
  • Page 28: Declaration Of Conformity

    MEROTEC GmbH Otto-Brenner-Str. 8 47877 Willich, Germany Declare that the product: Description: PETROL LAWNMOWER Model No. GM H51/ XSZ51A-SD Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC Electromagnetic Compatibility Directive 2014/30/EU...
  • Page 29 Unit A&B Escrick Business Park Escrick, York YO19 FD6 United Kingdom Declare that the product: Description: PETROL LAWNMOWER Model No. GM H51/ XSZ51A-SD Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC...
