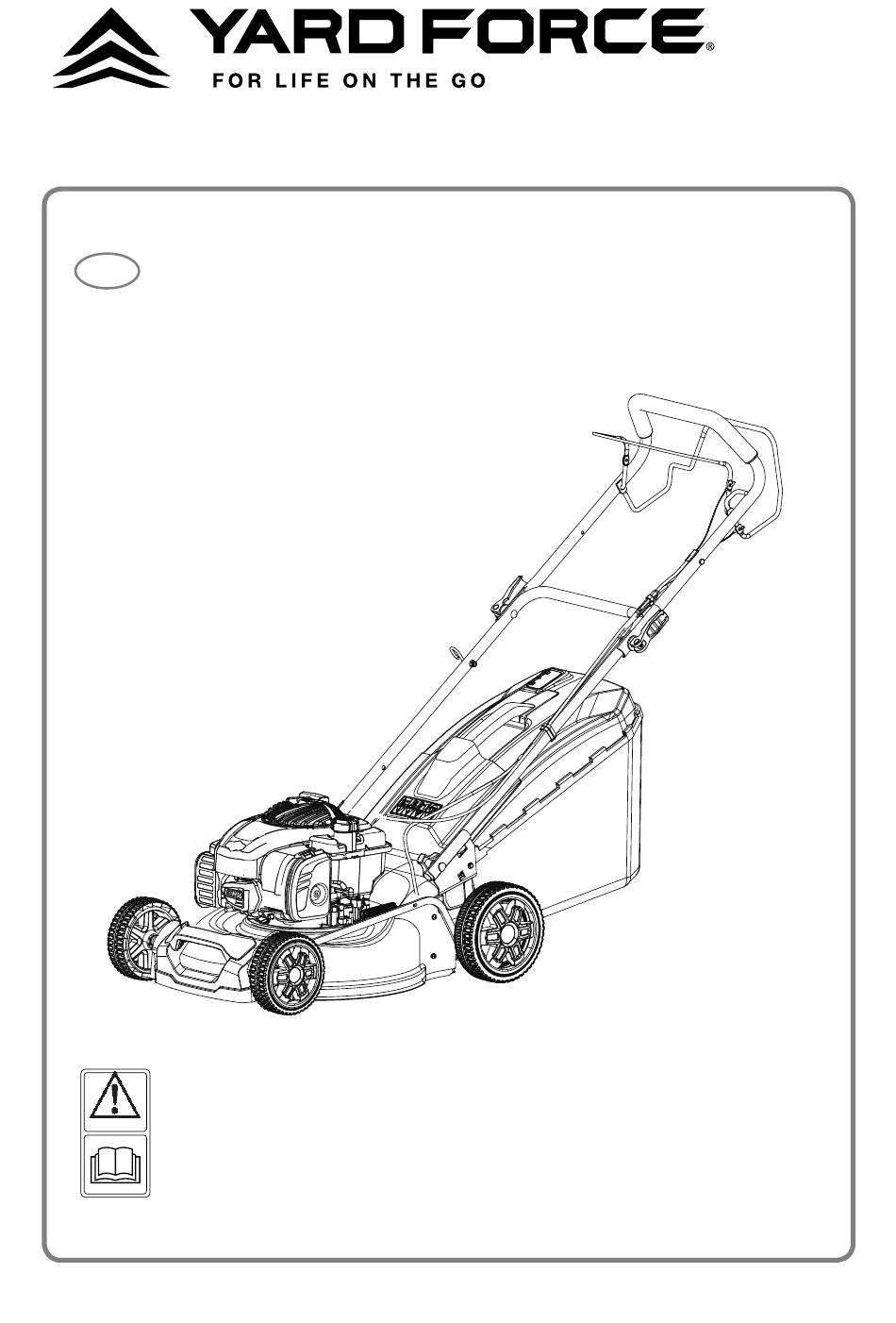

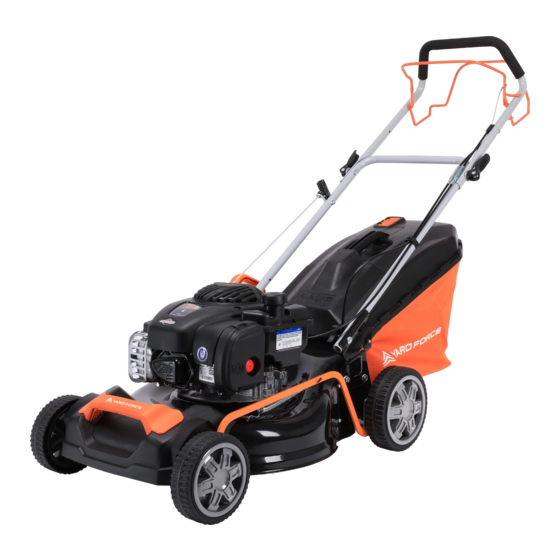

- Page 1 GM B46CK XSZ46D PETROL LAWNMOWER Original Instructions READ & UNDERSTAND INSTRUCTION MANUAL Save all warnings and instructions for future reference.
- Page 2 Read this manual carefully prior to assembling and operating the petrol lawnmower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
-
Page 6: Table Of Contents
GM B46CK Original Instruction CONTENT Intended use General safety warnings Product safety warnings Symbols Technical data Description of product Installation Operation Maintenance and storage Troubleshooting CE declaration... -
Page 7: Intended Use
INTENDED USE This lawnmower has been designed for cutting grass. The machine is to be used only for its prescribed purpose, any other use is deemed to be a case of misuse. Please note that our equipment has not been designed for use in commercial, trade or industrial applications. - Page 8 GENERAL SAFETY WARNINGS not assemble the machine if you observe any damaged components. NOTE: This lawnmower complies with the Noise Emission Directive 2000/14/EC. 1. Keep this operating and maintenance manual in a safe place for reference at a later date. 2.
- Page 9 GENERAL SAFETY WARNINGS is to be used and remove all objects which may be thrown by the machine. 3. Petrol is highly flammable; store fuel in containers specifically designed for this purpose. a) Refuel outdoors. Do not smoke in area where petrol is being used.
-
Page 10: Product Safety Warnings
PRODUCT SAFETY WARNINGS down. 7. Exercise extreme caution when changing direction on slopes. 8. Do not mow excessively steep slopes. 9. Exercise extreme caution when reversing or pulling the lawnmower towards you. 10. Stop the blade if the lawnmower has to be tilted for transportation when crossing surfaces other than grass and when transporting the lawnmower to and from the area to be mowed. - Page 11 PRODUCT SAFETY WARNINGS lawnmower. c) After striking a foreign object, inspect the lawnmower for damage and make repairs before restarting and operating the lawnmower. d) If the lawnmower starts to vibrate abnormally, check immediately. 19. Stop the engine and disconnect the spark plug wire, and make sure that all moving parts have come to a complete stop before refuelling.
-
Page 12: Symbols
SYMBOLS Safety symbols The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them require your careful attention and full understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitute for proper accident prevention measures. - Page 13 SYMBOLS Please read all of the safety and operating instructions carefully before using this machine. Read the instruction manual before operating. Keep bystanders away - especially children and pets. Beware of sharp blades - remove the spark plug lead before maintenance Keep away from naked flame.
- Page 14 SYMBOLS The blade continues to rotate after the machine is switched off. Do not touch the blade until all the machine components have come to a complete stop. The product complies with the applicable European directives, and an evaluation method of conformity for these directives was done.
-
Page 15: Technical Data
TECHNICAL DATA Model GM B46CK Engine type BS 450E Single cylinder 4-stroke Engine displacement 125cm Engine power 1.8kW Max. engine speed 3000rpm Cutting width 46cm Grass bag capacity Ignition T.C.I Fuel tank capacity 0.8L Oil tank capacity 0.47L Measured Sound power level 93.86 dB(A) K=0.35 dB(A) -
Page 16: Description Of Product
DESCRIPTION OF PRODUCT Parts description (Fig. A) Engine-B&S 450E Cable clip Handle quick release lever Start/stop lever Top handle Self-propelled switch lever Rope guide Grass bag Safety flap 10. Cutting height adjustment lever 11. Deck Check the delivery parts (Fig. B) Remove the machine from its packaging carefully and make sure that all of the following parts are present: Main mower deck (with upper handle) -
Page 17: Installation
INSTALLATION Installing the handle 1. Attach the lower handle onto the unit by using one bolt and one handle tensioning knob on each side. (Fig. C) 2. Attach the upper handle onto the lower handle by using one handle quick release lever each side. -
Page 18: Operation
OPERATION Filling with engine oil IMPORTANT! The following procedures and adjustments must be performed before the engine is started. Do not attempt to make any of these adjustments while the engine is running. This engine is shipped without oil or petrol, any oil residue is from testing prior to shipping. The engine must be filled with the correct grade of oil and petrol before starting the engine. - Page 19 OPERATION Setting the cutting height (Fig. L) WARNING! The blade can cause serious injury. Before adjusting the mower height, stop the engine and wait for the mower blade to come to a complete stop. Pull the lever towards the wheel, then move it forward or backward to adjust the cutting height.
- Page 20 OPERATION Using the Self-propelled function This lawnmower equipped with self-propelled system. Push the self-propelled rear switch bar towards the handle and hold it in position. The lawnmower will start to move automatically. (Fig. O) To stop the moving lawnmower, simply release the drive. Mowing with collection bag WARNING! Always observe the strictest safety procedures when using the lawnmower.
-
Page 21: Maintenance And Storage
MAINTENANCE AND STORAGE Storing the lawnmower for short periods After mowing, please follow the actions below prior to placing the lawnmower in storage: - Allow the engine to fully cool. - Ensure the grass bag is empty. - Clean all debris from under the mower deck. Store the lawnmower on a flat and level surface with all 4 wheels on the ground. - Page 22 MAINTENANCE AND STORAGE After every use After 12 hours use After 24 hours use After 36 hours use Cleaning Clean Clean Clean Clean Air filter Clean Clean replace Spark plug check check replace Engine oil check check check check Cutting blade check check check...
- Page 23 MAINTENANCE AND STORAGE See ‘Filling with engine oil’. Do not overfill. Start the engine and allow it to run briefly. Stop the engine, wait one minute and check the oil level. Top up if necessary. Replacing the cutting blade (Fig. Q) WARNING! USE GLOVES.
-
Page 24: Troubleshooting
TROUBLESHOOTING WARNING: Always switch off the engine and pull the ignition cable before starting any inspection or adjustment work. If after making an adjustment or repair to the engine you let it run for a few minutes, remember that the exhaust and other parts will become hot. The following table provides solutions to common problems encountered with the lawnmower: Fault... -
Page 25: Ce Declaration
59 bis Rue du Mûrier, 37540 Saint Cyr Sur Loire, France Declare that the product: Description: PETROL LAWNMOWER Model No. XSZ46D / GM B46CK Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Machinery Directive 2006/42/EC... - Page 26 Unit A&B Escrick Business Park Escrick, York YO19 6FD United Kingdom Declare that the product: Description: PETROL LAWNMOWER Model No. XSZ46D / GM B46CK Function: Cutting grass Complies with the essential health and safety requirements of the following directives: Supply of Machinery (Safety) Regulations 2008...
