- Page 1 Crestron QM-RX1-2G ® QuickMedia Receiver with Audio Operations & Installation Guide...
- Page 2 Connect the equipment inot an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio/TV technician for help All brand names, product names and trademarks are the property of their respective owners. ©2009 Crestron Electronics, Inc.
-
Page 3: Table Of Contents
Installation ......................... 13 Hardware Hookup ..................... 15 Programming Software ......................18 Earliest Version Software Requirements for the PC ..........18 Programming with Crestron SystemBuilder.............. 18 Programming with SIMPL Windows ................ 18 Example Program ...................... 20 Uploading and Upgrading......................21 Establishing Communication..................21 Programs and Firmware .................... -
Page 5: Quickmedia Receiver With Audio: Qm-Rx1-2G
(QM) receiver designed to enable cost effective AV signal routing and control as part of a complete MediaManager AV presentation system. Using the Crestron exclusive QuickMedia transport, the QM-RX1-2G receives RGB, video and audio signals over a single inexpensive CAT5e type cable* from a QM Wall Plate, FlipTop Box or Distribution Center or from an MPS Multimedia Presentation System. - Page 6 10-band graphic equalization and 2-band parametric equalization right onboard. All audio processing and mixing is performed in the digital domain, adjustable at setup using Crestron QM Tools software (part of Crestron Toolbox™). Many parameters can be...
-
Page 7: Applications
Whether using just one QM receiver or several, complete system operation can be made transparent to the end user with all signal routing occurring smoothly under the command of the MediaManager control system. Complete MediaManager systems are easy to design, program and adjust from start to finish using Crestron SystemBuilder™ software. Applications The following diagram shows a QM-RX1-2G in a lecture hall. -
Page 8: Specifications
® QuickMedia Receiver with Audio Crestron QM-RX1-2G Specifications Specifications for the QM-RX1-2G are listed in the following table. QM-RX1-2G Specifications SPECIFICATION DETAILS Video Signal Types RGB and composite, S-video or component video Video/HDTV Formats NTSC or PAL, HDTV up to 1080i/1080p... - Page 9 50 Watt Regulated Universal Power Supply 1. May be powered by Cresnet or external power supply but not both. 2. The latest software versions can be obtained from the Crestron website. Refer to the NOTE following these footnotes. 3. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest Crestron Product Catalog for a complete list of 2-Series control systems.
-
Page 10: Physical Description
® QuickMedia Receiver with Audio Crestron QM-RX1-2G Physical Description This section provides information on the connections, controls and indicators available on your QM-RX1-2G. QM-RX1-2G Overall Dimensions (Front View) 5.97 in (15.14 cm) 8.33 in (21.15 cm) 7.50 in (19.04 cm) 0.71 in... - Page 11 ® Crestron QM-RX1-2G QuickMedia Receiver with Audio QM-RX1-2G Overall Dimensions (Top View) 0.49 in (1.23 cm) 1.61 in 1.03 in (4.08 cm) (2.62 cm) 0.09 in (0.23 cm) QM-RX1-2G Overall Dimensions (Bottom View) QM-RX1-2G Overall Dimensions (Rear View) ® Receiver with Audio: QM-RX1-2G • 7 Operations &...
- Page 12 ® QuickMedia Receiver with Audio Crestron QM-RX1-2G Connectors, Controls & Indicators CONNECTORS DESCRIPTION CONTROLS & INDICATORS RS-232 (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS-232 port; Up to 115.2k baud, hardware and software handshaking support DESCRIPTION (1) 2-pin 3.5 mm detachable terminal block;...

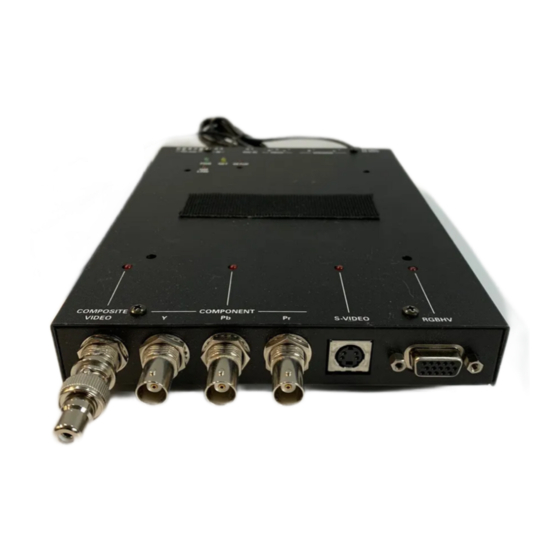

- Page 13 ® Crestron QM-RX1-2G QuickMedia Receiver with Audio Connectors, Controls & Indicators (Continued) CONNECTORS DESCRIPTION CONTROLS & INDICATORS QM LINK LED (1) Red LED, indicates presence of a digital audio signal to signify a valid QM connection COMPOSITE VIDEO (1) BNC female, composite video output;...
- Page 14 2. Transmission levels on the infrared – serial output connectors are in the 0 to +5 VDC range, which may not be compatible with all RS-232 devices. 3. The QM-RX1-2G can be powered via the 24 VDC jack or the NET port. Be sure to use a Crestron approved power supply as another may cause damage.
-
Page 15: Setup
• Provide sufficient power to the system. CAUTION: Insufficient power can lead to unpredictable results or damage to the equipment. Please use the Crestron Power Calculator to help calculate how much power is needed for the system (www.crestron.com/calculators). • For networks with 20 or more devices, use a Cresnet Hub/Repeater (CNXHUB) to maintain signal quality. -
Page 16: Identity Code
This phenomenon is due to the added resistance and capacitance of longer cable lengths and is not peculiar to either Crestron and/or QuickMedia systems. To ensure sufficient bandwidth, the maximum aggregate cable length should not exceed 450 feet. The use of lower-resolution signals may allow increased cable length but must be tested by the installer with the sources to be used. -
Page 17: Supplied Hardware
® Crestron QM-RX1-2G QuickMedia Receiver with Audio Supplied Hardware The hardware supplied with the QM-RX1-2G is listed in the following table. Supplied Hardware for the QM-RX1-2G DESCRIPTION PART NUMBER QUANTITY Mounting Plate 2021253 Screws, 06-32 x 1”, Slot 2013235 Screws, 06-32 x 1”, Pan, Phil... - Page 18 ® QuickMedia Receiver with Audio Crestron QM-RX1-2G Installing the QM-RX1-2G 2-Gang Electrical Box (Not supplied) Screws (4) 06-32 x 1" (2013235) Screws (4) 06-32 x 1" (2007250) Mounting Plate (2021253) 14 • QuickMedia® Receiver with Audio: QM-RX1-2G Operations & Installation Guide – DOC. 6715B...
-
Page 19: Hardware Hookup
Refer to “Network Wiring” on page 11 before attaching the 4-position terminal block connector. Apply power after all connections have been made. When making connections to the QM-RX1-2G, use Crestron power supplies for Crestron equipment. Hardware Connections for the QM-RX1-2G (Top View) - Page 20 NOTE: Ensure the unit is properly grounded by connecting the chassis ground lug to an earth ground (building steel). NOTE: For optimum performance, Crestron strongly recommends using CresCAT-QM cable, available from Crestron. Other high-quality/low skew CAT5e/CAT6 wiring may also be used with varying performance.
- Page 21 ® Crestron QM-RX1-2G QuickMedia Receiver with Audio A balanced/unbalanced audio output is provided, utilizing a five-pin terminal block connector. For connection details, refer to the following table and diagrams. Audio Connections SIGNAL BALANCED UNBALANCED NAME AUDIO AUDIO OUTPUT OUTPUT 1 + Out...
-
Page 22: Programming Software
Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. - Page 23 ® Crestron QM-RX1-2G QuickMedia Receiver with Audio Locating the QM-RX1-2G in the Device Library • The system tree of the control system displays the device in the appropriate slot with a default Net ID as shown in the following illustration.
-
Page 24: Example Program
The symbol can be viewed by double clicking on the icon or dragging it into Detail View. Each signal in the symbol is described in the SIMPL Windows help file (F1). Example Program An example program for the QM-RX1-2G is available from the Crestron website (www.crestron.com/exampleprograms). 20 • QuickMedia® Receiver with Audio: QM-RX1-2G... -
Page 25: Uploading And Upgrading
2-Series Control Systems Reference Guide (Doc. 6256). 2. Use the Address Book in Crestron Toolbox to create an entry for the QM-RX1-2G using the expected communication protocol (Indirect). Select the Cresnet ID of the QM-RX1-2G and the address book entry of the control system that is connected to the QM-RX1-2G. -
Page 26: Program Checks
Receiver with Audio Crestron QM-RX1-2G Firmware Check the Crestron website to find the latest firmware. (New users may be required to register to obtain access to certain areas of the site, including the FTP site.) Upgrade QM-RX1-2G firmware via Crestron Toolbox. -
Page 27: Problem Solving
Crestron QM-RX1-2G QuickMedia Receiver with Audio Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. QM-RX1-2G Troubleshooting TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION Device does not... -
Page 28: Check Network Wiring
Cresnet power usage of the entire chain. If the unit is home-run from a Crestron system power supply network port, the Cresnet power usage of that unit is the Cresnet power usage of the entire run. The wire gauge and the Cresnet power usage of the run should be used in the following equation to calculate the cable length value on the equation’s left side. -
Page 29: Reference Documents
Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 30: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 31 ® Crestron QM-RX1-2G QuickMedia Receiver with Audio This page is intentionally left blank. ® Receiver with Audio: QM-RX1-2G • 27 Operations & Installation Guide – DOC. 6715B QuickMedia...
- Page 32 Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6715B 15 Volvo Drive Rockleigh, NJ 07647 (2021899) Tel: 888.CRESTRON 07.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
