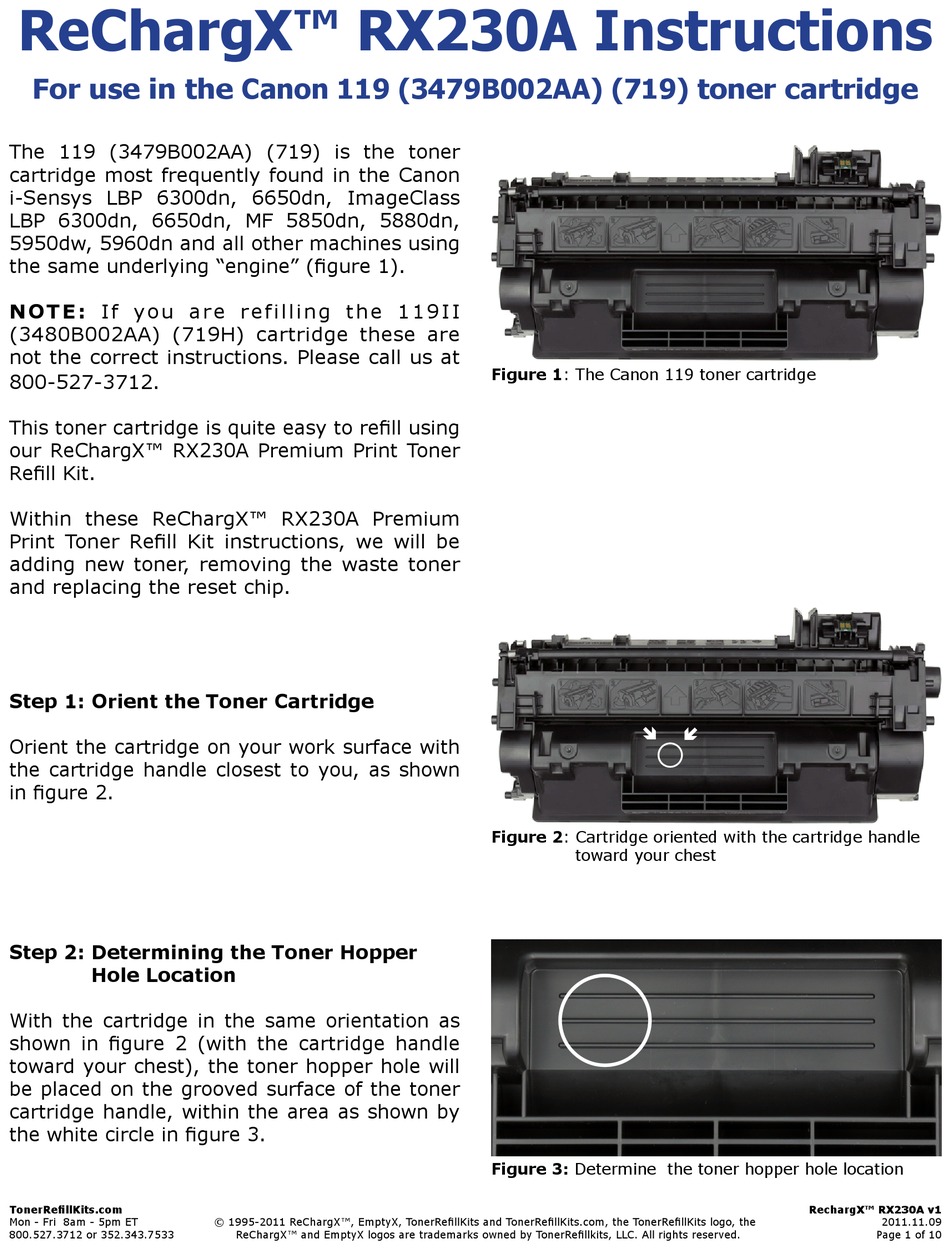

ReChargX™ RX230A Instructions
For use in the Canon 119 (3479B002AA) (719) toner cartridge
The 119 (3479B002AA) (719) is the toner
cartridge most frequently found in the Canon
i-Sensys LBP 6300dn, 6650dn, ImageClass
LBP 6300dn, 6650dn, MF 5850dn, 5880dn,
5950dw, 5960dn and all other machines using
the same underlying "engine" (figure 1).
N O T E : I f yo u a r e r e f i l l i n g t h e 1 1 9 I I
(3480B002AA) (719H) cartridge these are
not the correct instructions. Please call us at
800-527-3712.
This toner cartridge is quite easy to refill using
our ReChargX™ RX230A Premium Print Toner
Refill Kit.
Within these ReChargX™ RX230A Premium
Print Toner Refill Kit instructions, we will be
adding new toner, removing the waste toner
and replacing the reset chip.
Step 1: Orient the Toner Cartridge
Orient the cartridge on your work surface with
the cartridge handle closest to you, as shown
in figure 2.
Step 2: Determining the Toner Hopper
Hole Location
With the cartridge in the same orientation as
shown in figure 2 (with the cartridge handle
toward your chest), the toner hopper hole will
be placed on the grooved surface of the toner
cartridge handle, within the area as shown by
the white circle in figure 3.
TonerRefillKits.com
Mon - Fri 8am - 5pm ET
800.527.3712 or 352.343.7533
© 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.
Figure 1: The Canon 119 toner cartridge

Figure 2: Cartridge oriented with the cartridge handle
toward your chest
Figure 3: Determine the toner hopper hole location

