ReChargX™ RX052 Instructions
For use in the Xerox 113R00095, the DEC LN17XAA, the
Lexmark 63H2401 and the NEC 20110 toner cartridges
This is the toner cartridge used in the Xerox
Docuprint 4317, Docuprint 4517, Docuprint
4517 MP, Docuprint N 17, Docuprint N 17 B,
the IBM 4317 Network Printer, Network Printer
17 , NP 17 and other machines using the same
underlying engine.
These cartridges are quite easy to refill using
our ReChargX™ RX052 Premium Print Toner
Refill Kit.

Step 1: Locate the Toner Hopper

With the toner cartridge in the same orientation as
it would be if it were to be installed in the printer.
The toner hopper plug can be found along the right
side of the toner cartridge (figure 1).

Step 2: Orient the Toner Cartridge

Lift the right side of the toner cartridge so that
the large plastic plug can be seen (figure 2).

Step 3: Remove the Toner Hopper Plug

Using a needle-nosed pliers, pull up on
the cross section on the inside of the plug
(figure 3).
TonerRefillKits.com
Mon - Fri 8am - 5pm ET © 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
800.527.3712 or 352.343.7533 ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.

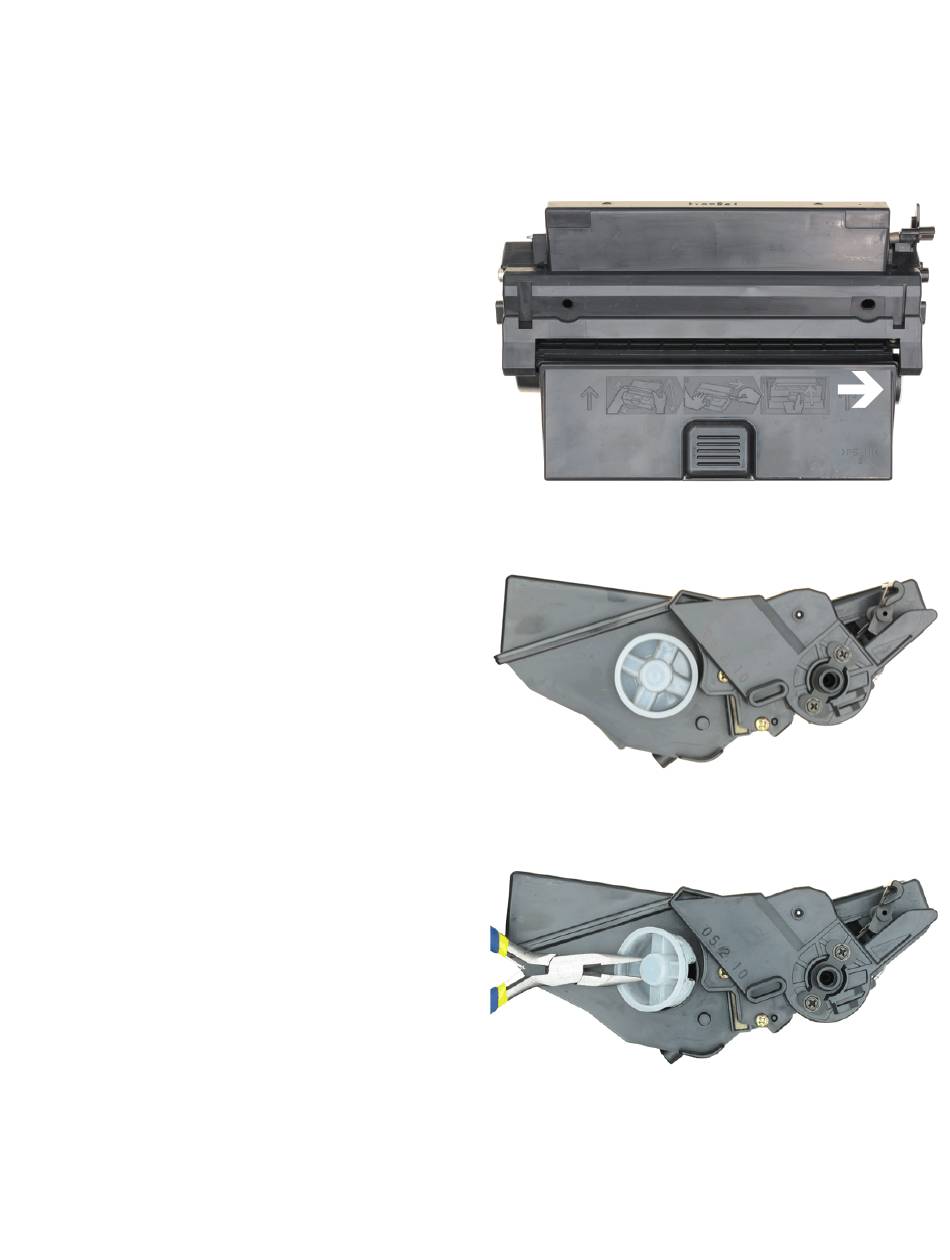

Figure 1: Xerox 113R00095 toner cartridge
Figure 2: Orient the toner cartridge
Figure 3: Remove the toner hopper plug
