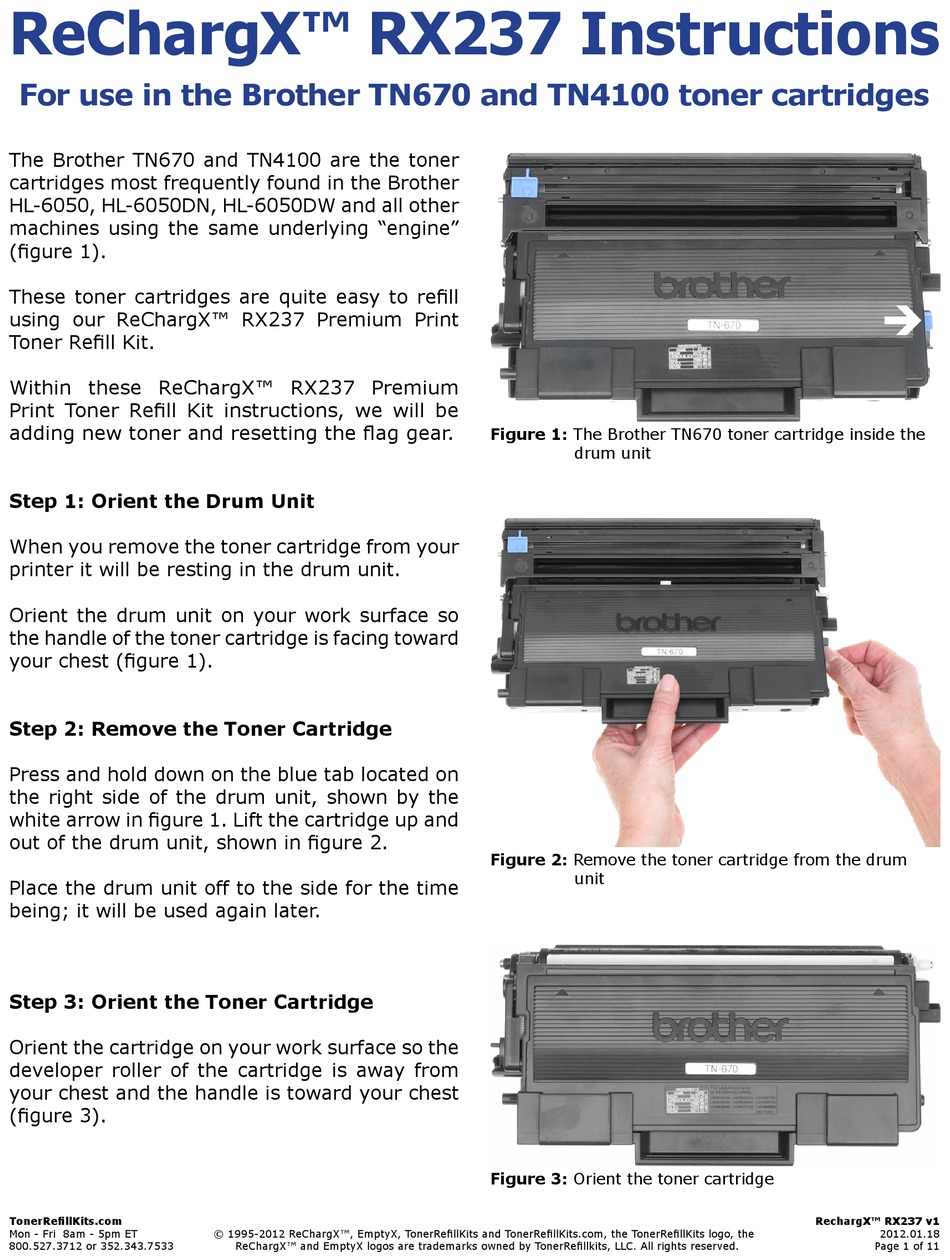

ReChargX™ RX237 Instructions
For use in the Brother TN670 and TN4100 toner cartridges
The Brother TN670 and TN4100 are the toner
cartridges most frequently found in the Brother
HL-6050, HL-6050DN, HL-6050DW and all other
machines using the same underlying "engine"
(figure 1).
These toner cartridges are quite easy to refill
using our ReChargX™ RX237 Premium Print
Toner Refill Kit.
Within these ReChargX™ RX237 Premium
Print Toner Refill Kit instructions, we will be
adding new toner and resetting the flag gear.
Step 1: Orient the Drum Unit
When you remove the toner cartridge from your
printer it will be resting in the drum unit.
Orient the drum unit on your work surface so
the handle of the toner cartridge is facing toward
your chest (figure 1).
Step 2: Remove the Toner Cartridge
Press and hold down on the blue tab located on
the right side of the drum unit, shown by the
white arrow in figure 1. Lift the cartridge up and
out of the drum unit, shown in figure 2.
Place the drum unit off to the side for the time
being; it will be used again later.
Step 3: Orient the Toner Cartridge
Orient the cartridge on your work surface so the
developer roller of the cartridge is away from
your chest and the handle is toward your chest
(figure 3).
TonerRefillKits.com
Mon - Fri 8am - 5pm ET
800.527.3712 or 352.343.7533
© 1995-2012 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.
Figure 1: The Brother TN670 toner cartridge inside the
drum unit
Figure 2: Remove the toner cartridge from the drum
unit
Figure 3: Orient the toner cartridge
