ReChargx RX006 Instructions Manual

ReChargX™ RX006 Instructions
For use in the Lexmark 1382620, 1382625, 1382920 and
The Lexmark 1382620, 1382925, 1382920
and 1382925 are the toner cartridges most
frequently found in the Lexmark Optra S
Series, and all other machines using the
same underlying "engine" (figure 1).
This toner cartridge is quite easy to refill using
our ReChargX™ RX006 Premium Print Toner
Refill Kit.
Within these ReChargX™ RX006 Premium
Print Toner Refill Kit instructions, we will be
adding new toner and removing the waste
toner.

Step 1: Orient the Toner Cartridge

Orient the toner cartridge as you would if
installing it into the printer with the handle
toward you (figure 1).
Flip the toner cartridge over from right to left
so that the blue/green imaging drum on the
underside of the toner cartridge is facing up
(figure 2).

Step 2: Locate the Imaging Drum

Before we start working with the cartridge we will
protect the imaging drum of the toner cartridge.
The imaging drum is the blue/green roller on the
underside of the toner cartridge, shown by the
white arrows in figure 2.
TonerRefillKits.com
Mon - Fri 8am - 5pm ET
800.527.3712 or 352.343.7533
1382925 toner cartridges
© 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.

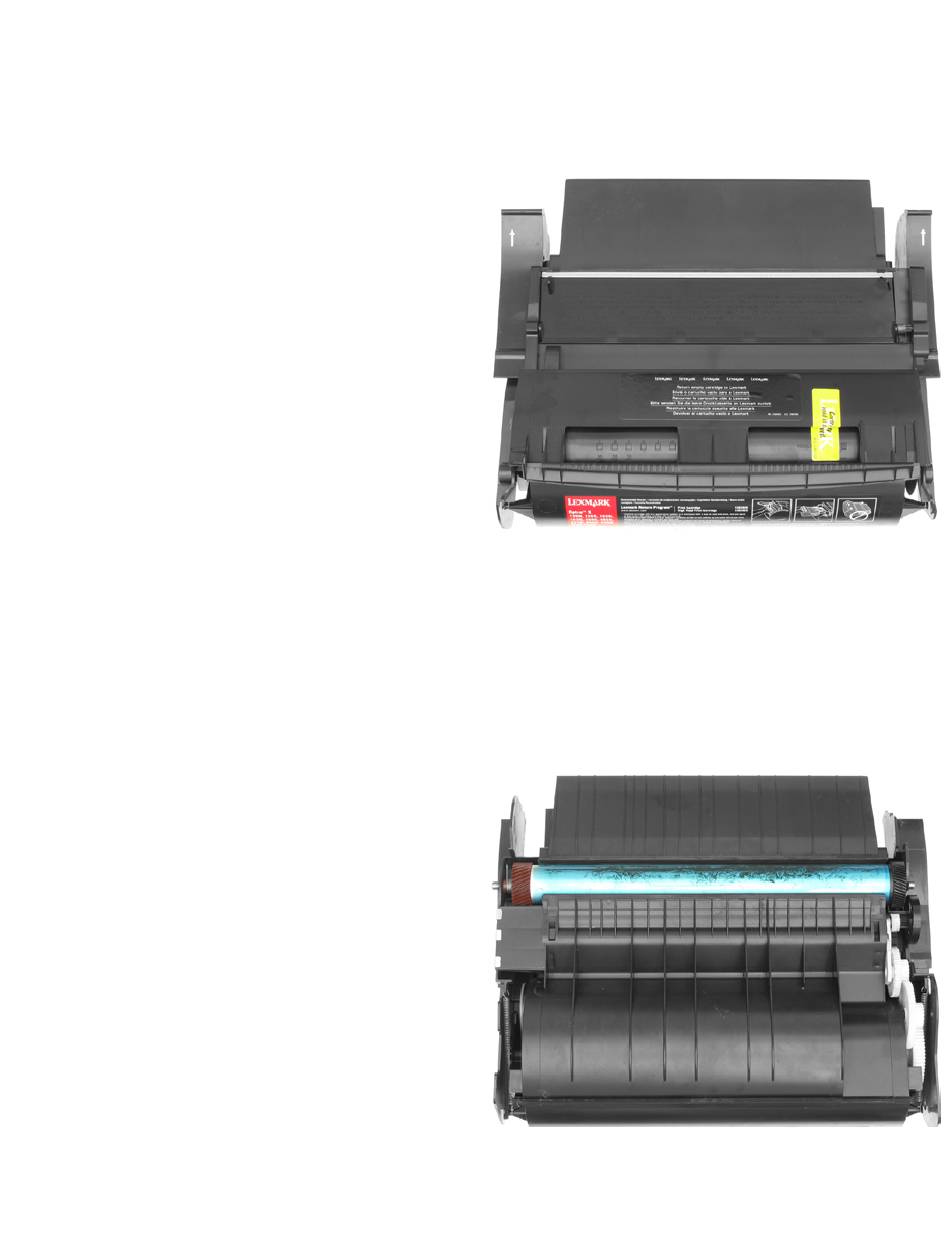

Figure 1: The Lexmark 1382625 toner cartridge
ê
Figure 2: Orient the toner cartridge
ê
