ReChargx RX163 Instructions Manual

ReChargX RX163 Instructions
Canon C120 (#120) Cartridge Overview
The Canon C120 (#120) is the cartridge most
frequently found in the Canon D1120, D1150,
D1170, D1180 printer series, shown in fig. 1.
This toner cartridge is quite easy to refill using
our ReChargX RX163 Premium Print Toner
Refill Kit.
Within these ReChargX RX163 Premium Print
Toner Refill Kit instructions, we will be adding
new toner, replacing the cartridge reset chip
and removing the waste toner.
Step 1: Orient the Toner Cartridge
Orient the cartridge on your work surface with
the cartridge chip facing away from you.
In this orientation, the handle of the toner
cartridge will be closest to your chest, as
shown in figure 2.
Step 2: Determining the Toner Hopper
Hole Location
With the cartridge in the same orientation as
shown in figure 2 (with the cartridge handle
toward your chest), the toner hopper hole will
be placed on the bottom-right of the toner
cartridge, within the area as shown by the
white circle in figure 3.
© 1995-2010 ReChargX, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the ReChargX and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.
TonerRefillKits.com
Mon - Fri 8am - 5pm ET
800.527.3712 or 352.343.7533

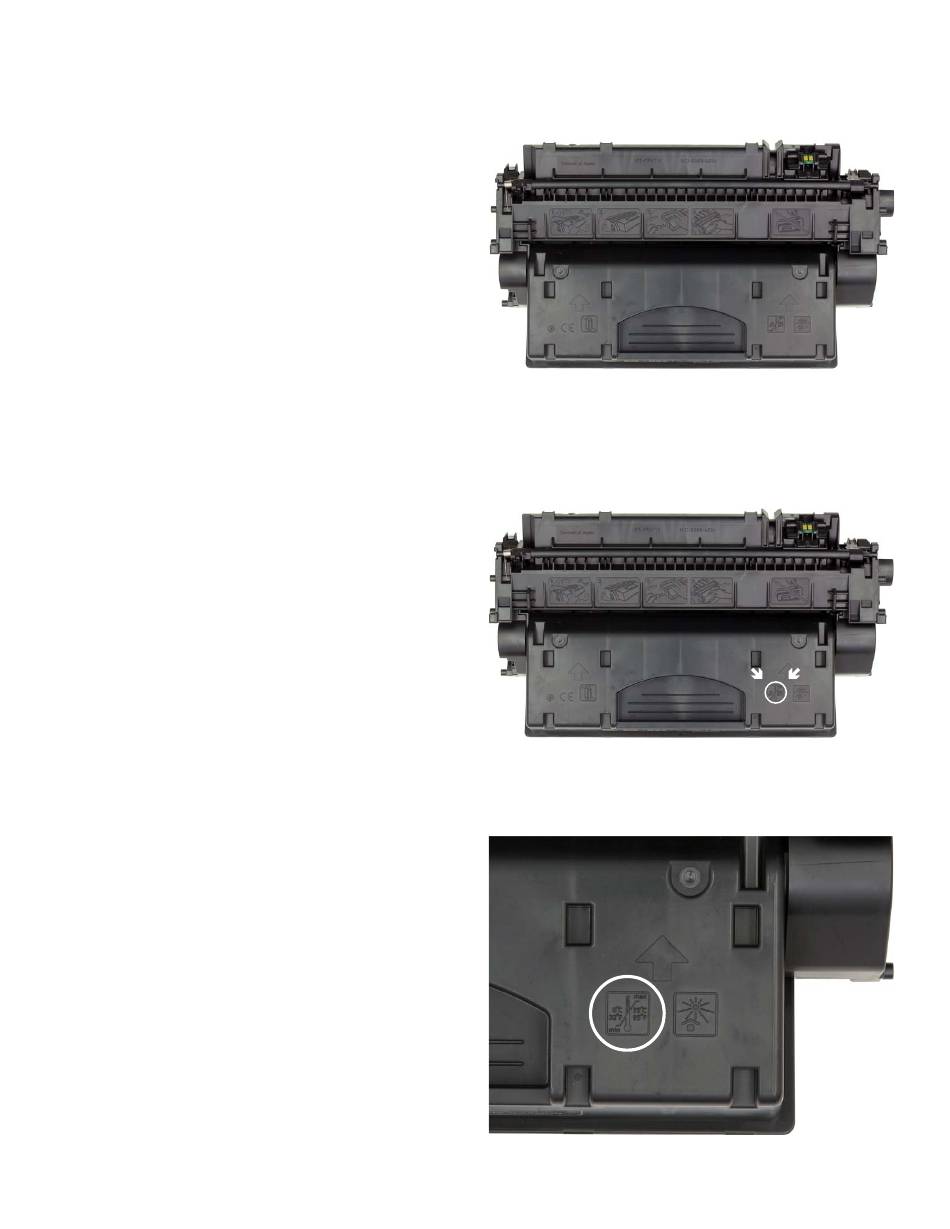

Figure 1: The Canon C120 (#120) toner cartridge
