ReChargX™ RX022 Instructions
For use in the Canon E16, E20, E32, E40 toner cartridges
The Canon E16/E20/E32/E40 are the toner car-
tridges most frequently found in the Canon PC
140, 210, 230, 300, 430, 530, 710, 730, 740
and others, as shown in figure 1.
These toner cartridges are quite easy to refill
using our ReChargX™ RX022 Premium Print
Toner Refill Kit.
Within these ReChargX™ RX022 Premium Print
Toner Refill Kit instructions, we will be adding
new toner and removing the waste toner.
Step 1: Orient the Toner Cartridge
Orient the cartridge handle to the right side,
opposite from the side of the cartridge with the
engraved arrow.
In this orientation the text on the cartridge will
be right side up, as shown in figure 2.
The white circle indicates where we will be
placing the toner hopper hole; explained
further in step 2.
Step 2: Determining the Toner Hopper
Hole Location
With the cartridge in the same orientation as
shown in figure 2, we will create the toner
hopper hole on the left of the cartridge on the
small indent, shown by the white circle (fig 3).
These four cartridges, while they contain
different amounts of toner when they leave
the Canon factory, actually all have the same
capacity within the toner hopper.
The amount of toner provided in the ReChargX™
RX022 Toner Refill Kit will give you the amount
equal to the Canon E40 high-yield toner cartridge,
no matter which type of cartridge you start with.
TonerRefillKits.com
Mon - Fri 8am - 5pm ET © 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
800.527.3712 or 352.343.7533 ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.

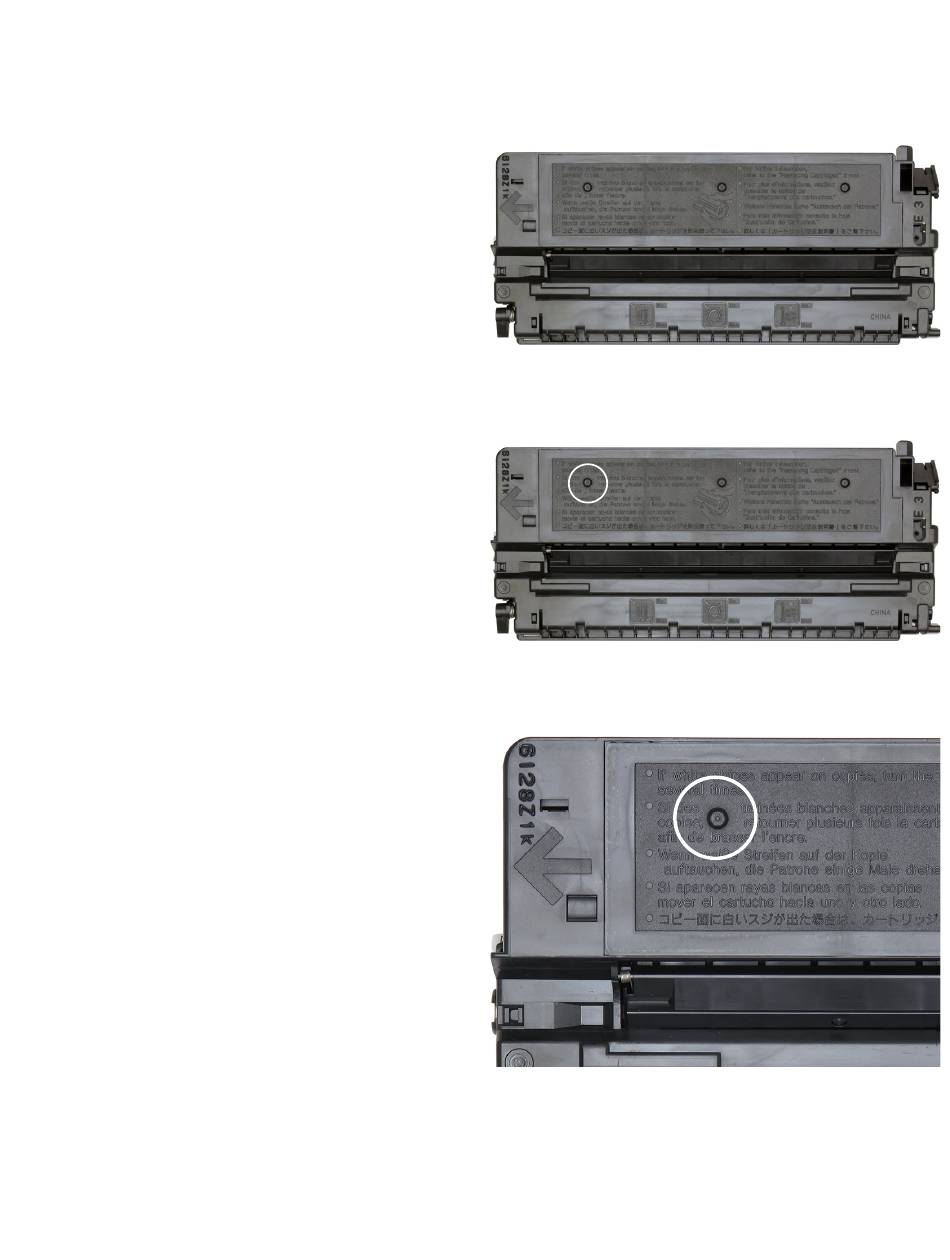

Figure 1: Canon E16/E20/E32/E40 toner cartridge
Figure 2: Cartridge oriented with the cartridge handle
toward your right side
Figure 3: The toner hopper hole location
RechargX™ RX022
2011.05.20
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ReChargx RX022
Summary of Contents for ReChargx RX022
- Page 1 For use in the Canon E16, E20, E32, E40 toner cartridges The Canon E16/E20/E32/E40 are the toner car- tridges most frequently found in the Canon PC 140, 210, 230, 300, 430, 530, 710, 730, 740 and others, as shown in figure 1. These toner cartridges are quite easy to refill using our ReChargX™ RX022 Premium Print Toner Refill Kit. Within these ReChargX™ RX022 Premium Print Figure 1: Canon E16/E20/E32/E40 toner cartridge Toner Refill Kit instructions, we will be adding new toner and removing the waste toner.
- Page 2 Figure 5: Create the toner hopper hole Step 5: Remove the Excess Plastic From the Hole-Making Tool Using the tip of the flat-blade screwdriver, included in the ReChargX™ Tool Kit, remove the small piece of plastic from the copper tip of the hole-making tool, as shown in figure 6. Figure 6: Remove the excess plastic piece This small piece of plastic becomes impossible to remove once it becomes cold and hardens to the copper tip of the hole-making tool.
- Page 3 Step 6: Add ReChargX™ RX022 Premium Print Toner to the Toner Hopper Now we will fill the toner hopper with the ReChargX™ RX022 Premium Print toner. To ensure the toner flows freely from the bottle during filling, make certain the cap is screwed tightly on the bottle, then gently rock/shake the bottle to free up the toner that may have settled during shipping. Next, remove the original cap from the bottle and replace it with the plastic dispenser spout from the ReChargX™ RX022 Toner Refill Kit. To make the adding of the toner to the toner...
- Page 4 Figure 8: Clean the area around the toner hopper hole before sealing (Note: Only use the toner grabber cloth on the exterior of the toner cartridge around the toner hopper hole area. Do not use the cloth to clean any of the internal components or the cartridge imaging drum.) Step 8: Remove the ReChargX™ Seal from the Protective Backing Remove the protective backing from the ReChargX™ leak-proof seal included in the Figure 9: Removing the ReChargX™ leak-proof seal ReChargX™ RX022 Toner Refill Kit (figure 9). from the protective backing Step 9: Seal the Toner Hopper Hole with the ReChargX™...
- Page 5 (there is no need to use excessive force, let the tool do the work with a minimal amount of pressure), as shown in figure 14. Note: Once the copper tip of the hole-making tool slowly penetrates the top of the toner cartridge, immediately withdraw the tool and unplug it from the wall. Figure 14: Create the waste hopper hole TonerRefillKits.com RechargX™ RX022 Mon - Fri 8am - 5pm ET © 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the 2011.05.20 800.527.3712 or 352.343.7533 ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved. Page 5 of 7...
- Page 6 Note: This toner cannot be used again as paper, dust, hair, staples and other small items can accumulate in the waste hopper. Holding the cartridge over the newsprint, included in the ReChargX™ RX022 Refill Kit, carefully pour out any waste toner, as shown in figure 16. If the waste toner stops flowing, stand the cartridge up again and then re-lower the hole...
- Page 7 ReChargX™ leak-proof seal Enjoy your savings. - End of ReChargX™ RX022 Instructions - Technical Support To further help your ReChargX™ RX022 Toner Refill procedure, we are always ready, willing and happy to answer any of your questions or comments via technical support. P l e a s e c o n t a c t u s a t 3 5 2 . 3 4 3 . 7 5 3 3 o r 800.527.3712 M-F 8am-5pm ET.
