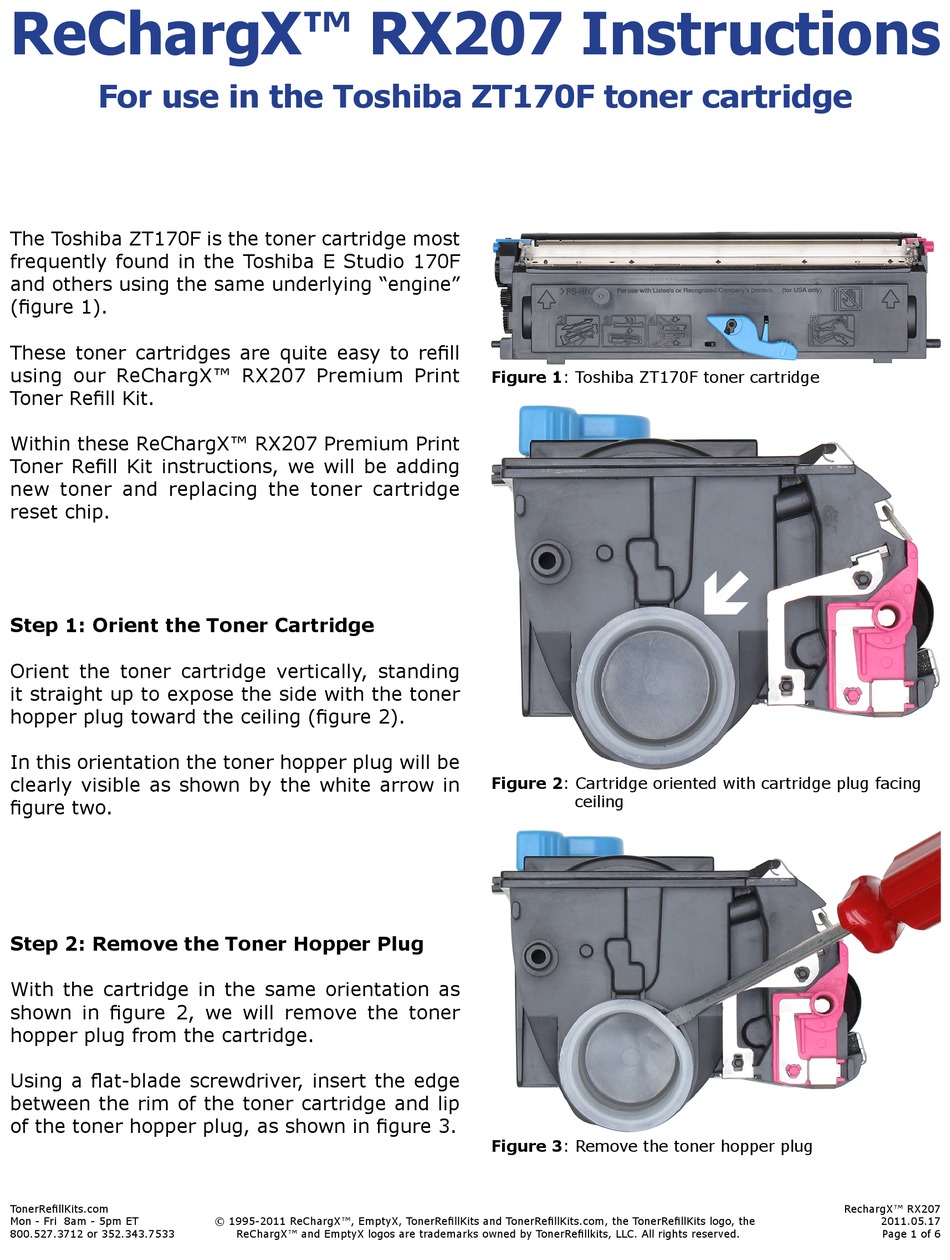

ReChargX™ RX207 Instructions
For use in the Toshiba ZT170F toner cartridge
The Toshiba ZT170F is the toner cartridge most
frequently found in the Toshiba E Studio 170F
and others using the same underlying "engine"
(figure 1).
These toner cartridges are quite easy to refill
using our ReChargX™ RX207 Premium Print
Toner Refill Kit.
Within these ReChargX™ RX207 Premium Print
Toner Refill Kit instructions, we will be adding
new toner and replacing the toner cartridge
reset chip.

Step 1: Orient the Toner Cartridge

Orient the toner cartridge vertically, standing
it straight up to expose the side with the toner
hopper plug toward the ceiling (figure 2).
In this orientation the toner hopper plug will be
clearly visible as shown by the white arrow in
figure two.

Step 2: Remove the Toner Hopper Plug

With the cartridge in the same orientation as
shown in figure 2, we will remove the toner
hopper plug from the cartridge.
Using a flat-blade screwdriver, insert the edge
between the rim of the toner cartridge and lip
of the toner hopper plug, as shown in figure 3.
TonerRefillKits.com
Mon - Fri 8am - 5pm ET © 1995-2011 ReChargX™, EmptyX, TonerRefillKits and TonerRefillKits.com, the TonerRefillKits logo, the
800.527.3712 or 352.343.7533 ReChargX™ and EmptyX logos are trademarks owned by TonerRefillkits, LLC. All rights reserved.
Figure 1: Toshiba ZT170F toner cartridge
Figure 2: Cartridge oriented with cartridge plug facing
ceiling
Figure 3: Remove the toner hopper plug
