BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
Initial setup
secuENTRY easy
ENTRY 7602 FP
Setup with app
BURGsmart
www.burg.biz
Further languages at:
www.burg.biz
Dear Customer,

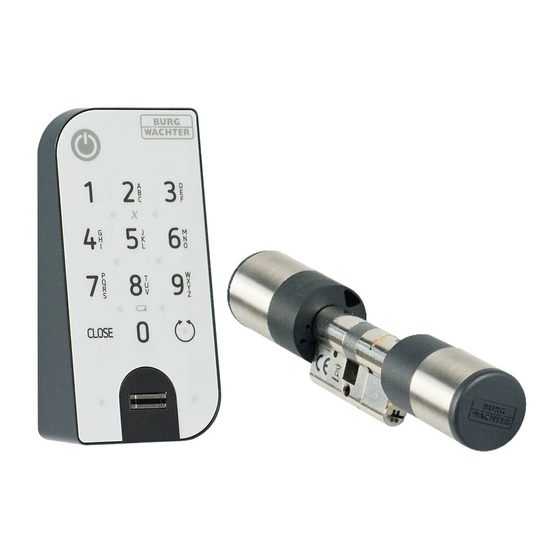

Thank you very much for deciding on the secuENTRY Set
ENTRY 7602 FP, consisting of the ENTRY 7600 CYL cylinder and
the ENTRY 7712 Keypad FP.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.
The ENTRY 7600 CYL electronic cylinder can be easily installed
in any door with a mortise lock, up to a door thickness of
118 mm (59/59 mm, measured in the centre of the forend
screw). No drilling or laying of cables is required and it is
ideally suited for both new installations and retrofitting. The
ENTRY 7600 CYL can be fitted to house and interior doors.
Using the ENTRY 7712 Keypad FP, you can unlock and lock the
door with a 6-digit user code or fingerprint. The ENTRY 7712
Keypad FP can be installed up to approx. four metres from the
locking unit, depending on preference and conditions.
The ENTRY 7600 CYL is setup and operated using the free
smartphone app BURGsmart
cylinder uses the modern Bluetooth 5.2 standard.
*
Alternatively, the cylinder can also be operated by keypad (e.g. ENTRY 7711
Keypad PIN), the radio key ENTRY sE-Key 7713, as well as other add-on products
Video instructions
(all items available separately. For a complete list of all compatible products,
Simple instructions on the
please refer to page 17 of these instructions). The BURGsmart app is however
setup and operation of your
always required for the setup.
secuENTRY components.
Follow the QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
. The transmission is wireless, the
*
Important:
Please read the entire operating instructions
before you start the installation.
We hope you enjoy your new locking system!
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the secuENTRY easy ENTRY 7602 FP and is the answer not in the manual?

Questions and answers

Related Manuals for Burg Wächter secuENTRY easy ENTRY 7602 FP

Summary of Contents for Burg Wächter secuENTRY easy ENTRY 7602 FP

  • Page 1 Contents index English Further languages at: www.burg.biz Initial setup secuENTRY easy ENTRY 7602 FP Foreword Dear Customer, Thank you very much for deciding on the secuENTRY Set ENTRY 7602 FP, consisting of the ENTRY 7600 CYL cylinder and the ENTRY 7712 Keypad FP. Setup with app The system was developed in Germany according to the most BURGsmart...
  • Page 2 Set contents Technical data - ENTRY 7600 CYL Cylinder ENTRY easy 7600 CYL Cylinder Cylinder unit power supply 2x Mignon LR6 AA Alkaline Permitted ambient conditions -15 °C/+50 °C / up to 95 % ENTRY 7712 Keypad FP relative humidity (non-condensing) Adapter 1 incl.
  • Page 3 Set the keypad to programming mode ENTRY 7712 Keypad FP Please refer to this chapter if the keypad The ENTRY 7712 Keypad FP can be used to operate electronic secuENTRY cylinders from BURG-WÄCHTER. Communication between the keypad and the profile cylinder is 128-bit AES has to be set to programming mode encrypted.
  • Page 4 ENTRY easy 7602 FP activation I - User Tap on the menu item "I - User" (Fig. 1). First of all, download the BURGsmart app in order to be able to set up your BURGsmart A list of the users that have already new locking system.
  • Page 5 Access data | Enter RFID tag A prompt will appear asking you to scan the QR code for the keypad pro- An RFID transponder ENTRY 7710 RFID vided using your smartphone camera. (optionally available) can be entered The QR code is on the QR code sticker at this point.
  • Page 6 Attention: The following step requires Once a finger has been entered, the the smartphone, keypad and cylinder entry "Fingerprint saved" (I) appears in to be in direct proximity to each other the corresponding field (Fig. 16). (Bluetooth range). Below this, there is also a new, empty field for a further fingerprint (II) (Fig. 16).
  • Page 7 The capture window of the camera II - secuENTRY Cylinder / Relay opens. Scan the QR code. Tap on the second menu item A message appears containing data "II - secuENTRY Cylinder/Relay" (Fig. 1). regarding your cylinder; confirm this with "OK" at the bottom right (Fig. 4). The app displays a list of the cylinders that have already been registered.
  • Page 8 Attention: The following step requires III - secuENTRY keypad the smartphone, keypad and cylinder to be in direct proximity to each other Tap on the second menu item "III - secuENTRY keypad (Fig. 1). The (Bluetooth range). app displays a list of the keypads You will be asked to set the keypad to that have already been registered.
  • Page 9 IV - Locking plan V - Transfer locking plan Note: A locking plan must be created Note: To ensure that user and locking before the data can be transmitted to plan data is transferred, a programming the cylinder. This determines which user file must be generated from it which is allowed to open which lock.
  • Page 10 Tap on the programming file you Cylinder data: have just created (I) (Fig. 5) and tap To transfer the cylinder data, tap on on "Update unit" (II) in the menu that Program File <Cylinder name> (In this appears (Fig. 5). example "Front door cylinder") (Fig. 10). Note: In case you have created data Here you will be asked to verify yourself for the keypad, you are requested to...
  • Page 11 Using the cylinder and keypad Opening the secuENTRY lock via the keypad (user code) To use the cylinder (Fig. 1) and Activate the keypad by pressing either keypad (Fig. 2), remove the battery the ON key or the CLOSE key (I) (Fig. 4). protection strips.
  • Page 12 Opening the secuENTRY lock via the keypad (fingerprint) Opening the secuENTRY lock with the emergency lock Activate the keypad by pressing either Should the batteries in the locking the ON key or the CLOSE key (Fig. 7). cylinder be completely discharged, the lock can still be opened mechanically.
  • Page 13 Adapters may be required depending on Assembly of the ENTRY easy 7600 CYL Door outer side Door inner side the door thickness. The installation of the ENTRY easy If the distance between the forend screw Forend screw 7600 CYL is explained below. Prior to and the outer side of the door (Fig. 4) is...
  • Page 14 Screw the cylinder into the door and ENTRY 7712 Keypad FP installation push the inside and outside knobs up to the door (Fig. 9). The installation of the ENTRY 7712 Keypad FP is explained below. There are two options to choose from for installation. The ENTRY 7712 Keypad FP wall bracket can either be screwed or adhered directly to the wall.
  • Page 15 ENTRY 7712 Keypad FP installation - screw mounting ENTRY 7712 Keypad FP installation - adhesive mounting Drill three holes according to the Clean the surface to which the keypad dimensions shown in the illustration. is to be attached (Fig. 6). Use a 6 mm diameter drill bit (Fig. 1). Insert the dowels supplied into the holes and screw in the screws provided (Fig. 2).
  • Page 16 Battery status display and replacing the batteries ENTRY 7712 Keypad FP The system monitors the keypad and ENTRY 7600 CYL cylinder cylinder battery voltage. The user is alerted as soon as the battery voltage The battery status is shown on the reaches a critical range.
  • Page 17 secuENTRY Add-on Compatibility with other secuENTRY products Article number: ENTRY 7174 RFID-Extender 4003482501740 Whether for one front door, several doors or a complete locking system: Simply configure your Further information RFID transponder reader. Can be used individual unit with the secuENTRY modular system. can be found on for cylinders or, in conjunction with our website:...

  • Page 18: Warranty

    Warranty Notes In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation. When returning goods due to your right of withdrawal, all parts of the appliance must also be in their factory settings.
  • Page 19 secuENTRY easy ENTRY 7602 FP BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
