Burg Wächter secuENTRY Set ENTRY Home 5001 PIN Initial Setup Manual

Hide thumbs Also See for secuENTRY Set ENTRY Home 5001 PIN:

Advertisement

Quick Links

Download this manual
Initial setup
secuENTRY Set
ENTRY Home 5001 PIN
Setup with app
BURGsmart
BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
www.burg.biz
Further languages at:
www.burg.biz
Dear Customer,

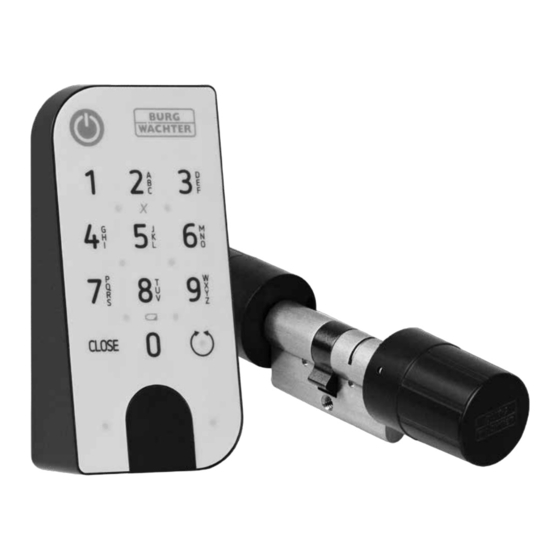

Thank you very much for deciding on the secuENTRY Set
ENTRY home 5001 PIN, consisting of the ENTRY home 5000 CYL
cylinder and the ENTRY 7711 Keypad PIN.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.
The ENTRY home 5000 CYL electronic cylinder can be easily
installed in any door with a mortise lock, up to a door thick-
ness of 118 mm (59/59 mm, measured in the centre of the
forend screw). No drilling or laying of cables is required and
it is ideally suited for both new installations and retrofitting.
The ENTRY home 5000 CYL can be fitted to house and
interior doors.
Using the ENTRY 7711 Keypad PIN, you can unlock and lock
the door with the 6-digit administrator code. The ENTRY 7711
Keypad PIN can be installed up to approx. four metres from
the locking unit, depending on preference and conditions.
The ENTRY home 5001 PIN is setup and operated using the
free smartphone app BURGsmart
the cylinder and keypad both use the modern Bluetooth 5.2
standard.
Video instructions
Simple instructions on the
*
Alternatively, the cylinder can also be operated via the radio key
setup and operation of your
ENTRY sE-Key 7713 (available separately). The BURGsmart app is however
secuENTRY components.
always required for the setup.
Follow the QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
*
. The transmission is wireless,
Important:
Please read the entire operating instructions
before you start the installation.
We hope you enjoy your new locking system!
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the secuENTRY Set ENTRY Home 5001 PIN and is the answer not in the manual?

Questions and answers

Related Manuals for Burg Wächter secuENTRY Set ENTRY Home 5001 PIN

Summary of Contents for Burg Wächter secuENTRY Set ENTRY Home 5001 PIN

  • Page 1 Contents index English Further languages at: www.burg.biz Initial setup secuENTRY Set ENTRY Home 5001 PIN Foreword Dear Customer, Thank you very much for deciding on the secuENTRY Set ENTRY home 5001 PIN, consisting of the ENTRY home 5000 CYL cylinder and the ENTRY 7711 Keypad PIN. Setup with app The system was developed in Germany according to the most BURGsmart...
  • Page 2 Set contents Technical details - ENTRY 5000 home CYL Cylinder Cylinder ENTRY home 5000 CYL Cylinder unit power supply 2x Mignon LR6 AA alkaline ENTRY 7711 Keypad PIN Permitted ambient conditions -15 °C/+50 °C / up to 95 % relative air humidity (non-condensing) Forend screw Radio standard Bluetooth 5.2 LE...
  • Page 3 Set the keypad to programming mode ENTRY 7711 Keypad PIN Please refer to this chapter if the keypad The ENTRY 7711 Keypad PIN can be used to operate electronic secuENTRY cylinders from BURG-WÄCHTER. Communication between the keypad and the profile cylinder is 128-bit AES has to be set to programming mode encrypted.
  • Page 4 ENTRY home 5001 PIN activation I - User Tap on the menu item "I - User" (Fig. 1). First of all, download the BURGsmart app in order to be able to set up your BURGsmart A list of the users that have already new locking system.
  • Page 5 Access data | Enter sE-Key II - secuENTRY Cylinder / Relay A radio key ENTRY sE-Key 7713 Tap on the second menu item (optionally available) can be stored "II - secuENTRY Cylinder/Relay" (Fig. 1). at this point (I) (Fig. 4). Instructions on how this is setup can be found in The app displays a list of the cylinders the radio key instructions.
  • Page 6 The capture window of the camera III - secuENTRY keypad opens. Scan the QR code. Note: The keypad of the ENTRY home A message appears containing data regarding your cylinder; confirm this 5001 PIN set is already set up at the factory and connected to the locking with "OK"...
  • Page 7 Tap on the programming file you V - Transfer locking plan have just created (I) (Fig. 6) and tap on "Update unit" (II) in the menu that Note: To ensure that user and locking appears (Fig. 6). plan data is transferred, a programming file must be generated from it which To transfer the cylinder data, tap on bundles all the data.
  • Page 8 Using the cylinder and keypad Opening the secuENTRY lock via the keypad (administrator code) To use the cylinder (Fig. 1) and keypad Activate the keypad by pressing either (Fig. 2), remove the battery protection the ON key or the CLOSE key (I) (Fig. 1). strips.
  • Page 9 From inner side the door, push the secuENTRY 5000 CYL installation cylinder into the mortise lock (Fig. 4). The installation of the secuENTRY 5000 CYL is explained below. Prior to installation, please read the assembly instructions carefully. Remove the existing door lock cylinder by loosening the forend screw in the door and pulling out the cylinder with Fig. 4...
  • Page 10 ENTRY 7711 Keypad PIN installation ENTRY 7711 Keypad PIN installation - screw mounting The installation of the ENTRY 7711 Keypad PIN is explained below. Drill three holes according to the dimensions shown in the illustration. There are two options to choose from for installation. The ENTRY 7711 Keypad PIN wall bracket Use a 6 mm diameter drill bit (Fig. 1).
  • Page 11 ENTRY 7711 Keypad PIN installation - adhesive mounting Battery status display and replacing the batteries Cylinder ENTRY home 5000 CYL Clean the surface to which the keypad is to be attached (Fig. 6). The battery status is shown on the display each time a secuENTRY cylinder is activated via the BURGsmart app (Fig. 1).

  • Page 12: Warranty

    ENTRY 7711 Keypad PIN Compatibility with other secuENTRY products Whether for one front door, several doors or a complete locking system: Simply configure your The system monitors the keypad and individual unit with the secuENTRY modular system. cylinder battery voltage. The user is alerted as soon as the battery voltage Your ENTRY home 5001 PIN locking system can be extended with the following components: reaches a critical range.
  • Page 13 secuENTRY Set ENTRY Home 5001 PIN BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
