Initial setup
secuENTRY easy
ENTRY 7601 PIN
Setup with app
BURGsmart
www.burg.biz
Further languages at:
www.burg.biz
Dear Customer,

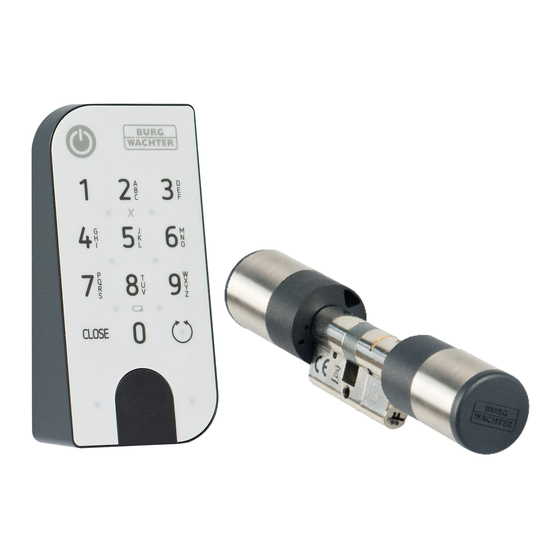

Thank you very much for deciding on the secuENTRY Set
ENTRY 7601 PIN, consisting of the ENTRY 7600 CYL cylinder and
the ENTRY 7711 Keypad PIN.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.
The ENTRY 7600 CYL electronic cylinder can be easily installed
in any door with a mortise lock, up to a door thickness of
118 mm (59/59 mm, measured in the centre of the forend
screw). No drilling or laying of cables is required and it is
ideally suited for both new installations and retrofitting. The
ENTRY 7600 CYL can be fitted to house and interior doors.
Using the ENTRY 7711 Keypad PIN, you can unlock and lock the
door with a 6-digit user code. The ENTRY 7711 Keypad PIN can
be installed up to approx. four metres from the locking unit,
depending on preference and conditions.
The ENTRY 7600 CYL is setup and operated using the free
smartphone app BURGsmart
cylinder uses the modern Bluetooth 5.2 standard.
*
Alternatively, the cylinder can also be operated by keypad (e.g. ENTRY 7712
Keypad FP), the radio key ENTRY sE-Key 7713, as well as other add-on products
Video instructions
(all items available separately. For a complete list of all compatible products,
Simple instructions on the
please refer to page 14 of these instructions). The BURGsmart app is however
setup and operation of your
always required for the setup.
secuENTRY components.
Follow the QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
. The transmission is wireless, the
*
Important:
Please read the entire operating instructions
before you start the installation.
We hope you enjoy your new locking system!
2
Advertisement
Related Manuals for Burg Wächter secuENTRY easy ENTRY 7601 PIN
Summary of Contents for Burg Wächter secuENTRY easy ENTRY 7601 PIN
- Page 1 Contents index English Further languages at: www.burg.biz Initial setup secuENTRY easy ENTRY 7601 PIN Foreword Dear Customer, Thank you very much for deciding on the secuENTRY Set ENTRY 7601 PIN, consisting of the ENTRY 7600 CYL cylinder and the ENTRY 7711 Keypad PIN. Setup with app The system was developed in Germany according to the most BURGsmart...
- Page 2 Set contents Technical data - ENTRY 7600 CYL Cylinder ENTRY easy 7600 CYL Cylinder Cylinder unit power supply 2x Mignon LR6 AA Alkaline Permitted ambient conditions -15 °C/+50 °C / up to 95 % ENTRY 7711 Keypad PIN relative humidity (non-condensing) Adapter 1 incl.
- Page 3 Set the keypad to programming mode ENTRY 7711 Keypad PIN Please refer to this chapter if the keypad The ENTRY 7711 Keypad PIN can be used to operate electronic secuENTRY cylinders from BURG-WÄCHTER. Communication between the keypad and the profile cylinder is 128-bit AES has to be set to programming mode encrypted.
- Page 4 ENTRY easy 7601 PIN activation I - User Tap on the menu item "I - User" (Fig. 1). First of all, download the BURGsmart app in order to be able to set up your BURGsmart A list of the users that have already new locking system.
- Page 5 Access data | Enter RFID tag Note: If you wish to enter opening media for other users, go back one An RFID transponder ENTRY 7710 RFID menu and select the respective user (optionally available) can be entered (Fig. 7). Repeat the steps in this chapter at this point.
- Page 6 The capture window of the camera II - secuENTRY Cylinder / Relay opens. Scan the QR code. Tap on the second menu item A message appears containing data "II - secuENTRY Cylinder/Relay" (Fig. 1). regarding your cylinder; confirm this with "OK" at the bottom right (Fig. 4). The app displays a list of the cylinders that have already been registered.
- Page 7 III - secuENTRY keypad V - Transfer locking plan Note: The keypad of the ENTRY 7602 Note: To ensure that user and locking plan data is transferred, a programming PIN set is already set up at the factory file must be generated from it which and connected to the locking cylinder.
- Page 8 Tap on the programming file you Using the cylinder and keypad have just created (I) (Fig. 5) and tap on "Update unit" (II) in the menu that To use the cylinder (Fig. 1) and appears (Fig. 5). keypad (Fig. 2), remove the battery To transfer the cylinder data, tap on protection strips.
- Page 9 Opening the secuENTRY lock via the keypad (user code) Opening the secuENTRY lock with the emergency lock Activate the keypad by pressing either Should the batteries in the locking the ON key or the CLOSE key (I) (Fig. 4). cylinder be completely discharged, the lock can still be opened mechanically.
- Page 10 Adapters may be required depending on Assembly of the ENTRY easy 7600 CYL Door outer side Door inner side the door thickness. The installation of the ENTRY easy If the distance between the forend screw Forend screw 7600 CYL is explained below. Prior to and the outer side of the door (Fig. 4) is...
- Page 11 Screw the cylinder into the door and ENTRY 7711 Keypad PIN installation push the inside and outside knobs up to the door (Fig. 9). The installation of the ENTRY 7711 Keypad PIN is explained below. There are two options to choose from for installation. The ENTRY 7711 Keypad PIN wall bracket can either be screwed or adhered directly to the wall.
- Page 12 ENTRY 7711 Keypad PIN installation - screw mounting ENTRY 7711 Keypad PIN installation - adhesive mounting Drill three holes according to the Clean the surface to which the keypad dimensions shown in the illustration. is to be attached (Fig. 6). Use a 6 mm diameter drill bit (Fig. 1). Insert the dowels supplied into the holes and screw in the screws provided (Fig. 2).
- Page 13 Battery status display and replacing the batteries ENTRY 7711 Keypad PIN The system monitors the keypad and ENTRY 7600 CYL cylinder cylinder battery voltage. The user is alerted as soon as the battery voltage The battery status is shown on the reaches a critical range.
- Page 14 secuENTRY Add-on Compatibility with other secuENTRY products Article number: ENTRY 7174 RFID-Extender 4003482501740 Whether for one front door, several doors or a complete locking system: Simply configure your Further information RFID transponder reader. Can be used individual unit with the secuENTRY modular system. can be found on for cylinders or, in conjunction with our website:...
-
Page 15: Warranty
Warranty Notes In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation. When returning goods due to your right of withdrawal, all parts of the appliance must also be in their factory settings. - Page 16 secuENTRY easy ENTRY 7601 PIN BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
