Burg Wächter secuENTRY easy ENTRY 7602 FP Initial Setup Manual

Hide thumbs Also See for secuENTRY easy ENTRY 7602 FP:

Advertisement

Quick Links

Download this manual
BURG-WÄCHTER KG
Altenhofer Weg 15
58300 Wetter
Germany
Initial setup
secuENTRY easy
ENTRY 7602 FP
Setup with app
BURGsmart
www.burg.biz
en
Further languages at:
www.burg.biz
Dear Customer,
en

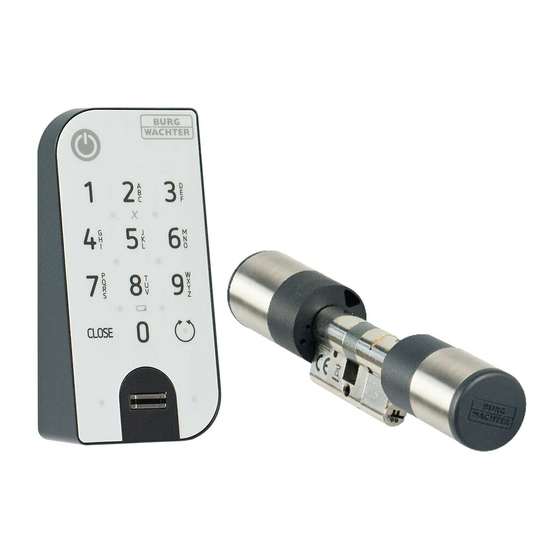

Thank you very much for deciding on the secuENTRY Set
ENTRY 7602 FP, consisting of the ENTRY 7600 CYL cylinder and
the ENTRY 7712 Keypad FP.
The system was developed in Germany according to the most
modern technical capabilities and fulfils the latest high safety
requirements.
The ENTRY 7600 CYL electronic cylinder can be easily installed
in any door with a profile cylinder lock, up to a door thickness
of 118 mm (59/59 mm, measured in the centre of the forend
screw). No drilling or laying of cables is required and it is ideal-
ly suited for both new installations and retrofitting. The ENTRY
7600 CYL can be fitted to house and interior doors.
Using the ENTRY 7712 Keypad FP, you can unlock and lock the
door with a 6-digit user code or with a fingerprint. The ENTRY
7712 Keypad FP can be installed up to approx. four metres from
the locking unit, depending on preference and conditions.
The ENTRY 7602 FP is setup and operated using the free smart-
phone app BURGsmart
der and keypad both use the modern Bluetooth 5.2 standard.
lternatively, the cylinder can also be operated via keyboard (e. g. ENTRY 7711
Keypad PIN), the radio key ENTRY sE-Key 7713 or other add on products (all
Video tutorials
products available separately. For a complete list of all comatibile products,
Setup Operation of your
please refer to page 22 of this manual). The BURGsmart App, however, is always
secuENTRY components
required for the setup.
explained simply. Follow the
QR code or go to...
https://t1p.de/burgsmart-app
!
Contents index
English
Foreword
. The transmission is wireless, the cylin-
*
Important:
Please read the entire operating instructions before you
start the installation.
We hope you enjoy your new locking system!
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the secuENTRY easy ENTRY 7602 FP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Burg Wächter secuENTRY easy ENTRY 7602 FP

Summary of Contents for Burg Wächter secuENTRY easy ENTRY 7602 FP

  • Page 1 Contents index English Further languages at: Initial setup www.burg.biz secuENTRY easy ENTRY 7602 FP Foreword Dear Customer, Thank you very much for deciding on the secuENTRY Set ENTRY 7602 FP, consisting of the ENTRY 7600 CYL cylinder and the ENTRY 7712 Keypad FP. Setup with app The system was developed in Germany according to the most BURGsmart...

  • Page 2: Set Contents

    Set contents Technical data - Zylinder ENTRY 7600 CYL ENTRY easy 7600 CYL cylinder Cylinder unit power supply 2x Mignon LR6 AA Alkaline Permitted ambient conditions -15 °C / +50 °C / up to 95 % ENTRY 7712 Keypad FP relative humidity (non-condensing) Adapter 1 incl.
  • Page 3 Set keypad to programming mode ENTRY 7712 Keypad FP If in the course of setup the keypad The ENTRY 7712 Keypad FP can be used to operate electronic secuENTRY cylinders from BURG-WÄCHTER. Communication between the keypad and the profile cylinder is 128-bit AES needs to be put into programming encrypted.
  • Page 4 You see a list of the users already crea- ENTRY easy 7602 FP Commissioning ted. A user profile with lock opening via smartphone has already been automa- In order to set up your new locking tically created for the administrator. Tap system you must first download the BURGsmart on this (I) (Fig.
  • Page 5 Tap the second menu item „II - secu The exposure window of the camera ENTRY Cylinder/Relay“ (Fig. 10). opens. Scan the QR code. The app shows a list of the cylinders A message will appear with data about already registered. This is empty during your cylinder.
  • Page 6 The app shows a list of the already Important! So that the keyboard gets registered keyboards. This is empty the information which cylinder it should during the initial setup. To set up a new control, this must also be assigned keyboard, tap the „+“...
  • Page 7 Create and manage users User code Open the „My System“ menu in the main In the second paragraph, under „Access screen (Fig. 1). codes“, enter a desired user code with 6 digits at „Enter 6-digit code“ (I) (Fig. 5). Select the first menu item „I - User“ (Fig.
  • Page 8 Back in the user menu, tap Save (I) in Fingerprint the upper right corner (Fig. 14). An info box with „Update successful“ appears for In the third paragraph, under „Finger- confirmation (II) (Fig. 14). print“, tap on the fingerprint icon to the right of the „Enter fingerprint“...
  • Page 9 Transfer data to cylinder Transfering locking plan Hinweis: In order for user and locking Locking plan plan data to be transferred, a pro- gramming file must be generated from Note: Before the data can be transfer- it, which contains all the data in bund- red to the cylinder, you must first create led form.
  • Page 10 Tap on the programming file you have Cylinder data: just created (I) (Fig. 9) and in the menu To transfer the cylinder data, tap that appears tap on „Update unit“ (II) „Program File <Name Cylinder> (In this (Fig. 9). example, „Front Door Cylinder“) (Fig. 14). Note: If you have created data for the You will be asked to verify yourself with keyboard, you will be asked to transfer...
  • Page 11 Using the cylinder and keypad Opening the secuENTRY lock using the keypad (user code) To use the cylinder (Fig. 1) and Activate the keypad by pressing either keypad (Fig. 2), remove the battery the ON key or the CLOSE key (I) (Fig. 4). protection strips.
  • Page 12 Opening the secuENTRY lock using the keypad (Fingerprint) Opening the secuENTRY lock using the emergency lock Activate the keypad by pressing either If the batteries in the locking cylinder the ON key or the CLOSE key (I) (Fig. 7). are completely discharged, the lock can still be opened mechanically.
  • Page 13 Depending on the door thickness, ENTRY easy 7600 CYL installation Door outer side Door inner side adapter pieces may be required. The installation of the secuENTRY easy If the distance between the forend Forend screw 7600 CYL is explained below. Prior to screw and the outside of the door is installation, please read the installation of the door (Fig.
  • Page 14 Screw the cylinder into the door and ENTRY 7712 Keypad FP installation push the inside and outside knobs up to the door (Fig. 9). The installation of the ENTRY 7712 Keypad FP is explained below. There are two options to choose from for installation. The ENTRY 7712 Keypad FP wall bracket can either be screwed or adhered directly to the wall.
  • Page 15 ENTRY 7712 Keypad FP installation - installation - screw mounting ENTRY 7712 Keypad FP installation - adhesive mounting Drill three holes according to the di- Clean the surface to which the keypad mensions shown in the illustration. is to be attached (Fig. 6). Use a 6 mm diameter drill bit (Fig.
  • Page 16 Battery status display and replacing the batteries ENTRY 7712 Keypad FP The system monitors the keypad and Cylinder ENTRY 7600 CYL cylinder battery voltage. The user is alerted as soon as the battery voltage The battery status is shown on the reaches a critical range.
  • Page 17 secuENTRY Add-on Compatibility with other secuENTRY products Article number: ENTRY 7174 RFID-Extender 4003482501740 Whether for one front door, several doors or a complete locking system: Simply configure your Further info available Reader for RFID transponders. Can be individual unit with the secuENTRY modular system . on our website: used for cylinders or, in conjunction www.burg.biz...

  • Page 18: Warranty

    Warranty Notizen In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation. When returning goods due to your right of withdrawal, all parts of the appliance must also be in their factory settings.
  • Page 19 secuENTRY easy ENTRY 7602 FP BURG-WÄCHTER KG Altenhofer Weg 15 58300 Wetter Germany www.burg.biz www.burg.biz...
