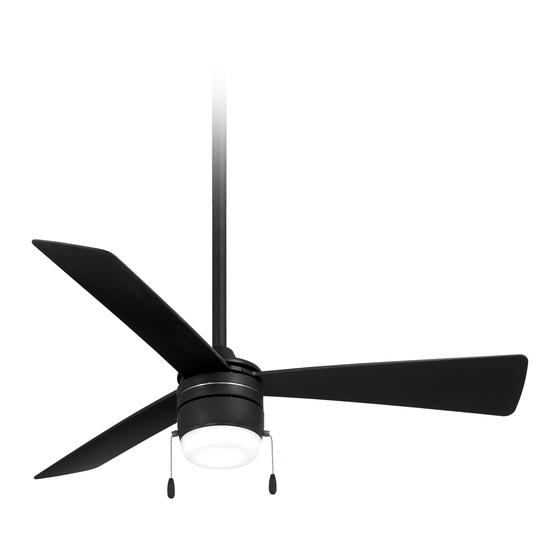

Model NO. F676L
VITAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the VITAL F676L and is the answer not in the manual?

Questions and answers

Summary of Contents for minkaAire VITAL F676L

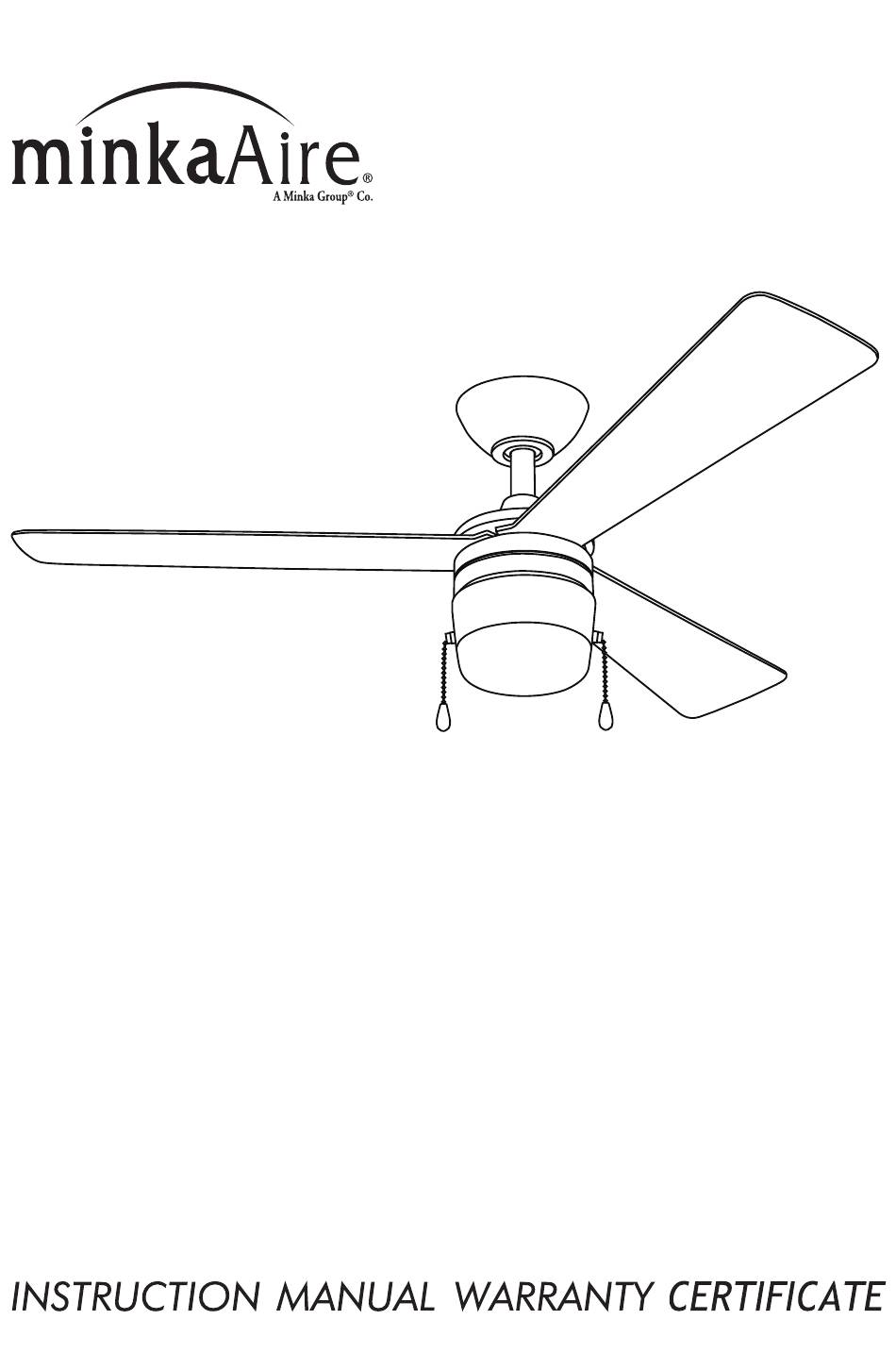

  • Page 1 Model NO. F676L VITAL...
  • Page 2 This product is protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws. ©2020 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
  • Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
  • Page 4 INSTALLING THE PC LAMP SHADE...
  • Page 5 Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes.
  • Page 6 18 mm blade screws 9. PC lamp shade 6+1 spare Metal washer (6+1 spare)
  • Page 7 Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. CEILING CROSS JOIST BRACE MOUNTING OPTIONS If there isn't an existing mounting box, then read OUTLET BOX the following instructions. Disconnect the power CEILING by removing fuses or turning off circuit breakers. JOIST Fig.
  • Page 8: Fan Motor Assembly

    Step 1. Attach the fan blade to the fan motor assembly by using two blade screws and metal washers. Tighten all screws and washers securely. Note: When installing the blades, ensure the sides with “THIS SIDE UP” face the ceiling. BLADE SCREW METAL WASHERS BLADE...
  • Page 9 WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied ®...
  • Page 10 Slip coupling cover, canopy cover Step 5. and canopy onto downrod. (Fig. 10) Carefully reinstall hanger ball DOWNROD onto rod being sure that cross CANOPY pin is in the correct position, set screws are tighten and wires are CANOPY COVER COUPLING COVER not twisted.
  • Page 11 Step 2. Connect the ground wire (Green or Bare Copper) to the ground wire from hanger ball and the ground wire from hanger bracket. (Fig.12) Fig. 12...
  • Page 12: Outlet Box

    OUTLET BOX HANGER BRACKET HANGER BALL CANOPY CANOPY COVER Fig. 13...
  • Page 13: Light Kit Assembly

    CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical Supply Circuit To The Fan Before Installing Light Kit. Step1. Remove the screw from circular hole and loosen the other two screws from key holes approximately 1/4 turn. Keep the screw that removed aside for use later.
  • Page 14 INSTALLING THE PC LAMP SHADE Pay attention to the slot on the light kit plate with the black dot label . Rotate the PC lamp shape until its groove lock into the slot and seats firmly. (Fig.16) LIGHT KIT ASSEMBLY SLOT DOT LABEL GROOVE...
  • Page 15 The Reverse switch is located on light kit assembly (Fig.18). Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation.
  • Page 16 WARNING! MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION, “ELECTRICAL CONNECTIONS”.
  • Page 18 0.22 13.35 5.22 6.63 1.022 0.44 52.91 2,386 1354 13.35 3278 52.91...
