Kolpin 2466 Installation Instructions

READ AND UNDERSTAND THESE INSTRUCTIONS COMPLETELY BEFORE INSTALLATION TO
AVOID INJURY TO YOURSELF, DAMAGE TO THE VEHICLE OR ACCESSORY.
• Torque specifications must be followed when tightening bolts. Over-tightening any and/or all screws will cause
• As specified on carton label, once protective film on shields is removed, product cannot be returned.
• As specified on carton label, damage caused by packaging staples is not covered by warranty. All staples must be
• Failure to follow these installation instructions completely may void any warrantable components and result in
• Do not use Loctite or any other similar fastener adhesive. These types of products react to plastics and cause
• Our windshields are made from the highest quality material providing optimum transparency and clarity.
Blurriness and/or extrusion marks may or may not appear when looking through windshield from a wide, side-
• The application of improper cleaners, abrasive and/or dirty cleaning towels can severely damage the product.
Failure to follow cleaning recommendation (provided herewith) may void any warrantable components.
These instructions contain important information for future reference and must be given to the customer at time of
ITEM
A
B Co-extruded bulb seal (¼")
C
INSTRUCTION
BAG
D
1. Installation
a) Find a clean flat area where you can safely lay down the windshield (Item A). Partially remove the protective film on both sides and
apply the co-extruded bulb seal (Item B) to the lower lip using manual pressure to ensure good adhesion to the windshield and cut any
excess.
2466 - Instructions ARCTIC CAT WILDCAT TRAIL Short Windshield - rev00
IMPORTANT NOTICES
• For proper installation, TWO people are required .
cracks around mounting holes which is not covered by any warranty.
removed prior to removing product from carton.
product damage or personal injury.
cracking. Not covered by any warranty.
angle. This is normal for all extruded clear plastic materials.
purchase or upon completion of installation.
Parts List
(parts available with kit only and not available separately)
PART NAME
Windshield
Clamp set (1 ¾" dia.)
Nuts & bolts
Co-extruded bulb seal ¼"
(+/- 34 ½")
INSTALLATION INSTRUCTIONS

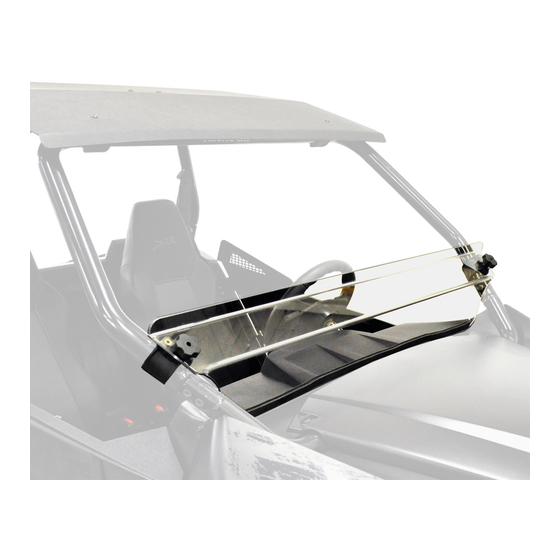

ARCTIC CAT WILDCAT TRAIL
SHORT WINDSHIELD
PART # 2466
DEALER
DESCRIPTION
CNC windshield cut-out made of ¼" thick GE MR10 polycarbonate or equivalent
Includes : 36" Co-extruded bulb seal [end user to cut to exact length]
Includes : 2 male clamp parts and 2 female clamp parts
Includes : 2 socket cap screws M6 x 20, 2 locknuts M6 and 2 knobs M6 x 16
www.kolpin.com
QTY
1
1
1
1
1
