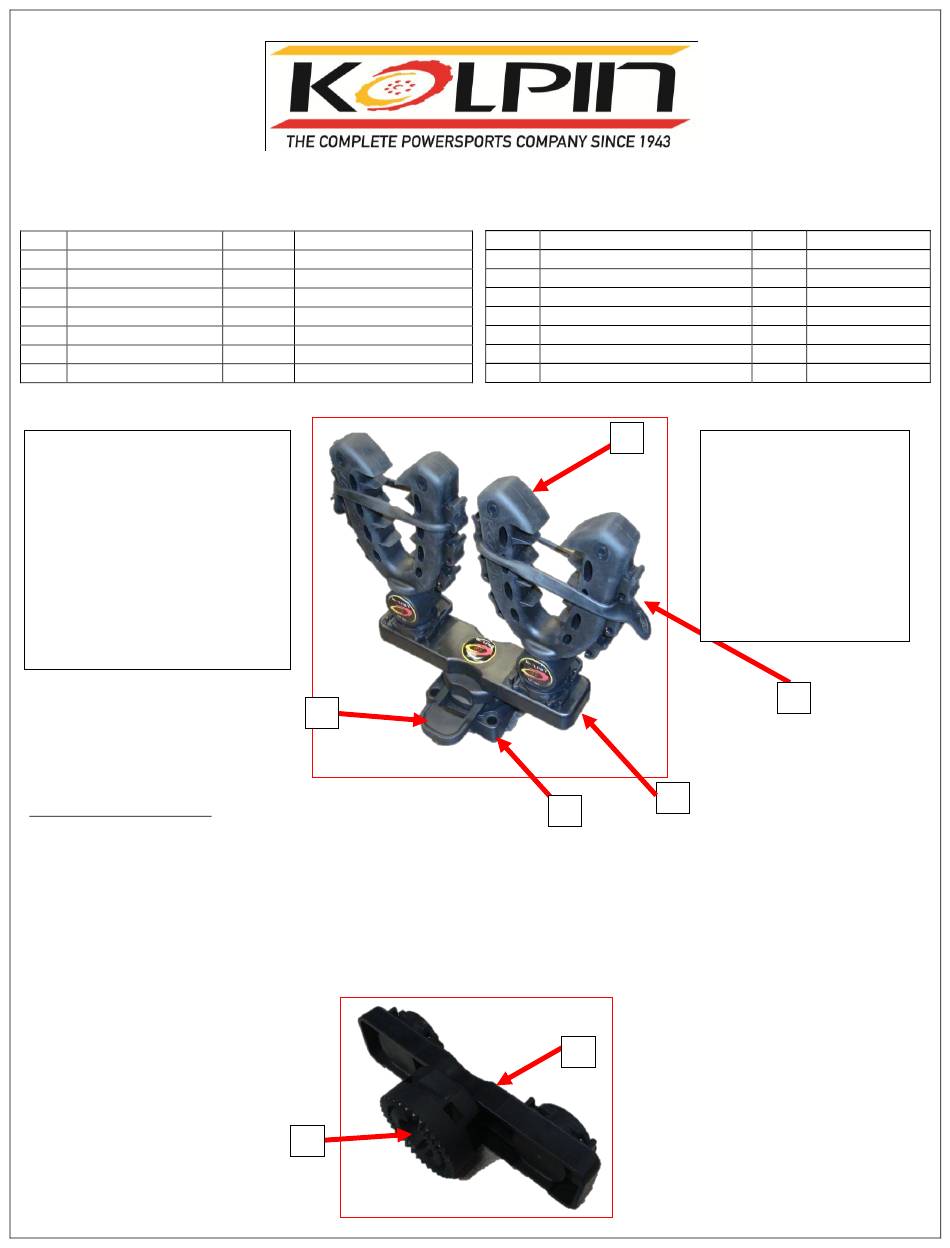

Kolpin Rhino Grip XL Double 21515 Manual

No. Description
1 Plastic Mounting Base
2 Doubler Plate
3 Connector
4 Metal Backer Plate
5 Rhino Grip
6 Adjustment Knob
7 Kwik Clip - Small
These grips are designed to
quickly and easily mount to the
rear rack of an ATV. Note:
Hardware provided is based on
the biggest tube diameter. You
may want to cut the excess
threads from the grip fir safety
and to prevent damage to your
machine.

Mounting Instructions -

1. Position the Rhino Grip mounting bases with a metal backer plate on the rack of the ATV where desired.
2. Run the ¼" truss head bolts provided through the main base/metal backer on the rear rack. Place a
second metal backer plate under the rack tube and secure with nylon nuts.
3. Tighten the (4) truss head bolts evenly. Note: Be sure not to over tighten the bolts, as too much torque
can over stress the base and cause the grip to fail.
4. Place the connector into the doubler plate.
21515 - Rhino Grip XL – Double
QTY. Spare P/N
2 71541
2 71503A
2 71516
4 71513
4 71511
4 71501
4 71509
8
3
Rev. 03
No. Description
8 Kwik Clip - Large
9 Rubber Strap
10 ¼" – 20 x 1.50" Truss Bolt
11 ¼" – 20 Nylon Nut
12 Kolpin Logo
13 M6 – Black Nylon Nut
14 M6 Flat Head Machine Screw
5
1
2
QTY. Spare P/N
2
4
8
8
6
2
2
To tilt the grip simply
loosen the adjustment
knob, tilt the grip to the
angle of your choice, and
retighten. NOTE: Lighter
objects ONLY can be
carried in the Full-Tilt
position.
9
2
71540
87010
