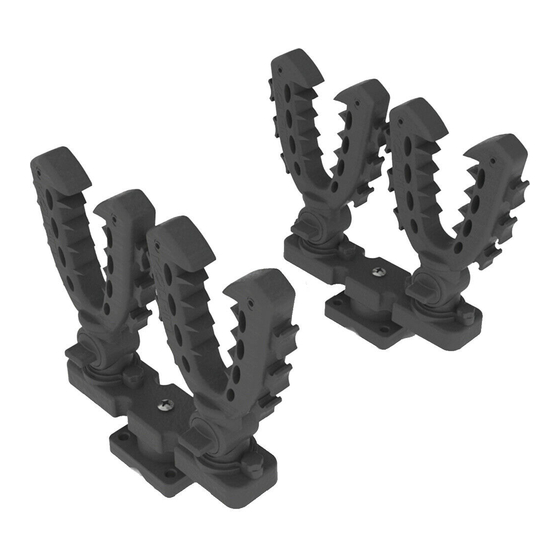

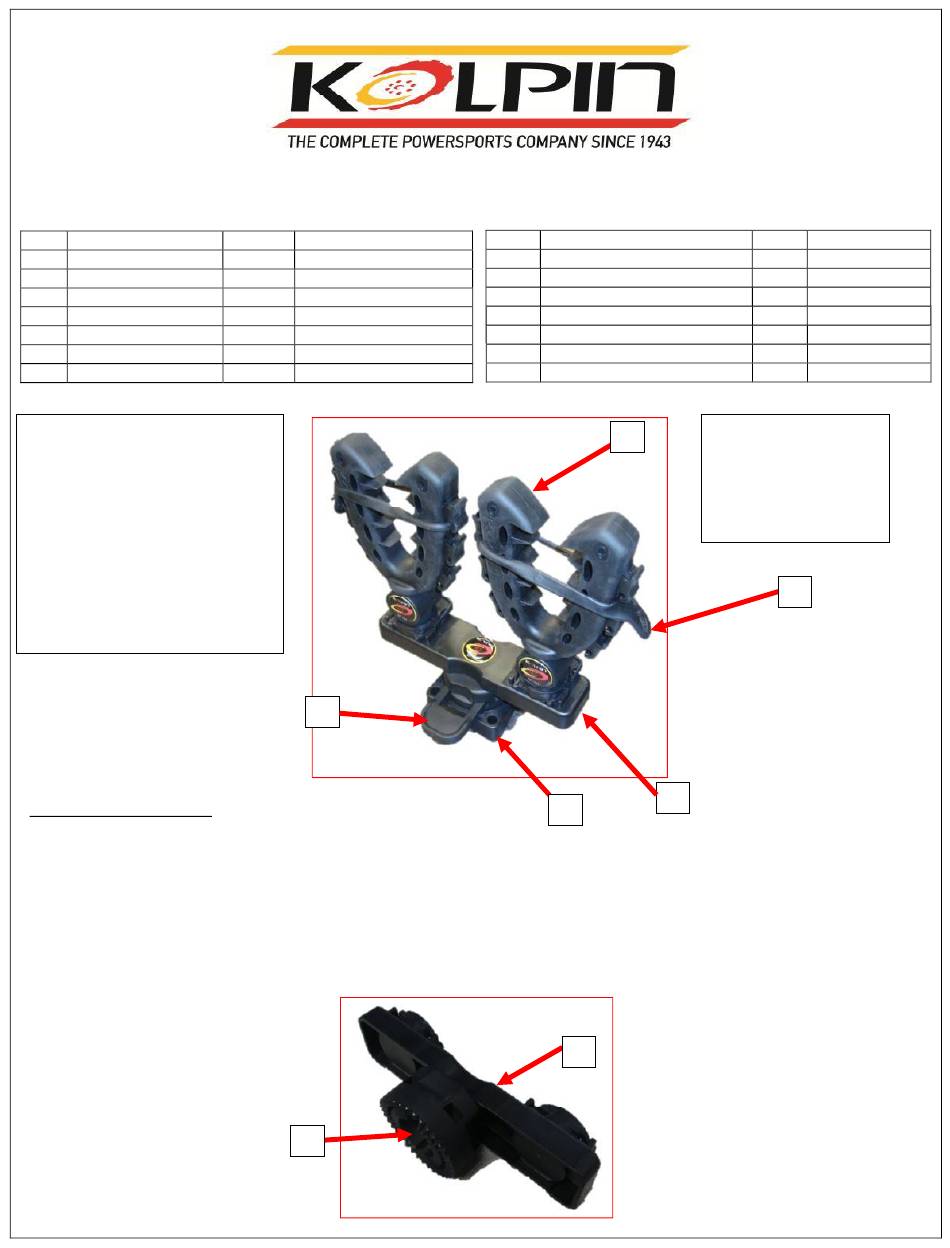

Kolpin 21515 Quick Start Manual

No. Description
1 Plastic Mounting Base
2 Doubler Plate
3 Connector
4 Metal Backer Plate
5 Rhino Grip
6 Adjustment Knob
7 Kwik Clip - Small
These grips are designed to
quickly and easily mount to the
rear rack of an ATV. Note:
Hardware provided is based on
the biggest tube diameter. You
are required to cut the excess
threads from the grip once
installed. Failure to do so may
result in damage to your
machine.
M M M M ounting Instructions ounting Instructions - - - - ounting Instructions ounting Instructions
1. Position the Rhino Grip mounting base on the rack of the ATV where desired.
2. Run the ¼" bolts provided through the main base and through the metal backer plate. Secure with nylon
nuts. Repeat three more times.
3. Tighten the (4) truss head bolts evenly. Note: Be sure not to over tighten the bolts, as too much torque
can over stress the base and cause the grip to fail.
4. Place the connector into the doubler plate.
21515 - Rhino Grip XL – Double
QTY. Spare P/N
2
2 71503
2
2 71513
4 71511
4 71501
4
8
3
Rev. 02
No. Description
8 Kwik Clip - Large
9 Rubber Strap
10 ¼" – 20 x 1.50" Truss Bolt
11 ¼" – 20 Nylon Nut
12 Kolpin Logo
13 M6 – Black Nylon Nut
14 M6 Flat Head Machine Screw
5
1
2
QTY. Spare P/N
2
4
8
8
6
2
2
To tilt the grip simply
loosen the adjustment
knob, tilt the grip to
the angle of your
choice, and retighten.
9
2
87010
