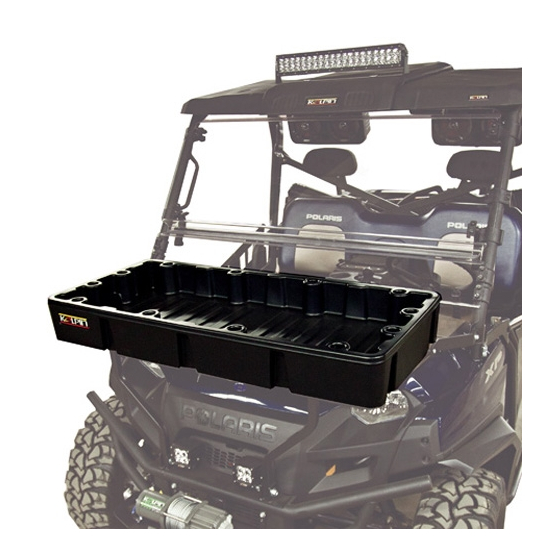

2692 RANGER FRONT TRAIL BOX
ITEM NO. PART NUMBER DESCRIPTION
1
72692
2
72693 (2692B)
3
72694 (2692B)
4
72695 (2692B)
5
72696 (2692B)
6
N/A
7
N/A
8
N/A
9
N/A
10
N/A
11
N/A
12
N/A
13
N/A
14
N/A
15
N/A
16
N/A
17
N/A
Rev. 00
Polaris 800
PLASTIC TRAIL BOX
FRONT BRACKET
FRONT ARM SUPPORT
SIDE BRACKET ASSEMBLY
BUSHING
HEX HEAD BOLT 1/2" x 2 ½"
HEX HEAD BOLT 3/8" x 2 ½"
HEX HEAD BOLT 3/8" x 1 ¼"
HEX HEAD BOLT 5/16" x 1 ¼" 2
WASHER, 1/2"
WASHER, 3/8"
WASHER, 5/16"
NYLON NUT, 1/2"
NYLON NUT, 3/8"
NYLON NUT, 5/16"
THUMB SCREW, 5/16" x 3"
FEMALE KNOB, 5/16"
QTY.
1
1
2
2
2
2
2
4
4
16
4
2
6
2
2
2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kolpin RANGER FRONT TRAIL BOX
Summary of Contents for Kolpin RANGER FRONT TRAIL BOX
- Page 1 Rev. 00 2692 RANGER FRONT TRAIL BOX Polaris 800 ITEM NO. PART NUMBER DESCRIPTION QTY. 72692 PLASTIC TRAIL BOX 72693 (2692B) FRONT BRACKET 72694 (2692B) FRONT ARM SUPPORT 72695 (2692B) SIDE BRACKET ASSEMBLY 72696 (2692B) BUSHING HEX HEAD BOLT 1/2” x 2 ½”...
- Page 2 Rev. 00 ASSEMBLY INSTRUCTIONS 1. Attach side brackets to Ranger frame using 3/8” x 1 ¼” Hex Head Bolts, 3/8” Washers and 3/8” Nylon Nuts. Do not tighten hardware. RANGER FRAME Side Bracket Assembly 2. Attach front bracket to Ranger bumper 5/16” x 1 ¼” Hex Head Bolts, 5/16” Washers and 5/16”...
- Page 3 5. Attach Trail Box to side brackets using 5/16” x 3” Thumb Screws, 3/8” Washers, Bushings and 5/16” Turn Knobs. Tighten hardware all hardware. Bushing Side Bracket Assembly Kolpin Outdoors, Inc. 205 N. Depot Street, Fox Lake, WI Phone #: (877) 9KOLPIN or (920) 928-3118 www.kolpin.com customerservice@kolpin.com...
