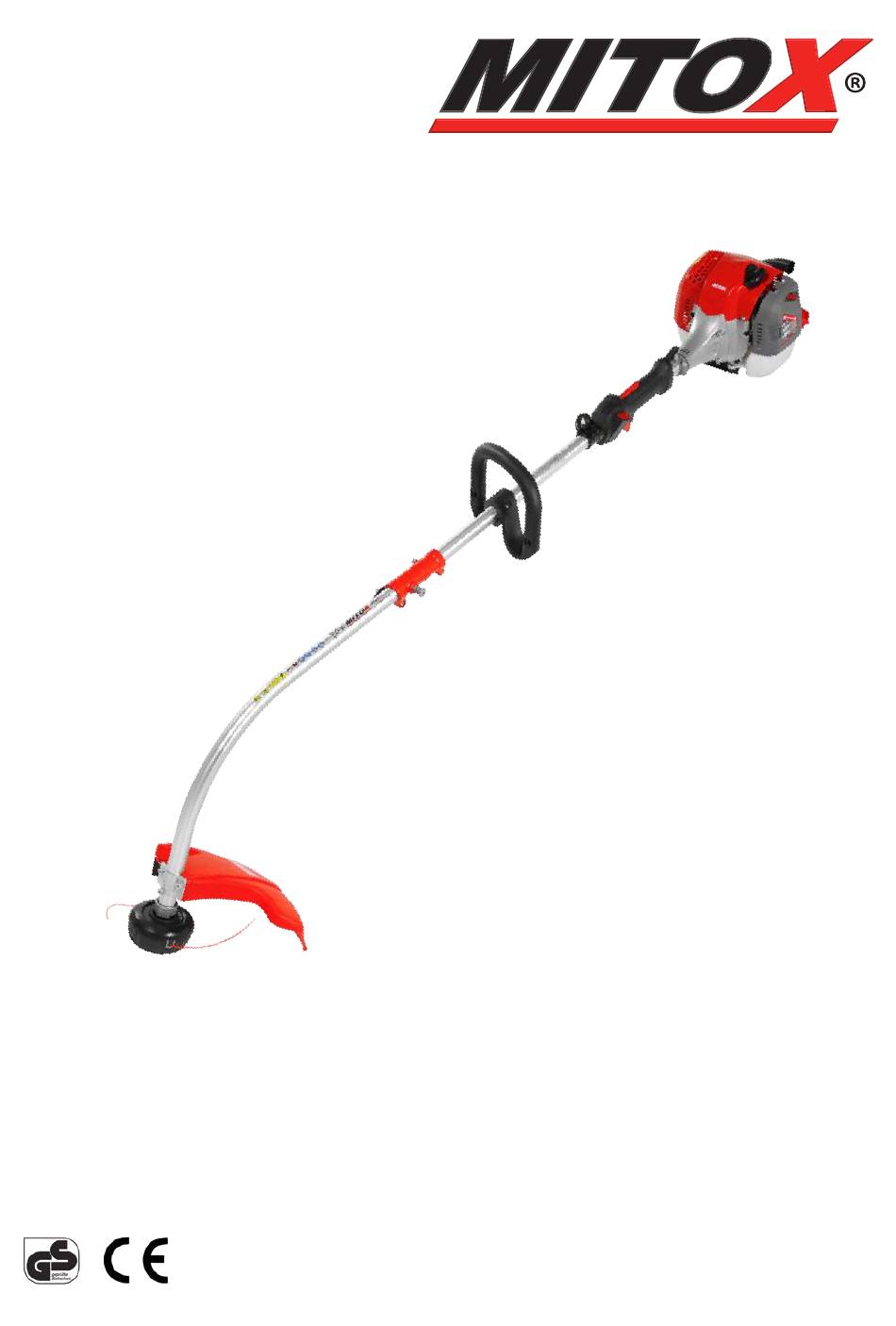

- Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 25C SELECT Grass Trimmer Read this manual carefully before operating the machine Original Instructions Version June 16 25C_21062016...
- Page 2 25C SELECT Grass Trimmer PRODUCT DESCRIPTION This Grass Trimmer is a 2 stroke fast running power tool and is designed to be used in a domestic application for trimming new growth. Original Instructions Version June 16...
-
Page 3: Component Location
25C SELECT Grass Trimmer Component Location NYLON CUTTER HEAD CONTAINS REPLACEABLE NYLON TRIMMING LINE CUT-OFF KNIFE TRIMS NYLON FILAMENT TO THE CORRECT LENGTH SHIELD MOUNTED JUST ABOVE THE CUTTING ATTACHMENT HELPS PROTECT THE OPERATOR D-HANDLE CAN BE ADJUSTED AT YOUR CONVENIENCE FOR COMFORT... -
Page 4: Safety Symbols
25C SELECT Grass Trimmer Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves. -
Page 5: Taking Care Of Warning Labels
25C SELECT Grass Trimmer Never modify the cutter in any way. Improper use of any cutter can cause serious or fatal injury. Not for use with metal blades. Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. -
Page 6: Safety Precautions
Only approved Mitox accessories should be used with this product. When using this grass trimmer for the first time, take the grass trimmer to a wide, clear, open space, start the engine, and practice handling the grass trimmer until you are sure that you will be able to handle it properly in actual operation. -
Page 7: Work Clothing And Safety Equipment
25C SELECT Grass Trimmer Never use the grass trimmer in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the grass trimmer. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the grass trimmer is to be used. -
Page 8: Safe Handling Of Fuel
25C SELECT Grass Trimmer For this reason, you should always be careful to adhere to the following instructions when using your grass trimmer. Never hold the grass trimmer in a way in which the cutting head is pointing towards someone else. -
Page 9: Before Operating The Grass Trimmer
25C SELECT Grass Trimmer Before Operating the Grass Trimmer Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no- one should enter while the grass trimmer is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning. -
Page 10: Avoid Noise Problems
25C SELECT Grass Trimmer Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate grass trimmers between 8 am and 5 pm on weekdays and 9 am to 5 pm at weekends. -
Page 11: Two-Stroke Fuel
NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, and Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effectsof Ethanol. www.b3cfuel.co.uk Original Instructions Version June 16... - Page 12 25C SELECT Grass Trimmer Fuel Storage (Without Ethanol Shield) Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly.
-
Page 13: Installing The Guard
25C SELECT Grass Trimmer Assembly of the Grass Trimmer The blade fitted to the guard is sharp and can cause injury, always wear gloves. Installing the Guard Plate B Shaft Bracket A Guard To install the guard to the shaft, locate the shield using bracket A as a locating point, and secure using plate B and 2 screws. - Page 14 25C SELECT Grass Trimmer Installing the Loop Handle Assembly Ensure Arrow Points Towards Cutter Head Upper Handle Fixing Screw Rubber Block Clamp Drive Shaft To Engine Drive Shaft To Cutter Head Lower Handle • Fix the Clamp to the Drive Shaft, then pinch the flat lugs together on the underside of the Clamp and slide them into the slot in the Lower Handle.
-
Page 15: Installing The Nylon Head
25C SELECT Grass Trimmer Installing the Nylon Head • Hold the dust cover (a) with the spanner supplied to stop the shaft rotating and screw the trimmer head (b) clockwise onto the drive shaft until tight. Original Instructions Version June 16... - Page 16 25C SELECT Grass Trimmer Installing the Curved Shaft Attachment Attachment Locking Clamp Locking pin shaft hole • Pull out the locking pin (1) and twist (2) to lock in the outer position (3). • Loosen the clamp by turning the handle (4).
-
Page 17: Using The Grass Trimmer
25C SELECT Grass Trimmer Using the Grass Trimmer Nylon Head • Cut the grass in 1.5 metre widths, keeping the machine well balanced. • Avoid engaging stones, piles of earth, small pieces of wood or anything that could be hidden or difficult to see in the grass. If a large object is accidentally struck, if the cutting head gets blocked, overloaded or stringy material gets wrapped in the cutting head, reduce the engine speed so the engine idles. -
Page 18: Operation
25C SELECT Grass Trimmer Operation Keep clear of the cutting head as it may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism. -
Page 19: Stopping The Engine
25C SELECT Grass Trimmer Fig 5 - Move the choke lever (e) to the Fig 6 - Pull the starter rope until the engine RUN ( ) position. starts, then squeeze the throttle briefly to release the fast idle control and return the engine to idle. -
Page 20: Maintenance
25C SELECT Grass Trimmer Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power. -
Page 21: Spark Plug
25C SELECT Grass Trimmer Spark Plug 0.6 - 0.7mm Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with RCJ7Y (Champion) as necessary. -
Page 22: Safety Lock
25C SELECT Grass Trimmer Carburettor The carburettor mixture setting has been set at the factory and will not need adjusting. Adjusting the idle speed: If adjustment is necessary turn the T screw (a) clock wise until the cutting head starts to move, then turn the screw T anticlockwise until the cutting head stops. - Page 23 8. Refit the carrier to the head (i), ensuring it is securely clicked into place. **NOTE** To watch a video on fitting the nylon cutting line visit www.mitox.co.uk Never use a cutting device other than those supplied by the manufacturer. (Steel cord is never allowed) Always use original spare parts in order to benefit from continuous warranty.
-
Page 24: Troubleshooting
25C SELECT Grass Trimmer Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. -
Page 25: Service Schedule
25C SELECT Grass Trimmer Service Schedule Component Procedure Before Every 15 Every 25 Every 50 Note Hours Hours Hours Fuel leaks / Wipe up spillage Fuel tank / Inspect / Replace if Filter clean necessary Idle adjust See p.22 Adjust... -
Page 26: Specifications
25C SELECT Grass Trimmer Specifications Model 25C SELECT Engine type 1E34F-4 (air cooled 2-stroke petrol engine) Power (max.) 0.75Kw Engine displacement 25.4cc Idling speed 3100 ± 300 Engine maximum speed no load Grass Trimmer 9000 rpm Cutting diameter Nylon Head 430mm Cutting Line Diameter 2.0mm... - Page 27 25C SELECT Grass Trimmer Original Instructions Version June 16...
- Page 28 25C SELECT Grass Trimmer ENGINE Parts List ID NO. PART NUMBER DESCRIPTION ID NO. PART NUMBER DESCRIPTION MIGB/T2671.2 M5X12 SCREW M5X12 MIGB/T893.1 35 CIRCLIP (SIZE 35) MIGB/T93 M5 SPRING WASHER M5 MIGB/T276 6202-2Z BEARING 6202 MIGB/T97.1 M5 WASHER M5 MIGB/T894.1 15 STOP RING (SIZE 15) MITBC261D.01.12.00-00...
- Page 29 25C SELECT Grass Trimmer Original Instructions Version June 16...
- Page 30 25C SELECT Grass Trimmer APPLIANCE Parts List ID NO. PART NUMBER DESCRIPTION ID NO. PART NUMBER DESCRIPTION MITBC430D.03.02-00 HARNESS CLAMP ASSEMBLY GB/T97.1 M5 WASHER M5 MIGB/T70.1 M5X20 SCREW M5X20 GB/T97.1 5X16X1 PLATE WASHER MITBC430D.03.00-2 CLAMP GB/T845 ST4.8X19 TAPPING SCREW ST4.8X19...
-
Page 31: Ec Declaration Of Conformity
25C SELECT Grass Trimmer EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Petrol Powered Brushcutter Model(s): MITOX 25C SELECT Type/Serial No: As per rating label on machine Complies with the following directive(s):... - Page 32 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
