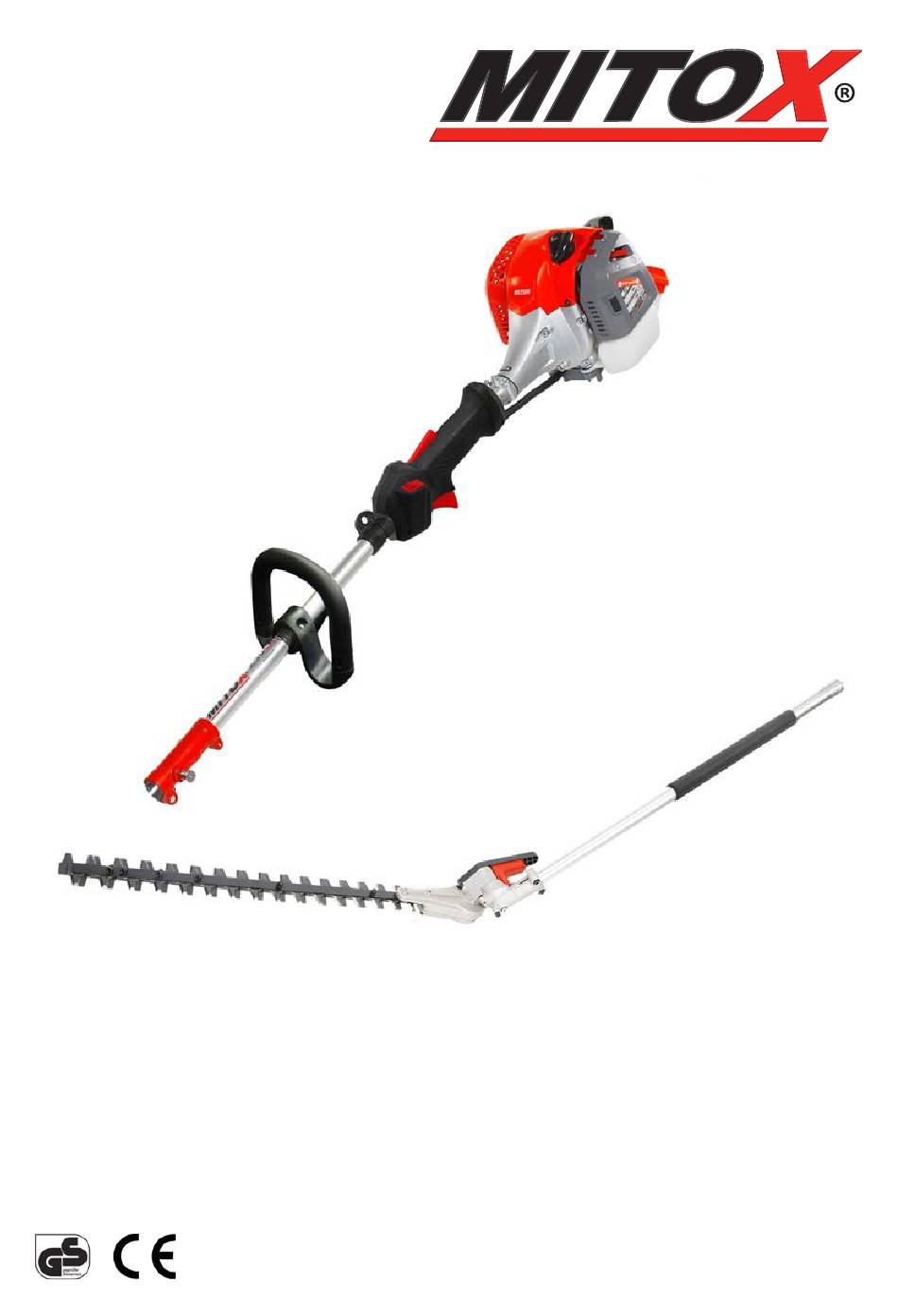

www.mitox.co.uk
Operator's Manual
user manual, maintenance instructions and spare parts

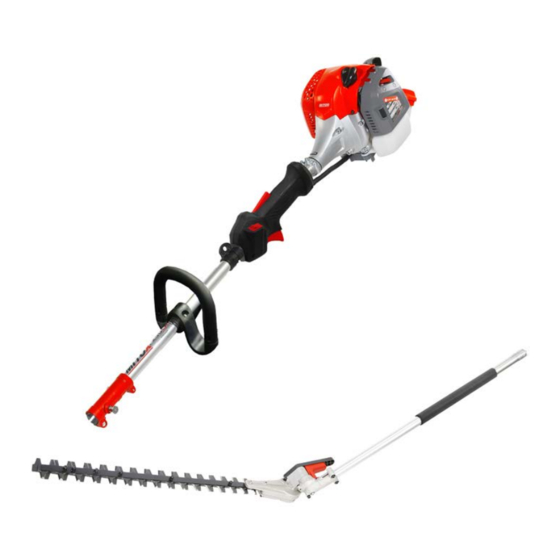

28LH-a SELECT Hedgetrimmer
Read this manual carefully before operating the machine
Original Instructions Version June 16
28LH-a_200616

Advertisement

loading
Need help?

Need help?

Do you have a question about the 28LH-a and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mitox 28LH-a

Summary of Contents for Mitox 28LH-a

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 28LH-a SELECT Hedgetrimmer Read this manual carefully before operating the machine Original Instructions Version June 16 28LH-a_200616...
  • Page 2 28LH-a SELECT Hedgetrimmer PRODUCT DESCRIPTION This Hedgetrimmer unit is a 2 stroke fast running power tool and is designed to be used in a domestic application with the attachment supplied. The Hedgetrimmer attachment is for trimming new growth on hedges.
  • Page 3 28LH-a SELECT Hedgetrimmer Component Location Fuel tank – 2 stroke mixture Engine starter/Recoil Carburettor / air filter Safety lever Throttle control lever Ignition switch Harness hanger Loop handle Transmission shaft Gear box Attachment shaft Cutter Blades Coupling Warnings in the Manual This mark indicates instructions which must be followed in order to prevent accidents which could lead to serious bodily injury or death.
  • Page 4 28LH-a SELECT Hedgetrimmer Safety Symbols Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves.
  • Page 5 28LH-a SELECT Hedgetrimmer Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your Hedgetrimmer become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels.
  • Page 6 Only approved Mitox accessories should be used with this product. This Hedgetrimmer is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use.
  • Page 7 28LH-a SELECT Hedgetrimmer Never use the Hedgetrimmer in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the Hedgetrimmer. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the Hedgetrimmer is to be used.
  • Page 8 28LH-a SELECT Hedgetrimmer Never hold the Hedgetrimmer in a way in which the blades are pointing towards someone else. Never allow the blades to come into contact with your body. Always turn off the engine before adjusting the Hedgetrimmer, or at any time when coming into close proximity with the hedgetrimmer blades.
  • Page 9 28LH-a SELECT Hedgetrimmer Before Operating the Hedgetrimmer Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no- one should enter while the Hedgetrimmer is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.
  • Page 10 28LH-a SELECT Hedgetrimmer Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate Hedgetrimmers between 8 am and 5 pm on week days and 9 am to 5 pm at weekends.
  • Page 11 NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. Original Instructions Version June 16...
  • Page 12 28LH-a SELECT Hedgetrimmer Fuel Storage (Without Ethanol Shield) Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the Hedgetrimmer for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.
  • Page 13 28LH-a SELECT Hedgetrimmer Installing the Loop Handle Assembly Upper Handle Drive Shaft To Engine Drive Shaft To Cutter Head Clamp Torx Bolt • Fit the upper handle to the shaft using the fixing holes to locate the handle to the desired position (smooth side of the handle facing away from the engine).
  • Page 14 28LH-a SELECT Hedgetrimmer Assembly of the Hedgetrimmer NOTE The thickness of fresh growth (green branches), which may be cut using this hedge trimmer, is limited to up to approximately 10mm. Never try to cut branches thicker than this, as doing so may result in damage to the hedgetrimmer.
  • Page 15 28LH-a SELECT Hedgetrimmer Operation Adjusting the angle of the cutting blades 1. Stop the engine. 2. Always wear gloves when adjusting the blades. 3. Lay the Hedgetrimmer flat on the ground and set the guard (1) to the trimmer blade .
  • Page 16 28LH-a SELECT Hedgetrimmer Installing the Hedgetrimmer to the Power Unit Attachment Locking Clamp Locking pin shaft hole • Pull out the locking pin (1) and twist (2) to lock in the outer position (3). • Loosen the clamp by turning the handle (4).
  • Page 17 28LH-a SELECT Hedgetrimmer Operation Keep clear of the cutter head as it may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.
  • Page 18 28LH-a SELECT Hedgetrimmer Fig 5 - Move the choke lever (e) to the Fig 6 - Pull the starter rope until the engine RUN ( ) position. starts, then squeeze the throttle briefly to release the fast idle control and return the engine to idle.
  • Page 19 28LH-a SELECT Hedgetrimmer Running In During the first ten hours of work, avoid running the engine at maximum speed for a prolonged period until all the components have bedded in, after the engine has been run in, it will reach its maximum power.
  • Page 20 28LH-a SELECT Hedgetrimmer Carburettor The carburettor mixture setting has been set at the factory and will not need adjusting. Adjusting the idle speed: If adjustment is necessary turn the T screw (a) clockwise until the blades start to move, then turn the T screw anticlockwise until the blades stop.
  • Page 21 28LH-a SELECT Hedgetrimmer Spark Plug 0.6 - 0.7mm Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with LD L8RTF; CHAMPION RCJ7Y; NGK BPMR7A as necessary.
  • Page 22 28LH-a SELECT Hedgetrimmer Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. • There is water in the fuel. Drain and clean the fuel system.
  • Page 23 28LH-a SELECT Hedgetrimmer Specifications MODEL MITOX 28LH SELECT Engine Type Air cooled 2-stroke gasoline engine Model IE34F-4A Displacement : ( cm3) 25.4 cc Max. output 0.75 (kw) in accordance with ISO 8893 Idle speed: rpm (min 3100±400 –1) Max. rpm (min –1)
  • Page 24 28LH-a SELECT Hedgetrimmer Parts Diagram - Engine Original Instructions Version June 16 28LH-a_200616...
  • Page 25 28LH-a SELECT Hedgetrimmer Parts List - Engine ID No. Part Number escription MIGB/T2671.2 M5X12 SCREW M5X12 MITBC261D.01.12.00-00 STARTER ASSEMBLY MIYD25.02.01-2 ROPE GUIDE MIYD25.02.00-5 STARTER ROPE MIYD62.02.00-3 STARTER HANDLE MITBC261D.01.12.00-5 RECOIL SPRING MITBC261D.01.12.00-4 RECOIL PULLEY MITBC261D.01.12.00-6 STARTER SPRING MITBC261D.01.12.00-7 RATCHET WHEEL MIGB/T97.1 M5...
  • Page 26 28LH-a SELECT Hedgetrimmer Parts List - Engine ID No. Part Number escription MITBC260D.01.11.01-00 IGNITION COIL MIGB/T2671.2 M5X20 SCREW M5X20 MIGB/T119.2 5X10 PIN 5X10 MIGB/T2671.2 M5X25 SCREW M5X25 MIYD38-3.01.01.02-00 OIL SEAL 12X22X7 MITBC260D.01.10.00-00 FLYWHEEL MIGB/T6177.2 M8X1 NUT M8X1 MIGJB25D.01.00.00-15 WAVE SPRING WASHER MITBC260D.01.00.03-00...
  • Page 27 28LH-a SELECT Hedgetrimmer Parts List - Engine ID No. Part Number escription MITBC431D.01.00.00-12 STRAP MIGB/T845 ST3.5X9.5 ST SCREW 3.5X9.5 MIGB/T2671.2 M5X20 SCREW M5X20 MITBC261D.01.00.00-4 GASKET / CARBURETTOR MITBC261D.01.06.00-00 CARBURETTOR MITBC261D.01.08.00-00 AIR FILTER ASSEMBLY MIGB/T2671.2 M5X45 SCREW M5X45 MITBC261D.01.08.00-3 AIR BOX ASSEMBLY MITBC431D.01.13.01...
  • Page 28 28LH-a SELECT Hedgetrimmer Parts Diagram - Body Original Instructions Version June 16 28LH-a_200616...
  • Page 29 28LH-a SELECT Hedgetrimmer Parts List - Body ID No. Part Number escription MITBC431D.02.00-3 CLAMP MITBC430D.03.02-00 HARNESS CLAMP LOOP MIGB/T2671.2 M5X20 SCREW M5X20 MITBC430D.03.00-2 CLAMP MIGB/T6170 M5 NUT M5 MITBC431SJ.03.02-00 OUTER SHAFT - UPPER MITBC431DJ.03.03-00 COUPLING ASSEMBLY MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T2671.2 M5X12...
  • Page 30 28LH-a SELECT Hedgetrimmer Parts List - Body ID No. Part Number escription MITBC431S.05.02-7 THROTTLE CABLE MIGB/T2671.2 M5X14 SCREW M5X14 MIGB/T845 ST3.5X9.5 ST SCREW 3.5X9.5 MIGB/T845 ST4.2X10 ST SCREW 4.2X10 MIGB/T2671.2 M5X14 SCREW M5X14 MITBC431S.05.02-4 THROTTLE TRIGGER MIYD38-3.01.11.04-00 ON/OFF SWITCH MITBC431S.05.02-3 LOCK TRIGGER MITBC431S.05.02-6...
  • Page 31 28LH-a SELECT Hedgetrimmer Parts Diagram - Hedgetrimmer Original Instructions Version June 16 28LH-a_200616...
  • Page 32 28LH-a SELECT Hedgetrimmer Parts List - Hedgetrimmer ID No. Part Number escription MIC26.1615.0100 RIGHT GEAR BOX ASSEMBLY MIC26.1615.0103 POSITIONAL PLATE MIGB/T97 M5 FLAT WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T2671.2 M5X16 SCREW M5X16 MIGB/T3452.1 34.5X1.8 O-RING 34.5X1.8 MIC26.1615.0201 LEFT GEAR BOX...
  • Page 33 28LH-a SELECT Hedgetrimmer Parts List - Hedgetrimmer ID No. Part Number escription MIGB/T2672 M5X25 SCREW M5X25 MIGB/T2671.2 M5X25 SCREW M5X25 MIGB/T2671.2 M5X18 SCREW M5X18 MIC26.1615.0302 MOUNTED PLATE MIC26.1615.0301 BLADE MIC26.1615.0303 BUSHING MIGB/T889.1 M5 NUT M5 MIB25.0119.0002 BLADE STRIP MIC43.1212.0001 LIMIT SLEEVE MIC43.0212.0001...
  • Page 34 28LH-a SELECT Hedgetrimmer EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Petrol Powered Hedgetrimmer Model(s): MITOX 28LH-a SELECT Type/Serial No: As per rating label on machine Complies with the following directive(s):...
  • Page 35 28LH-a SELECT Hedgetrimmer Original Instructions Version June 16 28LH-a_200616...
  • Page 36 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
