Summary of Contents for Mitox 5250SRK PRO

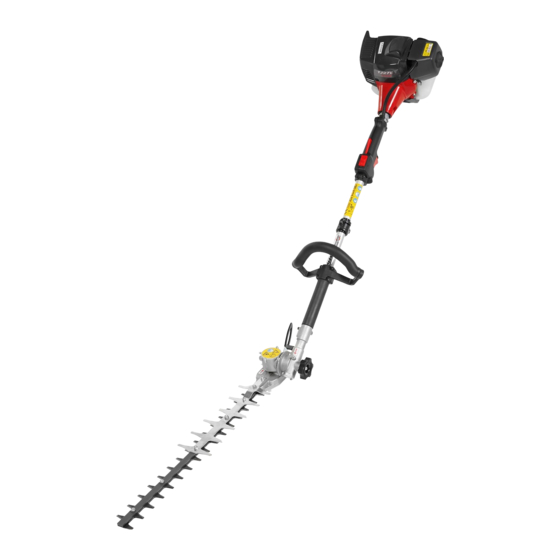

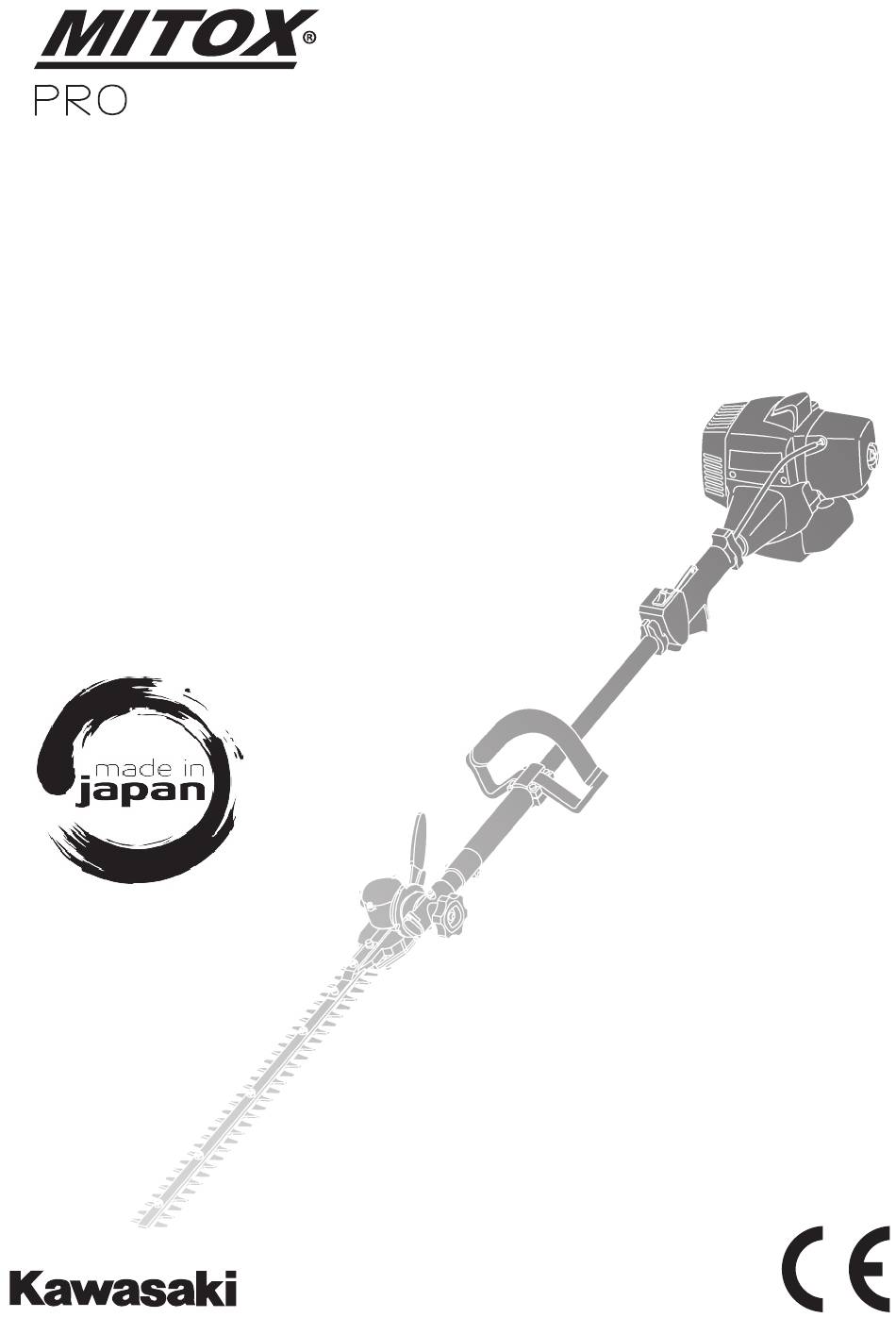

- Page 1 Owner's Manual HEDGE TRIMMER 5250SRK PRO 5250LRK PRO Powered by...
-
Page 2: Read This First
READ THIS FIRST ● For your safety, read this Owner’s Manual and understand it Stop the engine and make sure that the cutting blade is thoroughly before operating this HEDGE TRIMMER. stopped when cleaning, checking, maintenance or working on the hedge trimmer. ●... -
Page 3: Table Of Contents
SAFETY AWARENESS ENVIRONMENTAL PROTECTION Whenever you see the symbols shown below, heed their To help preserve the environment, properly discard used instructions! batteries, oils and fluids, or other engine components that you Always follow safe operating and maintenance practices. might dispose of in the future. Consult your authorized equipment dealer or local environmental waste agency for their proper disposal DANGER... -
Page 4: Specifications
SPECIFICATIONS Model 5250SRK PRO 5250LRK PRO Overall Dimensions Length x Width x Height 1,680×250×220 2,030×250×220 Weight Engine Type Forced air-cooled, 2-stroke, gasoline engine Displacement 26.3 Carburetor Diaphragm type Ignition Flywheel magneto with CDI Spark Plug NGK BPMR7A Starter Recoil starter... -
Page 5: Preparing For Operation
PREPARING FOR OPERATION Location of Parts and Labels K -a A. Pipe Assembly B. Gear Case C. Cutting Blade D. Loop Handle E. Throttle Lever F. Throttle Lock G. Engine Switch H. Blade Angle Fixing Knob I. Engine Assembly J. Blade Cover K. -
Page 6: Dealer/Owner Assembly Parts
A. Fuel Tank E. Carburetor I. Spark Plug / K. Muffler Cover O. Engine Serial Number B. Tank Cap F. Priming Pump Spark Plug Cap L. Cylinder Label C. Air Cleaner Assembly G. Recoil Starter J. Muffler M. Throttle Cable P. -
Page 7: Fuel And Oil
Loop Handle Fuel Type and Octane Rating Use clean, fresh unleaded gasoline with ethanol volume content not more than 10% and an octane rating equal to or higher than Installation of the Loop Handle that shown in the table. Place loop handle assembly at positioning label on the pipe Fuel Type Unleaded Gasoline... -
Page 8: Operating Instructions
● OPERATING INSTRUCTIONS Turn the lift up lever clockwise to switch to the “STARTING” position. Starting the Engine Fuel ● Level the engine before fueling. A. Lift Up Lever ● Open the fuel tank cap and fill the fuel tank with 50:1 gas/oil pre-mixed fuel. -
Page 9: Warming Up
The stable idling speed is about 3000 r/min (rpm). Fuel Adjustment ● The carburetor has been adjusted to the optimum fuel supply at the factory. Don’t reset the carburetor setting. NOTE ○ If adjustment is needed, it should be performed by your authorized MITOX® PRO dealer. -
Page 10: Operation
Operation Precautions After Operation ● Adjust the handle to a comfortable position and maintain WARNING good balance as recommended in this manual. ● Make sure the unit is assembled properly. To avoid serious injury, do not store the unit with fuel tank, because a fuel leak could start a fire. -
Page 11: Maintenance And Adjustment
When damage or defect occurs in checked parts, replace with a new one. : Service more frequently under dusty conditions. : Service to be performed by an authorized MITOX® PRO dealer. Adjustment of Throttle Cable Fuel Tank Cap Service... -
Page 12: Air Cleaner Service
Air Cleaner Service Fuel Filter Service Clean the element every 20 hours. Clean the fuel filter element every 20 hours of operation. WARNING WARNING Gasoline and low-flash point solvents can be flammable Many solvents are highly flammable and may cause and/or explosive and cause severe burns. -
Page 13: Spark Arrester Cleaning Service
Carbon Removal of Engine Internal Parts Every 50 hours of operation. These items must be performed with proper tools. See your authorized MITOX® PRO dealer for service. Gear Case and Blades Lubrication Lubricate the gear case every 20 hours. WARNING Hot engine parts can cause severe burns. -
Page 14: Troubleshooting Guide
Engine overheats Clogged air cleaner Clean. Recoil starter or cooling air path clogged with dirt. Carbon built-up in combustion chamber Poor ventilation around engine Select a better location. : Service to be performed by an authorized MITOX® PRO dealer. - Page 15 MITOX® Garden Machinery Wincanton Business Park, Wincanton, Somerset, BA9 9RS United Kingdom EC DECLARATION OF CONFORMITY We hereby declare that the following our product conforms to the essential health and safety requirements of EC Directives. Manufacturer : DAISHIN INDUSTRIES LTD.
- Page 16 MITOX® Garden Machiney Wincanton Business Park, Wincanton, Somerset, BA9 9RS United Kingdom www.mitoxgm.co.uk Original Instruction Part No. R180-XXXXXX-01 Printed in Japan...
