Summary of Contents for Mitox 251C PETROL GRASS TRIMMER
- Page 1 OWNER’S MANUAL PETROL GRASS TRIMMER 251C USER MANUAL, MAINTENANCE INSTRUCTIONS AND SPARE PARTS READ THIS MANUAL CAREFULLY BEFORE OPERATING THE MACHINE WARNING: THIS SYMBOL INDICATES IMPORTANT SAFETY PRECAUTIONS...
-
Page 2: Description

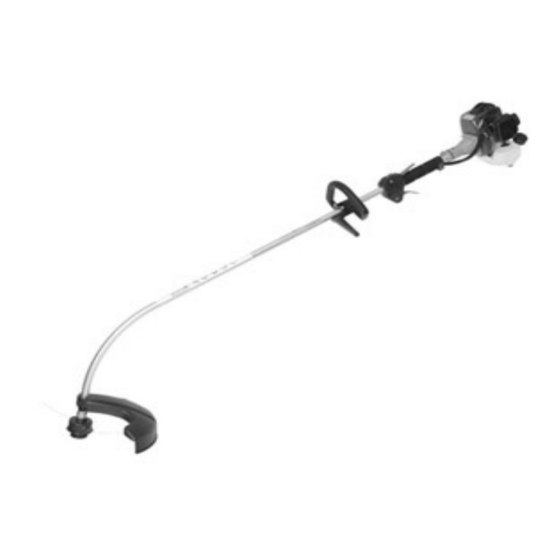

DESCRIPTION NYLON CUTTER HEAD CONTAINS REPLACEABLE NYLON TRIMMING LINE CUT-OFF KNIFE TRIMS NYLON FILAMENT TO THE CORRECT LENGTH SHIELD MOUNTED JUST ABOVE THE CUTTING ATTACHMENT HELPS PROTECT THE OPERATOR D-HANDLE THIS HANDLE CAN BE ADJUSTED AT YOUR CONVENIENCE FOR COMFORT DRIVE SHAFT ASSEMBLY CONTAINS A FLEXIBLE DRIVE SHAFT IGNITION SWITCH... -
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION ......................1 SAFETY SYMBOLS....................3 TAKING CARE OF WARNING LABELS................ 4 WARNINGS IN THE MANUAL ..................4 EXPLANATION OF SYMBOLS ON THE MACHINE ............. 4 SAFETY PRECAUTIONS ..................5 INTRODUCTION ......................5 WORK CLOTHING AND SAFETY EQUIPMENT ............5 SAFETY AND OPERATION .................. -
Page 4: Safety Symbols
SAFETY SYMBOLS Warning: Danger, Caution Read the documentation and safety instructions which are provided in this user manual. When operating this machine, use protective equipment such as goggles, helmet and ear defenders. Wear security shoes and gloves. Beware: Keep hands and feet away from moving parts. Always keep a safe distance from the cutting parts. -
Page 5: Taking Care Of Warning Labels
TAKING CARE OF WARNING LABELS • Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your grass trimmer become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels. -
Page 6: Safety Precautions
SAFETY PRECAUTIONS INTRODUCTION • Read this Owner/Operator Manual carefully. Be sure you understand how to operate this grass trimmer properly before you use it. Failure to do so could result in serious injury. • Keep this manual handy so that you may refer to it later whenever any questions arise. -
Page 7: Safety And Operation
SAFETY AND OPERATION • Improper handling can cause accidents which may in turn lead to serious injury or death. For this reason, you should always be careful to adhere to the following instructions when using your grass trimmer. • Never hold the grass trimmer in a way in which the cutting head is pointing towards someone else. •... -
Page 8: Assembly Of The Grass Trimmer
ASSEMBLY OF THE GRASS TRIMMER The blade fitted to the guard is sharp and can cause injury, always wear gloves INSTALLATION OF THE GUARD • To install the guard to the shaft, locate the shield using bracket A as a locating point Fig 2, and secure using plate B and 2 screws Fig 4. -
Page 9: Fitting Of The Handle
FITTING OF THE HANDLE • Assemble the two halves off the handle over the rubber on the shaft Fig 7, and secure using 4 M5 X 25 screws. • Adjust to a comfortable working position then tighten the fixing screws securely Fig 8. Fig 7 RUBBER Fig 8 USING THE GRASS TRIMMER... -
Page 10: Two-Stroke Fuel
• Never touch the spark plug or plug HT cable while the engine is in operation, doing so may result in an electrical shock. • Never touch the exhaust, spark plug, or any metallic parts while the engine is in operation or immediately after shutting down the engine, these parts reach high temperatures during operation and doing so could result in serious burns. -
Page 11: Operation
OPERATION Keep clear of the cutting head as it may start moving when the engine starts. STARTING THE ENGINE • CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism. -
Page 12: Stopping The Engine
Fig 12 • Set the ignition switch Fig 12 to START ( I ) position. • While holding the unit, pull out the starter rope firmly until engine fires (indicated by a ‘cough’ from the engine). • Move the choke lever to the open position Fig 11. - Page 13 Fig 13 Fig 14 fuel filter SPARK PLUG • Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the gap to 0.65 mm, or replace the spark plug with NGK: BPRM7A as necessary Fig 14. AIR FILTER •...
-
Page 14: Troubleshooting
Fig 17 T screw • If the idle speed cannot be adjusted to stop the cutting head moving at idle, contact your dealer for repair before use. Fig 18 SAFETY LOCK, THROTTLE LEVER SAFETY LOCK • The safety lock is to prevent the throttle lever from accidentally being engaged. •... - Page 15 REPLACING THE NYLON CORD Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces of wear or damage, you must replace the complete nylon head. • Stop the engine. • Open the nylon head by holding the string head and unscrew the spool retainer nut anti-clockwise, Fig •...
-
Page 16: Maintenance Schedule
Air filter Clean Screws, nuts, bolts Tighten / replace Not adjustment screws TECHNICAL SPECIFICATIONS MODEL MITOX 251C Type Air cooled 2-stroke petrol engine Engine Model IE34F-2E Displacement : ( cm 25.4 cc Max. output 0.7 (kw) in accordance with ISO 8893 –1... -
Page 17: Conditions Of Warranty
The manufacturer undertakes to replace, any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly. - Page 18 EN ISO 11806 - EN 14982 Mesured Sound power level L WA, M Niveau de puissance accoustique mesuré L WA, M 251C or CG260E-E : 111 dB(A) Livello di potenza accustica misurato L WA, M Nivel de potencia acùstica mesurado L WA, M...
