Mitox 600DX Operator's Manual

Premium hedgetrimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.mitox.co.uk

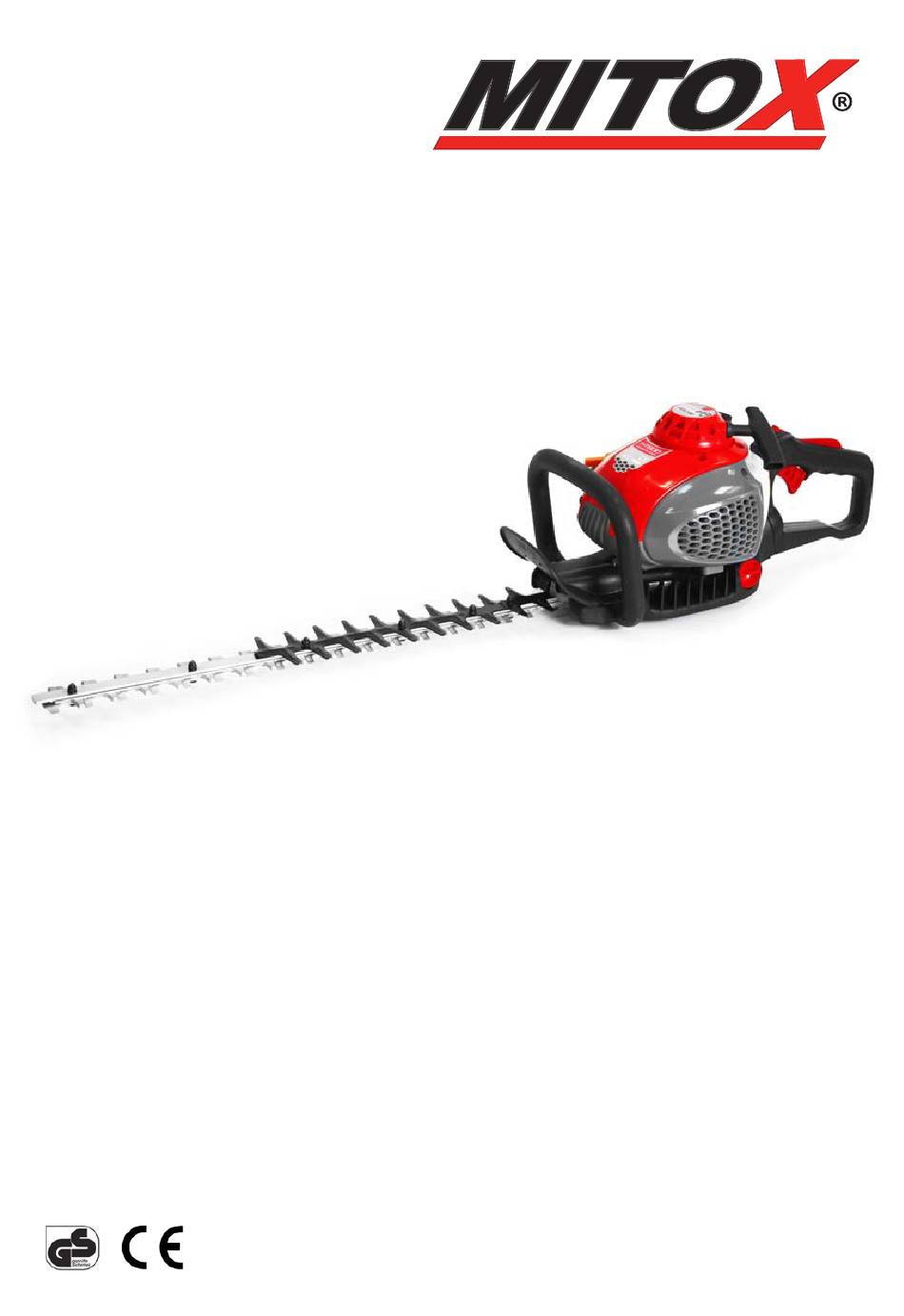

Operator's Manual
user manual, maintenance instructions and spare parts
600DX Premium Hedgetrimmer
Read this manual carefully before operating the machine
Original Instructions Version June 16
600DX_130616

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600DX and is the answer not in the manual?

Questions and answers

Related Manuals for Mitox 600DX

Summary of Contents for Mitox 600DX

  • Page 1 Operator’s Manual user manual, maintenance instructions and spare parts 600DX Premium Hedgetrimmer Read this manual carefully before operating the machine Original Instructions Version June 16 600DX_130616...

  • Page 2: Component Location

    600DX Hedgetrimmer Component Location Front handle Ignition switch Fuel tank Blade Guard Starter Muffler Rear handle Blade Throttle lever Rear Handle Locking Lever PRODUCT DESCRIPTION This Hedgetrimmer is a 2 stroke fast running power tool and is designed to be used in a domestic application for trimming new growth on hedges.

  • Page 3: Warnings In The Manual

    600DX Hedgetrimmer Warnings in the Manual This mark indicates instructions which must be followed in order to prevent accidents which could lead to serious bodily injury or death. IMPORTANT This mark indicates instructions which must be followed or it leads to mechanical failure, breakdown, or damage.

  • Page 4: Taking Care Of Warning Labels

    600DX Hedgetrimmer (5) Directive 2000-14/CE. Guaranteed noise levels. (6) Danger: risk of exhaust fumes intoxication. Taking Care of Warning Labels Always keep warning labels clean and free of scratches, which might make them illegible or difficult to read. If the warning labels provided with your hedgetrimmer become damaged, peel off, or otherwise become illegible or difficult to read, order new labels from the authorised servicing dealer and replace the damaged labels.

  • Page 5: Safety Precautions

    Only approved Mitox accessories should be used with this product. This hedgetrimmer is equipped with extremely sharp blades, always wear sturdy gloves when handling the blades and fit the safety guards when not in use.

  • Page 6: Work Clothing And Safety Equipment

    600DX Hedgetrimmer Never use the Hedgetrimmer in conditions as described below: When the ground is slippery or when other conditions exist which might make it difficult to maintain a steady posture while using the hedgetrimmer. At night, at times of heavy fog, or at any other times when your field of vision is limited and it would be difficult to gain a clear view of the area where the hedgetrimmer is to be used.

  • Page 7: Safe Handling Of Fuel

    600DX Hedgetrimmer Improper handling can cause accidents which may in turn lead to serious injury or death. For this reason, you should always be careful to adhere to the following instructions when using your hedgetrimmer. Never hold the hedgetrimmer in a way in which the blades are pointing towards someone else.

  • Page 8: Before Starting The Engine

    600DX Hedgetrimmer Before Operating the Hedgetrimmer Before beginning work, carefully check the work area and remove any obstacles. Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no-one should enter while the hedgetrimmer is being used, and when necessary this area should be marked with a warning rope, warning signs, or other forms of warning.

  • Page 9: Avoid Noise Problems

    600DX Hedgetrimmer Avoid Noise Problems Check and follow the local regulations for sound levels and hours of operation for garden machinery. In general, operate hedgetrimmers between 8 am and 5 pm on week days and 9 am to 5 pm at weekends.

  • Page 10: Two-Stroke Fuel

    NOTE Due to increased Ethanol content in petrol we recommend the use of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser to protect your MITOX® engine against the harmful effects of Ethanol. Visit www.b3cfuel.co.uk for more information. Original Instructions Version June 16...
  • Page 11 600DX Hedgetrimmer Fuel Storage (without Ethanol Shield) Mixed two-stroke fuel which has been left unused for a period of one month or more may damage the carburettor and result in the engine failing to start or operate correctly. When storing the hedgetrimmer for a period of more than one month, empty the fuel tank, and run the engine to empty the carburettor of fuel.

  • Page 12: Operation

    600DX Hedgetrimmer Operation Keep clear of the blades as they may start moving when the engine starts. Starting the Engine CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is extended, this can damage the starter mechanism.
  • Page 13 600DX Hedgetrimmer While holding the unit firmly, pull out the starter rope firmly until the engine fires (indicated by a cough from the engine). Move the choke lever (a) to the off position (c) Fig 2. Pull the starter rope until the engine starts.

  • Page 14: Stopping The Engine

    600DX Hedgetrimmer Stopping the Engine Set the engine to idling by releasing the throttle lever (a) fig 3 page 12. Set the ignition switch to the off position ‘’O’’ (STOP) (c) fig 3 page12. If the engine fails to stop, set the choke lever to the on position to stall the engine; do not use the machine until the ignition switch is repaired.

  • Page 15: Hedge Trimming Techniques

    600DX Hedgetrimmer Transportation Never transport the hedgetrimmer with the engine running. An engine that is running could be accidently accelerated causing the blade to engage. Make sure the blade safety guards are in place when transporting the hedgetrimmer. When carrying by hand, the cutting head should be pointing backwards.

  • Page 16: Maintenance

    600DX Hedgetrimmer HORIZONTAL CUT: In order to get the best cutting results, slightly tilt the blade 5 to 10° towards the cutting direction. Cut slowly, especially when cutting thick hedges. The hedgetrimmer must only be used to trim hedges or small bushes. It is not to cut other types of material.
  • Page 17 600DX Hedgetrimmer Always wear heavy-duty gloves when handling the blades. Blades Check the blades for damage before using the hedgetrimmer. Clean any residue from the blades using a cleaning agent. Lubricate the blades with spray oil before and after use.

  • Page 18: Safety Lock

    600DX Hedgetrimmer Safety Lock The safety lock is to prevent the throttle lever from accidentally being engaged. The throttle lever can only be operated, if the safety lock (1) is held down. Check if the safety lock and throttle levers return to their original position and the engine returns to idling when you release your hand from the handle.

  • Page 19: Air Filter

    600DX Hedgetrimmer Air Filter Before using the hedgetrimmer, check the air filter (3). Being clogged, will reduce the engine performance. Clean the filter element in warm, soapy water, dry completely before installing. If the element is broken or shrunk, replace with a new one.

  • Page 20: Troubleshooting

    600DX Hedgetrimmer Troubleshooting Engine will not start, power loss: • Check that the fuel tank is not empty. Fill with mixed fuel. • The fuel does not reach the carburettor. Change the fuel filter in the fuel tank. • There is water in the fuel. Drain and clean the fuel system.

  • Page 21: Service Schedule

    600DX Hedgetrimmer Service Schedule Every Every Every Before Component Procedure Note Hours Hours Hours Fuel Leaks / Fuel Clean Up • Spillage Fuel Tank / Fuel Inspect / Clean Replace if • Filter Neccessary Idle Adjusting See Adjusting Adjust if •...
  • Page 22 600DX Hedgetrimmer 600DX Specifications Model....................600DX Type....................Double Sided Hedgetrimmer Blade length (from the tip of Gear Case).................610 mm Effective cutting length......................550 mm Tooth Spacing........................28 mm Engine Model........................1E34F-2 Displacement........................24.5 cm3 Carburettor......................Diaphragm type Ignition system................I.C. controlled flywheel magneto Spark plug .................... NHSP LD L8RTF/ NGK BPMR7A Fuel............mixture (Gasoline 40 : Oil 1) (using JASO FC or ISO EGC grade oil)
  • Page 23 600DX Hedgetrimmer Original Instructions Version June 16 600DX_130616...
  • Page 24 600DX Hedgetrimmer 600DX Parts - Engine Unit Original Instructions Version June 16 600DX_130616...
  • Page 25 600DX Hedgetrimmer 600DX Parts - Engine Unit PART NUMBER DESCRIPTION MIGB/T6187.1 M6 HEXAGON NUT WITH FLANGE M6 MIGB/T70.2 M6X16 PAN HEAD SCREW M6X16 MIGJB25D.01.00.03 STARTER RATCHET ASSY MIGB/T896 4 E-RING SIZE 4 MIGJB25D.01.10.00-00 FLYWHEEL MIGB/T70.1 M5X25 CAP HEAD SCREW M5X25...
  • Page 26 600DX Hedgetrimmer 600DX Parts - Engine Unit PART NUMBER DESCRIPTION MIYD36.01.03.00-4 CIRCLIPS MIGJB25D.01.03.02-00 PISTON MIGJB25D.01.03.00-2 PISTON PIN MIGJB25D.01.03.00-1 PISTON RING MIGJB25D.01.00.01-00 CYLINDER GASKET MIGB/T70.1 M5X55 CAP SCREW M5X55 MIGJB25D.01.09.01-00A MUFFLER MIGJB25D.01.00.00-9 MUFFLER GASKET MIGJB25D.01.00.00-2 GUIDE FLOW PLATE MISPBPRM7A SPARK PLUG MIGJB25D.01.00.00-3...
  • Page 27 600DX Hedgetrimmer 600DX Parts - Blade Drive Original Instructions Version June 16 600DX_130616...
  • Page 28 600DX Hedgetrimmer 600DX Parts - Blade Drive PART NUMBER DESCRIPTION MIGJB25D.04.00-8 CLUTCH DRUM MIGB/T97.1 M5 WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T818 M5X12 SCREW M5X12 MIGJB25D.04.00-4 GEAR CASE MIGB/T97.1 M6 FLAT WASHER M6 MIGB/T93 M6 LOCK WASHER M6 MIGB/T70.1 M6X22 SCREW M6X22 MIGJB25D.04.00-9...
  • Page 29 600DX Hedgetrimmer 600DX Parts - Blade Drive PART NUMBER DESCRIPTION MIGB/T6186 M5 NUT M5 MIGJB25D.06.00-4 TOOTHED PLATE MIGJB25D.06.00-1 TOP PLATE MIGJB25D.06.00-5 BLADE WASHER PLATE MIGJB25D.07.00-2 BLADE COVER Original Instructions Version June 16 600DX_130616...
  • Page 30 600DX Hedgetrimmer 600DX Parts - Main Body Original Instructions Version June 16 600DX_130616...
  • Page 31 600DX Hedgetrimmer 600DX Parts - Main Body PART NUMBER DESCRIPTION MIGJB25D.00.00-8 FRONT HANDLE MIGB/T845 ST4.8X25 TAPPING SCREW ST4.8X25 MIGJB25D-2.00.00-3 MUFFLER COVER MIGJB25D.00.00-10 FRONT ABSORBER SPRING MIGB/T96 M5 WASHER M5 MIGB/T93 M5 SPRING WASHER M5 MIGB/T70.1 M5X14 CAP HEAD SCREW M5X14 MIGJB25D.00.00-9...
  • Page 32 600DX Hedgetrimmer 600DX Parts - Main Body PART NUMBER DESCRIPTION MITBC431D.01.13.00-3 FUEL GROMMET MITBC431D.01.13.00-6 FUEL PIPE 2.5×5×95 MIGJB25D-2.03.00-2 FUEL PIPE MIGJB25D-2.03.00-3 RETURN PIPE MIGJB25D.00.01-00 CORD SPLINT MIGB/T845 ST4.8X13 TAPPING SCREW ST4.8X13 MIYD38-3.03.06-00 BREATHER ASSEMBLY MIYD38-3.00.00-17 OIL PIPE CIRCLIP MIYD38-5.02.00-4 RECOIL HANDLE MIGJB25D.02.00-3...

  • Page 33: Ec Declaration Of Conformity

    600DX Hedgetrimmer EC Declaration of Conformity We Mitox (Rochford Garden Machinery Ltd) - BA9 9RS (importer) declare that the product(s): Designation: Petrol Powered Hedgetrimmer Model(s): MITOX 600DX PREMIUM Type/Serial No: As per rating label on machine Complies with the following directive(s):...
  • Page 34 600DX Hedgetrimmer NOTES Original Instructions Version June 16 600DX_130616...
  • Page 35 600DX Hedgetrimmer NOTES Original Instructions Version June 16 600DX_130616...
  • Page 36 The manufacturer undertakes to replace any spare parts that are classified as defective by an appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of the machine, either partially or wholly, and /or consequential damages and /or interest charges either directly or indirectly.
