FAM1
Installation & Operation Manual
Merlin
FAM 1
Gas Service Manual Reset Controller
INSTALLATION & OPERATION INSTRUCTIONS
Please read these instructions carefully and retain for future use.
These instructions can be downloaded in electronic form on the product website.
americangassafety.com
Rev: 01
04-23
1
Advertisement
Table of Contents
Related Manuals for AGS Merlin FAM 1
Summary of Contents for AGS Merlin FAM 1
- Page 1 FAM1 Installation & Operation Manual Merlin FAM 1 Gas Service Manual Reset Controller INSTALLATION & OPERATION INSTRUCTIONS Please read these instructions carefully and retain for future use. These instructions can be downloaded in electronic form on the product website. americangassafety.com Rev: 01 04-23...
-
Page 2: Table Of Contents
FAM1 Installation & Operation Manual CONTENT Important Safety Statements ..........3 Installation ..............4 Introduction ......................4 Mounting ........................4 Connections Overview ....................4 BMS Switch ......................5 Auto Reset Switch ....................5 Fire Alarm Integration ....................5 Operation ..............6 System On &... -
Page 3: Important Safety Statements
FAM1 Installation & Operation Manual Important Safety Statements Where this symbol is used, the manual must be consulted to understand the nature of any potential hazards and how to avoid them. Before any installation, use or maintenance read this manual carefully. The information contained within this manual is referenced for typical installation and operation only. -
Page 4: Installation

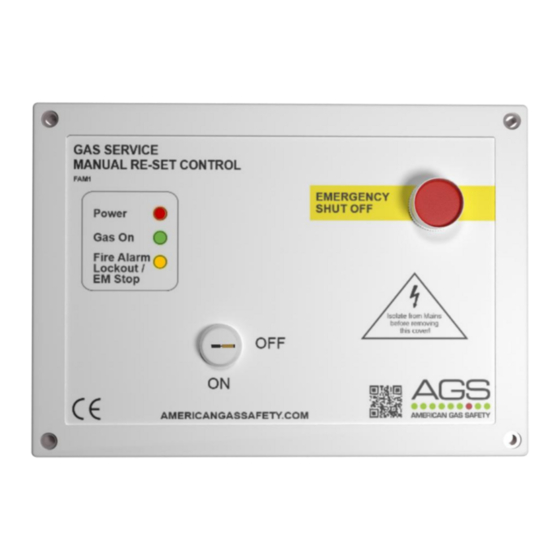

FAM1 Installation & Operation Manual Installation Introduction It is recommended that the user reads this guide before using the system. The FAM1 is an isolation panel with gas solenoid valve output. The FAM1 is designed to provide an effective way of isolating gas supply by means of a key switch on the panel or by the operation of the emergency shut off button. -
Page 5: Bms Switch
FAM1 Installation & Operation Manual BMS Switch The FAM1 can be integrated with a BMS to make or break a circuit on utility status on/ off. This will tell the BMS whether or not power is being sent to the utility. There is a dipswitch located on the circuit board labelled [BMS SEL]. -
Page 6: Operation
FAM1 Installation & Operation Manual Operation System On & Off When the control panel is powered, the [POWER] LED will illuminate. Turn the key switch on, the [Gas On] LED will illuminate green. To turn the utility off, turn the key switch off. Emergency Shut Off The emergency shut off button is located on the front of the panel. -
Page 7: Specifications
FAM1 Installation & Operation Manual Specifications General Model: AGS FAM1 Size: (H x W x D) 5.51 x 7.48 x 2.44” (140 x 190 x 62mm) Housing Material: ABS PA765 (Flame Rating UL94 V-1) Mounting: Safe Zone - Indoor use - Wall Mounted Weight: 2.2lb (1.0kg) - Page 8 Stamp / Signature of the installer: Every effort is made to ensure the accuracy of this document; however, AGS can assume no responsibility for any errors or omissions in this document or their consequences. AGS would greatly appreciate being informed of any errors or omissions that may be found in the content of this document.
