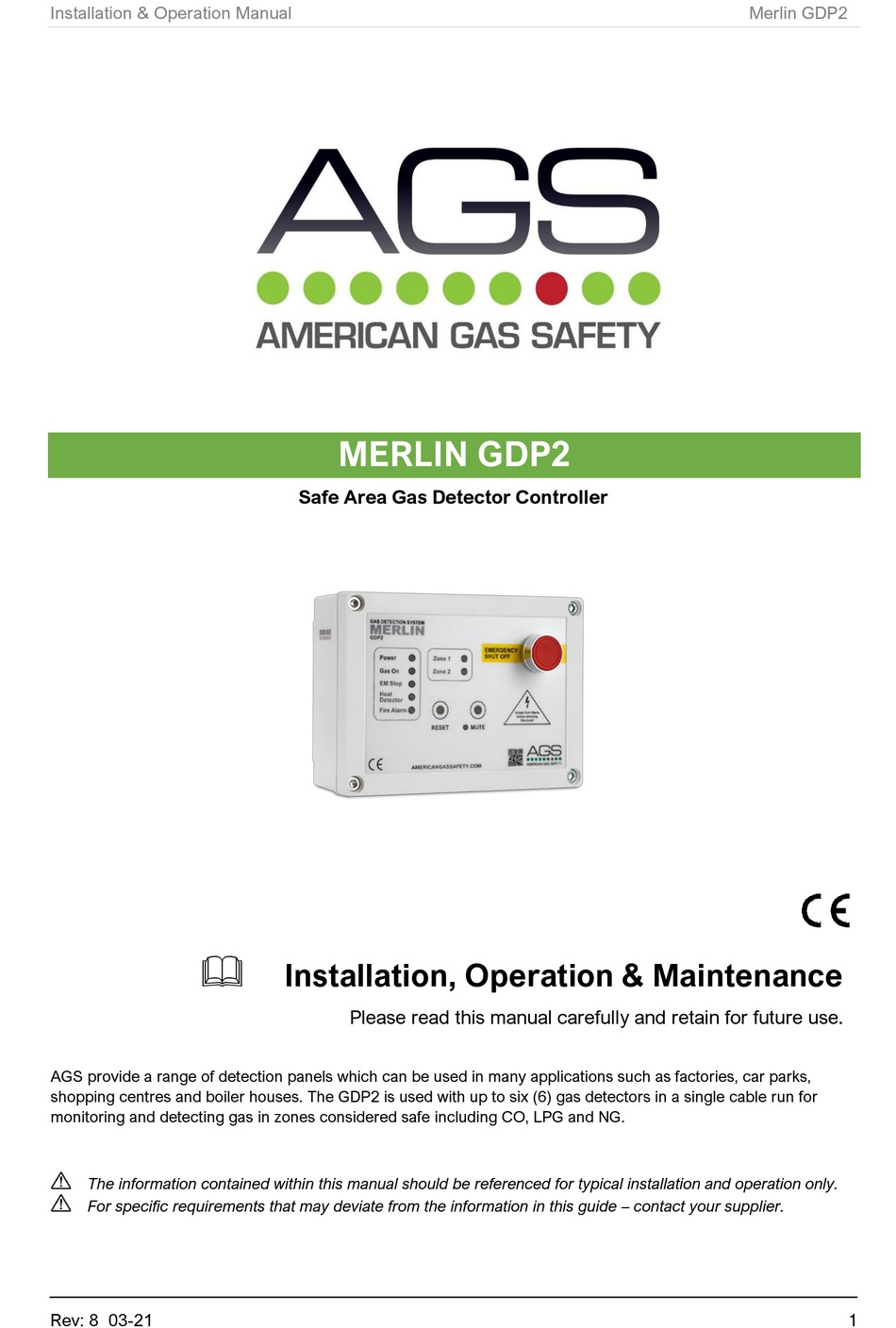

Installation & Operation Manual
AGS provide a range of detection panels which can be used in many applications such as factories, car parks,
shopping centres and boiler houses. The GDP2 is used with up to six (6) gas detectors in a single cable run for
monitoring and detecting gas in zones considered safe including CO, LPG and NG.
The information contained within this manual should be referenced for typical installation and operation only.
For specific requirements that may deviate from the information in this guide – contact your supplier.
Rev: 8 03-21

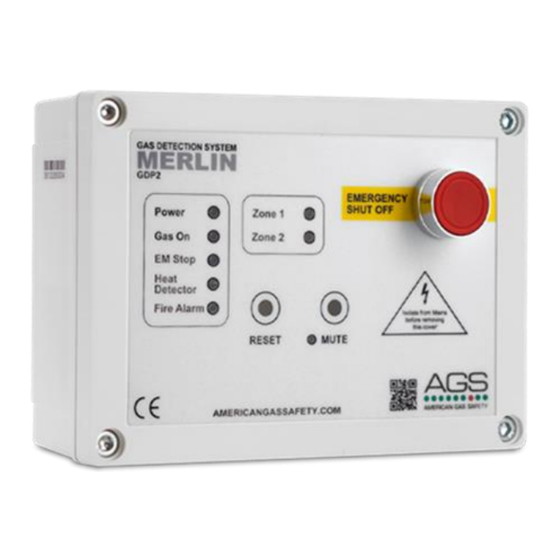

MERLIN GDP2
Safe Area Gas Detector Controller
Installation, Operation & Maintenance
Please read this manual carefully and retain for future use.
Merlin GDP2
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AGS MERLIN GDP2
Summary of Contents for AGS MERLIN GDP2
- Page 1 Please read this manual carefully and retain for future use. AGS provide a range of detection panels which can be used in many applications such as factories, car parks, shopping centres and boiler houses. The GDP2 is used with up to six (6) gas detectors in a single cable run for monitoring and detecting gas in zones considered safe including CO, LPG and NG.
-
Page 2: Table Of Contents
Installation & Operation Manual Merlin GDP2 Contents Important Warning Statements ................... 3 Installation ..........................4 Typical Application, Location & Positioning ..................4 Access & Mounting ..........................4 Internal Board Overview ........................5 Board Connections Overview ......................5 Wiring your Detector ......................... 6 BMS Switch ............................ -
Page 3: Important Warning Statements
At the end of their working life, electrochemical sensors for oxygen and carbon monoxide detectors should be disposed of in an environmentally safe manner. Alternatively they can be securely packaged and returned to AGS clearly marked for disposal. Electrochemical sensors should not be incinerated as this may cause the cell to emit toxic fumes. -
Page 4: Installation
Typical Application, Location & Positioning The Merlin GDP2 is a multi-safe zone gas detection panel which can be used in many applications such as factories, car parks, shopping centres and most commonly - boiler houses. It can be used with up to 8 Merlin gas detectors for monitoring and detecting gas including carbon monoxide, liquid petroleum gas and methane. -
Page 5: Internal Board Overview
Installation & Operation Manual Merlin GDP2 Internal Board Overview 100-120VAC Mains power Input 100-120VAC Gas Solenoid Valve Output. 24VDC Gas detector power supply (Zone 1) 24VDC Gas detector power supply (zone 2) Remote emergency stop buttons Heat Sensor: Fusible Links Fire panel connection BMS output contacts. -
Page 6: Wiring Your Detector
Installation & Operation Manual Merlin GDP2 Wiring your Detector Power is supplied to a detector via the GDP terminal [+ / -] and using the panel [GAS DETECTION ZONE] terminal. If you are using a GDP panel you will need to use the detector [C/L] terminal as an alarm relay. -
Page 7: Factory Set Condition
Installation & Operation Manual Merlin GDP2 Factory Set Condition SWITCH CONDITION AUTO RESET ZONE 1 ZONE 2 Trouble Shooting Fault. Possible Cause/Correction. Incorrect wiring Detector not responding. Zone switches not properly configured Incorrect Wiring Panel not responding. No Power Auto-Reset not properly configured... -
Page 8: Mute & Reset Buttons
Installation & Operation Manual Merlin GDP2 Mute & Reset Buttons MUTE The mute button is located on the front fascia of the GDP2 and is used to mute the sounder inside the board when in alarm. The internal buzzer operates at approximately >60db measured 30cm (1ft) from a closed panel. The mute button is used to mute the sounder inside the board when in alarm. - Page 9 What do I need? Contact your AGS representative for details of suitable bump testing kits and gases. Kits usually consist of a certified gas cylinder; flow control regulator, tube pipe and applicator cone. We recommend only using AGS calibration gas kits to ensure correct flow rates meet AGS technical requirements.
-
Page 10: End Of Operational Life (Eol)
Installation & Operation Manual Merlin GDP2 End of Operational Life (EOL) The typical life of a gas detector depends on its application and intended target gas, in addition, the operational life can be prolonged if the system and equipment is installed and maintained in accordance the instructions stated within this manual. - Page 11 Installation & Operation Manual Merlin GDP2 Page intentionally left blank Rev: 8 03-21...
- Page 12 Every effort is made to ensure the accuracy of this document; however, AGS can assume no responsibility for any errors or omissions in this document or their consequences. AGS would greatly appreciate being informed of any errors or omissions that may be found in the content of this document.
