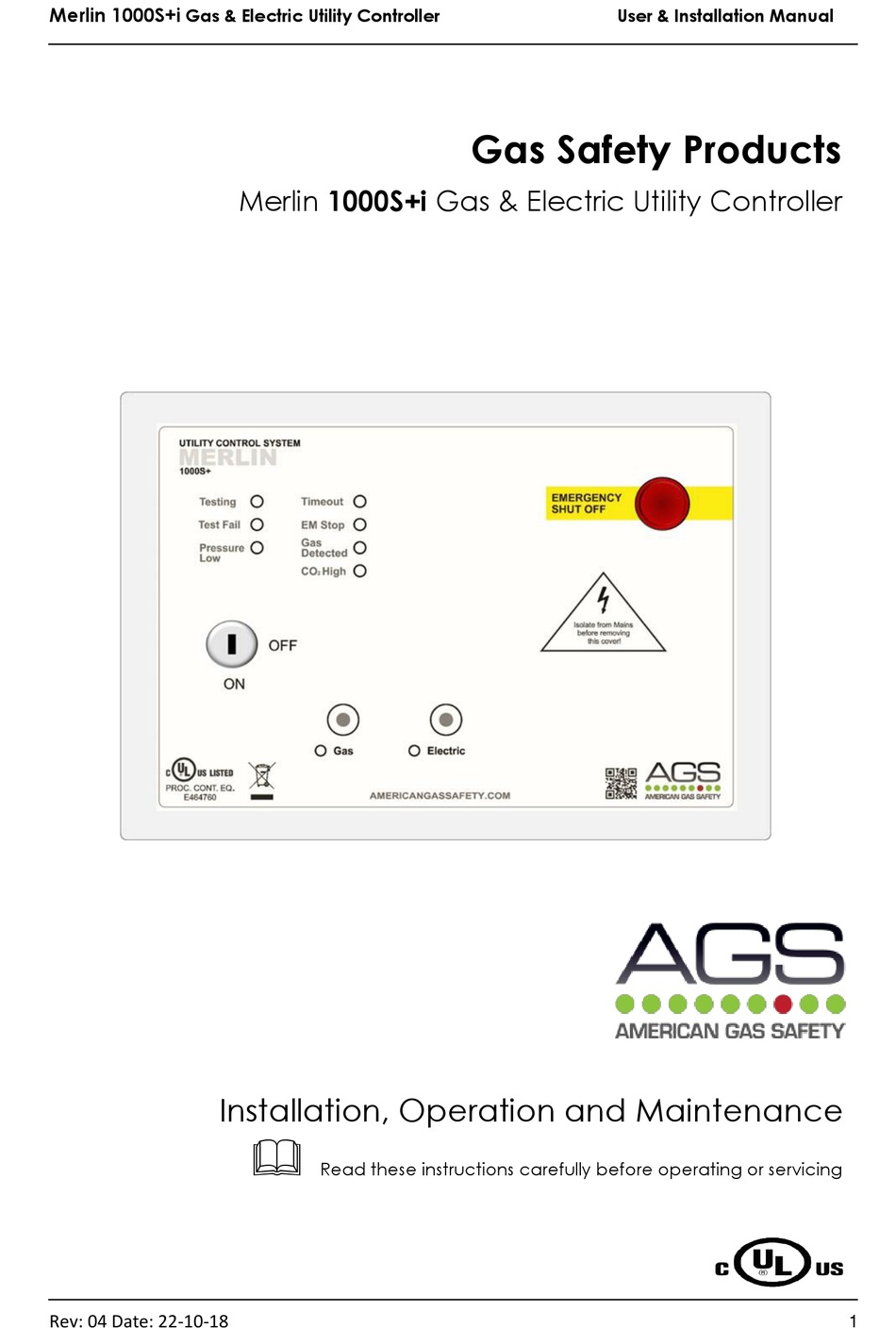

- Page 1 Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual Gas Safety Products Merlin 1000S+i Gas & Electric Utility Controller Installation, Operation and Maintenance Read these instructions carefully before operating or servicing Rev: 04 Date: 22-10-18...
-
Page 2: Table Of Contents
Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual Table of contents GENERAL INFORMATION ................... 3 INSTALLATION & CONNECTION ................. 3 Panel Mounting ......................3 1000S+i Circuit Board Terminals ................... 3 POWER [1] ........................4 GAS VALVE [2] ....................... 4 ELECTRIC CONTACTOR [3] ................... -
Page 3: General Information
User & Installation Manual GENERAL INFORMATION The Merlin 1000S+i is a gas shut off, gas detection & electrical isolation utility controller. The Merlin 1000S+i can receive connections from remote emergency shut-off buttons, gas detectors and a CO2 monitor. It can also be integrated with a BMS and fire alarm. -
Page 4: Power [1]
Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual POWER [1] A 110-120VAC Single Phase electrical supply should be supplied to the panel. This should be externally fused at 3 Amps using a fuse or circuit breaker. GAS VALVE [2] This terminal provides a 110-120VAC 3 amp signal to the Gas solenoid valve. -
Page 5: 12Vdc [9]
POWER When the system is connected to the mains supply, the Red LED of the AGS Logo located in the bottom right corner of the panel will illuminate. When no power is present, this LED will not light up. -
Page 6: Electric
Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual ELECTRIC When Electric service is turned on, the Electric LED will illuminate BLUE. BLUE = Electric On FLASHING = Electric Off, Electric button enabled OFF = Electric Off, Electric button disabled ... -
Page 7: Fire Alarm Intergration
User & Installation Manual FIRE ALARM INTERGRATION The Merlin 1000S+i can be integrated with a fire alarm to shut the gas supply automatically in the event of a fire. The volt free fire alarm signal can be wired in series with any remote emergency shut off buttons. -
Page 8: 1000S+I Wiring
Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual 1000S+i WIRING 1) [POWER] Mains Input 110-120VAC Single Phase. 2) [GAS VALVE] Gas Solenoid Valve Power Output, 110-120VAC, Max 3A. 3) [ELECTRIC CONTACTOR] Electric Contactor Power Output, 110-120VAC, Max 3A. - Page 9 Merlin 1000S+i Gas & Electric Utility Controller User & Installation Manual INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE).
