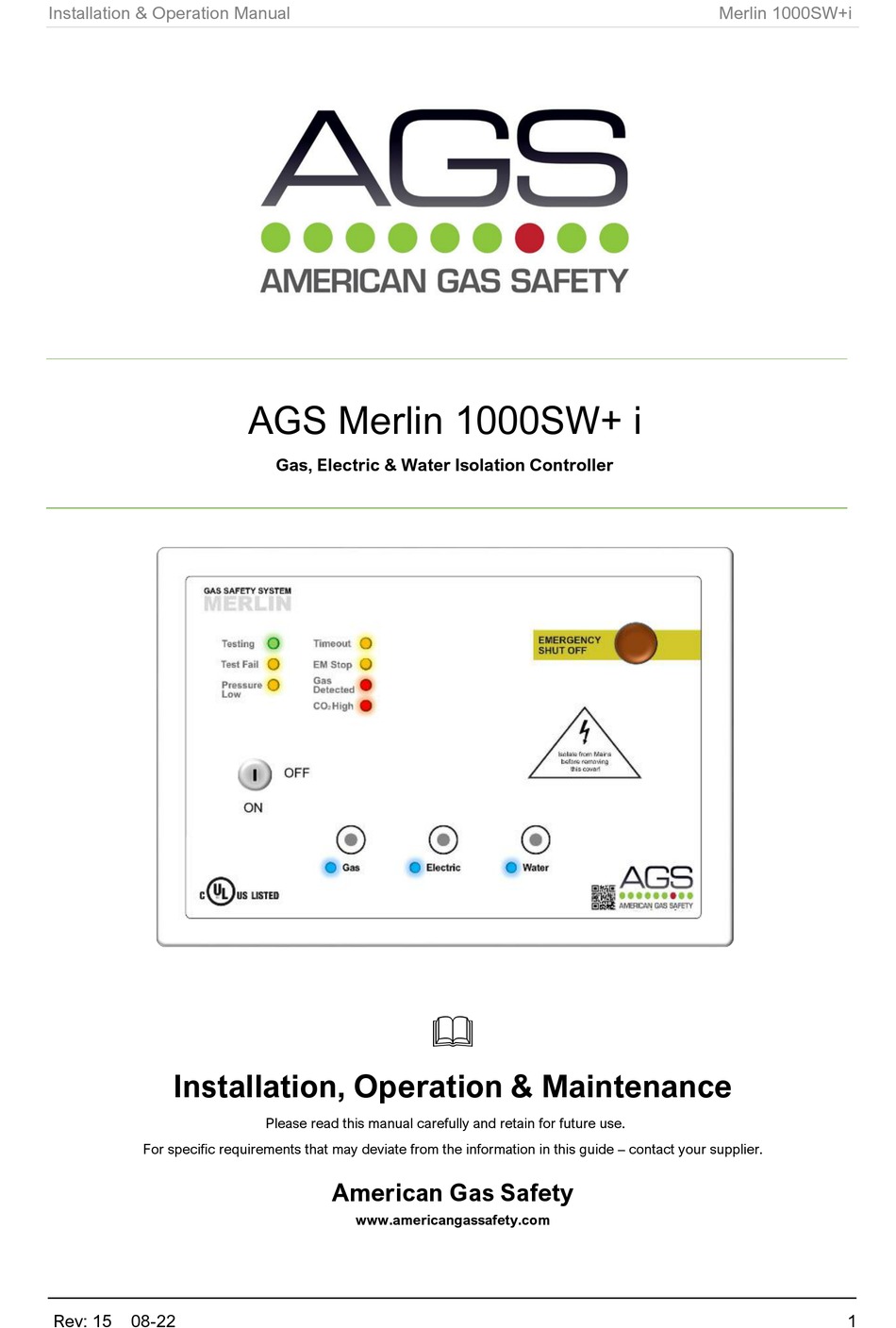

Installation & Operation Manual
Merlin 1000SW+i
AGS Merlin 1000SW+ i
Gas, Electric & Water Isolation Controller
Installation, Operation & Maintenance
Please read this manual carefully and retain for future use.
For specific requirements that may deviate from the information in this guide – contact your supplier.
American Gas Safety
www.americangassafety.com
Rev: 15
08-22
1
Advertisement
Table of Contents
Related Manuals for AGS Merlin 1000SW Plus i
Summary of Contents for AGS Merlin 1000SW Plus i
- Page 1 Installation & Operation Manual Merlin 1000SW+i AGS Merlin 1000SW+ i Gas, Electric & Water Isolation Controller Installation, Operation & Maintenance Please read this manual carefully and retain for future use. For specific requirements that may deviate from the information in this guide – contact your supplier.
-
Page 2: Table Of Contents
Installation & Operation Manual Merlin 1000SW+i Contents Important Warning Statements ..............3 Installation ....................4 Typical Application & Location .................... 4 Mounting & Cabling ....................... 4 Circuit Board Connections Overview ................. 5 Switch Settings – Auto Reset ....................8 Switch Settings – BMS Integration ..................8 Switch Settings –... -
Page 3: Important Warning Statements
At the end of their working life, electrochemical sensors should be disposed of in an environmentally safe manner. Alternatively, they can be securely packaged and returned to AGS clearly marked for disposal. Electrochemical sensors should not be incinerated as this may cause the cell to emit toxic fumes. -
Page 4: Installation
Installation & Operation Manual Merlin 1000SW+i Installation Typical Application & Location Installation must be carried out by a licenced, insured contractor! Installation must be in accordance with recognised standards in the country concerned, for North America, NEC / CEC regulations should be followed! Cables must be protected against mechanical damage! The 1000SW+I panel is a gas;... -
Page 5: Circuit Board Connections Overview
Installation & Operation Manual Merlin 1000SW+i Circuit Board Connections Overview POWER / LINE IN 110-120V AC Power should be supplied to the [POWER / LINE IN] terminal and fused at 3A. GAS SOLENOID VALVE OUTPUT 110-120V AC electrical power supplied from the [VALVE OUT] connector using a 3-core cable can be connected to a gas solenoid valve which can shut the gas supply on alarm status. - Page 6 Installation & Operation Manual Merlin 1000SW+i WIRING GAS DETECTORS Refer to your gas detector manual for further information! If no detector is being used leave the factory fitted link in! Connecting a Gas Detector i / i-S Connecting a Gas Detector Connecting a Gas Detector TFT Rev: 15 08-22...
- Page 7 CO2 MONITOR & 12VDC Primarily this is used to power the AGS CO2-X but can be used as a power output for external auxiliary devices when there is power at the panel and can be used to create a relay switch with the BMS relay output.
-
Page 8: Switch Settings - Auto Reset
Installation & Operation Manual Merlin 1000SW+i Switch Settings – Auto Reset When power is restored after the power cut/ loss, the panel has to be restarted manually. (Default) This will instruct the system to restart automatically when power is restored after power cut/loss. -
Page 9: Operation
The user must turn the key off and back on to adjust any services. On connecting mains power, an LED on the front of the panel (AGS Logo) will illuminate red. Turn the key switch to on position. -
Page 10: Maintenance
• Bump Testing (Gas Response Check) All certified test gases supplied by AGS are classified as non-flammable and non-toxic, however, they may contain gas under pressure and may explode if heated to extreme temperatures and cause asphyxiation in high concentrations. -
Page 11: Specification
Installation & Operation Manual Merlin 1000SW+i Specification General Model: 1000SW+i Size: (H x W x D) 7.08 x 10.03 x 3” (180 x 255 x 77 mm) Housing Material: ABS Polylac - PA765. UL 94 V-1 Mounting: Indoor use - Wall Mounting User Interface Visual Indicators: Audible Alarm:... - Page 12 Stamp/ Signature of the installer: Every effort is made to ensure the accuracy of this document; however, AGS can assume no responsibility for any errors or omissions in this document or their consequences. AGS would greatly appreciate being informed of any errors or omissions that may be found in the content of this document.
