Summary of Contents for Nibe SAM 42

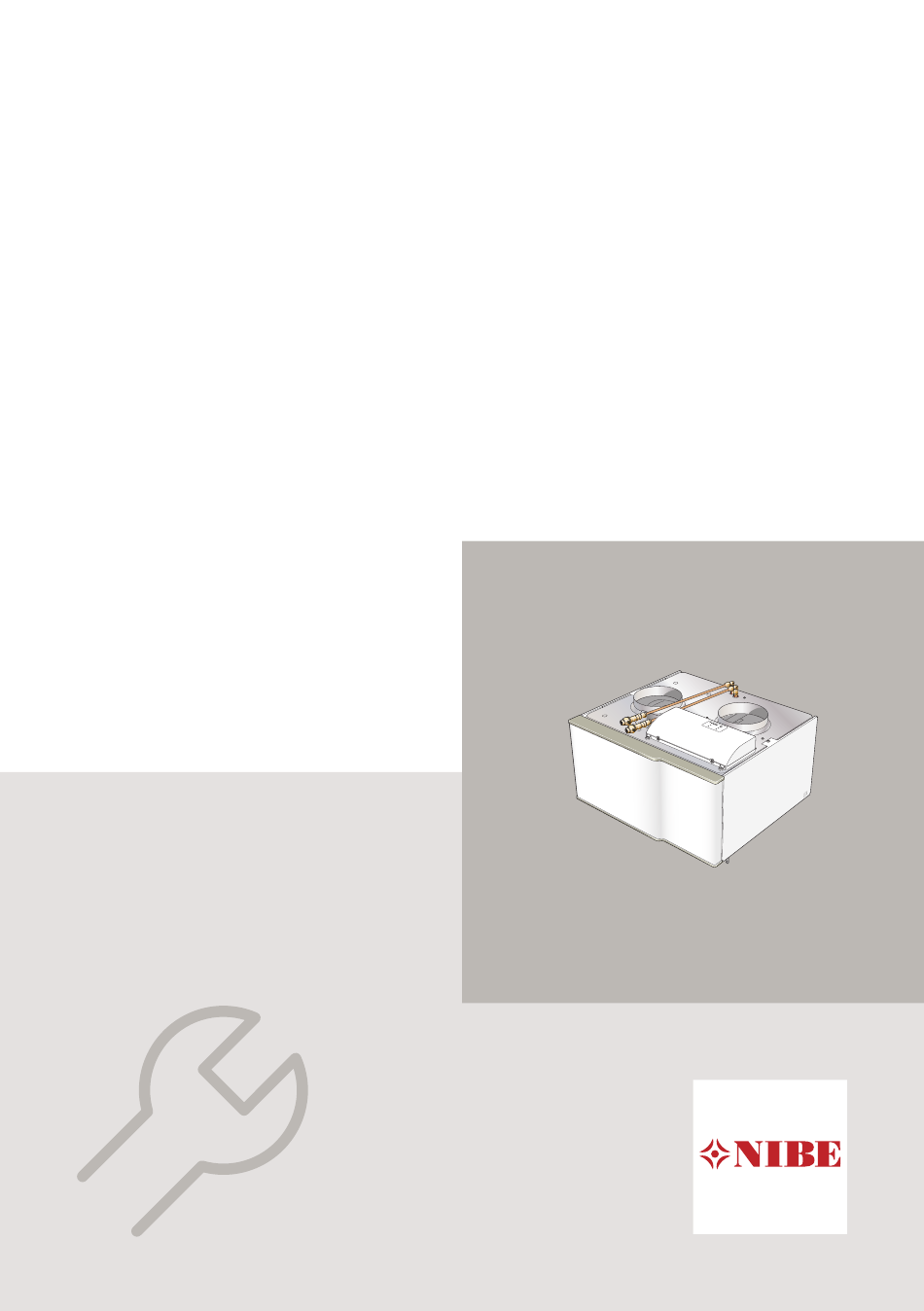

- Page 1 UHB EN 2119-1 USER MANUAL 631199 Supply air module NIBE SAM 42...
-
Page 3: Table Of Contents
Table of Contents 1 Important information Installation data Safety information Serial number SAM 42 - An excellent choice 2 The heating installation – the heart of the house Supply air module function Maintenance of SAM 42 3 Disturbances in comfort... -
Page 4: Important Information
T3 18°C Serial number must always be given. Certification that the installation is carried out according to instructions in the accompanying installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE SAM 42... -
Page 5: Safety Information
Cleaning and user maintenance shall not be made by children without supervision. This is an original manual. It may not be translated without the approval of NIBE. Rights to make any design or technical modifications are reserved. -
Page 6: Serial Number
This symbol indicates tips on how to facilitate using the product. Serial number The serial number can be found at the bottom left inside the front cover. Serial number Caution You need the product's 14 digit serial number for servicing and support. Chapter 1 | Important information NIBE SAM 42... -
Page 7: Sam 42 - An Excellent Choice

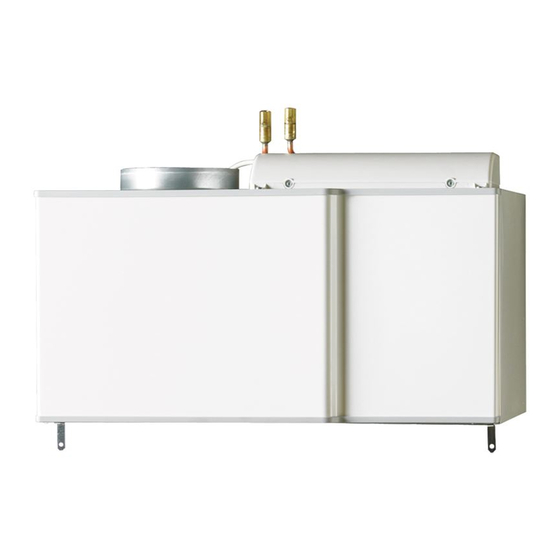

SAM 42 - An excellent choice SAM 42 is a supply air module that, together with an exhaust air heat pump from NIBE, gives you a complete solution for mechanical exhaust air and pre-heated supply air. EXCELLENT PROPERTIES FOR SAM 42: •... -
Page 8: The Heating Installation - The Heart Of The House
2 The heating installation – the heart of the house 20 °C 55 °C 45 °C 0 °C Outdoor air Room air Refrigerant Heating medium Chapter 2 | The heating installation – the heart of the house NIBE SAM 42... -
Page 9: Supply Air Module Function
A fan blows the heated air into those rooms that have supply air inlets. The temperatures are only examples and may vary between different installations and time of year. NIBE SAM 42 Chapter 2 | The heating installation – the heart of the house... -
Page 10: Maintenance Of Sam 42
Maintenance of SAM 42 REGULAR CHECKS Your supply air module requires minimal maintenance after commission- ing. On the other hand, it is recommended that you check your installation regularly. If something unusual occurs, messages about the malfunction, in the form of different alarm texts, appear in the heat pump display. - Page 11 Replacing the air filter The filter in SAM 42 is of a type that should not be cleaned, but has to be replaced instead. Replacement must be performed regularly, at least once a year. More frequent intervals may be necessary, depending on the quantity of particles in the air as well as other environmental factors.
- Page 12 Venting Vent SAM 42 by opening one vent valve at a time, until water comes out. Then close the valve again. Bleed valves XL33 QM20 XL34 HQ11 Chapter 2 | The heating installation – the heart of the house NIBE SAM 42...
-
Page 13: Disturbances In Comfort
BASIC ACTIONS Start by checking the following items: • That the heat pump is operating and the supply cable to SAM 42 is connected. • Group and main fuses of the accommodation. • The property's earth circuit breaker. - Page 14 – Order ventilation adjustment. LOW SUPPLY AIR TEMPERATURE • Air in the heating medium system. – Venting SAM 42. See section Venting. • Incorrect value set in supply air automatic control system. – Contact your installer! HIGH SUPPLY AIR TEMPERATURE •...
-
Page 15: Technical Data
4 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (nibe.eu). NIBE SAM 42 Chapter 4 | Technical data... -
Page 16: Glossary
Air that is drawn into the SAM 42 and heated. SUPPLY AIR The heated air that is blown from SAM 42 and out into the room. SUPPLY AIR DEVICE Valves, usually in the ceiling, where the heated supply air is blown out. -
Page 17: Item Register
Glossary, 16 Important information Installation data, 4 Serial number, 6 Symbols, 6 Installation data, 4 Maintenance of SAM 42, 10 Regular checks, 10 Regular checks, 10 Serial number, 6 Symbols, 6 Technical data, 15 The function of the supply air module, 9 The heating installation –... -
Page 19: Contact Information
Tel: +7 831 288 85 55 E-mail: info@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 27 3000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. - Page 20 WS release date: 2021-05-12 12:03 Publish date: 2021-05-26 14:33 This manual is a publication from NIBE Energy Systems. All product illustrations, facts and data are based on the available information at the time of the publica- tion’s approval. NIBE Energy Systems makes reservations for any factual or printing errors in this manual.
