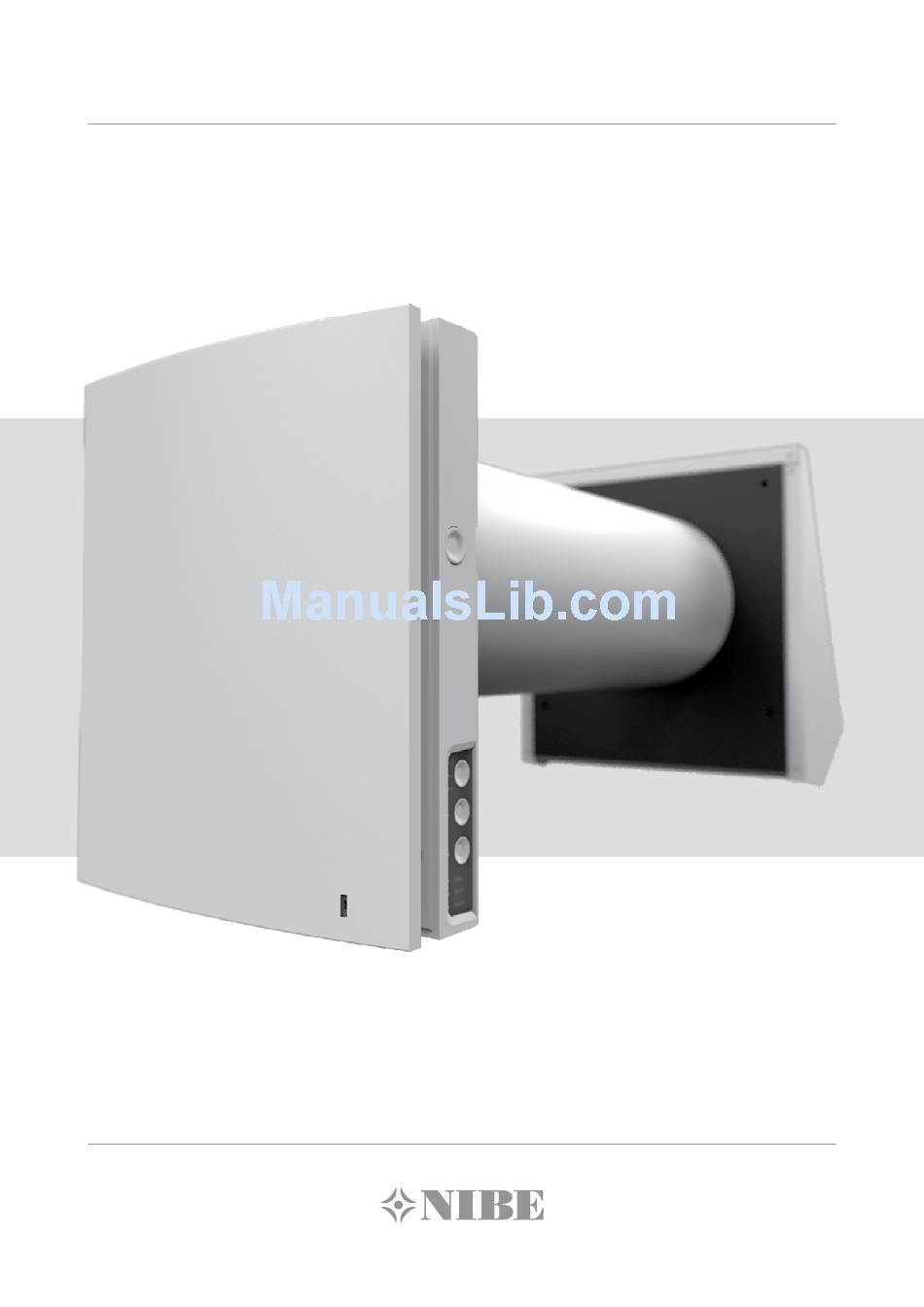

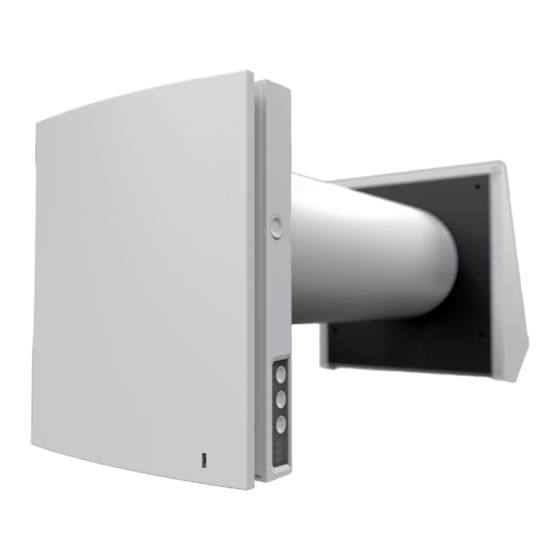

- Page 1 USER’S MANUAL DVC 10-50 DVC 10-50L DVC 10-50W DVC 10-50WL Heat recovery single-room reversible ventilator...
-
Page 2: Table Of Contents
The user’s manual consisting of the technical details, operating instructions and technical specification applies to the installation and mounting of the single- room reversible ventilator with energy regeneration NIBE DVC 10 (hereinafter «the unit» as mentioned in the «Safety Requirements» and «Manufacturer’s Warranty»... - Page 3 • Do not sit on the unit and avoid placing foreign • Use the unit only for its intended purpose. objects on it. THE PRODUCT MUST BE COLLECTED SEPARATELY AT THE END OF SERVICE LIFE. DO NOT DISPOSE OF AS UNSORTED MUNICIPAL WASTE. www.nibe.com...
-
Page 4: Purpose
1 item Outer hood installation instruction 1 item Packing box 1item DESIGNATION KEY DVC 10-50 W L Air duct length _: 500 mm L: 700 mm Automation type _: cable connection of the units W: wireless connection of the units... -
Page 5: Technical Data
Ingress Protection (IP) rating from solid objects and liquids IP24. The unit design is regularly improved, so some models may slightly differ from those ones described in this manual. TECHNICAL DATA DVC 10-50 (L) DVC 10-50W (L) Speed Supply voltage, 50-60 Hz [V]... -
Page 6: Design And Functioning
Cartridge is a solid block and cannot be dismantled. NIBE DVC 10 has a cartridge with removable filters. They are removed for maintenance needs. A socket connector to be connected to the control board in the back part of the indoor unit is routed from the cartridge. - Page 7 The indoor unit is equipped with air shutters. Shutters are closed. Shutters are open. During the unit operation the shutters open to let the air stream flow freely though the unit. After the unit shutdown the shutters close within 2 minutes. www.nibe.com...
-
Page 8: Mounting And Set-Up
DVC 10-50 (W) MOUNTING AND SET-UP READ THE USER’S MANUAL PRIOR TO MOUNTING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED UNIT WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. - Page 9 6. Route the power cable as shown in the figure and connect the ventilator to power supply in compliance with the wiring diagram. Fix the power cable and the control cables with the cable clamp. After connection re- install the transparent cover. Cable clamp Cable clamp www.nibe.com...
- Page 10 DVC 10-50 (W) 7. Insert the cartridge in the air duct as shown below. Be sure the pointer is directed upwards. Then fix the cable with a clamp and connect the socket connector to the control board. The pointer must...
-
Page 11: Connection To Power Supply And Control
Use copper wires only for all the electric connections! Connect the wires to the terminal block located on the control board in compliance with the wiring diagram and terminal designations. EXTERNAL WIRING DIAGRAM DVC 10-50(L) DVC 10-50W(L) 100-230 V 100-230 V... - Page 12 DVC 10-50 (W) SERIES CONNECTION OF DVC 10-50 VENTILATORS Master Slave 1 Slave N 100-230 V / 50-60 Hz +12V +12V +12V power input To the next ventilator PARALLEL CONNECTION OF DVC 10-50 VENTILATORS Master Slave 1 Slave N 100-230 V / 50-60 Hz...
- Page 13 POSITIONING OF THE DIP SWITCH FOR DVC 10-50(L) Complete shutdown of the ventilator is enabled. In this switch position the ventilator may be turned off by means of the button on the side control panel. Complete shutdown of the ventilator is disabled.
- Page 14 DVC 10-50 (W) VENTILATOR CONTROL The ventilator is operated with the remote control or the buttons on the Buttons on Remote control side part of the indoor unit, see the picture on the right. the unit casing The speed selection sequence is...
- Page 15 The ventilator reverts to operation with a previous speed setting upon elapse of the set time period. Press any speed key to deactivate the timer or press the timer control button once again. www.nibe.com...
- Page 16 Connection of the ventilator to PC: • Start the application NIBE DVC 10.exe at your PC. • Take off the front part of the indoor unit for accessing the DIP switch and USB connector on the control board under the rubber cover. For details, please refer to Ventilator Setup).
- Page 17 RESET FILTER TIMER FOR DVC 10-50W(L) • Start the program NIBE DVC 10.exe at your PC. • Connect the ventilator and PC using a USB to mini USB cable. • Select a required unit from the dropdown list Select device (1).
- Page 18 VENTILATOR OPERATION WITH THE MOBILE APPLICATION FOR DVC 10-50W(L) To enable operation of the unit with a mobile device install the NIBE DVC 10 application to your mobile device. The application is available for download at App Store, Google Play or via the QR code at the bottom of the page.
- Page 19 In this case the Master unit is able to operate 32 Slave units. wireless access point Please note that the Wi-Fi routers may have individual limitations for the maximum number of connected devices. Master Slave Slave Mobile device Mobile device www.nibe.com...
- Page 20 DVC 10-50 (W) If the Wi-Fi router capacity is not enough to connect a required number of the units, you may use an extra wireless access point to connect the other units. Optionally connection of several Master units to the network...
- Page 21 • Apply and save the selected parameters (9). • If all the parameters are entered correct and the Master unit is turned on, within 10 seconds the tab (10) is displayed as Master connected the tab (11) as Wi-Fi connected. www.nibe.com...
- Page 22 DVC 10-50 (W) Check the busy numbers using the installed mobile application. For doing that open the connection menu (1-2), select the connection to the Master unit (3) and open the Slave status page (4). All the free numbers are highlighted grey.
- Page 23 4. Detect a free IP address for the Slave unit: enter the command «ping» in the command line, IP-address of the router, change the fourth address field from 1 to 254 and press Enter until the line «This node is not available» appears. Example: «ping 192.168.0.3»+»Enter». 5. Enter the selected available address in the field Slave IP address» for setup of the ventilator. www.nibe.com...
- Page 24 DVC 10-50 (W) CONNECTION OF A MOBILE DEVICE TO THE UNIT ACCORDING TO THE DIAGRAM NO. 2 • Install the software to your mobile device. • Connect the Master unit with configurations according to the diagram No. 2. • Activate Wi-Fi in the system menu of the mobile device.
- Page 25 • In the menu program open page of connection through the cloud server (1-2). • Enter the account generation menu (3). • Enter your login (4) and password (5), enter your password again (6) and your Email (7). • Press the button (8) to confirm. www.nibe.com...
- Page 26 DVC 10-50 (W) Entering account: • Enter your login (1) and password (2) on the page of connection through the cloud server. • Press the button (3) to enter the account. Adding new connection: • Press the button (1) to add the new connection at the page of connection through the cloud server.
- Page 27 To open the air duct pull the front panel through the specially designed recessions. The fan automatically starts operating according to the actual speed setting. Air duct Air duct blocking opening The light operating indicator is located on the front panel. In the night time the indicator glowing goes down. www.nibe.com...
-
Page 28: Maintenance
DVC 10-50 (W) MAINTENANCE Maintenance of the ventilator means regular cleaning of the surfaces of dust and cleaning or replacement of the filters. To enable access to the main units follow the procedure: turn the unit off using the remote control or with the buttons on the indoor unit. - Page 29 The battery type is CR2025. Remove the holder with the battery from the lower part of the remote CR2025 control. Then replace the battery and re-install the holder with a new battery in site. CR2025 www.nibe.com...
-
Page 30: Troubleshooting
DVC 10-50 (W) TROUBLESHOOTING TROUBLES AND TROUBLESHOOTING Trouble Possible reasons Troubleshooting Make sure that the ventilator is properly connected to No power supply. power mains and troubleshoot a connection error, if required. The fan does not move up during start-up of the unit. -
Page 31: Manufacturer's Warranty
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND TROUBLE- FREE OPERATION OF THE UNIT. USERS’ WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL WITH THE PURCHASE DATE STAMP. www.nibe.com... -
Page 32: Acceptance Certificate
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. Customer’s Signature Seller’s Stamp INSTALLATION CERTIFICATE Heat recovery single-room reversible ventilator DVC 10-50 has been connected to power mains pursuant to the requirements stated in the present user’s manual. Company Name Address Phone Number... - Page 33 NOTES www.nibe.com...
- Page 34 DVC 10-50 (W) NOTES www.nibe.com...
- Page 35 NOTES www.nibe.com...
- Page 36 NIBE155EN-01...
