KROHNE OPTIWAVE 1010 Quick Start Manual

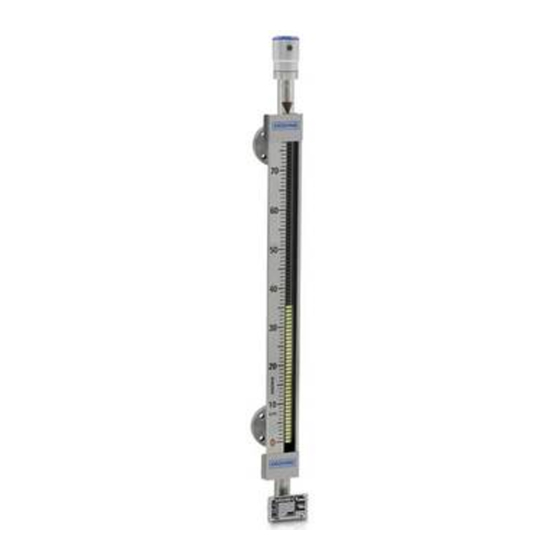

Radar (fmcw) level transmitter for bypass chamber and magnetic level indicator
Hide thumbs Also See for OPTIWAVE 1010:
Table of Contents

Advertisement

Quick Links

Download this manual
OPTIWAVE 1010
OPTIWAVE 1010
OPTIWAVE 1010
OPTIWAVE 1010
Radar (FMCW) Level Transmitter for bypass chamber
and magnetic level indicator
© KROHNE 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en
Quick Start
Quick Start
Quick Start
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTIWAVE 1010 and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTIWAVE 1010

Summary of Contents for KROHNE OPTIWAVE 1010

  • Page 1 OPTIWAVE 1010 OPTIWAVE 1010 OPTIWAVE 1010 OPTIWAVE 1010 Quick Start Quick Start Quick Start Quick Start Radar (FMCW) Level Transmitter for bypass chamber and magnetic level indicator © KROHNE 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 2: Table Of Contents

    4.2 Operating concept ......................17 4.3 Remote communication with PACTware™ ..............18 4.3.1 General notes........................18 5 Technical data 5.1 Technical data......................... 20 5.2 Measuring accuracy ....................... 24 6 Notes www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 3: Safety Instructions

    If you need to return the device to the manufacturer or supplier, please fill out the form • contained on the CD-ROM and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 4: Installation

    Do a check of the packing list to make sure that you have all the elements given in the order. Figure 2-1: Scope of delivery 1 Device and measuring chamber 2 Quick Start 3 DVD-ROM (including Handbook, Quick Start, Technical Datasheet and related software) www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 5: Visual Check

    1 Device nameplate (for more data, refer to the handbook) INFORMATION! Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 6: Storage

    2 Put the device on its side. We recommend that you use the packaging in which it was delivered. 3 Storage temperature range: -40...+85°C / -40...+185°F • Store the device in a dry and dust-free location. • Store the device in its original packing. www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 7: Transport

    Obey the precautions that follow to make sure that the device is correctly installed. • Make sure that there is sufficient space on all sides. • Protect the signal converter from direct sunlight. • Do not subject the signal converter to heavy vibrations. 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 8: Installation

    2 Ambient temperature Non-Ex devices: -40...+85°C / -40...+185°F Ex devices: see supplementary operating instructions 3 Process pressure Depends on the type of seal and process connection. Refer to the table that follows. www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...
  • Page 9 Bypass chamber Process pressure temperature [°C] [°F] [barg] [psig] Metaglas® FKM/FPM with without -30...+120 -22...+248 -1...40 -14.5...580 Metaglas® Kalrez® 6375 without -20...+120 -4...+248 with Metaglas® EPDM with without -40...+120 -40...+248 Metaglas® 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...
  • Page 10 7 Device with aluminium housing and distance piece The maximum ambient temperature for non-Ex devices is +85°C / +185°F. The process connection temperature must agree with the temperature limits of the gasket material. www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 11: Recommended Mounting Position

    3 Distance to top process connection (bypass chamber) = minimum distance (refer to the "basic parameters" menu in the DTM) 4 Distance to bottom process connection (bypass chamber) = maximum distance (refer to the "basic parameters" menu in the DTM) 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 12: Mounting Restrictions

    CAUTION! If there are parasitic signals, the device will not measure correctly. Parasitic signals are caused by sudden changes in bypass chamber diameter in the path of the radar beam. www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 13: Electrical Connections

    3 Current output terminal – polarity insensitive 4 External ground connection INFORMATION! Electrical power to the output terminal energizes the device. The output terminal is also used for HART ® communication. 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 14: Non-Ex Devices

    (ATEX, IECEx etc.). You can find this documentation on the DVD-ROM delivered with the device or it can be downloaded free of charge from the website (Download Center). www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 15: Minimum Power Supply Voltage

    Figure 3-4: Minimum power supply voltage for an output of 22 mA at the terminal (devices with a Hazardous Location approval (Ex i)) X: Power supply U [VDC] Y: Current output load R [Ω] 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 16: Protection Category

    • Make sure that the electrical cable agrees with the national electrical code. • Make a loop of cable in front of the device 1 to prevent leakage into the housing. • Tighten the cable feedthrough 2. www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 17: Start-Up

    For more data about how to use the DTM in PACTware, refer to the "Operation" chapter in the handbook. For more data about the menu tree for the Basic-DD, AMS and PDM, refer to the "Description of HART interface" chapter in the handbook. 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 18: Remote Communication With Pactware

    Measurements Measurements 6 DTM menu list (Login/Logout, Import/Export, Information, Basic parameters, Signal output, Application, HART, Ser- vice, DTM settings) 7 Project Project Project Project window 8 Data for device identification www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...
  • Page 19 If the data is incorrect, the device will not measure level correctly. You can use the free PACTware™ software and the DTM for the OPTIWAVE 1010 to change the device settings. For more data about the procedure, refer to "Application: Float offset calculation"...

  • Page 20: Technical Data

    A special float with a target is installed in the bypass chamber and used to calibrate the device Operating conditions Temperature Temperature Temperature Temperature Ambient temperature -40…+85°C / -40…+185°F Ex: see supplementary operating instructions or approval certificates Storage temperature -40…+85°C / -40…+185°F www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...
  • Page 21 Typically 2 measurement cycles/s Installation conditions Dimensions and weights Refer to "Technical data: Dimensions and weights" in the handbook for the OPTIWAVE 1010 and the handbook for the BM 26 Basic / Advanced. Materials Housing Standard: Polyester-coated aluminium Option: Stainless steel (1.4408 / 316) Wetted materials Standard: Stainless steel (1.4404 / 316L) bypass chamber / magnetic level indicator...
  • Page 22 Ex ia IIC T6...T* Ga/Gb; IECEx KIW 15.0012 X Ex ia IIIC T75°C Db IP6X (stainless steel housing only); (pending) Ex d IIC T6...T* Ga/Gb; Ex tb IIIC T75°C Db (stainless steel housing only) www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...
  • Page 23 4 Pending 5 HART® is a registered trademark of the HART Communication Foundation 6 T* = T4 (without a distance piece) or T3 (with a distance piece) 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...

  • Page 24: Measuring Accuracy

    X: Distance from the top process connection [inches] Y: Accuracy [+yy¨ / -yy¨] 1: 7.9¨ 2: Float offset. Refer to the "Basic parameters" menu in the DTM for the float offset value. 3: 7.9¨ www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...

  • Page 25: Notes

    NOTES OPTIWAVE 1010 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...
  • Page 26 NOTES OPTIWAVE 1010 www.krohne.com 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en...
  • Page 27 NOTES OPTIWAVE 1010 06/2015 - 4003537801 - QS OPTIWAVE 1010 R01 en www.krohne.com...
  • Page 28 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
