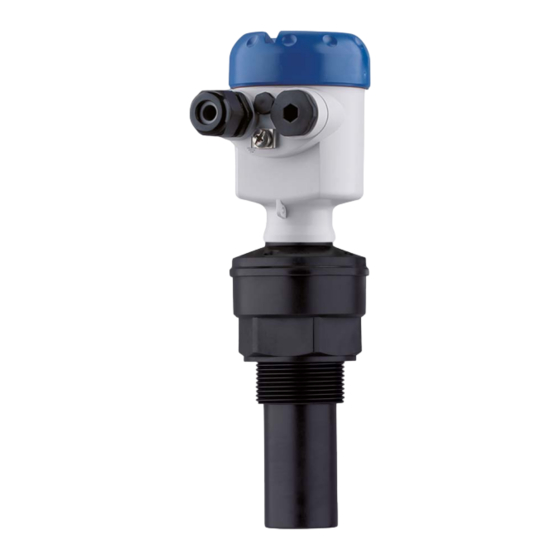

OPTISOUND 3010 C
Quick setup guide
Ultrasonic Level Transmitter
Two-wire 4 ... 20 mA/HART

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISOUND 3010 C and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISOUND 3010 C

Summary of Contents for KROHNE OPTISOUND 3010 C

  • Page 1 OPTISOUND 3010 C Quick setup guide Ultrasonic Level Transmitter Two-wire 4 … 20 mA/HART...

  • Page 2: Table Of Contents

    Safety Manual for instruments with SIL qualification. Operating instructions OPTISOUND 3010 C - Two-wire 4 … 20 mA/HART: Document-ID 30503 Editing status of the quick setup guide: 2019-09-25 OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 3: For Your Safety

    Arbi- trary conversions or modifications are explicitly forbidden. For safety reasons, only the accessory specified by the manufacturer must be used. To avoid any danger, the safety approval markings and safety tips on the device must also be observed. Safety label on the instrument The safety approval markings and safety tips on the device must be observed. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 4: Eu Conformity

    NAMUR is the automation technology user association in the process industry in Germany. The published NAMUR recommendations are accepted as the standard in field instrumentation. The device fulfils the requirements of the following NAMUR recom- mendations: • NE 21 – Electromagnetic compatibility of equipment • NE 43 – Signal level for fault information from measuring transduc- • NE 53 – Compatibility of field devices and display/adjustment components For further information see www.namur.de. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 5: Product Description

    2 Product description Product description 2.1 Configuration Type label The type label contains the most important data for identification and use of the instrument: • Instrument type • Article and serial number device • Article number, documentation • Technical data: Approvals, process temperature, process fitting/ material, signal output, voltage supply, protection OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 6: Mounting

    Fig. 1: Minimum distance to the max. level blocking distance Reference plane Mounting Mount the sensor at least 200 mm (7.874 in) away from the vessel wall. > 200 mm Fig. 2: Mounting on round vessel tops Reference plane Vessel center or symmetry axis OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 7: Connecting To Power Supply

    10. Connect the shielding to the internal ground terminal, connect the external ground terminal to potential equalisation 11. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 12. Screw the housing lid back on The electrical connection is finished. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 8: Wiring Plan, Single Chamber Housing

    Fig. 4: Wiring plan - single chamber housing Voltage supply, signal output Wiring plan, double chamber housing Wiring plan I 2 C Fig. 5: Wiring plan - double chamber housing Voltage supply, signal output OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 9: Set Up With The Display And Adjustment Module

    Fig. 6: Insert display and adjustment module in the single chamber housing Note: If you intend to retrofit the instrument with a display and adjustment module for continuous measured value indication, a higher lid with an inspection glass is required. Setup steps Set parameters 1. Go to the menu " Basic adjustment" via the display and adjust- ment module. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...
  • Page 10 Vessel shape Storage tank Parameter adjustment The sensor measures the distance from the sensor to the medium surface. For indication of the real level, an allocation of the measured distance to the percentage height must be carried out. The actual level is then calculated on the basis of these entered values. At the same time, the operating range of the sensor is limited from maximum range to the requested range. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...
  • Page 11 3. Confirm " False signal suppression - Change now" with [OK] and select in the below menu " Create new". Enter the actual distance from the sensor to the medium surface. All false signals in this area are detected by the sensor and saved after confirming with [OK]. OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 12: Menu Schematic

    2.000 m(d) Damping Linearisation curve Sensor-TAG Linear Sensor Display Basic adjustment ▶ Display Diagnostics Service Info Displayed value Display unit Scaling Scaled Volume 0 % = 0.0 m³ m³ 100 % = 100.0 m³ OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...
  • Page 13 Standard Copy sensor data? Enable? Address 0 Info Basic adjustment Display Diagnostics Service ▶ Info Instrument type Date of manufacture Last change using PC Sensor characteristics Software version Display now? Serial number 12345678 OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...

  • Page 14: Supplement

    20 … 35 V DC switched on Permissible residual ripple Ʋ < 100 Hz < 1 V Ʋ 100 Hz … 10 kHz < 10 mV Load resistor Ʋ Calculation )/0.022 A Ʋ Example - with U = 24 V DC (24 V - 14 V)/0.022 A = 455 Ω OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...
  • Page 15 Notes OPTISOUND 3010 C • Two-wire 4 … 20 mA/HART...
  • Page 16 • Engineering, commissioning, calibration, maintenance and train- ing services Head Office KROHNE Messtechnick GmbH Ludwig-Krohne-Straße 5 47058 Duisburg (Germany) Tel.: +49 (0) 203 301 0 Tel.: +49 (0) 203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
