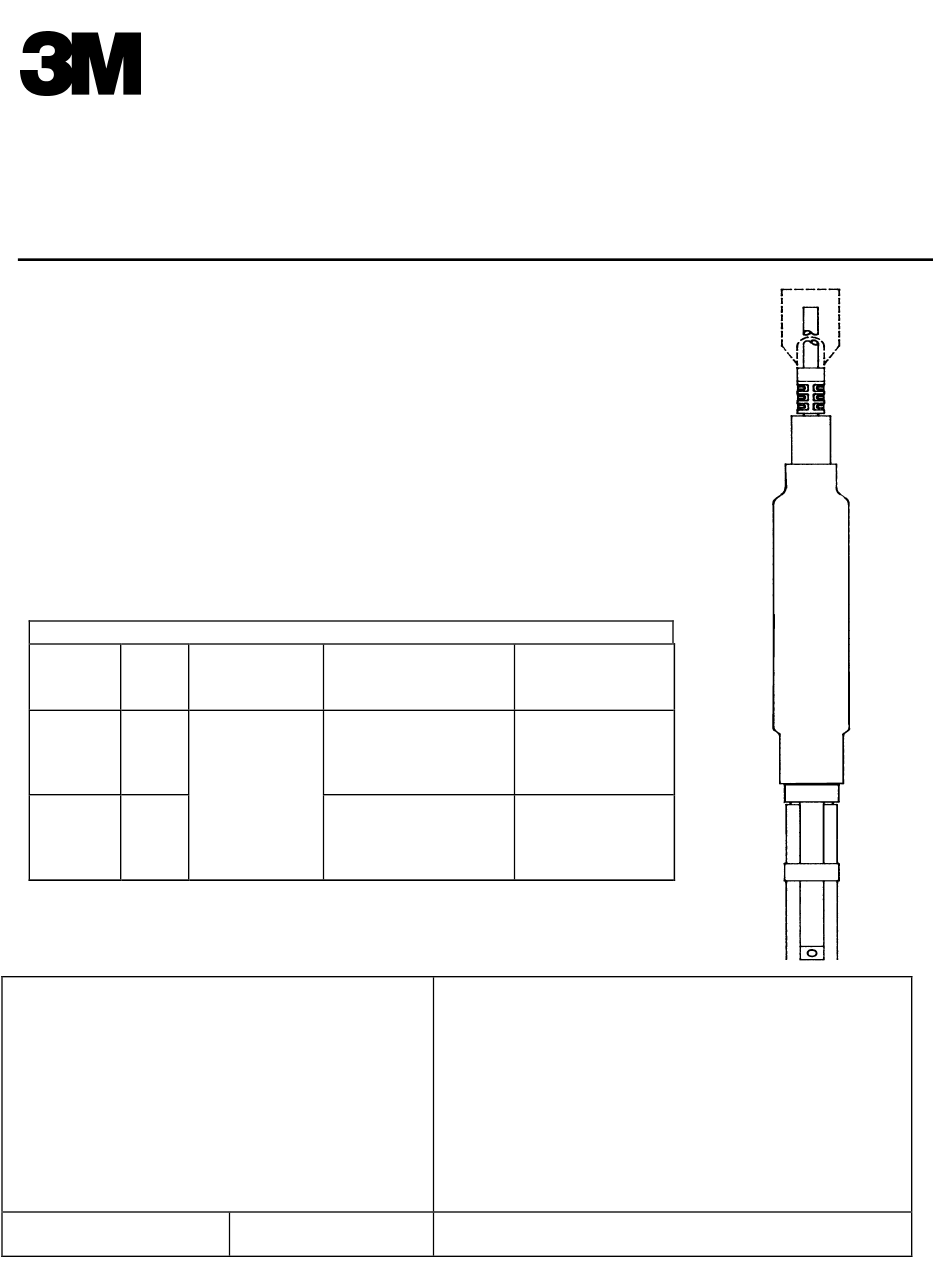

Quick Term II
Hi-K Silicone Rubber Termination Kit, 15 kV
Instruction Sheet
IEEE Std. No. 48, 1975
Class 3 Termination
15 kV Class
Kit Contents:
1 Hi-K Silicone Rubber Termination
1 Packet of Silicone Grease
1 Instruction Sheet
Kit No.
A
10"
5 6 71
(254
mm)
10"
5 6 72
(254
mm)
Technical Information:
For use on 15 kV Tape or Wire Shielded Cable
Conductor Size Range:
#2 AWG-1000 kcmil
Primary Insulation O.D. Range:
.637" -1.810" (16.2-46.0 mm)
Number of Pages: 4
Issue Date: 9/9/97
™
DIMENSION TABLE
B
15 kV Cond.
Size Range
(AWG - kcmil)
Depth of
#2 -2 50
Lug or
Stem
Connector
Barrel
250-I000
Scale: Not to Scale
Issue:
Primary Insul.
O.D. Range
(inch-mm)
.637-1.120"
(16.2-28.4 mm)
.940" -1.810"
(23.9-46.0 mm)
Hi-K Silicone Rubber Termination Kits
Tape or Wire Shielded Cable
15 kV Class
5671
78-8111-0842-8
for
5672
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for 3M Quick Term II
Summary of Contents for 3M Quick Term II
- Page 1 Quick Term II ™ Hi-K Silicone Rubber Termination Kit, 15 kV Instruction Sheet IEEE Std. No. 48, 1975 Class 3 Termination 15 kV Class Kit Contents: 1 Hi-K Silicone Rubber Termination 1 Packet of Silicone Grease 1 Instruction Sheet DIMENSION TABLE Kit No.
- Page 2 A. Prepare Cable Check to be sure cable size fits within the kit range as shown in the dimensional table below. 1. TAPE SHIELD a. Remove cable jacket, tape shielding, semi-con and insulation as shown in Figure 1 and dimension table below. (Be sure to allow for depth of lug B). b.
- Page 3 b. If abrasive must be used: 1) Use on insulation only. DO NOT USE ON SEMI-CON MATERIAL. 2) Use only 120 grip aluminum oxide such as in A-2 Cable Prep Kit or Scotch Brand A-3 Electrician’ s Abrasive Roll. 3) Be careful not to reduce the cable insulation diameter below that allowed by the kit. B.
- Page 4 ‘ 3M’ , ‘ Cold Shrink and ‘ Scotchlok’ are trademarks of 3M Important Notice to Purchaser: All statements, technical information and recommendations related to the Seller’ s products are based on information believed to be reliable, but the accuracy or completeness thereof is not guaranteed.
