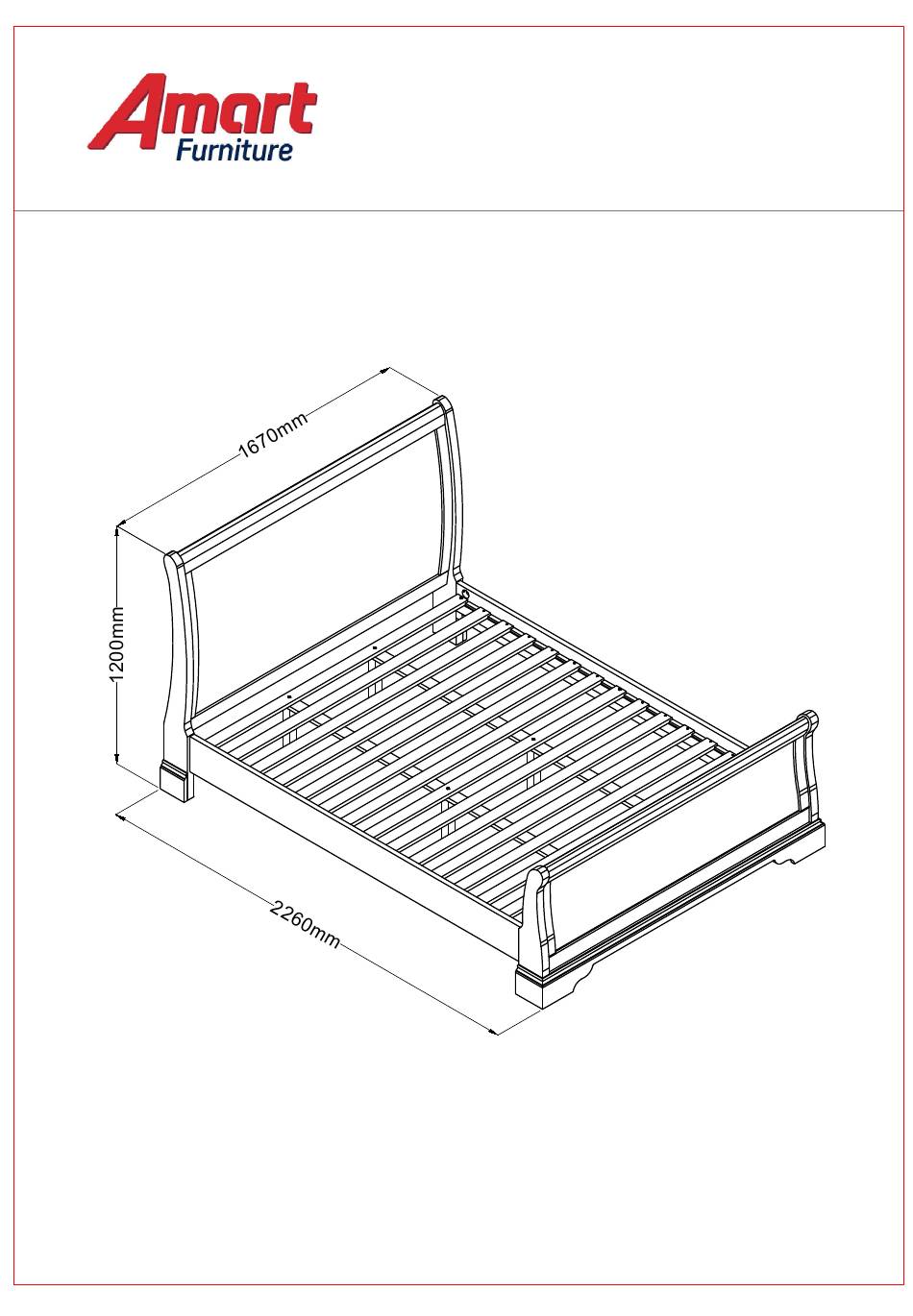

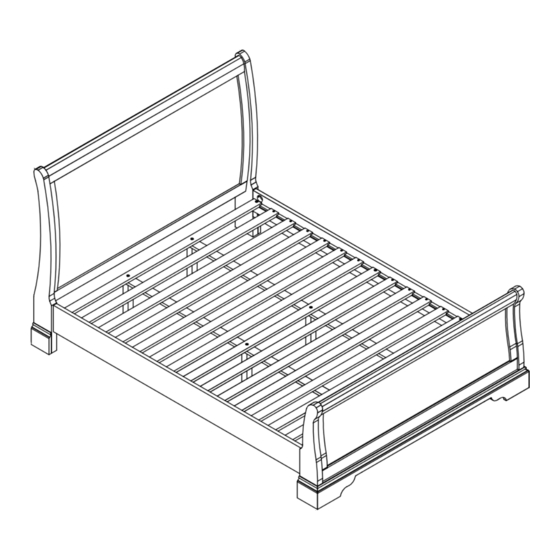

- Page 1 ASSEMBLY INSTRUCTION MAPLETON QUEEN BED ITEM CODE 72743 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 72743...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST PARTS LIST QT'Y HARDWARE LIST QT'Y Headboard 1 pc Bolt M6x60mm 6 pcs Footboard 1 pc Bolt M6x35mm 6 pcs Side rail 2 pcs Bolt M8x80mm 8 pcs Middle rails 2 pcs Half moon washer 8 pcs Support legs 6 pcs Spring washer 8 pcs...
- Page 4 STEP 1: Attach adhesive felt pad (L) onto the legs. STEP 2: Attach wood en dowel (K) and the bolts (C) onto headboard and footboard. Attach side rails (3) onto headboard (1) and footboard (2) using the bolts (C), half moon washer (D), spring washer (E) and hex nut (F), tighten it up by using a wrench (I).
- Page 5 STEP 3: Attach support legs (5) onto middle rails (4) and middle slats (6) using the bolts (A), tighten it up by using an allen key (H). Assemble these components out of bed frame. (x6) Y frame STEP 4: Use two people to place Y frame onto side rails (3). Attach Y frame onto side rails (3) using the bolt (B), tighten it up by using an allen key (H).
- Page 6 STEP 5: Once the bed is positioned and the support legs are adjusted to touch floor,the slats can then be laid down and secured before putting on the mattress. Attach slats (7) onto side rails (3) using the screws (G), tighten it up by using a screwdriver. (x24) ASSEMBLY IS COMPLETE IMPORTANT NOTE:...
- Page 7 suitable and sudden...
