Summary of Contents for laerdal IngMar Medical ASL 5000

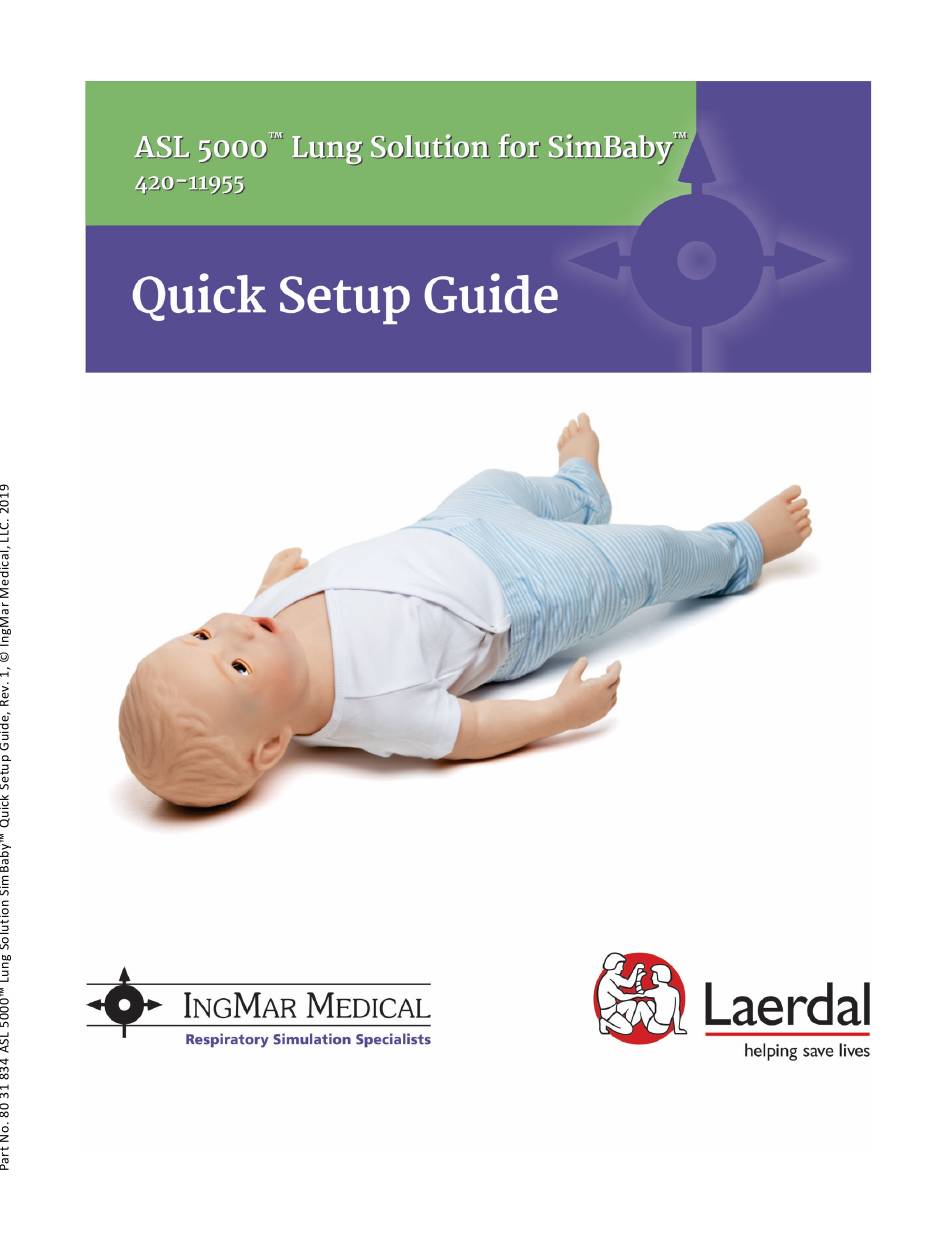

- Page 1 USA Toll Free: 1-800-583-9910 | International: +1 (412) 441-8228 | support@ingmarmed.com...
- Page 2 Document History Revision History Date Authors Rev. 1 Nov. 6, 2019 Michael Bails...

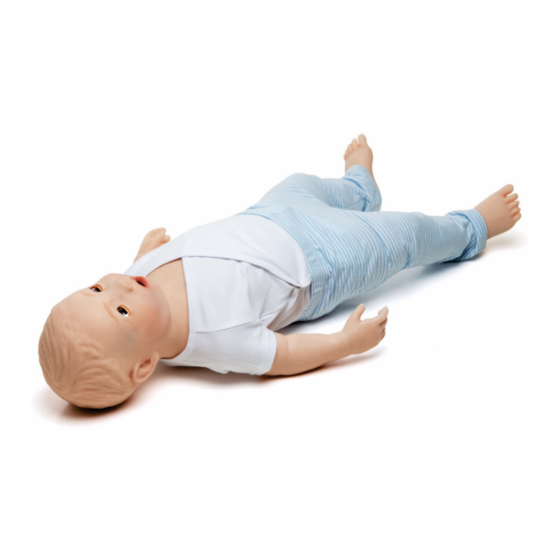

- Page 3 SimBaby™ with Lung Adapter 1 - SimBaby™ without Lung Solution 2 - SimBaby™ with Lung Solution Installed...
- Page 4 Lung Adapter Plug for use without the ASL 5000 3 – SimBaby™ Lung Adapter...
-
Page 5: Hardware Setup
Hardware setup • On the SimBaby™ right side (from the perspective of the baby), separate the skin where the Ethernet adapter is located • Remove the rubber plug but DO NOT DISCARD Remove rubber plug DO NOT DISCARD 4 - Plug for Operation without the ASL 5000™ • Insert the 15mm elbow connector from the Lung Adapter kit into the side port of the SimBaby™ 5 - Lung Adapter with SimBaby™ • Insert the 22mm connector into the ASL 5000™ port 6 - SimBaby™ Connected to ASL 5000™... -
Page 6: Software Setup
Software setup NOTE: LLEAP 6.7 OR GREATER MUST FIRST BE INSTALLED • Download the latest LLEAP PlugIn: www.ingmarmed.com/LaerdalDownloads • Double-click the .exe file and follow prompts: 7 – LLEAP Plugin Software Setup NOTE: For network configuration options, please see the Quick Connect Guide or the User’s Manual...
