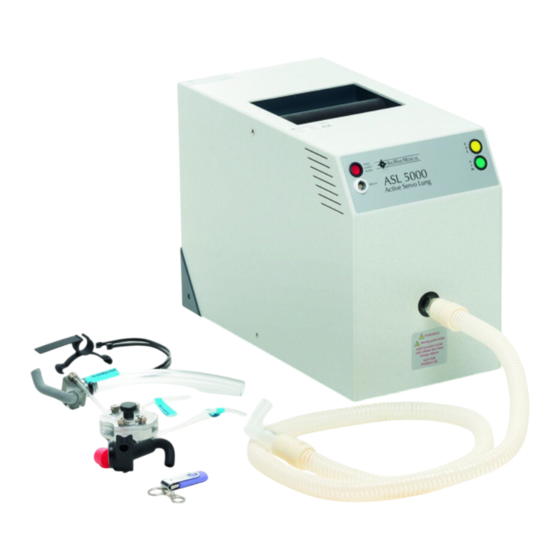

Summary of Contents for laerdal ASL 5000 Lung Solution for SimMan
- Page 1 USA Toll Free: 1-800-583-9910 | International: +1 (412) 441-8228 | support@ingmarmed.com...
- Page 2 Document History Revision History Date Authors Rev. 1 July 12, 2017 Michael Bails Rev. 2 July 14, 2017 Michael Bails Rev. 3 Sept. 11, 2017 Michael Bails Rev. 4 Dec. 13, 2017 Michael Bails Rev. 5 Sept. 24, 2018 Michael Bails, Brian Linn Rev. 6 May 3, 2019 Michael Bails Rev. 7 Nov. 6, 2019 Michael Bails...
-
Page 3: Hardware Setup
Hardware setup... - Page 4 Open manikin External port to ASL 5000™...
- Page 5 Release stomach line from chest plate ® Locate SimMan 3G lung components Airway / trachea lines Pressure lines Internal port to ASL 5000™ Right lung Left lung...
- Page 6 Prepare right lung Keep tube and plastic elbow...
- Page 7 Prepare left lung Keep tube and plastic elbow...
- Page 8 ® SimMan 3G ready for Lung Adapter installation Airway / trachea lines Pressure lines Lung Adapter...
- Page 9 Lung Adapter components Selector Right lung manifold (labeled “R”) Right lung connector ® Tube to SimMan 3G right lung pressure port (pre-connected to Selector and labeled “To Right Lung”) Left lung manifold (labeled “L”) Left lung connector ® Tube to SimMan 3G left lung pressure port (pre-connected to Selector and labeled “To Left Lung”) Tubing to ASL 5000™ connection (labeled “To SimMan® Port”) ® Connector for SimMan 3G right lung pressure sensor tube (labeled “R” on Selector) ® Connector for SimMan 3G left lung pressure sensor tube (labeled “L” on Selector) Spring loaded plug for switching to SIM mode Selector Clip...
- Page 10 ® Connect SimMan 3G pressure sensor lines ® Connect SimMan left lung pressure sensor line to connector marked “L” Connect SimMan ® right lung pressure sensor line to connector marked “R”...
- Page 11 Insert tubing to ASL 5000™ connection port and secure with zip-tie Secure with zip-tie...
- Page 12 Insert left and right lung connectors into trachea tubes Insert connectors into trachea lines, then push lines behind plastic protection plate ® Press-fit Lung Manifolds onto SimMan 3G Lung Ports Left lung manifold Right lung manifold...
- Page 13 Insert lines labeled “To Left Lung” and “To Right Lung” “To Right Lung” line “To Left Lung” line Insert Clip under battery packs and connect to tubing Insert selector into clip...
- Page 14 Completed Lung Adapter installation...
- Page 15 Hardware setup Selector Control: 1. Hold bottom of selector plate with thumb and finger 2. Pull top of selector plate up (do not unscrew knob) 3. Rotate top selector plate to ASL...
- Page 16 ® Close SimMan 3G and prepare for simulation Replace stomach line onto chest plate To ASL 5000™...
-
Page 17: Software Setup
Software setup NOTE: LLEAP 6.3 OR GREATER MUST FIRST BE INSTALLED • Download the latest LLEAP PlugIn: www.ingmarmed.com/LaerdalDownloads • Double-click the .exe file and follow prompts: NOTE: For network configuration options, please see the Quick Connect Guide or the User’s Manual...
