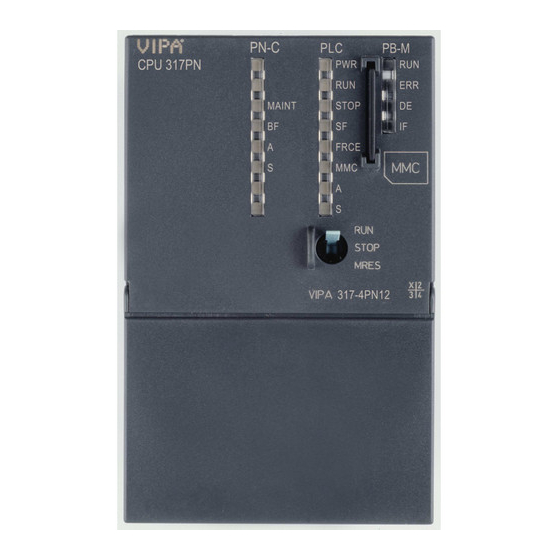

VIPA System 300S
SPEED7 - CPU | 317-4PN12 | Manual
HB140E_CPU | RE_317-4PN12 | Rev. 12/05
February 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System 300S and is the answer not in the manual?

Questions and answers

Related Manuals for VIPA System 300S

Summary of Contents for VIPA System 300S

  • Page 1 VIPA System 300S SPEED7 - CPU | 317-4PN12 | Manual HB140E_CPU | RE_317-4PN12 | Rev. 12/05 February 2012...
  • Page 2 Copyright © VIPA GmbH. All Rights Reserved. This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agreements. This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written consent of VIPA and the business management owner of the material.

  • Page 3: Table Of Contents

    Manual VIPA System 300S SPEED7 Contents Contents About this manual ..................1 Safety information ..................2 Chapter 1 Basics ................1-1 Safety Information for Users..............1-2 Operating structure of a CPU ............... 1-3 CPU 317-4PN12................... 1-6 Chapter 2 Assembly and installation guidelines......2-1 Overview ....................
  • Page 4 Manual VIPA System 300S SPEED7 Contents Chapter 6 Deployment PROFIBUS communication ....... 6-1 Overview ....................6-2 Fast introduction................... 6-3 Hardware configuration - CPU.............. 6-4 Deployment as PROFIBUS DP master ..........6-5 Deployment as PROFIBUS DP slave ........... 6-6 PROFIBUS installation guidelines ............6-8 Commissioning and Start-up behavior..........

  • Page 5: About This Manual

    Chapter 2: Assembly and installation guidelines In this chapter you will find all information, required for the installation and the cabling of a process control with the components of the System 300S with a CPU 317-4PN12. Chapter 3: Hardware description Here the hardware components of the CPU 317-4PN12 are described.
  • Page 6 Manual VIPA System 300S SPEED7 About this manual Chapter 7: Deployment Ethernet communication In this chapter the deployment of the PROFINET IO controller as Ethernet CP for productive connections is described. Please regard the chapter "Fast introduction" where you will find every information compressed required for the project engineering of the PROFINET IO controller as Ethernet CP.
  • Page 7 Manual VIPA System 300S SPEED7 About this manual This manual describes the System 300S SPEED7 CPU 317-4PN12 from Objective and VIPA. It contains a description of the construction, project implementation contents and usage. This manual is part of the documentation package with order number...

  • Page 8: Safety Information

    Safety information Safety information The SPEED7 CPU is constructed and produced for: Applications conforming with • all VIPA System 300S components specifications • communication and process control • general control and automation applications • industrial applications • operation within the environmental conditions specified in the technical data •...

  • Page 9: Chapter 1 Basics

    Chapter 1 Basics This Basics contain hints for the usage and information about the project Overview engineering of a SPEED7 system from VIPA. General information about the System 300S like dimensions and environment conditions will also be found. Content Topic Page Chapter 1 Basics ................

  • Page 10: Safety Information For Users

    Manual VIPA System 300S SPEED7 Chapter 1 Basics Safety Information for Users VIPA modules make use of highly integrated components in MOS- Handling of Technology. These components are extremely sensitive to over-voltages electrostatic that can occur during electrostatic discharges. sensitive modules The following symbol is attached to modules that can be destroyed by electrostatic discharges.

  • Page 11: Operating Structure Of A Cpu

    Manual VIPA System 300S SPEED7 Chapter 1 Basics Operating structure of a CPU The CPU contains a standard processor with internal program memory. In General combination with integrated SPEED7 technology and SPEED-Bus, the unit provides a powerful solution for process automation applications within the System 300S family.
  • Page 12 Manual VIPA System 300S SPEED7 Chapter 1 Basics The program that is present in every CPU is divided as follows: Applications • System routine • User application The system routine organizes all those functions and procedures of the System routine CPU that are not related to a specific control application.
  • Page 13 Manual VIPA System 300S SPEED7 Chapter 1 Basics The bit memory is an area of memory that is accessible by means of Bit Memory certain operations. Bit memory is intended to store frequently used working data. You may access the following types of data: •...

  • Page 14: Cpu 317-4Pn12

    Siemens SIMATIC Manager. Here the instruction set of the S7-400 from Siemens is used. Modules and CPUs of the System 300 from VIPA and Siemens may be used at the "Standard" bus as a mixed configuration. The user application is stored in the battery buffered RAM or on an additionally pluggable MMC storage module.
  • Page 15 Note! Please always use the CPU 317-2 PN/DP (6ES7 317-2EK13-0AB0 V2.6) from Siemens of the hardware catalog to project this CPU from VIPA. For the project engineering, a thorough knowledge of the Siemens SIMATIC Manager and the hardware configurator from Siemens is required! The CPU has an integrated memory.
  • Page 16 Manual VIPA System 300S SPEED7 Chapter 1 Basics The SPEED-Bus is a 32bit parallel bus developed from VIPA with a SPEED-Bus maximum data rate of 40Mbyte/s. Via the SPEED-Bus you may connect up to 10 SPEED-Bus modules to your CPU 317-4PN12.
  • Page 17 Manual VIPA System 300S SPEED7 Chapter 1 Basics • Operating temperature: 0 ... +60°C Environmental conditions • Storage temperature: -25 ... +70°C • Relative humidity: 5 ... 95% without condensation • Ventilation by means of a fan is not required •...
  • Page 18 Manual VIPA System 300S SPEED7 Chapter 1 Basics 1-10 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 19: Chapter 2 Assembly And Installation Guidelines

    Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Chapter 2 Assembly and installation guidelines In this chapter you will find all information, required for the installation and Overview the cabling of a process control with the components of a CPU 317-4PN12 in the System 300.

  • Page 20: Overview

    CPU, the SPEED-Bus peripheral modules are connected via a SPEED- Bus bus connector at the left side of the CPU. VIPA delivers profile rails with integrated SPEED-Bus for 2, 6 or 10 SPEED-Bus peripheral modules with different lengths. SPEED-Bus (parallel)

  • Page 21: Installation Dimensions

    Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Installation dimensions 2tier width (WxHxD) in mm: 80 x 125 x 120 Dimensions Basic enclosure Dimensions Installation 125mm dimensions 120mm 175mm HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 22: Assembly Speed-Bus

    Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Assembly SPEED-Bus For the deployment of SPEED-Bus modules, a pre-manufactured SPEED- Pre-manufactured Bus rail is required. This is available mounted on a profile rail with 2, 6 or SPEED-Bus 10 extension plug-in locations.
  • Page 23 Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines • Bolt the profile rail with the background (screw size: M6), so that you still Installation of the have minimum 65mm space above and 40mm below the profile rail.
  • Page 24 Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Installation SPEED-Bus- Module • Dismantle the according protection flaps of the SPEED-Bus plug-in locations with a screw driver (open and pull down). For the SPEED-Bus is a parallel bus, not all SPEED-Bus plug-in locations must be used in series.
  • Page 25 Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Installation CPU with Standard-Bus- Modules • If also standard modules shall be plugged, take a bus coupler and click it at the CPU from behind like shown in the picture.

  • Page 26: Assembly Standard Bus

    Measures in mm 32.5 57.2 For the communication between the modules the System 300S uses a Bus connector backplane bus connector. Backplane bus connectors are included in the delivering of the peripheral modules and are clipped at the module from the backside before installing it to the profile rail.
  • Page 27 Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Assembly possibilities vertical Please regard the allowed environment temperatures: horizontal assembly assembly • horizontal assembly: from 0 to 60°C • vertical assembly: from 0 to 40°C SLOT2 SLOT1 DCDC •...

  • Page 28: Cabling

    Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines Cabling Danger! • The power supplies must be released before installation and repair tasks, i.e. before handling with the power supply or with the cabling you must disconnect current/voltage (pull plug, at fixed connection switch off the concerning fuse)! •...

  • Page 29: Installation Guidelines

    The installation guidelines contain information about the interference free General deployment of System 300S systems. There is the description of the ways, interference may occur in your control, how you can make sure the electromagnetic digestibility (EMC), and how you manage the isolation.
  • Page 30 - Please take care for the targeted employment of the grounding actions. The grounding of the PLC is a protection and functionality activity. - Connect installation parts and cabinets with the System 300S in star topology with the isolation/protected earth conductor system. So you avoid ground loops.
  • Page 31 • Lay the isolation on an isolation rail directly after the entry of the cable in the cabinet. Lead the isolation further on to the System 300S module and don't lay it on there again!
  • Page 32 Manual VIPA System 300S SPEED7 Chapter 2 Assembly and installation guidelines 2-14 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 33: Chapter 3 Hardware Description

    Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Chapter 3 Hardware description Here the hardware components of the CPU 317-4PN12 are described. Overview The technical data are at the end of the chapter. Content Topic Page Chapter 3 Hardware description ............. 3-1 Properties.....................

  • Page 34: Properties

    MRES VIPA 317-4PN12 DC 24V Ordering data Type Order number Description 317SN/PN VIPA 317-4PN12 SPEED-Bus, MPI interface, card slot, real time clock, Ethernet interface for PG/OP, PROFIBUS DP master, PROFINET IO controller HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 35: Structure

    Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Structure CPU 317SN/PN 317-4PN12 LEDs of the integrated PN-C PB-M PROFIBUS DP master CPU 317PN Storage media slot MAINT STOP LEDs of the CPU part LEDs of the FRCE PROFINET IO controllers...
  • Page 36 Modbus-Master (ASCII, RTU) . The activation of the PtP functionality happens by embedding the SPEEDBUS.GSD from VIPA in the hardware catalog. After the installation the CPU may be configured in a PROFIBUS master system and here the interface may be switched to PtP communication.
  • Page 37 The MCC can additionally be used as an external storage medium. Both VIPA storage media are pre-formatted with the PC format FAT16 and can be accessed via a card reader. An access to the storage media always happens after an overall reset and PowerON.
  • Page 38 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description The CPU has got LEDs on its front side. In the following the usage and the LEDs according colors of the LEDs is described. As soon as the CPU is supplied with 5V, the green PWR-LED is on.
  • Page 39 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Dependent on the mode of operation the LEDs show information about the LEDs state of operation of the PROFIBUS part according to the following pattern: PROFIBUS/PtP interface X3 Master operation Meaning...
  • Page 40 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description LEDs PROFINET IO controller X8 Meaning yellow - Bus error, no connection to subnet/switch ● - wrong transfer speed - full-duplex transfer is not activated - Failure of a connected IO device ☼...

  • Page 41: Technical Data

    Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Technical data Order number 317-4PN12 Type CPU 317SN/PN SPEED-Bus Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection Current consumption (no-load operation)
  • Page 42 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Order number 317-4PN12 Time Real-time clock buffered Clock buffered period (min.) Accuracy (max. deviation per day) 10 s Number of operating hours counter Clock synchronization Synchronization via MPI Master/Slave Synchronization via Ethernet (NTP)
  • Page 43 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Order number 317-4PN12 Point-to-point interface Functionality PROFIBUS master number of connections, max. PG/OP channel Routing S7 basic communication S7 communication S7 communication as server S7 communication as client Equidistance support Isochronous mode...
  • Page 44 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Order number 317-4PN12 RS485 interface Connector Sub-D, 9-pin, female Transmission speed, min. 150 bit/s Transmission speed, max. 115.5 kbit/s Cable length, max. 500 m Point-to-point protocol ASCII protocol STX/ETX protocol 3964(R) protocol...
  • Page 45 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description Additional data Order number 317-4PN12 Ethernet communication S7 connections USEND, URCV, BSEND, BRCV, GET, PUT, Connection setup passive and active TCP connections FETCH PASSIV, WRITE PASSIV, Connection setup passive via handling blocks...
  • Page 46 Manual VIPA System 300S SPEED7 Chapter 3 Hardware description 3-14 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 47: Chapter 4 Deployment Cpu 317-4Pn12

    This chapter describes the employment of a CPU 317-4PN12 with SPEED7 Overview technology in the System 300S. The description refers directly to the CPU and to the employment in connection with peripheral modules that are mounted on a profile rail together with the CPU at the SPEED bus or the standard bus.

  • Page 48: Assembly

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Assembly Note! Information about assembly and cabling may be found at chapter "Assembly and installation guidelines" Start-up behavior After the power supply has been switched on, the CPU changes to the Turn on power operating mode the operating mode lever shows.

  • Page 49: Addressing

    IM 361 from Siemens at slot 3. Considering the max total current with the CPU 317-4PN12 from VIPA up to 32 modules may be arranged in a row. Here the installation of the line connections IM 360/361 from Siemens is not required.
  • Page 50 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 You may access the modules with read res. write accesses to the Define addresses peripheral bytes or the process image. by hardware configuration To define addresses a hardware configuration may be used. For this, click on the properties of the according module and set the wanted address.
  • Page 51 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 The following sample shows the functionality of the automatic address Example for allocation separated for standard bus and SPEED-Bus: automatic address allocation Slot number: SPEED-Bus Standard bus Address Periphery area...

  • Page 52: Hardware Configuration - Cpu

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Hardware configuration - CPU The hardware configuration of the VIPA CPU 317-4PN12 takes place at the Requirements Siemens hardware configurator. The hardware configurator is a part of the Siemens SIMATIC Manager. It serves the project engineering.

  • Page 53: Hardware Configuration - I/O Modules

    IM 361 from Siemens at slot 3. Considering the max total current with the VIPA SPEED7 CPUs up to 32 modules may be arranged in a row. Here the installation of the line connections IM 360/361 from Siemens is not required.

  • Page 54: Hardware Configuration - Ethernet Pg/Op Channel

    For online access to the CPU via Ethernet PG/OP channel valid IP address parameters have to be assigned to this by means of the Siemens SIMATIC manager. This is called "initialization". • Install your System 300S with your CPU. Assembly and commissioning •...
  • Page 55 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Assign IP address You get valid IP address parameters from your system administrator. The parameters assignment of the IP address data happens online in the Siemens SIMATIC manager starting with version V 5.3 & SP3 with the following proceeding: •...

  • Page 56: Hardware Configuration - Speed-Bus

    VIPA_System_300S SPEEDBUS.GSD. The SPEED7 CPUs and modules of the System 300S from VIPA may now be found in the hardware catalog at PROFIBUS-DP / Additional field devices / I/O / VIPA_SPEEDBUS. 4-10 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...
  • Page 57 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 To be compatible with the Siemens SIMATIC manager the following steps Fast introduction should be executed: • Start the Siemens hardware configurator with a new project. Standard bus Slot Module •...
  • Page 58 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 The following text describes the approach of the project engineering in the Steps of the hardware configurator from Siemens at an abstract sample. project The project engineering is separated into 5 parts: engineering •...
  • Page 59 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Due to the fact that an Ethernet-CP - SPEED-Bus and SPEED-Bus DP Project engineering master is similar in project engineering and parameterization to the and networking DP master and each...
  • Page 60 The slot numbers start with 100 for the CPU and continue with 101...110 for the SPEED-Bus modules. Each "VIPA SPEEDBUS" slave system has one slot (slot 0). Here place the module of the hardware catalog of "VIPA_SPEEDBUS" according to the module at this slot preset by the PROFIBUS address.

  • Page 61: Setting Standard Cpu Parameters

    Parameterization 317-2EK13-0AB0 V2.6) in the Siemens hardware configurator, the standard via Siemens parameters of the VIPA CPU may be set with "Object properties" of the CPU 317-2EK13 CPU 317-2PN/DP during hardware configuration. Via a double-click on the CPU 317-2PN/DP the parameter window of the CPU may be accessed.
  • Page 62 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Startup Startup when If the checkbox for "Startup when expected/actual configuration differ" is expected/actual deselected and at least one module is not located at its configured slot or if configuration differs another type of module is inserted there instead, then the CPU does not switch to RUN mode and remains in STOP mode.
  • Page 63 The VIPA CPU is preset such that OB 85 is not called if an I/O access error occurs and no entry is made in the diagnostic buffer either.
  • Page 64 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Time-of-day interrupts Priority Here the priorities may be specified according to which the time-of-day interrupt is processed. With priority "0" the corresponding OB is deactivated. Active Activate the check box of the time-of-day interrupt OBs if these are to be automatically started on complete restart.
  • Page 65 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Diagnostics/Clock Report cause of Activate this parameter, if the CPU should report the cause of STOP to PG STOP respectively OP on transition to STOP. Number of Here the number of diagnostics are displayed, which may be stored in the messages in the diagnostics buffer (circular buffer).

  • Page 66: Setting Vipa Specific Cpu Parameters

    VIPA_System_300S SPEEDBUS.GSD. The SPEED7 CPUs and modules of the System 300S from VIPA may now be found in the hardware catalog at PROFIBUS-DP / Additional field devices / I/O / VIPA_SPEEDBUS. 4-20 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...
  • Page 67 Ethernet-PG/OP • For the slave system set the PROFIBUS address 100. always as last module • Configure at slot 0 the VIPA CPU 317-4PN12 of the 342-5DA02 V5.0 hardware catalog from VIPA_SPEEDbus. • By double clicking the placed CPU 317-4PN12 the virtual DP master for CPU properties dialog of the CPU may be opened.
  • Page 68 Due to the asynchronism of CPU and DP master the whole system gets relatively high response times. The synchronization behavior between every VIPA PROFIBUS DP master and the CPU may be configured by means of a hardware configuration as shown above.
  • Page 69 VIPA PROFIBUS DP master system. SyncIn Here the CPU cycle depends on the VIPA DP master with the longest cycle time. If the CPU gets into RUN it is synchronized with each PROFIBUS DP master.
  • Page 70 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 By presetting the PROFIBUS bus parameters within the hardware Token Watch configuration a token time for the PROFIBUS results. The token time defines the duration until the token reaches the DP master again.

  • Page 71: Project Transfer

    PROFIBUS net. This means the same rules are valid and you use the same components for the build-up. The single participants are connected with each other via bus interface plugs and PROFIBUS cables. Per default the MPI net runs with 187.5kbaud. VIPA CPUs are delivered with MPI address 2. MPI programming The MPI programming cables are available at VIPA in different variants.
  • Page 72 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 • Connect your PC to the MPI jack of your CPU via a MPI programming Approach transfer via MPI interface cable. • Load your project in the SIMATIC Manager from Siemens.
  • Page 73 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 For transfer via Ethernet the CPU has the following 2 interfaces: Transfer via • X5: Ethernet PG/OP channel Ethernet • X8: PROFINET IO controller So that you may access the Ethernet PG/OP channel you have to assign IP Initialization address parameters by means of the "initialization"(see "hardware...
  • Page 74 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 The MMC (Memory Card) serves as external transfer and storage medium. Transfer via There may be stored several projects and sub-directories on a MMC storage module. Please regard that your current project is stored in the root directory and has one of the following file names: •...

  • Page 75: Access To The Internal Web Page

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Access to the internal Web page The Ethernet PG/OP channel provides a web page that you may access via Access to the an Internet browser by its IP address. The web page contains information web page about firmware versions, current cycle times etc.
  • Page 76 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 ... continue Additional CPU components: Slot 201 (DP master): Slot 201 Name, firmware version, package VIPA 342-1DA70 V3.3.0 Px000062.pkg, Information for support SUPPORTDATA: PRODUCT V3300, BB000218 V5280, AB000068 V4160, ModuleType CB2C0010,...

  • Page 77: Operating Modes

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Operating modes The CPU can be in one of 4 operating modes: Overview • Operating mode STOP • Operating mode START-UP • Operating mode RUN • Operating mode HOLD Certain conditions in the operating modes START-UP and RUN require a specific reaction from the system program.
  • Page 78 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 The CPU offers up to 3 breakpoints to be defined for program diagnosis. Operating mode Setting and deletion of breakpoints happens in your programming HOLD environment. As soon as a breakpoint is reached, you may process your program step by step.
  • Page 79 (parameterizable min. 1ms) that security stop res. execute a RESET at the CPU in case of an error and set it into a defined STOP state. The VIPA CPUs are developed function secure and have the following system properties: Event concerns Effect RUN →...

  • Page 80: Overall Reset

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Overall reset During the overall reset the entire user memory (RAM) is erased. Data Overview located in the memory card is not affected. If you have assigned IP address data to your PROFINET IO controller, these remain until there is a new PowerON.
  • Page 81 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 If there is a project S7PROG.WLD on the MMC, the CPU attempts to Automatic reload reload this project from MMC → the MCC LED is on. When the reload has been completed the LED expires. The operating mode of the CPU will be STOP or RUN, depending on the position of the function selector.

  • Page 82: Firmware Update

    CPU, for example if the voltage supply is interrupted during transfer or if the firmware file is defective. In this case, please call the VIPA-Hotline! Please regard that the version of the update firmware has to be different from the existing firmware otherwise no update is executed.
  • Page 83 MMC • Click on Service > Download > Firmware. • Navigate via System 300S > CPU to your CPU and download the zip file to your PC. • Extract the zip file and copy the extracted pkg files to your Attention! With a firmware update an overall reset is automatically executed.
  • Page 84 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 1. Switch the operating mode switch of your CPU in position STOP. Transfer firmware Turn off the voltage supply. Plug the MMC with the firmware files from MMC into into the CPU. Please take care of the correct plug-in direction of the MMC.

  • Page 85: Factory Reset

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Factory reset With the following proceeding the internal RAM of the CPU is completely Proceeding deleted and the CPU is reset to delivery state. Please note that here also the IP address of the Ethernet PG/OP channel is set to 0.0.0.0 and the MPI...

  • Page 86: Slot For Storage Media

    Overview As external storage medium for applications and firmware you may use a multimedia card (MMC) or a VIPA MCC memory extension card. The MCC can additionally be used as an external storage medium. It has the PC compatible FAT16 file format.

  • Page 87: Memory Extension With Mcc

    There is the possibility to extend the work memory of the CPU. Overview For this, a MCC memory extension card is available from VIPA. The MCC is a specially prepared MMC (Multimedia Card). By plugging the MCC into the MCC slot and then an overall reset the according memory expansion is released.

  • Page 88: Extended Know-How Protection

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Extended know-how protection Besides the "standard" Know-how protection the SPEED7-CPUs from VIPA Overview provide an "extended" know-how protection that serves a secure block protection for accesses of 3. persons. Standard protection The standard protection from Siemens transfers also protected blocks to the PG but their content is not displayed.
  • Page 89 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Transfer the file protect.wld to a MMC storage module, plug the MMC into Transfer the CPU and execute an overall reset with the following approach: protect.wld to CPU with overall reset...

  • Page 90: Mmc-Cmd - Auto Commands

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 MMC-Cmd - Auto commands A command file at a MMC is automatically executed under the following Overview conditions: • CPU is in STOP and MMC is stuck • After each PowerON...
  • Page 91 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 The structure of a command file is shown in the following. The Examples corresponding diagnostics entry is put in parenthesizes. Example 1 Marks the start of the command sequence (0xE801) CMD_START Execute an overall reset and load "proj.wld"...

  • Page 92: Vipa Specific Diagnostic Entries

    You may read the diagnostic buffer of the CPU via the Siemens SIMATIC Entries in the Manager. Besides of the standard entries in the diagnostic buffer, the VIPA diagnostic buffer CPUs support some additional specific entries in form of event-IDs.
  • Page 93 Zinfo2: Slot 0xE004 Multiple parameterization of a I/O address Zinfo1: I/O address Zinfo2: Slot 0xE005 Internal error - Please contact the VIPA-Hotline! 0xE006 Internal error - Please contact the VIPA-Hotline! 0xE007 Configured in-/output bytes do not fit into I/O area 0xE008...
  • Page 94 0xE8FF MMC-Cmd: Error: Error while reading CMD file (MMC error) 0xE901 Check sum error 0xEA00 Internal error - Please contact the VIPA-Hotline! 0xEA01 Internal error - Please contact the VIPA-Hotline! 0xEA02 SBUS: Internal error (internal plugged sub module not recognized)
  • Page 95 SBUS: Multiple parameterization of a I/O address (Diagnostic address) Zinfo1: I/O address Zinfo2: Slot Zinfo3: Data width 0xEA15 Internal error - Please contact the VIPA-Hotline! 0xEA18 SBUS: Error at mapping of the master I/O devices Zinfo2: Master slot 0xEA19 Internal error - Please contact the VIPA-Hotline!
  • Page 96 Pk : CPU or PROFINET-IO-Controller Zinfo1: Service ID, with which the error arose Zinfo2: Command, with which the error arose 0xEA66 Internal error - Please contact the VIPA-Hotline! 0xEA67 Error - PROFINET-IO-Controller - reading record set Pk: Error type 0: DATA_RECORD_ERROR_LOCAL...

  • Page 97: Using Test Functions For Control And Monitoring Of Variables

    Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 Using test functions for control and monitoring of variables For troubleshooting purposes and to display the status of certain variables Overview you can access certain test functions via the menu item Debug of the Siemens SIMATIC Manager.
  • Page 98 Manual VIPA System 300S SPEED7 Chapter 4 Deployment CPU 317-4PN12 PLC > This test function returns the condition of a selected operand (inputs, outputs, flags, data word, counters or timers) at the end of program- Monitor/Modify execution. Variables This information is obtained from the process image of the selected operands.

  • Page 99: Chapter 5 Deployment Ptp Communication

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Chapter 5 Deployment PtP communication Content of this chapter is the employment of the RS485 slot for serial PtP Overview communication. Here you’ll find all information about the protocols, the activation and project engineering of the interface which are necessary for the serial communication using the RS485 interface.

  • Page 100: Fast Introduction

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Fast introduction Via a hardware configuration you may de-activate the PROFIBUS part General integrated to the SPEED7 CPU and thus release the RS485 interface for PtP (point-to-point) communication. The RS485 interface supports in PtP operation the serial process connection to different source res.

  • Page 101: Principle Of The Data Transfer

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Principle of the data transfer The data transfer is handled during runtime by using SFCs. The principle of Overview data transfer is the same for all protocols and is shortly illustrated in the following.

  • Page 102: Deployment Of Rs485 Interface For Ptp

    VIPA_System_300S SPEEDBUS.GSD. The SPEED7 CPUs and modules of the System 300S from VIPA may now be found in the hardware catalog at PROFIBUS-DP / Additional field devices / I/O / VIPA_SPEEDBUS. HB140E - CPU - RE_317-4PN12 - Rev. 12/05...
  • Page 103 Ethernet-PG/OP • For the slave system set the PROFIBUS address 100. always as last module • Configure at slot 0 the VIPA CPU 317-4PN12 of the 342-5DA02 V5.0 hardware catalog from VIPA_SPEEDbus. • By double clicking the placed CPU 317-4PN12 the virtual DP master for CPU properties dialog of the CPU may be opened.
  • Page 104 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication • Logical states represented by voltage differences between the two cores Properties RS485 of a twisted pair cable • Serial bus connection in two-wire technology using half duplex mode • Data communications up to a max. distance of 500m •...

  • Page 105: Parameterization

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Parameterization The parameterization happens during runtime deploying the SFC 216 SFC 216 (SER_CFG). You have to store the parameters for STX/ETX, 3964R, USS (SER_CFG) and Modbus in a DB. Name...
  • Page 106 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication At ASCII protocol, this parameter is ignored. Parameter (as DB) At STX/ETX, 3964R, USS and Modbus you fix here a DB that contains the communication parameters and has the following structure for the...
  • Page 107 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication The parity is -depending on the value- even or odd. For parity control, the Parity information bits are extended with the parity bit that amends via its value ("0" or "1") the value of all bits to a defined status. If no parity is set, the parity bit is set to "1", but not evaluated.

  • Page 108: Communication

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Communication The communication happens via the send and receive blocks SFC 217 Overview (SER_SND) and SFC 218 (SER_RCV). The SFCs are included in the consignment of the CPU. This block sends data via the serial interface.
  • Page 109 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Return values of the block: RetVal SFC 217 (Error message SER_SND) Error code Description 0000h Send data - ready 1000h Nothing sent (data length 0) 20xxh Protocol executed error free with xx bit pattern for diagnosis...
  • Page 110 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication ... Continue RetVal SFC 217 Error code Description SER_SND 2000h Send ready without error 8080h Receive buffer overflow (no space for receipt) 8090h Acknowledgement delay time exceeded 80F0h Wrong checksum in respond...
  • Page 111 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication The following text shortly illustrates the structure of programming a send Principles of command for the different protocols. programming 3964R USS / Modbus SFC 217 SFC 217 SER_SND SER_SND Busy ?
  • Page 112 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication This block receives data via the serial interface. SFC 218 Using the SFC 218 SER_RCV after SER_SND with the protocols USS and (SER_RCV) Modbus the acknowledgement telegram can be read.
  • Page 113 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Return values of the block: RetVal SFC 218 (Error message SER_RCV) Error code Description 0000h no error 1000h Receive buffer too small (data loss) 8x24h Error at SFC-Parameter x, with x: 1: Error at "DataPtr"...

  • Page 114: Protocols And Procedures

    The communication procedure has to be controlled by the concerning user application. An according Receive_ASCII FB may be found within the VIPA library in the service area of www.vipa.de. STX/ETX is a simple protocol with start and end ID, where STX stands for STX/ETX Start of Text and ETX for End of Text.
  • Page 115 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication The 3964R procedure controls the data transfer of a point-to-point link 3964R between the CPU and a communication partner. The procedure adds control characters to the message data during data transfer. These control characters may be used by the communication partner to verify the complete and error free receipt.
  • Page 116 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication The USS protocol (Universelle serielle Schnittstelle = universal serial interface) is a serial transfer protocol defined by Siemens for the drive and system components. This allows to build-up a serial bus connection between a superordinated master and several slave systems.
  • Page 117 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication The Modbus protocol is a communication protocol that fixes a hierarchic Modbus structure with one master and several slaves. Physically, Modbus works with a serial half-duplex connection. There are no bus conflicts occurring, because the master can only communicate with one slave at a time.

  • Page 118: Modbus - Function Codes

    0x and 1x gives you access to digital Bit areas and 3x and 4x to analog word areas. For the CPs from VIPA is not differentiating digital and analog data, the following assignment is valid: Bit area for master output data...
  • Page 119 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication With the following Modbus function codes a Modbus master can access a Overview Modbus slave: With the following Modbus function codes a Modbus master can access a Modbus slave. The description always takes place from the...
  • Page 120 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Code 01h: Read n Bits of master output area 0x Read n Bits 01h, 02h Code 02h: Read n Bits of master input area 1x Command telegram Slave address Function code...
  • Page 121 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Code 06h: Write 1 Word to master output area 4x Write 1 Word Command telegram Slave address Function Address Value Check sum code word word CRC/LRC 1Byte 1Byte 1Word 1Word...

  • Page 122: Modbus - Example Communication

    Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Modbus - Example communication The example establishes a communication between a master and a slave Overview via Modbus. The following combination options are shown: Modbus master (M) Modbus slave (S)
  • Page 123 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication Master Slave CPU 31xS CPU 21xSER-1 Master Slave code/data SER_SND SER_RCV SER_RCV RetVal RetVal code SER_SND SER_SND SER_RCV data RetVal OB100: Start Start SFC 216 SFC 216 SER_CFG SER_CFG (DB: Timeout)
  • Page 124 Manual VIPA System 300S SPEED7 Chapter 5 Deployment PtP communication 5-26 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 125: Chapter 6 Deployment Profibus Communication

    Content of this chapter is the deployment of the CPU 317-4PN12 with Overview PROFIBUS. After a short overview the project engineering and parameteri- zation of a CPU 317-4PN12 with integrated PROFIBUS part from VIPA is shown. Further you get information about the usage as DP master and DP slave of the PROFIBUS part.

  • Page 126: Overview

    Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication Overview PROFIBUS is an international standard applicable to an open and serial PROFIBUS DP field bus for building, manufacturing and process automation that can be used to create a low (sensor-/actuator level) or medium (process level) performance network of programmable logic controllers.

  • Page 127: Fast Introduction

    Information about transferring a project may be found at chapter "Deployment CPU ..." at "Project transfer". Note To be compatible to the Siemens SIMATIC manager, the CPU 317-4PN12 from VIPA is to be configured as CPU 317-2PN/DP (6ES7 317-2EK13-0AB0 V2.6) The integrated PROFIBUS DP master (X3) is to be configured and connected via the sub module X1 (MPI/DP).

  • Page 128: Hardware Configuration - Cpu

    This may cause conflicts in applications that presume an unmodified ACCU2. For more information may be found in the manual "VIPA Operation list SPEED7" at "Differences between SPEED7 and 300V programming". To be compatible with the Siemens SIMATIC manager the following steps...

  • Page 129: Deployment As Profibus Dp Master

    Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication Deployment as PROFIBUS DP master • The hardware configuration described before was established. Precondition • Open the properties dialog of the MPI/DP interface of the CPU by Proceeding means of a double-click at MPI/DP.

  • Page 130: Deployment As Profibus Dp Slave

    Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication Deployment as PROFIBUS DP slave In the following the deployment of the PROFIBUS section as "intelligent" Fast introduction DP slave on master system is described, which exclusively may be configured in the Siemens SIMATIC manager.
  • Page 131 Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication • Insert another station and configure a CPU. Project engineering of the • Designate the station as "...DP-Master". master section • Add your modules according to the real hardware assembly.

  • Page 132: Profibus Installation Guidelines

    Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication PROFIBUS installation guidelines • A PROFIBUS DP network may only be built up in linear structure. PROFIBUS in general • PROFIBUS DP consists of minimum one segment with at least one master and one slave.
  • Page 133 In PROFIBUS all participants are wired parallel. For that purpose, the bus bus connector cable must be feed-through. Via the order number VIPA 972-0DP10 you may order the bus connector "EasyConn". This is a bus connector with switchable terminating resistor and integrated bus diagnostic.
  • Page 134 A (EN50170). Starting with release 5 you also can use highly flexible bus cable: Lapp Kabel order no.: 2170222, 2170822, 2170322. With the order no. 905-6AA00 VIPA offers the "EasyStrip" de-isolating tool that makes the connection of the EasyConn much easier.

  • Page 135: Commissioning And Start-Up Behavior

    Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication Commissioning and Start-up behavior In delivery the CPU is overall reset. The PROFIBUS part is deactivated and Start-up on its LEDs are off after Power ON. delivery The DP master can be served with bus parameters by means of a Online with bus hardware configuration.
  • Page 136 Manual VIPA System 300S SPEED7 Chapter 6 Deployment PROFIBUS communication Dependent on the mode of operation the LEDs show information about the LEDs state of operation of the PROFIBUS part according to the following pattern: PROFIBUS/PtP interface X3 Master operation...

  • Page 137: Chapter 7 Deployment Ethernet Com. - Productive

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Chapter 7 Deployment Ethernet com. - productive In this chapter the deployment of the PROFINET IO controller as Ethernet Overview CP for productive connections is described. Please regard the chapter "Fast introduction" where you will find every information compressed required for the project engineering of the PROFINET IO controller as Ethernet CP.

  • Page 138: Basics - Industrial Ethernet In Automation

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Basics - Industrial Ethernet in automation The flow of information in a company presents a vast spectrum of Overview requirements that must be met by the communication systems. Depending...

  • Page 139: Basics - Iso/Osi Reference Model

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Basics - ISO/OSI reference model The ISO/OSI reference model is based on a proposal that was developed Overview by the International Standards Organization (ISO). This represents the first step towards an international standard for the different protocols.
  • Page 140 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Bit communication layer (physical layer) Layers Layer 1 The bit communication layer (physical layer) is concerned with the transfer of data bits via the communication channel. This layer is therefore...
  • Page 141 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Session layer Layers Layer 5 continued... The session layer is also called the communication control layer. It relieves the communication between service deliverer and the requestor by establishing and holding the connection if the transport system has a short time fail out.

  • Page 142: Basics - Terms

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Basics - Terms A network res. LAN (Local Area Network) provides a link between different Network (LAN) stations that enables them to communicate with each other. Network stations consist of PCs, IPCs, TCP/IP adapters, etc.

  • Page 143: Basics - Protocols

    • The acknowledgement of the data transfer is established from the partner station at level 7 of the ISO/OSI reference model. • At the PLC side FB/SFB VIPA handling blocks are necessary for data transfer for the Siemens S7 connections.
  • Page 144 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive In the open communication the communication takes place via the user Open program by means of handling blocks. These blocks are part of the communication Siemens SIMATIC Manager. You will find these in the "Standard Library" at "Communication Blocks".

  • Page 145: Basics - Ip Address And Subnet

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Basics - IP address and subnet PROFINET exclusively supports IPv4. At IPv4 the IP address is a 32Bit IP address address that must be unique within the network and consists of 4 numbers structure that are separated by a dot.
  • Page 146 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive For IPv4 addresses there are five address formats (class A to class E) that Address classes are all of a length of 4byte = 32bit. Class A 0 Network-ID...

  • Page 147: Fast Introduction

    Information about transferring a project may be found at chapter "Deployment CPU ..." at "Project transfer". Note To be compatible to the Siemens SIMATIC manager, the CPU 317-4PN12 from VIPA is to be configured as CPU 317-2PN/DP (6ES7 317-2EK13-0AB0 V2.6) The integrated PROFIBUS DP master (X3) is to be configured and connected via the sub module X1 (MPI/DP).

  • Page 148: Commissioning And Initialization

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Commissioning and Initialization • Install your System 300S with your CPU. Assembly and commissioning • Wire the system by connecting cables for voltage supply and signals • Connect your PROFINET IO controller with Ethernet.

  • Page 149: Hardware Configuration - Cpu

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Hardware configuration - CPU The hardware configuration of the VIPA CPU 317-4PN12 takes place at the Requirements Siemens hardware configurator. The hardware configurator is a part of the Siemens SIMATIC Manager. It serves the project engineering.

  • Page 150: Configure Siemens S7 Connections

    "In unknown project" or via deputy objects like "Other stations" or Siemens "SIMATIC S5 Station". The communication is controlled by the user program with VIPA handling blocks. To use this blocks, configured communication connections are always necessary in the active station.
  • Page 151 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Note! Every station outside of the recent project must be configured as replacement objects like e.g. Siemens "SIMATIC S5" or "other station" or with the object "In unknown project".
  • Page 152 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive You receive the following graphical display for every PLC station and their PLC stations component. By selecting the single components, the context menu offers you several functions: Station...
  • Page 153 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive For the project engineering of connections, open the connection list by Projecting selecting the according CPU. Choose Insert new connection in the context connections menu: Station 1 CPU3...
  • Page 154 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Choose the connection partner and the type of connection and confirm with Open the [OK]. properties dialog If activated, a properties dialog for the according connection opens as link to your PLC user program.
  • Page 155 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive For data transfer with Siemens S7 connections the FB/SFB VIPA handling Siemens S7 blocks are necessary; the deployment is described in the manual connection "Operation list" of your CPU.
  • Page 156 • Siemens S7-300 communication functions By integration of the function blocks FB 8 ... FB 15 from VIPA you may access the Siemens S7-300 communication functions. • Siemens S7-400 communication functions For the Siemens S7-400 communication functions the SFB 8 ... SFB 15 are to be used, which were integrated to the operating system of the CPU.
  • Page 157 The following function blocks may be used for Siemens S7 commu- Function blocks nications. More about the usage of the handling blocks may be found in the manual Operation list HB00_OPL_SP7 in chapter "VIPA specific blocks". FB/SFB Label Description FB/SFB 8...

  • Page 158: Configure Open Communication

    Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Configure Open Communication Connection-oriented protocols establish a (logical) connection to the Connection- communication partner before data transmission is started. And if oriented necessary they terminate the connection after the data transfer was protocols finished.
  • Page 159 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive There is thus no establishment and termination of a connection with a Connection-less remote partner. Connection-less protocols transmit data with protocol acknowledge and with no reliable guaranteed delivery to the remote partner.
  • Page 160 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive Those in the following listed UTDs and FBs serve for "open communication" Handling blocks with other Ethernet capable communication partners via your user program. These blocks are part of the Siemens SIMATIC Manager. You will find these in the "Standard Library"...

  • Page 161: Ncm Diagnostic - Help For Error Diagnostic

    Set the receive res. send buffer defined via the TCP? ANY pointer to the required size. The VIPA PROFINET IO controller supports the Siemens NCM diagnostic Siemens NCM tool. The NCM diagnostic tool is part of the Siemens SIMATIC manager.
  • Page 162 Node addr.: Enter the IP address of the CP Rack/slot: For the VIPA PROFINET IO controller please enter 0 for module rack and 125 as slot. Set your PG/PC interface to "TCP/IP -> Network card ..". Via [OK] you start the online diagnostic.
  • Page 163 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive The PROFINET IO controller has a diagnostic buffer. This has the Read diagnostic architecture of a ring memory and may store up to 100 diagnostic buffer messages. The NCM diagnostic allows you to monitor and evaluate the diagnostic messages via the diagnostic object Diagnostic buffer.
  • Page 164 Manual VIPA System 300S SPEED7 Chapter 7 Deployment Ethernet com. - productive 7-28 HB140E - CPU - RE_317-4PN12 - Rev. 12/05...

  • Page 165: Chapter 8 Deployment Ethernet Com. - Profinet

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Chapter 8 Deployment Ethernet com. - PROFINET Here the deployment of the PROFINET IO controller with PROFIBUS is Overview described. Please regard the chapter "Fast introduction" where you will find every information compressed required for the project engineering of the PROFINET IO controller for PROFINET.

  • Page 166: Basics Profinet

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Basics PROFINET PROFINET is an open Industrial Ethernet Standard from PROFIBUS & General PROFINET International (PI) for automation. PROFINET is standardized in the IEC 61158. PROFINET uses TCP/IP and IT standards and supplements the PROFIBUS technology for applications, where fast data communication with industrial IT functions is demanded.
  • Page 167 The IO device is a distributed I/O field device, which is connected to PROFINET. The IO device is equal to the slave of PROFIBUS. From VIPA there is a GSDML files for your IO device available. This file may either be found on the supplied storage media or at the download area of www.vipa.de.

  • Page 168: Profinet Installation Guidelines

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET PROFINET installation guidelines The topic of data security and access protection have become increasingly Generals to important in the industrial environment. The increased networking of entire data security...
  • Page 169 Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Topology Linear With the linear structure all the communication devices are connected via a linear bus topology. Here the linear bus topology is realized with switches that are already integrated into the PROFINET device.

  • Page 170: Basics - Ip Address And Subnet

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Basics - IP address and subnet PROFINET exclusively supports IPv4. At IPv4 the IP address is a 32Bit IP address address that must be unique within the network and consists of 4 numbers structure that are separated by a dot.
  • Page 171 Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET For IPv4 addresses there are five address formats (class A to class E) that Address classes are all of a length of 4byte = 32bit. Class A 0 Network-ID...

  • Page 172: Fast Introduction

    Information about transferring a project may be found at chapter "Deployment CPU ..." at "Project transfer". Note To be compatible to the Siemens SIMATIC manager, the CPU 317-4PN12 from VIPA is to be configured as CPU 317-2PN/DP (6ES7 317-2EK13-0AB0 V2.6) The integrated PROFIBUS DP master (X3) is to be configured and connected via the sub module X1 (MPI/DP).

  • Page 173: Commissioning And Initialization

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Commissioning and Initialization • Install your System 300S with your CPU. Assembly and commissioning • Wire the system by connecting cables for voltage supply and signals • Connect your PROFINET IO controller with Ethernet.

  • Page 174: Hardware Configuration - Cpu

    This may cause conflicts in applications that presume an unmodified ACCU2. For more information may be found in the manual "VIPA Operation list SPEED7" at "Differences between SPEED7 and 300V programming". To be compatible with the Siemens SIMATIC manager the following steps...

  • Page 175: Parameter - Profinet Io Controller

    In the following these parameters are described. PN-IO General Short description Designation of the IO controller. The IO controller from VIPA always has the short description "PN-IO". Device name The device name on the Ethernet subnet must be unique. For an integrated Profinet interface the device name is derived from the short description.
  • Page 176 OB 82 at an error event of the PROFINET interface. An entry to the diagnostics buffer is always done. The other parameters in this tab are not relevant for the use of the VIPA PROFINET CPU. This tab shows the synchronization properties of the IO controller. Here...

  • Page 177: Configuration Profinet Io Device

    Install catalog. GSDML For the deployment of the PROFINET IO devices from VIPA you have to include the modules into the hardware catalog by means of the GSDML file from VIPA. After the installation of the GSDML file the PROFINET IO devices from VIPA may be found in the hardware catalog at PROFINET IO >...

  • Page 178: Commissioning And Start-Up Behavior

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET Commissioning and Start-up behavior In delivery the CPU is overall reset. The PROFINET part is deactivated and Start-up on its LEDs are off after PowerON. delivery For the communication between IO controller and IO device the ways for Online with bus the communication are to be defined before.
  • Page 179 Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET After PowerON respectively a receipt of a new hardware configuration the CPU state configuration data are automatically transferred to the IO controller. influences the Dependent on the CPU state the following behavior is shown by the IO...

  • Page 180: Profinet Diagnostics

    Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET PROFINET Diagnostics There are the following possibilities to get diagnostics information about Overview your system: • Diagnostics with the configuration and engineering tool • Diagnostics during run-time in the user program (OB 1, SFB 52) •...
  • Page 181 Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET With the SFB 52 RDREC (read record) the diagnostics data may be Diagnostics accessed by the user program e.g. from the OB 1. during run-time in The SFB 52 works asynchronous, this means the operation is extended the user program over several SFB calls.
  • Page 182 Manual VIPA System 300S SPEED7 Chapter 8 Deployment Ethernet com. - PROFINET If an error occurs the faulty system reports a diagnostics message to the Diagnostics CPU. This indicates that the CPU calls the corresponding diagnostics OB. via OB start...

This manual is also suitable for:

317-4pn12317-4ne12

Table of Contents
