Instruction Manual
ILM 1332A
Digital Illuminance Meter
IT
DE
ES
EN
FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILM 1332A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RS PRO ILM 1332A

Summary of Contents for RS PRO ILM 1332A

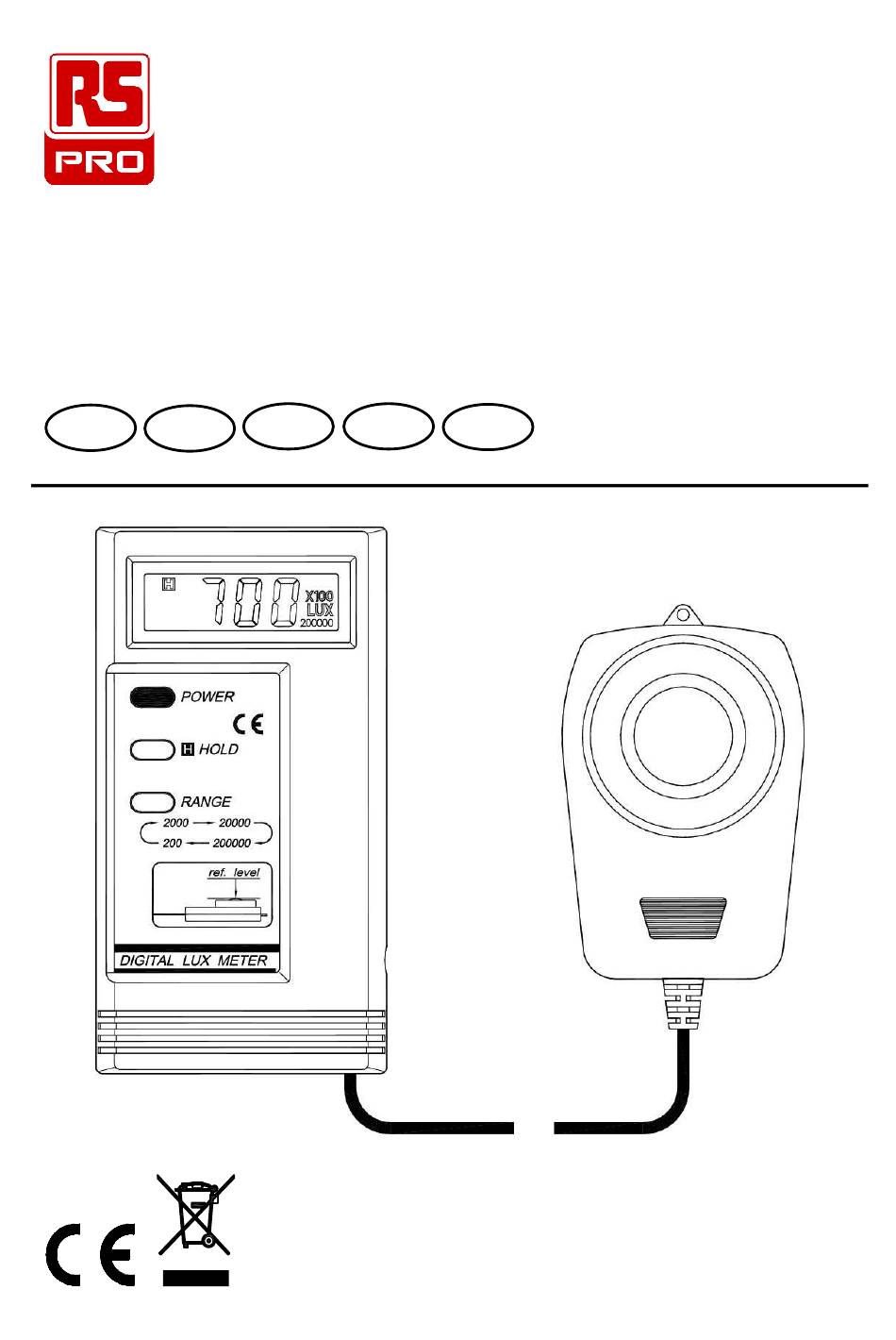

  • Page 1 Instruction Manual ILM 1332A Digital Illuminance Meter...

  • Page 2: Table Of Contents

    CONTENTS Title Page INSTRUCTION............ 1 FEATURES ............1 III. SPECIFICATIONS ..........1 NAME OF PARTS AND POSITIONS ....3 OPERATING INSTRUCTIONS ......4 BATTERY CHECK-UP ＆ REPLACEMENT ..5 VII. SPECTRAL SENSITIVITY CHARACTERISTIC . 6 VIII. MAINTENANCE ..........6 RECOMMENDED ILLUMINATION ....7...

  • Page 3: Instruction

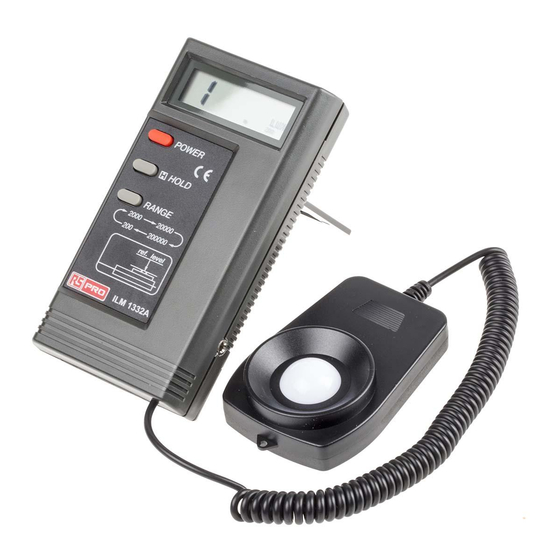

    The ILM 1332A Digital illuminance meter is a precision instrument used to measure illuminance in the field. It is fully cosine corrected for the angular incidence of light. The illuminance meter is compact, robust and easy to use. The light sensitive device used in the instrument is a very stable, long life silicon diode.
  • Page 4 • Spectral response: CIE Photopic. (CIE human eye response curve). • ≦ 6% Spectral accuracy: CIE Vλ function f ’ • ≦ 2% Cosine response: f ’ • Accuracy ：± 3 ﹪ of reading ± 0.5 ﹪ full-scale （± 4 ﹪ of reading ±...

  • Page 5: Name Of Parts And Positions

    1. LCD Display ： 3 Digits with a maximum reading of 1999, and indicating symbols for: " LUX ", Data-hold " H ", Range "20,000", "x10" (reading x10), "200,000", "x100" (reading x100), Low battery "BT", etc. 2. Range indicator：Indicates 200 LUX, 2000 LUX, 20,000 LUX, and 200,000 LUX ranges respectively.

  • Page 6: Operating Instructions

    4. Data-hold button ： Press the HOLD button to select HOLD mode. When HOLD mode is selected, the illuminance meter stops all further measurements. Pressing the HOLD button again cancels HOLD mode, causing the illuminance meter to resume measurement. 5. Range button ： Pressing the range button changes from 200 LUX, 2,000 LUX, 20,000 LUX and 200,000 LUX range sequentially.

  • Page 7: Battery Check-Up ＆ Replacement

    4. Read the illuminance value from the LCD display. 5. Overange ： If the instrument only display one "1" in the M.S.D. position, the input signal is too strong and a higher range should be selected. 6. Data-hold mode ： Press the HOLD key to select HOLD mode.

  • Page 8: Spectral Sensitivity Characteristic

    • The sensor device in the instrument together with its filter, makes the spectral sensitivity characteristic very close to the C.I.E. (INTERNATIONAL COMMISSION ON ILLUMINATION) photopic curve V(λ) as shown in the following chart. Light Meter Wavelength in Nonometers 1. The white plastic disc on the top of the detector should be cleaned with a damp cloth when necessary.

  • Page 9: Recommended Illumination

    LOCATIONS • OFFICE ～ Conference, Reception room. ～ Clerical work 1,500 1000 ～ Typing drafting 2,000 • FACTORY ～ Packing work, Entrance passage ～ Visual work at production line ～ Inspection work 1,500 1500 ～ Electronic parts assembly line 3,000 •...
