Instruction Manual

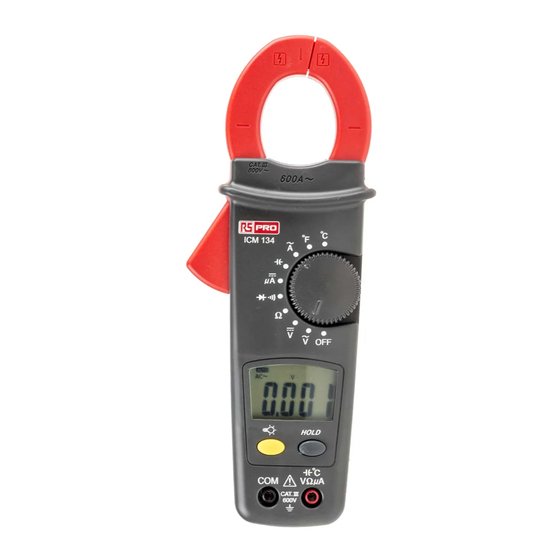

ICM 134
Clamp Meter
EN
DE
ES
IT
FR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICM 134 and is the answer not in the manual?

Questions and answers

Related Manuals for RS PRO ICM 134

Summary of Contents for RS PRO ICM 134

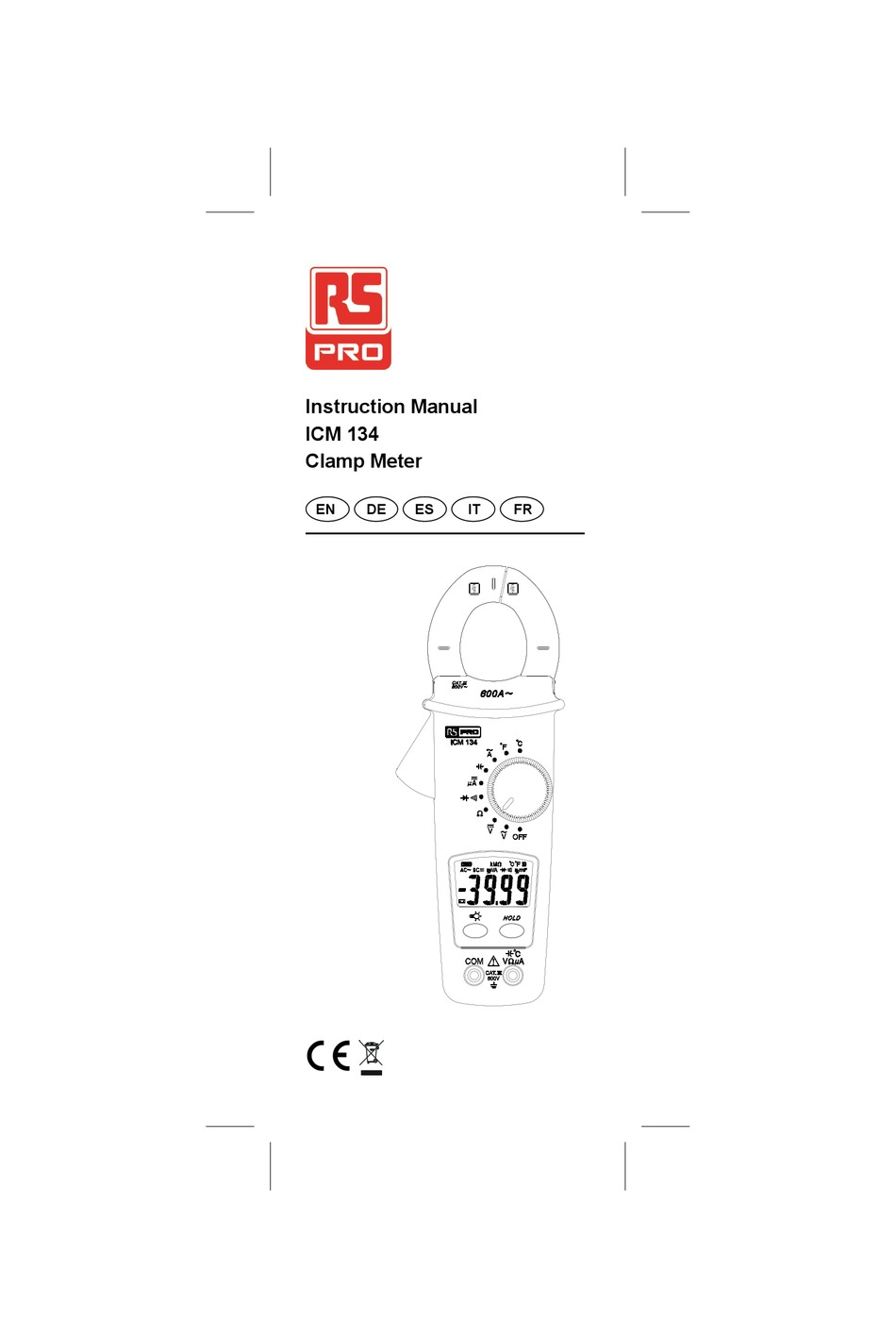

  • Page 1 Instruction Manual ICM 134 Clamp Meter ...

  • Page 2: Safety Information

     Safety Information Read and understand this Instruction Manual completely before using this instrument. Failure to observe the warnings and cautions in this Instruction Manual may result in injury or death, or damage to the instrument and other equipment or property.
  • Page 3 - Wear suitable Personal Protective Equipment when working around or near hazardous Live conductors which could be accessible. - Do not use the thermocouple to measure the temperature of Hazardous Live conductors or equipment.  Caution - Disconnect the test leads from the test points before changing the position of the function rotary switch.

  • Page 4: Maintenance

    Maintenance Do not attempt to repair this Instrument. It contains no user-serviceable parts. Repair or servicing should only be performed by qualified personnel. This instrument should be calibrated yearly, or more frequently if used in harsh conditions or if it is suspected of being inaccurate. For calibration and repair contact RS Components - the address is given at the end of these instructions.

  • Page 5: Power On/Off

    Power On / Off Auto Power Off To conserve battery power, the Auto Power -off function will turn the instrument off approximately 10 minutes after the last operation. 10min To disable the Auto Power-off function: Turn the instrument off, press and hold the “Backlight”...
  • Page 6 ACV / DCV Resistance EN - 6...

  • Page 7: Diode / Continuity

    Diode / Continuity EN - 7...
  • Page 8 DC µ A Capacitance Note – To improve the measurement accuracy of a small value capacitor, record the reading with the test leads open circuit, then substract the residual capacitance of the Instrument and leads from the final measurement. UNKNOWN MEASUREMENT RESIDUAL EN - 8...
  • Page 9 Temperature Data Hold EN - 9...
  • Page 10  CAT.Ⅲ.600V with respect to earth for the jaw. Tactile Barrier for hand guard.  Do not hold the meter across the Tactile Barrier. I + (-I) = 0 Back Light EN - 10...

  • Page 11: Specifications

    Specifications 1-1 General Specifications LCD display digits : digit large scale Liquid Crystal Display. Display resolution : 4000 counts. Measurement rate : 1.5 times / sec. Overrange display : “OL” is displayed for "Ω" functions, The real value is shown for the "A" ,"V" and "°C/°F "...
  • Page 12 Measurement Category lll is for measure- ments performed in the building installation. Examples include measurements on distribution boards, junction boxes, socket- outlets and wiring and cables in the fixed installation. Measurement Category lV is for measure- ments performed at the source of the low-voltage installation.

  • Page 13: Electrical Specifications

    1-3 Electrical Specifications Accuracy is ±(% reading + number of digits) at 23°C (73.4°F) ± 5°C (± 9°F) < 80%RH. Temperature coefficient : Add 0.2 x (Specified accuracy) / °C (1.8°F), < 18°C > 28°C (< 64.4°F >82.4°F). DC / AC Volts Range DC Accuracy AC Accuracy...
  • Page 14 Diode Check and Continuity Resolution Accuracy 10 mV ±(1.5%+5 dgt)* * For 0.4V ~ 0.8V Max.Test Current : 1.5mA Max. Open Circuit Voltage : 3V Overload Protection : 600Vrms Continuity : The built-in buzzer sounds when the resistance is less than approxi- mately 100Ω.

  • Page 15: Battery Replacement

    Temperature Function Range Accuracy -40.0 °C ~ 0.0°C 1% ± 4 °C °C 1% ± 3 °C 0.0 °C ~ 400.0 °C 1% ± 8 F -40 °F ~ 32 °F 1% ± 6 F 32 °F ~ 750 °F °F 2% ±...

  • Page 16: Limited Warranty

    Limited Warranty This instrument is warranted to the original purchaser against defects in material and workmanship for 3 year from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verifica- tion of the defect or malfunction.
  • Page 17 EN - 17...
  • Page 18 Africa RS Components SA P.O. Box 12182, Vorna Valley, 1686 20 Indianapolis Street, Kyalami Business Park, Kyalami, Midrand South Africa www.rs-components.com Asia RS Components Pte Ltd. 31 Tech Park Crescent Singapore 638040 www.rs-components.com China RS Components Ltd. Suite 23 A-C East Sea Business Centre Phase 2 No.
