- Page 1 Instruction Manual IM-191 Magnetic Field Meter...
- Page 2 Magnetic Field Meter/ English Contents Introduction EN‐2 Features EN‐2 General Specification EN‐2 Instrument Description EN‐3 Safety EN‐3 Operation EN‐4 Battery Replacement EN‐5 Limited Warranty EN‐6 Contact information EN‐7 2016-7-5/ V001 EN-1...
- Page 3 Magnetic Field Meter/ English Introduction: IM-191 is measuring electromagnetic fields of extremely low frequency (ELF) of 30 to 300Hz. It’s capable of measuring the electromagnetic field radiation intensity t that is produced by electric transmission equipment, power lines, microwave ovens, air conditioners, refrigerators, computer monitors, video/audio devices, etc.

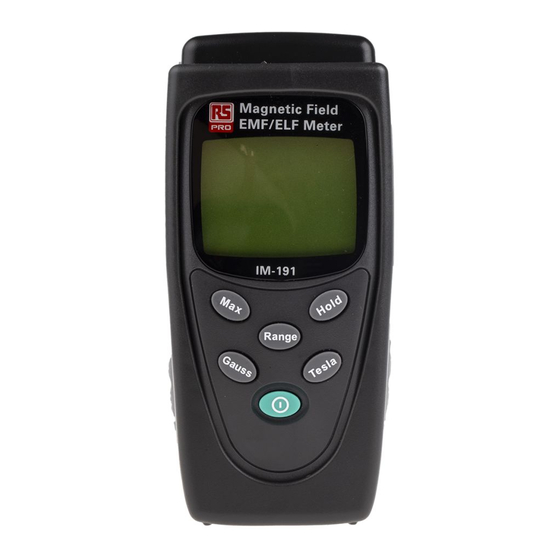

- Page 4 Magnetic Field Meter/ English Instrument description: 1. Sensor. 2. LCD 3. Power on/off. 4. maximum hold button 5. Data hole button 6. mG unit select button 7. µT unit select button 8. Range select button Battery cover. Safety: CAUTION Be extremely careful for the following conditions while measuring.
- Page 5 Magnetic Field Meter/ English Operation: 1. Press to turn the power on or off. 2. Turn the meter on, select the unit of press mG(Gauss) or μT(Tesla). 3. Position the front (see Figure 1) of the meter to measure the electromagnetic waves. Change the measurement angle or position to obtain the highest reading value (see Figure 2 through Figure 6).
- Page 6 Magnetic Field Meter/ English Range The LCD displays “OL” on the left highest position indicates overload reading. Press to select a higher range and repeat the measurement. To retain the maximum value, press and the reading value displayed on the LCD will keep updating to the maximum value.
- Page 7 Magnetic Field Meter/ English Limited Warranty: This meter is warranted to the original purchaser against defects in material and workmanship for 3 year from the date of purchase. During this warranty period, RS Components will, at its option, replace or repair the defective unit, subject to verification of the defect or malfunction.
- Page 8 Magnetic Field Meter/ English Contact information: Japan Africa RS Components Ltd. RS Components SA West Tower (12th Floor), P.O. Box 12182, Yokohama Business Vorna Valley, 1686 Park, 20 Indianapolis Street, 134 Godocho, Hodogaya, Kyalami Business Park, Yokohama, Kanagawa Kyalami, Midrand 240-0005 South Africa Japan...
